Product Description

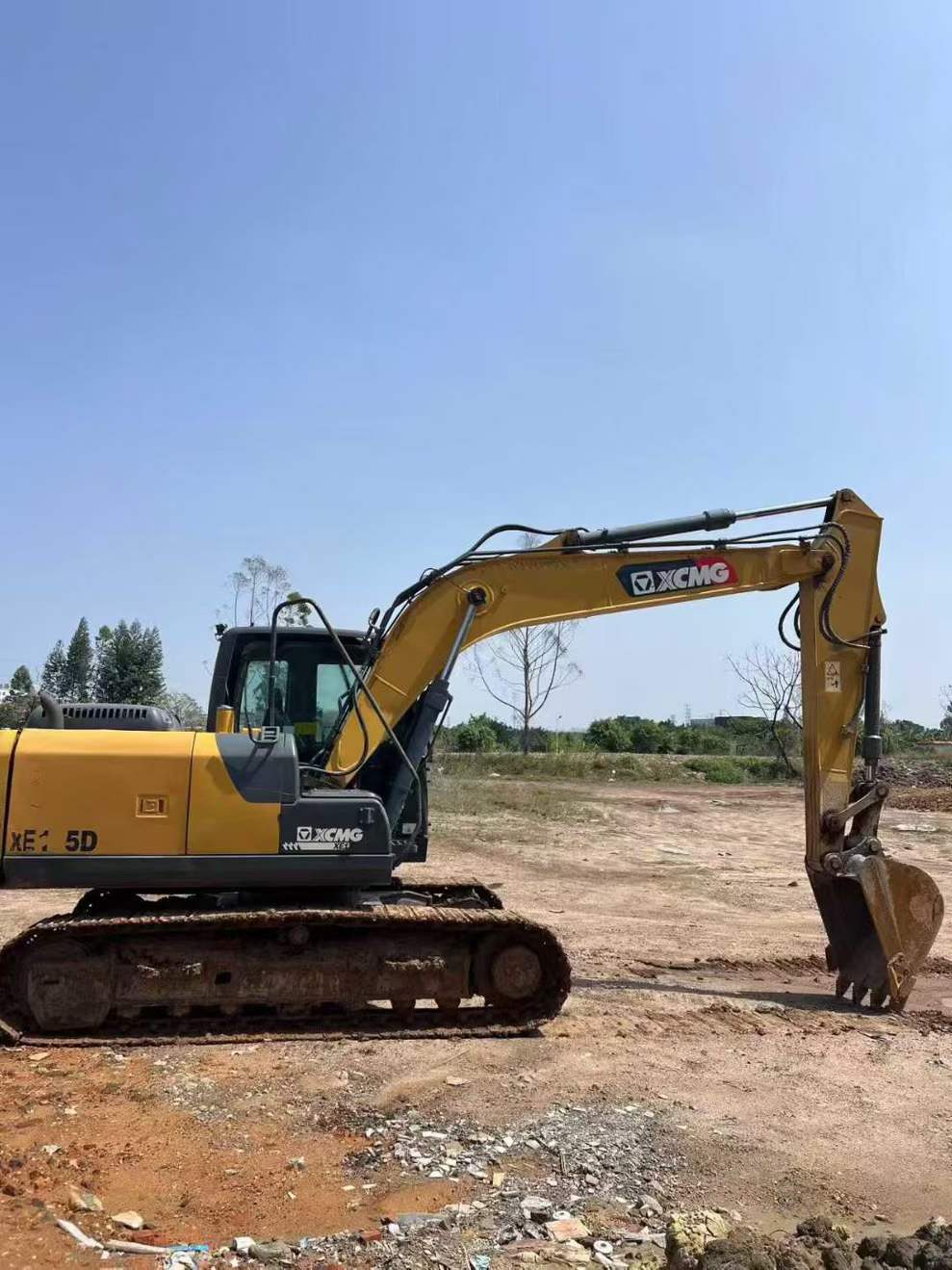

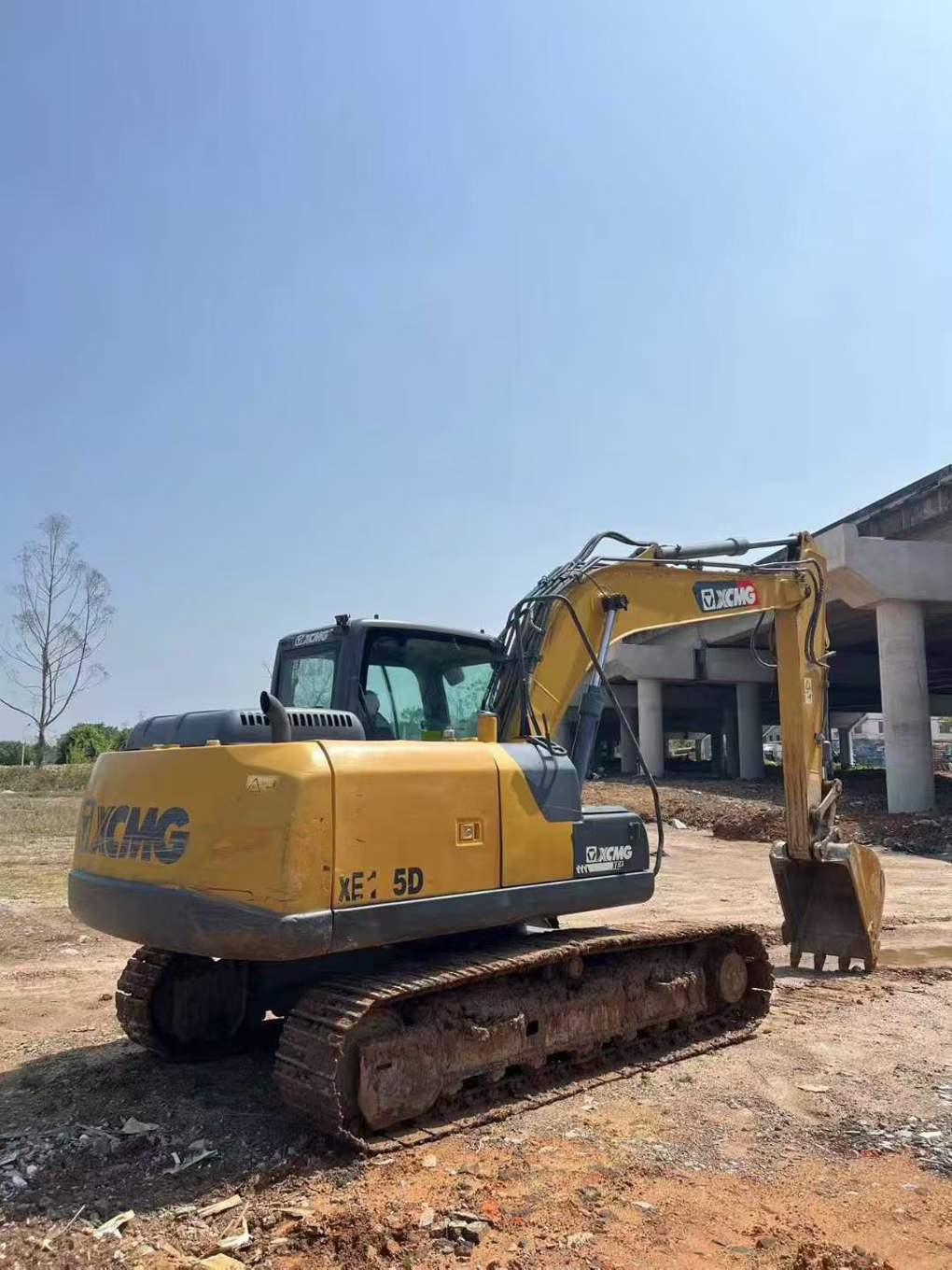

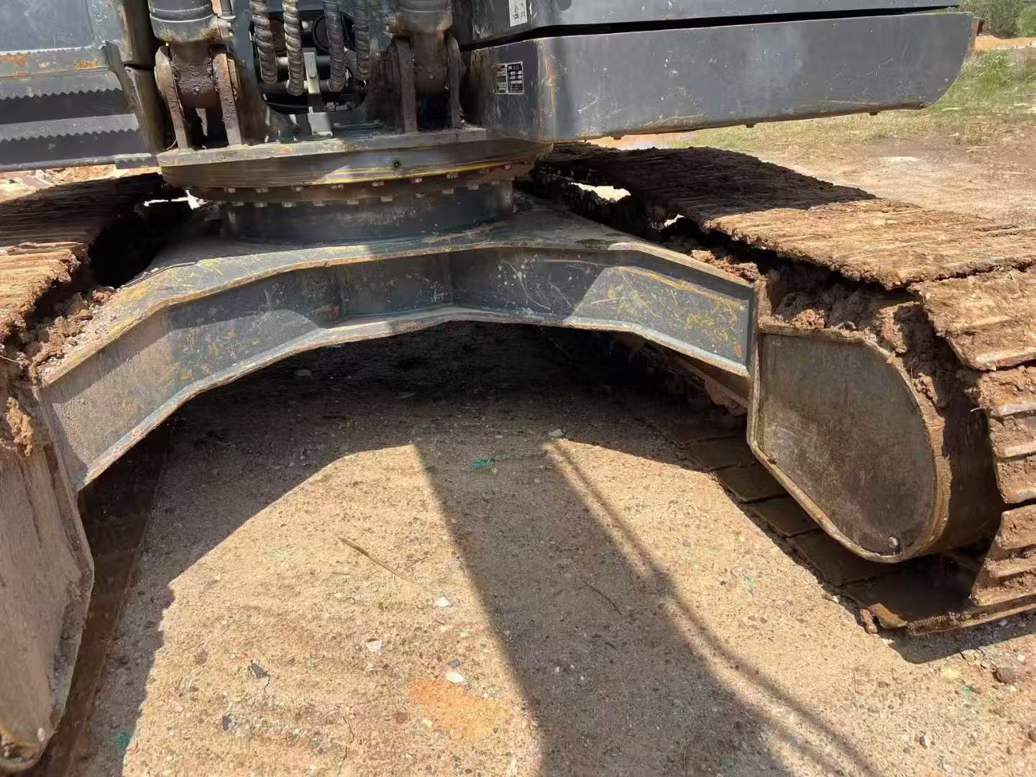

Built for performance in 2022, this XCMG XE135B crawler excavator delivers 69.6kW of ISUZU power and 13-ton operating capacity for demanding earthmoving operations. Currently positioned in Hunan, China, this machine combines proven hydraulic muscle with field-tested reliability across construction, utility, and demolition applications.
Engineered with a 4600mm boom and 2510mm arm, the XE135B reaches 8296mm maximum digging radius and digs to 5538mm depth—ideal for trenching, foundation work, and site preparation. Dual plunger pumps supply 2×123 L/min flow, while 85kN bucket force and 65kN arm force cut through compacted soil and rocky substrates. The water-cooled 4-cylinder turbocharged engine runs continuously in high-demand cycles.
Operational advantages include:
- 0.4-0.52m³ bucket capacity handles varied material loads
- 12.3 RPM swing speed optimizes truck loading cycles
- 35° gradeability tackles sloped terrain without hesitation
- 5.16 km/h travel speed repositions quickly between cuts
- 250L fuel tank extends runtime between refills
Compact 7770mm transport length simplifies jobsite mobility. Ready to dig, load, and grade from delivery.
| Specifications | Value |
|---|---|
| No. | 1024766 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

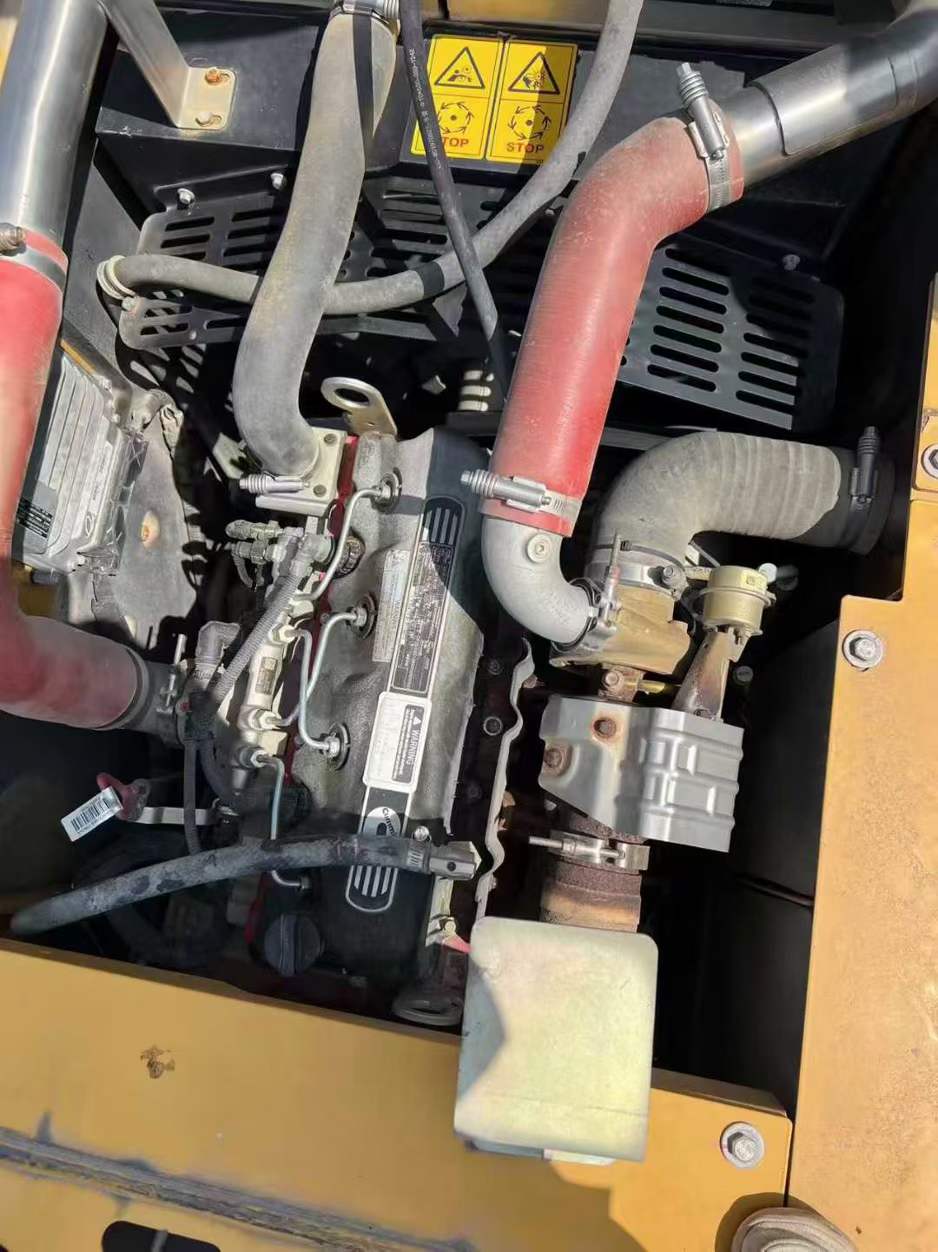

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

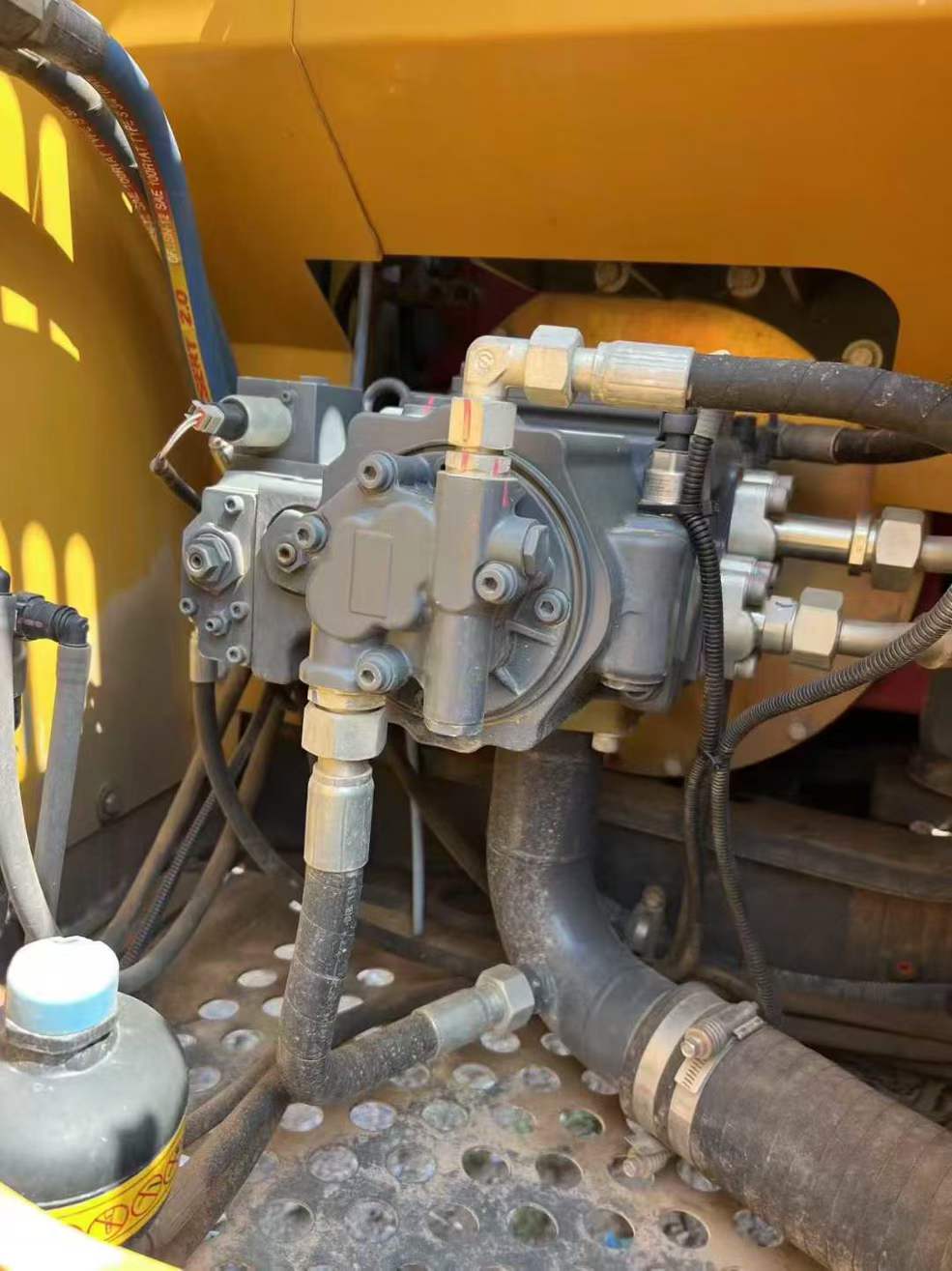

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
