Name: Used Excavators 2022 XCMG XE135B
Brand: XCMG
SKU: USED-1039850
Availability: InStock
Rating: 4.5 (08 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Engineered for demanding excavation work, this 13-ton crawler excavator combines proven ISUZU BB-4BG1TRP diesel technology with robust hydraulic architecture. Rated at 69.6 kW, the water-cooled, turbocharged 4-cylinder engine delivers consistent power through dual plunger pumps generating 2×123 L/min flow at 31.4 MPa system pressure. Hydraulic performance translates directly to productivity: 85 kN bucket digging force and 65 kN arm digging force handle consolidated materials efficiently.

Operating specifications demonstrate versatility across job sites:
<ul>
<li>Maximum digging reach: 8,296 mm with 5,538 mm depth capability</li>
<li>0.4–0.52 m³ bucket capacity matched to 4,600 mm boom and 2,510 mm arm</li>
<li>35° grading ability with 42 kPa ground pressure minimizing surface disturbance</li>
<li>Compact transport dimensions: 7,770×2,512×2,880 mm for trailer mobility</li>
</ul>

Manufactured in Xuzhou with 13,800 kg working weight, this model balances power density with fuel efficiency. Dual-speed travel (5.16/3.03 km/h) and 12.3 rpm swing speed optimize cycle times. Currently located in Wenzhou, Zhejiang—ready for immediate deployment.

With a tonnage of 6 and powered by traditional means, this 2016 Doosan DH60 excavator offers high performance at a significantly reduced cost compared to new models. Manufactured through a joint venture/import, it ensures reliability and robust construction. Located in Zhejiang Jinhua, this backhoe-equipped machine is a smart investment for those seeking efficiency without the premium price tag. Ideal for a variety of construction and excavation tasks, it provides a solid return on investment with its durable design and versatile capabilities.
<ul>
<li>Year: 2016</li>
<li>Brand: Doosan</li>
<li>Model: DH60</li>
<li>Tonnage: 6 tons</li>
<li>Power: Traditional</li>
<li>Manufacturer: Joint venture/Import</li>
<li>Bucket: Backhoe</li>
</ul>

Doosan DH60

Engineered with Komatsu's proven SAA6D107E-1 engine delivering 110 kW at 2000 rpm, this 2014 PC210LC-8 represents a benchmark in 21-ton excavator performance. The 6.69-liter displacement unit drives a sophisticated hydraulic system generating 152 kN bucket digging force and 130 kN arm digging force, ensuring consistent power delivery across demanding earthmoving applications.

Built to joint venture/import standards, the PC210LC-8 features precision-engineered reach capabilities including a 9,380 mm maximum digging radius and 6,095 mm digging depth. Operating weight of 20,900 kg provides exceptional stability during full-extension operations, while the 1.0 m³ backhoe bucket optimizes material handling efficiency.

Key technical specifications:
<ul>
<li>Maximum digging height: 9,800 mm with 6,890 mm unloading clearance</li>
<li>Transport dimensions: 9,495 mm × 2,980 mm × 3,190 mm</li>
<li>Travel speed: 5.5 km/h for efficient site mobility</li>
<li>Vertical digging depth: 5,430 mm for trench work</li>
</ul>

Currently located in Jiangsu, this machine offers proven Komatsu durability backed by comprehensive component engineering. Immediate availability for international shipping.

Komatsu PC210LC-8

Engineered with Volvo's renowned D8 engine technology, this 2019 EC380D delivers 12.8L of displacement with air-to-air cooling that meets stringent US Tier 4i and EU IIIB emission standards. Operating at 38 tons, this joint venture-manufactured excavator combines powerful hydraulics with precision control—144.4 kN standard rod digging force (157.4 kN extra force option) ensures efficient material handling across demanding applications.

Hydraulic performance defines this machine's capability. Dual 160×1530mm boom cylinders, a single 175×1750mm bucket rod cylinder, and a 145×1285mm bucket cylinder work in concert to achieve an 8,000mm maximum digging depth and 11,520mm reach at ground level. The robust undercarriage features 5,180mm total track length with 2,740mm gauge, while adjustable track plate widths (600-900mm triple-tooth, 600mm double-tooth) adapt to varied terrain conditions.

Travel speeds of 3.4/5.53 km/h provide efficient site mobility for this backhoe-configured unit. Currently located in Luzhou, Sichuan, this EC380D represents Volvo's commitment to durability and operational efficiency in the medium-to-heavy excavator segment.

Volvo EC380D

Built for high-demand excavation work, this 2015 Hyundai R275LC-9T delivers 27 tons of proven performance across construction, demolition, and earthmoving operations. Powered by a Cummins C8.3-C engine generating 196kW at 1900rpm, this machine combines reliable joint-venture engineering with site-ready capability. The 1.35m³ backhoe bucket, backed by 178kN digging force and 125kN rod force, tackles dense soil and rocky terrain with authority.

<ul>
<li>Maximum digging reach: 10,200mm with 6,900mm depth capability</li>
<li>Working weight: 25,700kg for stable operation on varied ground</li>
<li>Dual variable piston pumps: 2×222L/min flow for responsive hydraulics</li>
<li>35° climbing ability handles steep grades and uneven terrain</li>
<li>5,850mm boom and 2,850mm arm optimize loading and trenching cycles</li>
<li>400L fuel capacity extends operating hours between refills</li>
</ul>

Currently located in Luzhou, Sichuan, this water-cooled excavator arrives ready for immediate deployment. Six-cylinder turbocharged performance meets precision hydraulic control for grading, foundation work, and material handling tasks requiring consistent output.

Hyundai R275LC-9T

Built for precision work in confined spaces, this 2018 Sany SY60 mini excavator delivers 6-ton capacity with operator-first engineering. Traditional power systems ensure reliable performance across diverse jobsite conditions. Operators benefit from enhanced cabin visibility designed into this generation, reducing blind spots during trenching, grading, and utility installation tasks.

<ul>
 <li>Year: 2018</li>
 <li>Model: Sany SY60</li>
 <li>Operating Weight: 6 tons</li>
 <li>Power Type: Traditional diesel engine</li>
 <li>Attachment: Backhoe bucket included</li>
 <li>Origin: Made in China</li>
 <li>Current Location: Guizhou, China</li>
</ul>

Stability remains consistent during swing operations and slope work, thanks to the reinforced undercarriage common to this model year. Controls respond predictably for operators managing repetitive digging cycles. Currently located in Guizhou, this machine suits contractors requiring compact dimensions without sacrificing lifting power. Inspect detailed specifications and arrange viewing through Fair Trade Machinery's verification process.

Sany SY60

Engineered for demanding excavation projects, this 2015 Hyundai R275LVS delivers 27-ton performance at a fraction of new equipment costs. Powered by a robust HYUNDAI HE6.7 turbocharged engine producing 146 kW at 1900 rpm, this crawler excavator combines proven reliability with exceptional value for budget-conscious operations.

With a maximum digging reach of 10,200 mm and digging depth of 6,900 mm, this machine tackles large-scale earthmoving with confidence. The 1.35 m³ bucket capacity and dual variable plunger pumps (2 x 222 L/min) ensure productive cycle times, while the 5,850 mm boom and 2,850 mm arm provide versatile working ranges across diverse job sites.

<ul>
<li>Operating weight: 25,700 kg with superior stability</li>
<li>6-cylinder water-cooled engine: 6.7L displacement for consistent power</li>
<li>Advanced hydraulic system: 35 MPa working pressure for responsive control</li>
<li>70% grading ability and 11.2 rpm rotation speed for maneuverability</li>
<li>Currently located in Guizhou, ready for immediate deployment</li>
</ul>

Invest smartly in pre-owned heavy equipment that delivers new-machine performance without the premium price tag. Contact Fair Trade Machinery today for competitive pricing and shippi

Hyundai R275LVS

Expand your heavy excavation capacity with this 2020 XCMG XE900D, a 90-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by a robust 399kW engine delivering 480kN of bucket digging force, this Chinese-manufactured excavator integrates seamlessly into existing fleets requiring backup equipment or additional reach during peak demand cycles.

Currently located in Wenzhou, Zhejiang, this backhoe-configured machine offers operational versatility across demolition, mining, and large-scale earthmoving projects. With a maximum digging radius of 12,330mm and depth capacity reaching 7,250mm, it matches the performance envelope of comparable Western units while maintaining lower acquisition costs.

<ul>
<li>Working weight: 89,600kg with 4.1-6.0m³ bucket capacity</li>
<li>Hydraulic performance: 370kN rod digging force, 6.3rpm rotation speed</li>
<li>Mobility: 2.8-4.2km/h travel speed for efficient repositioning</li>
<li>Maximum excavation height: 12,060mm</li>
<li>Traditional diesel power system with proven reliability</li>
</ul>

Ideal for contractors seeking fleet redundancy without capital-intensive new equipment purchases. Ready for immediate deployment on infrastructure or resource ex

XCMG XE900D

Engineered for large-scale excavation projects, this 2021 Sany SY980H delivers industrial-grade performance through precision hydraulics and robust mechanical design. Powered by a 425kW engine generating 945 N·m of maximum torque at 1800 rpm, this 98-ton excavator combines raw power with operational efficiency across demanding jobsites.

Technical specifications demonstrate the model's engineering excellence:

<ul>
<li>Bucket digging force of 495 kN and rod digging force of 446 kN for penetrating compacted materials</li>
<li>Maximum digging reach extends to 12,280mm with excavation depth capability of 6,740mm</li>
<li>5.5–6.5 m³ bucket capacity optimizes loading cycles for high-volume earthmoving</li>
<li>Operating weight of 95,800 kg provides stability while maintaining 132 kPa ground pressure</li>
<li>70% gradeability and 945mm ground clearance enable operation on challenging terrain</li>
</ul>

Currently located in Wenzhou, Zhejiang, this Chinese-manufactured excavator represents Sany's heavy equipment capabilities. Transport dimensions of 13,840mm × 3,700mm × 5,300mm facilitate logistics planning for international buyers seeking proven hydraulic excavator technology.

Sany SY980H

Expand your operational capacity with this 2019 Caterpillar 336E hydraulic excavator, a proven 36-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by the Caterpillar C9 ACERT engine delivering 236 kW at 1800 rpm, this machine meets European Stage IIIB and Tier 4 emission standards while maintaining the reliability your fleet demands.

Currently located in Wenzhou, Zhejiang, this excavator provides immediate deployment capability for projects requiring substantial reach and digging force. With an 11,040 mm maximum digging radius and 35,500 kg working weight, it handles deep excavation, loading, and material handling tasks without downtime disruptions to your primary equipment.

<ul>
<li>Joint venture/import quality construction ensures parts availability and service support</li>
<li>Water-cooled engine system maintains consistent performance in demanding conditions</li>
<li>Backhoe bucket configuration ready for trenching and foundation work</li>
<li>Seamless integration with existing Caterpillar fleet management protocols</li>
</ul>

Add redundancy and scheduling flexibility to your operations. Contact Fair Trade Machinery today for complete specifications and acquisition term

Caterpillar 336E

Proven performance meets exceptional value in this 2021 XCMG XE135D excavator, currently located in Heyuan, Guangdong. Operating at 13 tons with a robust QSF3.8 engine delivering 86kW at 2200rpm, this machine combines serious digging force (99.1kN bucket, 68kN arm) with fuel-efficient reliability. XCMG's dominance in the global construction equipment market translates directly into lower ownership costs—parts availability across China and international markets remains unmatched, while service networks ensure minimal downtime during critical projects.

Key Specifications:
<ul>
<li>Working weight: 13,200kg with 0.52m³ standard bucket capacity</li>
<li>Maximum digging reach: 8,304mm / Maximum depth: 5,546mm</li>
<li>Dual hydraulic pumps: 125.4L/min each for responsive multi-function operation</li>
<li>Water-cooled turbocharged direct injection engine with 470N.m torque</li>
<li>260L fuel tank and 105L hydraulic reservoir for extended work cycles</li>
</ul>

XCMG equipment consistently demonstrates superior resale retention compared to lesser-known brands. Buyers recognize the brand's engineering heritage and widespread dealer support, making this XE135D a strategic investment for contractors seeking depen

XCMG XE135D

Delivering exceptional value without compromise, this 2016 Hyundai R275LC-9T excavator represents a smart alternative to new equipment purchases. Operating at 27 tons with a robust 25,700 kg working weight, this machine combines proven Cummins C8.3-C power (196 kW at 1900 rpm) with the reliability expected from a joint venture manufacturer. Currently located in Sichuan and originally manufactured in Jiangsu Province, this crawler excavator offers professional-grade performance at a fraction of new equipment costs.

<ul>
<li>Power & Efficiency: 6-cylinder turbocharged intercooled engine producing 1218.1 N·m maximum torque</li>
<li>Impressive Reach: 10,200 mm maximum digging radius with 6,900 mm maximum depth</li>
<li>Hydraulic Strength: 178 kN bucket digging force backed by dual 222 L/min variable pumps</li>
<li>Operational Capacity: 1.35 m³ bucket capacity with 5,850 mm boom and 2,850 mm stick</li>
<li>Proven Durability: Water-cooled system with 400L fuel tank for extended operation</li>
</ul>

Invest strategically in pre-owned heavy equipment that delivers jobsite performance while preserving capital for business growth.

Deliver serious excavation power without the new-equipment price tag. This 2022 Sany SY205C-8 excavator combines proven 20-ton performance with exceptional value for contractors prioritizing smart capital allocation. Powered by a reliable Mitsubishi 6D34TL-20 engine delivering 114 kW at 2050 rpm, this machine tackles demanding jobsites with 138 kN bucket digging force and a maximum digging depth of 6,630 mm. Water-cooled efficiency and dual 210 l/min hydraulic pumps ensure consistent productivity across diverse applications.

<ul>
 <li>Operating weight: 20,300 kg with 0.83 m³ bucket capacity</li>
 <li>Maximum digging radius extends to 9,885 mm for superior reach</li>
 <li>Impressive 70% (35°) climbing ability handles challenging terrain</li>
 <li>Compact 2,750 mm rear turning radius enables confined-space work</li>
 <li>Dual-speed travel: 3.2/5.5 km/h for optimal maneuverability</li>
 <li>Currently located in Hunan, China—ready for global export</li>
</ul>

Manufactured in China with quality engineering from Kunshan, Jiangsu Province, this 2022 model offers near-new condition performance at a fraction of replacement cost. Secure proven excavation capability while preserving working capital for business growth.

Sany SY205C-8

Built for heavy excavation and demolition work, this 2018 Caterpillar 336E delivers 236 kW of hydraulic power through its CAT C9ACERT engine. Operating at 35,500 kg working weight with a 36-ton capacity, this machine tackles foundation digging, road grading, and structural demolition with precision. The 11,040 mm maximum digging radius provides extensive reach for trenching operations and material loading across large sites.

<ul>
<li>Year: 2018</li>
<li>Model: Caterpillar 336E</li>
<li>Engine: CAT C9ACERT, 236 kW @ 1800 RPM</li>
<li>Working Weight: 35,500 kg (36 tons)</li>
<li>Max Digging Radius: 11,040 mm</li>
<li>Cooling System: Water-cooled</li>
<li>Emissions: European Stage IIIB / Tier 4 compliant</li>
<li>Configuration: Backhoe bucket</li>
<li>Location: Shenzhen, Guangdong</li>
</ul>

Water-cooled reliability meets proven joint venture manufacturing standards. Ready for immediate deployment on excavation, grading, or demolition projects requiring dependable mid-size hydraulic performance.

Built in 2019, this Caterpillar 320A excavator delivers proven performance with the backing of the industry's most trusted name. Operating at 20 tons with traditional power, this machine combines robust digging capability with the reliability that has made Caterpillar the global standard for heavy equipment. Currently located in Putian, Fujian, this joint venture/import unit features a versatile backhoe bucket configuration suited for diverse earthmoving applications.

Choosing Caterpillar in the used market means investing in long-term value. Key advantages include:

<ul>
<li>Unmatched parts availability through Caterpillar's worldwide dealer network</li>
<li>Superior resale value that protects your investment</li>
<li>Extensive service documentation and support resources</li>
<li>Proven durability that extends machine lifespan beyond competitors</li>
</ul>

For contractors demanding equipment that works as hard as their reputation, this 320A represents a smart acquisition. Caterpillar's engineering excellence ensures consistent productivity, while the brand's market dominance guarantees you can service, repair, and eventually resell with confidence. Contact Fair Trade Machinery today to secure this reliable excavator

Caterpillar 320A

Powered by a robust 257kW engine at 2000rpm, this 2018 Sany SY475H delivers exceptional performance in the 48-ton excavator class. Engineering precision defines every aspect of this machine, from its 287kN bucket digging force to its 245kN arm breakout force, ensuring maximum productivity in demanding earthmoving applications. The hydraulic system drives a 2.2m³ backhoe bucket through challenging materials with consistent reliability.

Built in China to Sany's rigorous manufacturing standards, this model combines technical superiority with operational efficiency. The powerplant generates substantial torque while maintaining a ground pressure of just 85.3kPa, minimizing surface disturbance across varied terrain. With a 70% grading capability and dual travel speeds of 5.4/3.1 km/h, operators gain precise control in confined spaces or open sites.

<ul>
<li>Operating weight: 48,500kg with optimal stability</li>
<li>Compact 3,765mm rear turning radius for restricted areas</li>
<li>600mm track plates on 2,740mm gauge for balanced load distribution</li>
<li>8rpm rotation speed for efficient cycle times</li>
<li>Currently located in Fujian Putian, ready for global deployment</li>
</ul>

Sany SY475H

Expand your operational capacity with this 2020 Sany SY365C excavator, a proven 36-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Built in China with traditional power systems, this mid-size hydraulic excavator delivers consistent performance when your primary equipment is deployed elsewhere or when project demands exceed single-machine capacity.

Currently positioned in Putian, Fujian, this backhoe-configured unit integrates seamlessly into existing fleets without requiring specialized operator training or maintenance protocols. Contractors facing overlapping contracts, seasonal workload surges, or equipment rotation schedules will appreciate the SY365C's ability to maintain productivity across diverse applications—from site preparation and utility installation to material handling and demolition support.

<ul>
<li>36-ton operating weight for versatile mid-range excavation tasks</li>
<li>2020 manufacture year with documented service history</li>
<li>Standard backhoe attachment for immediate deployment</li>
<li>Traditional diesel power train compatible with conventional fueling infrastructure</li>
<li>Ready for inspection in Putian, Fujian</li>
</ul>

Reduce downtime risks and capit

Specifications	Value
No.	1039850
Tonnage (tons)	13
Working weight (kg)	13800
Bucket capacity (m³)	0.4-0.52
Boom length (mm)	4600
Rod length (mm)	2510
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe

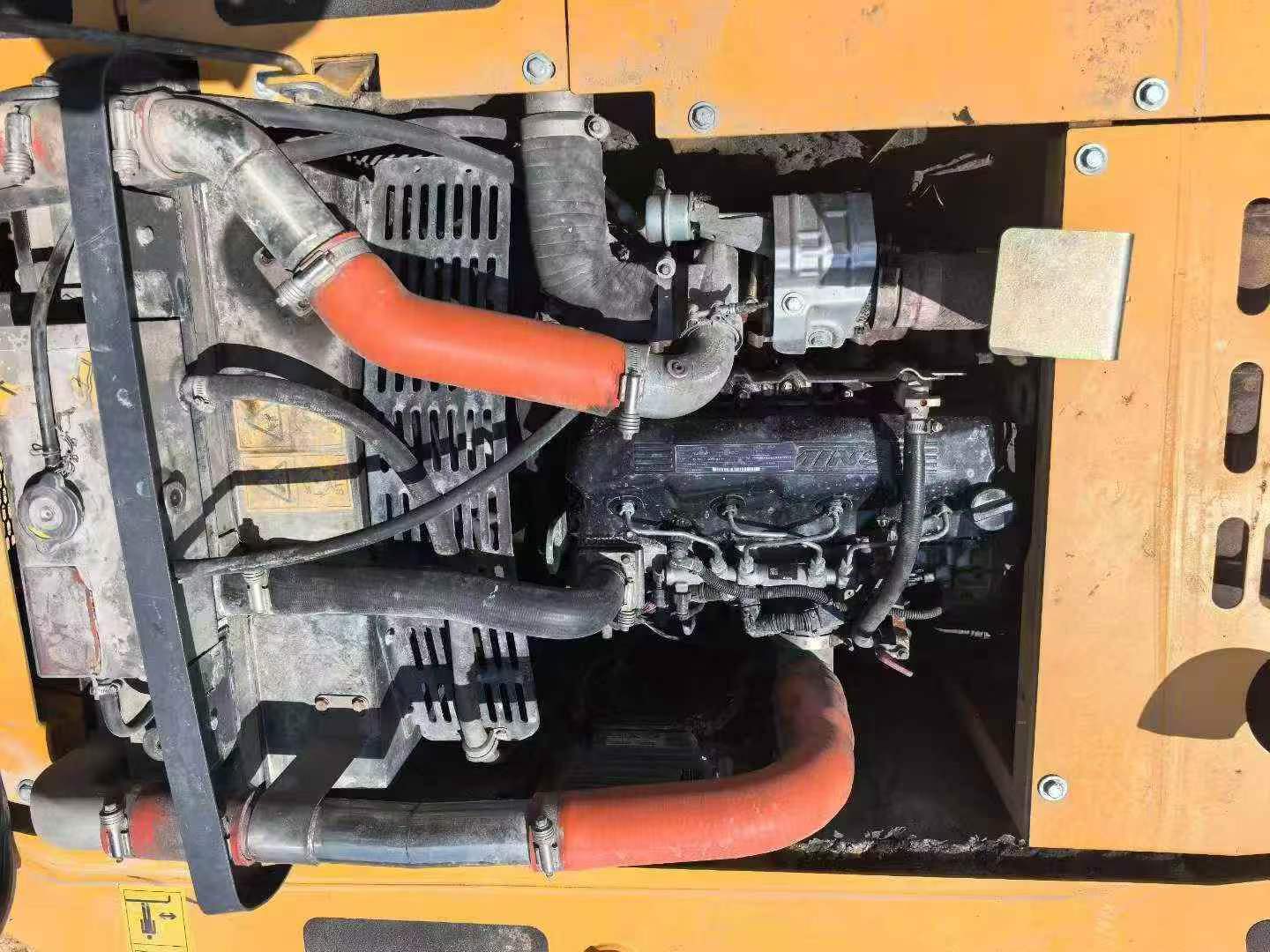

Engine type	ISUZU BB-4BG1TRP
Rated power (kw/rpm)	69.6/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	4.329
Working form	turbocharging
Ground specific pressure (Kpa)	42
Rotation speed (rpm)	12.3
Climbing ability (%)	35 °
Bucket digging force (kN)	85
Rod digging force (kN)	65
Travel speed (km/h)	5.16/3.03
Main overflow set pressure (Mpa)	31.4/34.3
Maximum flow of main pump (l/min)	2*123
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no

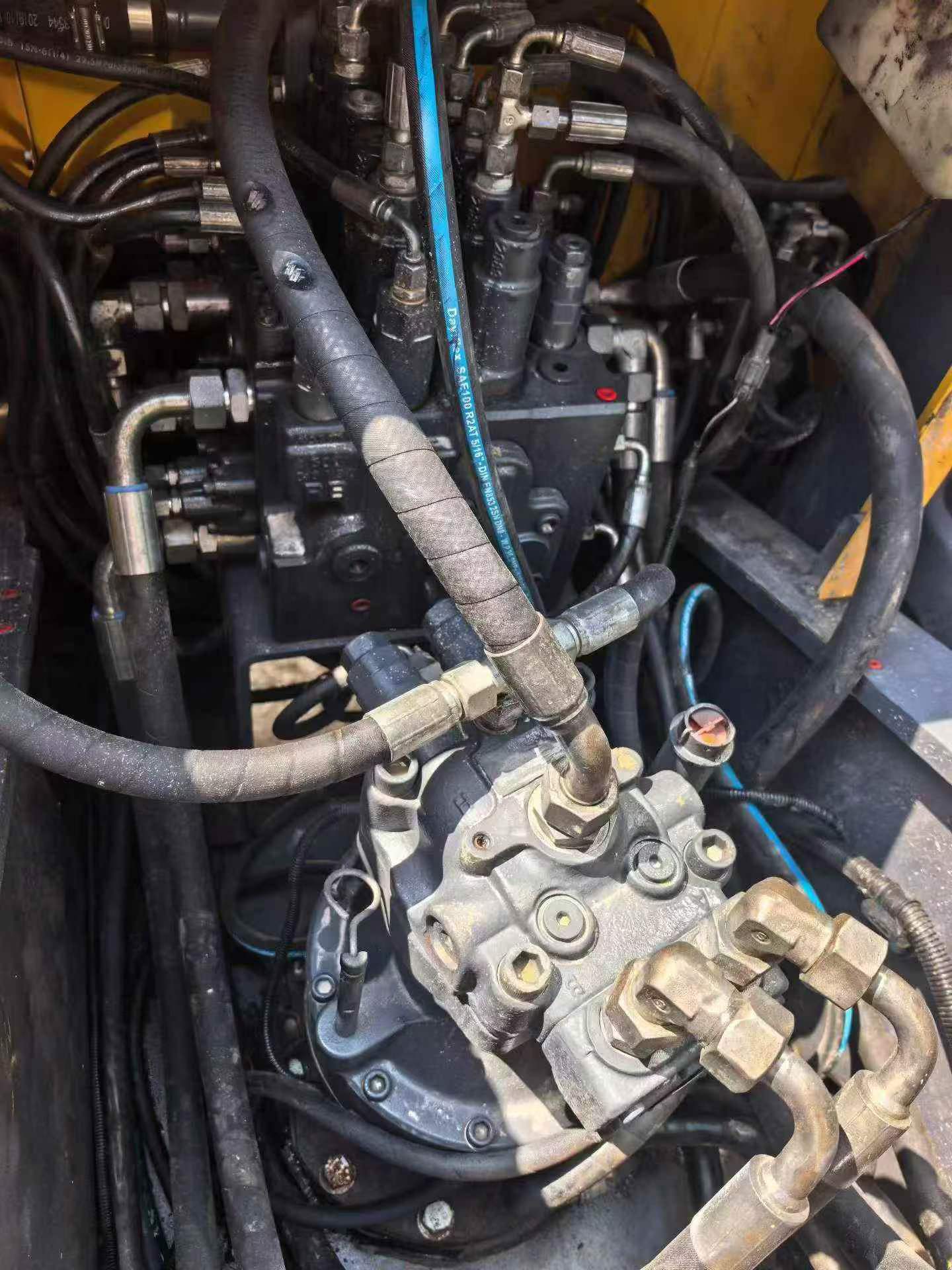

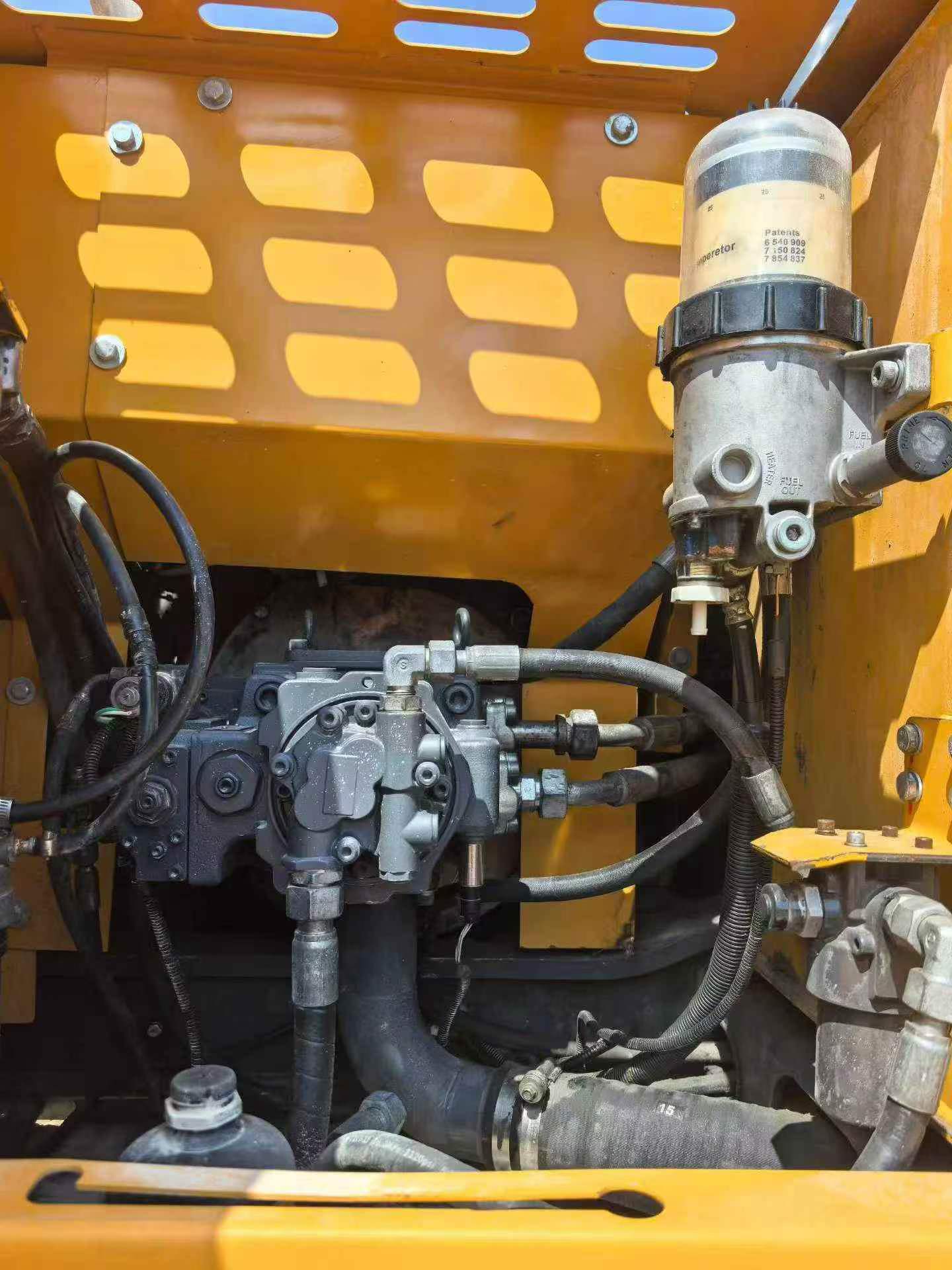

Main pump type	Two plunger pumps
Pilot Oil Circuit (MPa)	3.9
Fuel Tank (L)	250
Hydraulic Tank (L)	130
Engine Oil changes (L)	14
Total transport length (mm)	7770
Total transport width (mm)	2512
Total transport height (mm)	2880
Counterweight ground clearance (mm)	964
Minimum ground clearance (mm)	478
Minimum turning radius of front working device (mm)	2335
Back end turning radius (mm)	2294
Track gauge (mm)	1990
Track plate width (mm)	500
Track ground length (mm)	2910
Maximum digging radius (mm)	8296
Maximum digging depth (mm)	5538
Maximum excavation height (mm)	8641
Maximum unloading height (mm)	6181
Maximum vertical digging depth (mm)	4727
