Name: Used Excavators 2022 XCMG XE135B
Brand: XCMG
SKU: USED-1043805
Availability: InStock
Rating: 4.0 (58 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Available now from our 山东临沂 facility, this 2022 XCMG XE135B excavator delivers immediate deployment without factory lead times. Powered by an ISUZU BB-4BG1TRP engine producing 69.6 kW at 2200 rpm, this 13.8-ton machine combines proven Japanese engine technology with XCMG's robust hydraulic systems. Dual plunger pumps supply 2×123 L/min flow capacity, driving an impressive 8,296 mm maximum digging radius and 5,538 mm digging depth—ideal for medium-scale earthmoving and site preparation.

<ul>
 <li>Operating Weight: 13,800 kg with 0.4-0.52 m³ bucket capacity</li>
 <li>Digging Force: 85 kN bucket force, 65 kN arm force</li>
 <li>Hydraulic Pressure: 31.4/34.3 MPa main overflow, 34.3 MPa travel circuit</li>
 <li>Mobility: 5.16 km/h high-speed travel, 35° grading capability</li>
 <li>Transport Dimensions: 7,770×2,512×2,880 mm</li>
</ul>

Skip months of factory waiting. Fast logistics from Linyi port ensure rapid delivery to your construction site across Asia, Africa, or beyond. Ready to work today.

Secure immediate access to proven excavation power with this 2015 Kobelco SK330, currently stationed in 四川泸州 and ready for rapid deployment. This 33-ton backhoe excavator delivers reliable traditional power through joint venture engineering, eliminating months of factory wait times that slow your project timeline. Skip the procurement delays and mobilize this machine to your worksite within days, not quarters.

<ul>
<li>33-ton operating weight for substantial digging force</li>
<li>Traditional power system with proven reliability</li>
<li>Backhoe configuration for versatile excavation tasks</li>
<li>Joint venture/Import manufacturing quality</li>
<li>Located in 四川泸州 for fast regional deployment</li>
<li>Available now—no factory lead times</li>
</ul>

Positioned strategically in 四川泸州, this SK330 offers immediate solutions for contractors facing tight deadlines across Sichuan province and surrounding regions. Bypass the extended ordering process and secure operational capacity today. Contact us now to arrange inspection and swift delivery to your construction site.

Kobelco SK330

Proven reliability meets compact versatility in this 6-ton excavator from one of Asia's most trusted manufacturers. Built in 2014, this Hyundai HX60 delivers consistent performance backed by a global parts network that keeps downtime minimal and resale values strong. Powered by a dependable Yanmar 4TNV94L engine producing 36.2kW, it combines robust digging force (46.7kN bucket, 27.5kN arm) with a maximum dig depth of 3,760mm—ideal for utility work, landscaping, and light construction.

<ul>
<li>Operating Weight: 5,720kg with 0.21m³ bucket capacity</li>
<li>Reach & Performance: 6,127mm maximum digging radius, 5,753mm excavation height</li>
<li>Hydraulics: Variable piston pump, 138L/min flow, standard breaker lines</li>
<li>Mobility: Compact 1,920mm width, 1,650mm rear swing radius for confined sites</li>
<li>Current Location: Luzhou, Sichuan Province</li>
</ul>

Hyundai's established service infrastructure across international markets ensures parts availability and technical support remain accessible long after purchase. This model represents a sound investment for operators prioritizing long-term value retention and operational reliability in

Hyundai HX60

Built for demanding excavation work, this 2021 XCMG XE550DK delivers 55-ton performance with operator-centered engineering. Powered by a Perkins 2206 III N engine generating 309.5 kW at 2100 rpm, this machine combines robust hydraulic power with refined control systems. Dual main pumps supply 720 l/min total flow, enabling precise simultaneous operations while maintaining responsive bucket and arm movements.

Operators benefit from exceptional visibility across the 3800 mm rear turning radius, supported by strategically positioned counterweights at 1353 mm ground clearance. The spacious cabin provides clear sightlines to the 6550 mm boom and 2550 mm arm during grading and trenching operations. Stability remains consistent thanks to 88 kPa ground pressure distribution across 600 mm track plates, while the 2740 mm track gauge ensures balanced performance on uneven terrain.

<ul>
<li>Bucket digging force: 330 kN for challenging soil conditions</li>
<li>Working weight: 51,200 kg with optimized load distribution</li>
<li>9.2 rpm rotation speed for efficient cycle times</li>
<li>725 L fuel capacity supports extended shifts</li>
<li>Currently located in Anhui, China</li>
</ul>

XCMG XE550DK

Ready to deploy from 山东, this 2019 Caterpillar 320GC hydraulic excavator eliminates factory wait times and accelerates your project timeline. Operating at 20 tons with proven traditional power, this joint venture-manufactured machine delivers the reliability Caterpillar is known for without the delays of new equipment orders. Available now for immediate shipment, it's engineered for contractors who measure success in uptime and productivity.

<ul>
 <li>Year: 2019</li>
 <li>Model: Caterpillar 320GC</li>
 <li>Operating Weight: 20 tons</li>
 <li>Power Type: Traditional power</li>
 <li>Configuration: Backhoe</li>
 <li>Origin: Joint venture/Import</li>
 <li>Current Location: 山东, China</li>
 <li>Status: In stock, ready for fast deployment</li>
</ul>

Skip months of factory lead times. Secure this proven mid-size excavator and put it to work on your site while competitors are still waiting for production slots. Contact Fair Trade Machinery today for shipping logistics and availability confirmation.

Caterpillar 320GC

With a working weight of 34,300-38,700 kg and a bucket capacity ranging from 1.0 to 2.53 m³, the 2019 Volvo EC350D excavator is a robust choice for demanding construction projects. Powered by a reliable Volvo D8K engine, this machine delivers 197 kW at 1800 rpm, ensuring efficient performance. Located in 四川泸州, this excavator features a maximum digging depth of 7,480 mm and a maximum unloading height of 7,250 mm, making it versatile for various applications.
<ul>
<li>Volvo's reputation for durability and reliability ensures high resale value and easy access to parts, even in the used market.</li>
<li>Equipped with a backhoe bucket, the EC350D offers a maximum tractive force of 261 kN, enhancing its capability on challenging terrains.</li>
<li>The travel speed of 3.3/5.1 km/h and a climbing ability of 35° make it suitable for both flat and hilly sites.</li>
<li>Featuring a total transport length of 11,190 mm and a width of 3,190 mm, the EC350D is designed for easy transportation and maneuverability.</li>
</ul>

Volvo EC350D

Available now from our Hunan facility, this 2016 Sumitomo SH350-5 delivers 35-ton performance without factory wait times. Powered by a robust AH-6HK1XYSS engine producing 202 kW at 2000 rpm, this excavator combines proven reliability with immediate deployment capability. Skip months of lead times and get your crew operating with 229 kN bucket digging force and a commanding 11,170 mm maximum reach.

<ul>
<li>Operating weight: 35,200 kg with 1.2-1.8 m³ bucket capacity</li>
<li>Maximum digging depth: 7,340 mm; maximum reach: 11,170 mm</li>
<li>7.79L displacement engine delivering consistent 202 kW power</li>
<li>Fast deployment from Hunan—ready for immediate site mobilization</li>
<li>580L fuel tank and 350L hydraulic reservoir for extended operation</li>
<li>Superior digging force: 229 kN bucket, 164 kN arm</li>
</ul>

Positioned in Hunan for rapid logistics coordination across regional and international routes, this joint venture-manufactured machine represents immediate productivity. Secure this battle-tested SH350-5 today and bypass the extended timelines of new equipment orders.

Sumitomo SH350-5

Built for high-output excavation, this 2020 Kobelco SK495D-8 delivers 49 tons of working weight and 257 kW of Hino P11C diesel power to handle large-scale earthmoving, demolition, and grading operations. With a 2.3 m³ backhoe bucket, 7-meter boom, and 11.77-meter maximum digging radius, this machine tackles deep trenching and mass excavation with precision. Dual 370 l/min hydraulic pumps provide 266 kN bucket digging force and 223 kN arm digging force, ensuring consistent performance in rocky soil and heavy material.

<ul>
<li>Maximum digging depth: 7,360 mm for utility installation and foundation work</li>
<li>Maximum digging height: 11,160 mm for loading haul trucks efficiently</li>
<li>Travel speed: 5.4 km/h for quick site repositioning</li>
<li>Climbing ability: 70% gradient capability on challenging terrain</li>
<li>Fuel capacity: 650-liter tank for extended shift operation</li>
<li>Turbocharged, intercooled engine with 1,400 N·m torque at 1,850 rpm</li>
</ul>

Currently located in Hunan, this SK495D-8 is inspection-ready and available for immediate deployment on mining, infrastructure, or commercial development projects worldwide.

Kobelco SK495D-8

Engineered for precision and operator productivity, this 2021 XCMG XE200 hydraulic excavator delivers reliable performance in the 20-ton class. Powered by a conventional diesel engine, this joint venture-manufactured machine combines proven technology with operator-centric design. Currently located in Wenzhou, Zhejiang, it represents a solid investment for contractors demanding consistent digging power and all-day comfort.

<ul>
<li>Year: 2021</li>
<li>Operating Weight: 20 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Bucket Configuration: Backhoe</li>
<li>Location: Wenzhou, Zhejiang, China</li>
</ul>

Operators benefit from enhanced cabin visibility across the work envelope, reducing blind spots during loading and trenching operations. Stable undercarriage geometry ensures minimal body roll when slewing with loaded buckets. Intuitive hydraulic controls provide responsive digging action, while the spacious cab reduces fatigue during extended shifts. Ideal for earthmoving, foundation work, and utility installation where operator efficiency directly impacts project timelines.

XCMG XE200

Proven performance meets long-term value in this 2019 XCMG XE55DA mini excavator, a 5-ton workhorse engineered for contractors who demand reliability without compromise. Powered by a robust V2607 engine delivering 35kW at 2200rpm with water-cooling efficiency, this machine tackles demanding excavation tasks with 48.3kN bucket digging force and 32.5kN arm digging force. XCMG's global footprint ensures parts availability remains consistent across international markets, protecting your investment from costly downtime.

<ul>
<li>Maximum digging reach: 6130mm with 3830mm depth capability</li>
<li>Compact transport dimensions: 5860mm length, 1920mm width for easy mobilization</li>
<li>150 L/min hydraulic flow supporting responsive operation</li>
<li>0.21m³ bucket capacity ideal for utility work and landscaping</li>
<li>Factory-fitted backhoe configuration ready for immediate deployment</li>
</ul>

Currently located in Hunan, China, this unit represents XCMG's commitment to manufacturing quality that holds resale value. With established dealer networks spanning six continents, maintenance support and genuine components remain accessible throughout the machine's operational life. Secure financing options available for qualified buyer

XCMG XE55DA

Proven in the field since 2013, this Hitachi EX130H-5 excavator represents a decade of reliable performance and Japanese engineering excellence. Operating at 13 tons with a robust 12,201 kg working weight, this mid-size workhorse delivers consistent productivity across diverse job sites. Powered by the dependable Isuzu A-4BG1T engine producing 60.4 kW, this machine combines fuel efficiency with the durability contractors demand.

Built for long-term value, the EX130H-5 features exceptional reach capabilities with a maximum digging depth of 5,360 mm and excavation radius of 8,140 mm. Multiple bucket configurations (0.3/0.19/0.66 m³) provide operational flexibility for trenching, grading, and loading applications. Compact transport dimensions (7,580 mm length, 2,490 mm width) ensure easy mobilization between sites.

<ul>
<li>13-ton class excavator with proven Isuzu power plant</li>
<li>Maximum excavation height: 8,550 mm for enhanced versatility</li>
<li>250L fuel capacity for extended operation cycles</li>
<li>Currently located in Hunan, China—ready for immediate deployment</li>
<li>Decade-tested reliability with maintained hydraulic systems</li>
</ul>

Hitachi EX130H-5

Secure immediate access to a proven 10-ton excavator ready for deployment from 湖南. This 2016 Sumitomo SH100 combines joint venture manufacturing standards with traditional power reliability, eliminating months of factory wait times. Built for versatile backhoe operations, the machine delivers consistent hydraulic performance across infrastructure, utility trenching, and site preparation projects.

<ul>
<li>Year: 2016</li>
<li>Model: Sumitomo SH100</li>
<li>Operating Weight: 10 tons</li>
<li>Power System: Traditional diesel engine</li>
<li>Configuration: Backhoe attachment</li>
<li>Origin: Joint venture/Import manufacturing</li>
<li>Current Location: 湖南, China</li>
</ul>

Available now for fast-track procurement. Skip extended lead times and coordinate direct shipping to your operational site. This pre-owned unit offers immediate capacity expansion without new equipment premiums. Contact Fair Trade Machinery today to arrange inspection and expedited logistics from 湖南 to your location worldwide.

Sumitomo SH100

Built for demanding jobsites, this 2019 Sany SY365C excavator delivers proven reliability in a 36-ton package. Powered by traditional diesel technology and manufactured in China to rigorous standards, this machine represents over four years of field-tested performance. Operating crews trust the SY365C for its robust construction and consistent output across heavy earthmoving applications.

<ul>
<li>36-ton operating weight for serious digging capacity</li>
<li>Traditional diesel power ensures dependable performance</li>
<li>Backhoe bucket configuration for versatile excavation work</li>
<li>2019 model year with proven operational history</li>
<li>Currently located in Hunan, China</li>
<li>Sany engineering backed by extensive field service</li>
</ul>

Contractors requiring a workhorse excavator will find exceptional value in this established unit. With its documented service record and durable design, this SY365C continues to perform at the level operators demand. Ideal for infrastructure projects, site development, and heavy construction where reliability cannot be compromised.

Sany SY365C

Proven performance meets exceptional value in this 2016 Sany SY245H excavator, now available in Maoming, Guangdong. Operating at 24 tons with a robust 147kW D06FRC engine, this machine delivers 175kN bucket digging force and a maximum reach of 10,225mm—ideal for demanding earthmoving and construction projects. Sany's reputation for reliability translates directly into lower ownership costs: parts remain widely available across global markets, and the brand's strong resale value protects your investment long-term.

<ul>
<li>Working Weight: 25,500kg with 1.5m³ bucket capacity</li>
<li>Power System: Water-cooled 6-cylinder engine (147kW at 2,100rpm)</li>
<li>Digging Performance: 6,705mm max depth, 9,745mm max height</li>
<li>Fuel Efficiency: 475L tank for extended operation</li>
<li>Mobility: 5.4km/h travel speed, 70% climbing ability</li>
</ul>

Backed by China's largest construction equipment manufacturer, this SY245H combines field-tested engineering with the parts network and service support that make Sany a smart choice in the pre-owned market. Ready for immediate deployment worldwide.

Sany SY245H

Built for precision and daily productivity, this 2017 Sany SY75 mini excavator delivers 7-ton performance with operator-first engineering. Powered by a traditional diesel engine and manufactured in China, this compact machine combines reliable hydraulics with intuitive controls for tight-space applications. Currently located in Anhui, it features a standard backhoe bucket configuration suited for trenching, grading, and utility work.

Operator advantages include:
<ul>
<li>Enhanced cabin visibility with wide-angle glass panels for improved jobsite awareness</li>
<li>Low-vibration design and ergonomic joystick placement reducing fatigue during extended shifts</li>
<li>Stable undercarriage with optimized weight distribution for confident operation on uneven terrain</li>
<li>Responsive hydraulic controls enabling smooth, predictable bucket and arm movements</li>
<li>Accessible maintenance points minimizing downtime and simplifying routine service</li>
</ul>

Designed for contractors prioritizing control and comfort, this SY75 represents practical Chinese engineering with proven durability. Ideal for residential construction, landscaping projects, and municipal infrastructure tasks requiring maneuverability without sacrific

Sany SY75

Built in 2021, this XCMG XE60 mini excavator delivers proven performance with the backing of China's largest construction equipment manufacturer. Powered by a reliable Yanmar 4TNV94L engine producing 39.8kW at 2200rpm, this 6-ton machine combines Japanese engineering with XCMG's robust hydraulic systems. Operating weight of 5,960kg provides stability while maintaining a compact footprint ideal for urban construction and utility work.

XCMG's global dealer network ensures parts availability and technical support remain accessible throughout the machine's service life. The XE60 features Rexroth main pumps, dual 60.5 l/min hydraulic flow, and standard hydraulic crushing pipeline—specifications that translate to consistent productivity. Maximum digging depth reaches 3,830mm with bucket forces up to 42.5kN, handling demanding excavation tasks in Luzhou's varied terrain.

Key advantages for used equipment buyers:
<ul>
<li>Strong resale value backed by XCMG's market dominance in Asia</li>
<li>Readily available OEM and aftermarket components</li>
<li>Water-cooled 4-cylinder engine with proven durability</li>
<li>Compact dimensions (5,850mm length) for transport efficiency</li>
<li>35° climbing ability and 32.1kPa ground pr

XCMG XE60

Expand your operational capacity with this 2016 Kato HD512 excavator, currently stationed in Guangdong Zhaoqing. Built by a respected joint venture manufacturer, this 12-ton machine delivers proven reliability for contractors managing multiple jobsites or seasonal demand spikes. Traditional power architecture ensures straightforward maintenance protocols and parts availability across international markets.

<ul>
<li>Year: 2016</li>
<li>Model: Kato HD512</li>
<li>Tonnage: 12 tons</li>
<li>Power System: Traditional power</li>
<li>Bucket Configuration: Backhoe</li>
<li>Manufacturer: Joint venture/Import</li>
<li>Current Location: Guangdong Zhaoqing, China</li>
</ul>

Designed for utility work, trenching, and foundation projects, this HD512 serves as an ideal secondary unit for established fleets. Its backhoe configuration handles drainage installations and cable laying with precision. Contractors requiring redundancy during peak construction periods will appreciate the machine's mid-size footprint and versatile attachment compatibility. Ready for immediate deployment to support your existing equipment lineup.</p

Specifications	Value
No.	1043805
Tonnage (tons)	13
Working weight (kg)	13800
Bucket capacity (m³)	0.4-0.52
Boom length (mm)	4600
Rod length (mm)	2510
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe

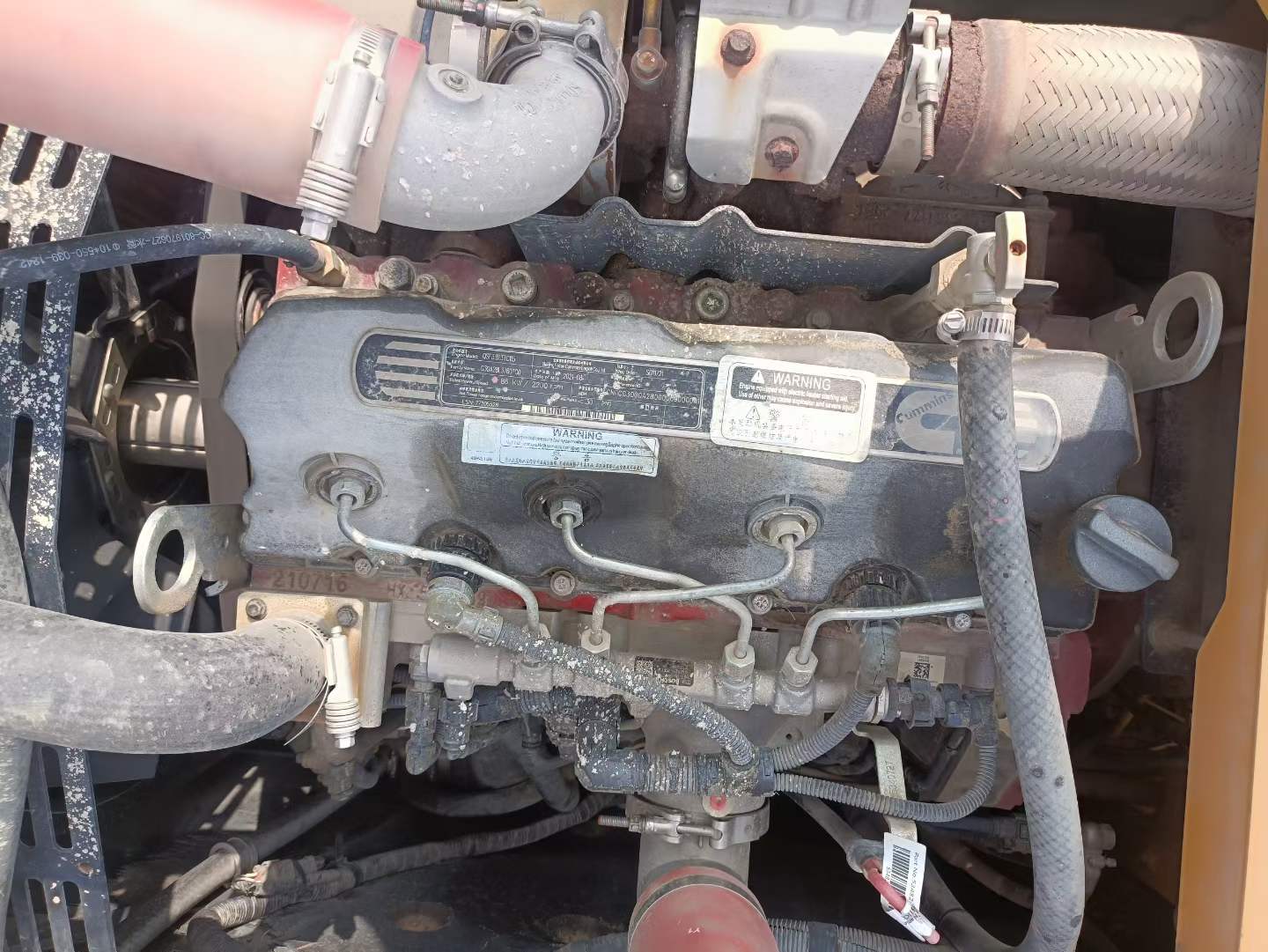

Engine type	ISUZU BB-4BG1TRP
Rated power (kw/rpm)	69.6/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	4.329
Working form	turbocharging
Ground specific pressure (Kpa)	42
Rotation speed (rpm)	12.3
Climbing ability (%)	35 °
Bucket digging force (kN)	85
Rod digging force (kN)	65
Travel speed (km/h)	5.16/3.03
Main overflow set pressure (Mpa)	31.4/34.3
Maximum flow of main pump (l/min)	2*123
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no

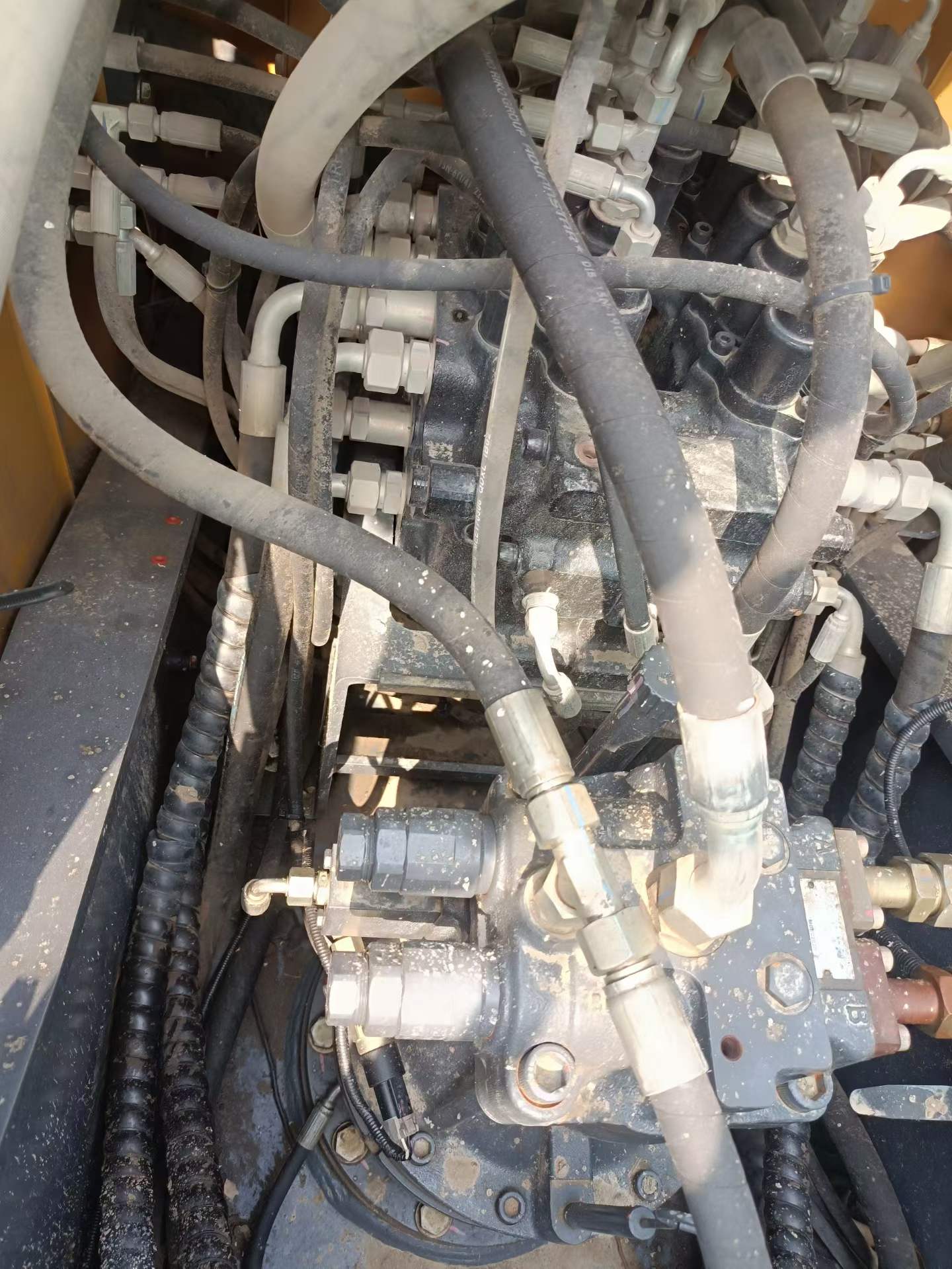

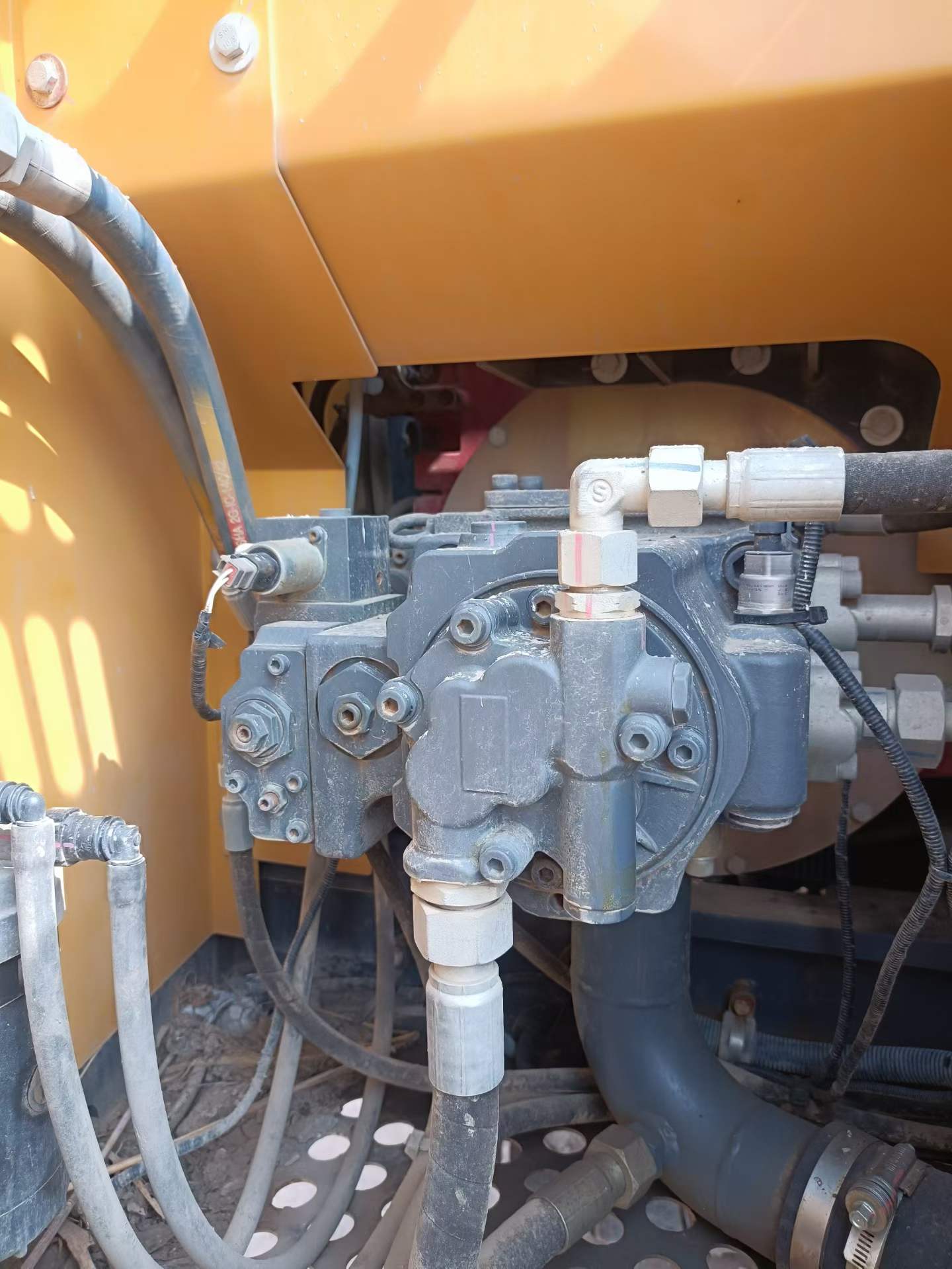

Main pump type	Two plunger pumps
Pilot Oil Circuit (MPa)	3.9
Fuel Tank (L)	250
Hydraulic Tank (L)	130
Engine Oil changes (L)	14
Total transport length (mm)	7770
Total transport width (mm)	2512
Total transport height (mm)	2880
Counterweight ground clearance (mm)	964
Minimum ground clearance (mm)	478
Minimum turning radius of front working device (mm)	2335
Back end turning radius (mm)	2294
Track gauge (mm)	1990

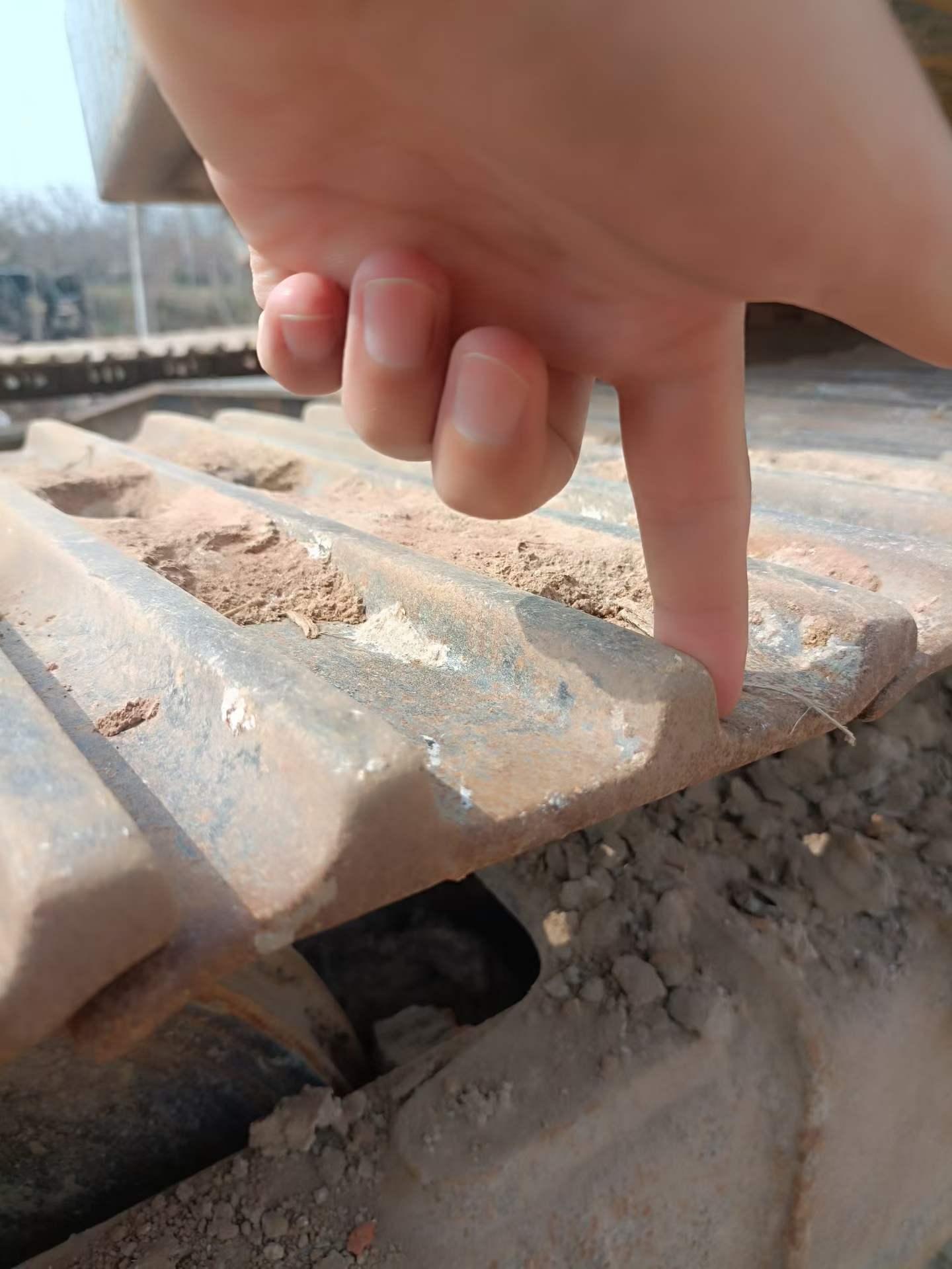

Track plate width (mm)	500
Track ground length (mm)	2910
Maximum digging radius (mm)	8296
Maximum digging depth (mm)	5538
Maximum excavation height (mm)	8641
Maximum unloading height (mm)	6181
Maximum vertical digging depth (mm)	4727

2022 XCMG XE135B
