Product Description

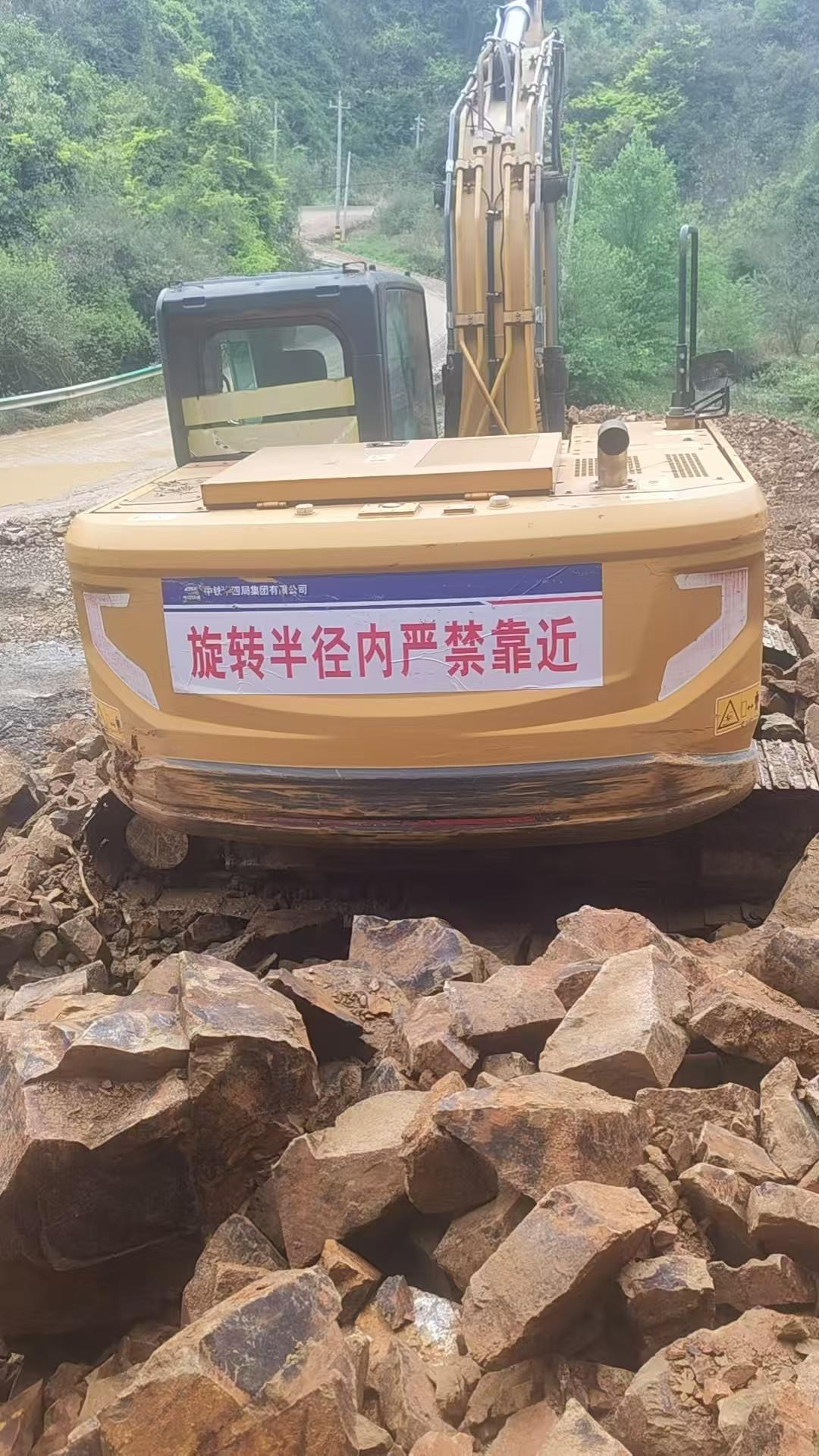

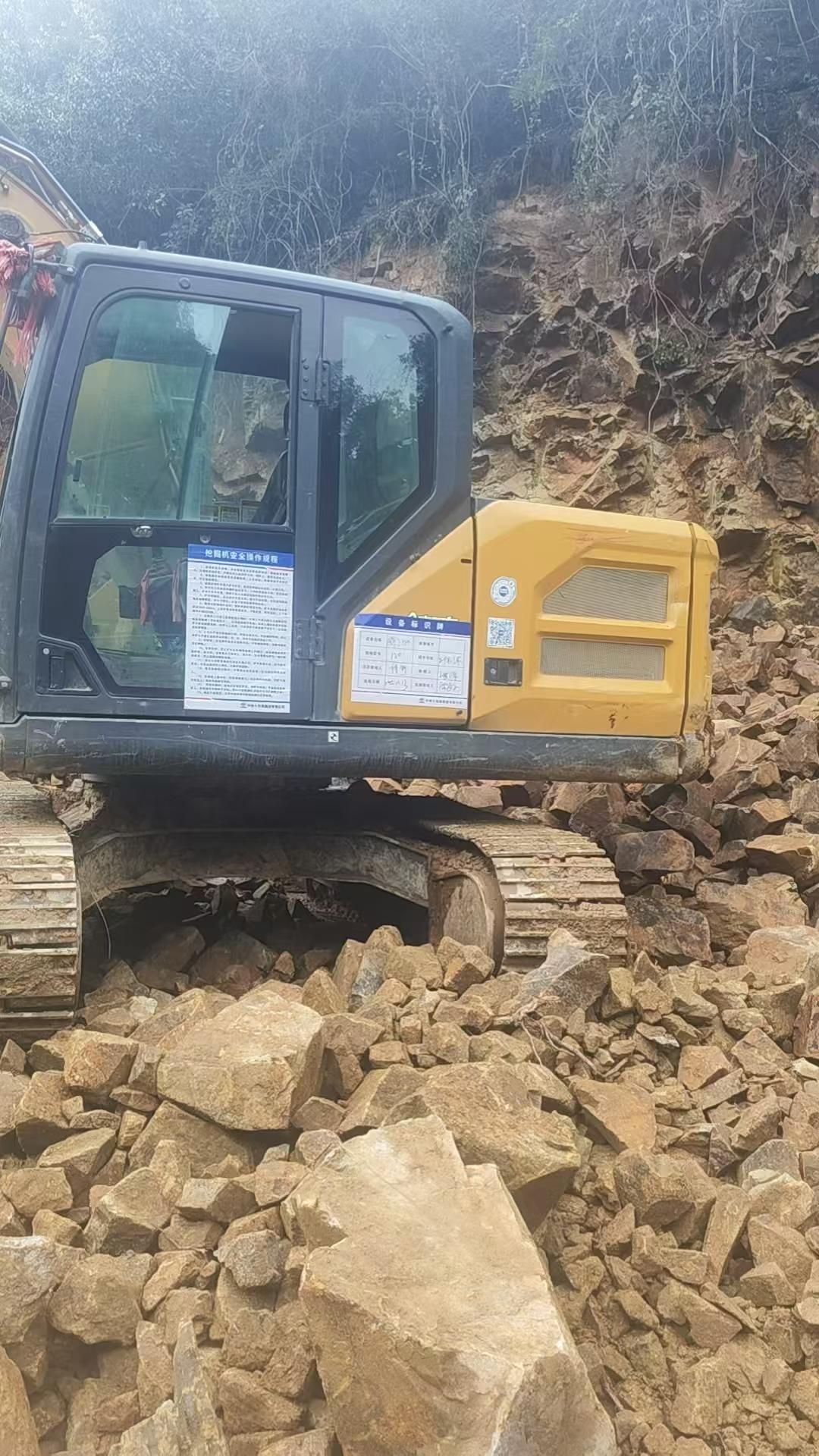

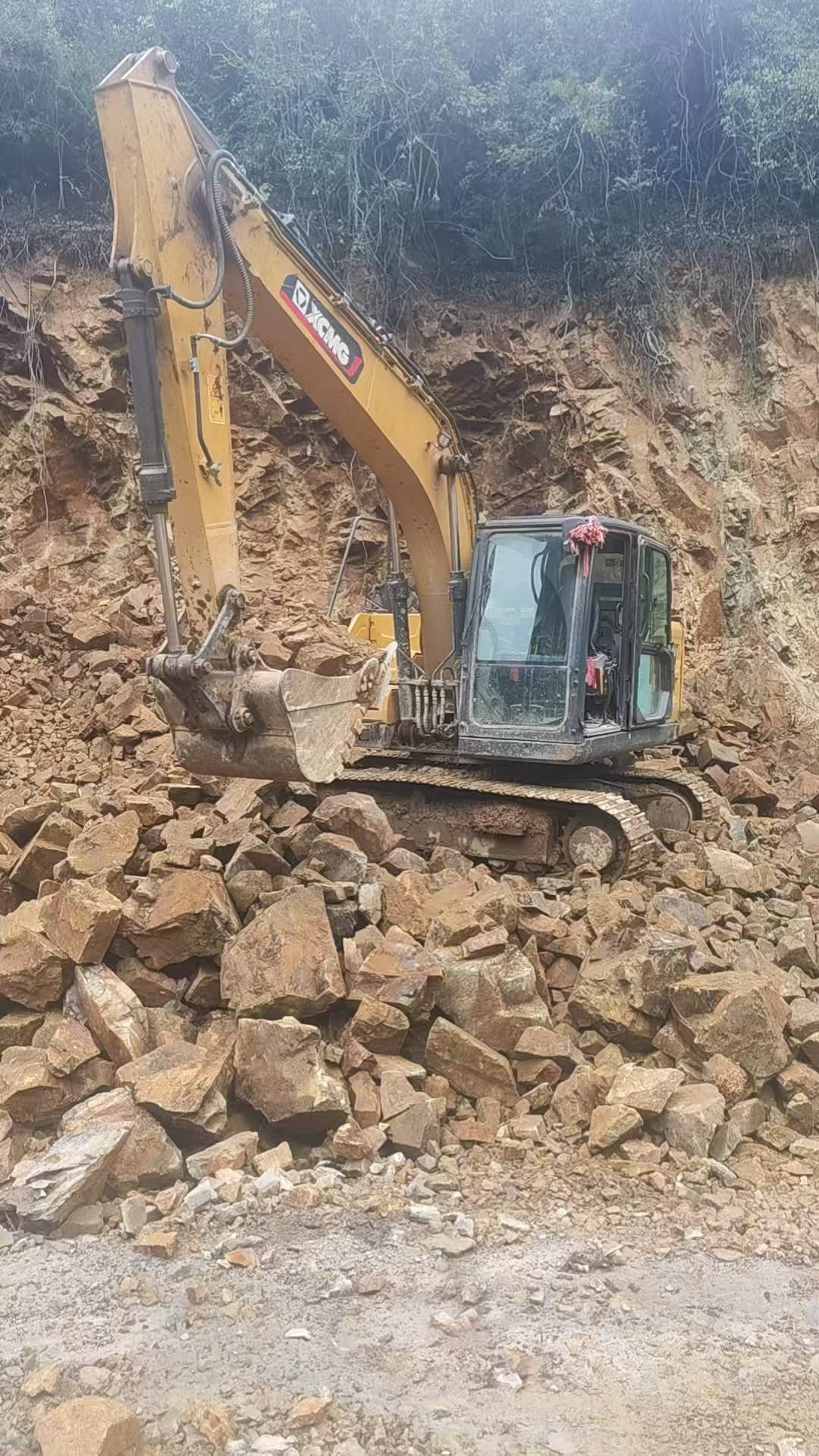

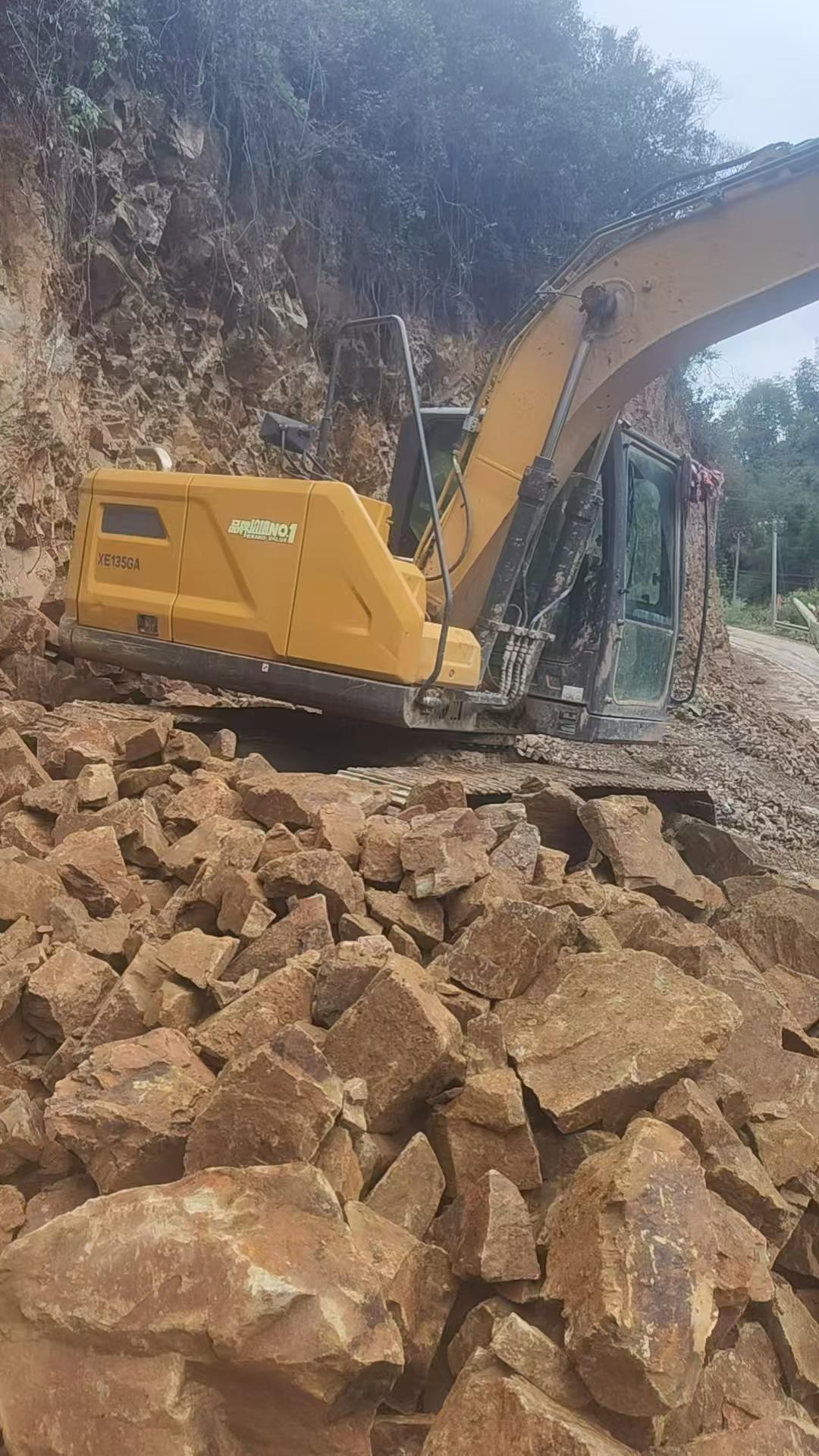

Backed by China's largest construction machinery manufacturer, this 2022 XCMG XE135B delivers proven 13-ton performance with the reliability fleet managers demand. Powered by an ISUZU BB-4BG1TRP engine producing 69.6kW at 2200rpm, this excavator combines robust engineering with readily available parts—a critical advantage when purchasing used equipment. Operating weight of 13,800kg and bucket capacity up to 0.52m³ make it ideal for mid-range excavation, grading, and loading applications.
- Maximum dig depth: 5,538mm with 8,296mm reach
- Digging force: 85kN bucket / 65kN arm for demanding soil conditions
- Dual plunger pumps: 2×123 L/min flow at 31.4/34.3MPa
- Transport dimensions: 7,770×2,512×2,880mm
- Location: Jiangxi Ji'an, China
XCMG's extensive dealer network ensures parts availability across 183 countries, protecting your investment with strong resale value. Water-cooled turbocharged design and 250L fuel capacity support extended work cycles. Currently available from Fair Trade Machinery's verified inventory in Ji'an—contact our team for inspection reports and shipping quotes worldwide.
| Specifications | Value |
|---|---|
| No. | 1044329 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
