HOME>>XCMG>>XCMG XE135B

2022 XCMG XE135B

1/9

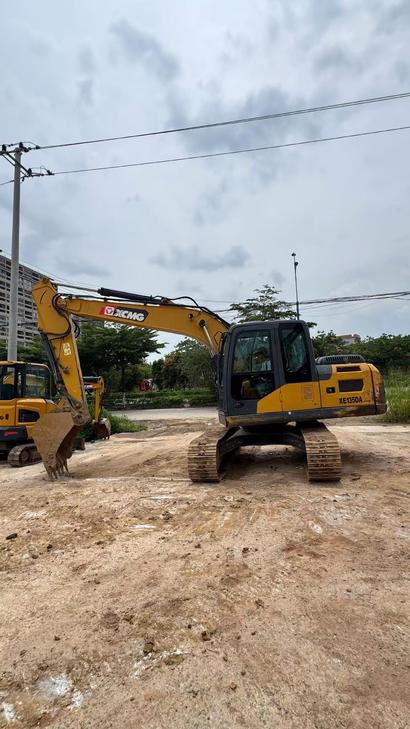

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7
Buy XCMG XE135B Used Excavator / 8
Buy XCMG XE135B Used Excavator / 9

Product Description

This 2022 XCMG XE135B excavator represents a solid mid-size option for contractors seeking reliable performance in earthmoving and site development applications. With minimal operating hours since its original purchase, this machine offers the balance of modern hydraulic efficiency and proven durability that XCMG's 13-ton class is known for.

Currently located in Guangxi, China, the XE135B features:

  • Operating weight approximately 13,500 kg
  • Robust digging and lifting capacity for utility work, foundation excavation, and material handling
  • Fuel-efficient engine meeting current emission standards
  • Spacious operator cabin with clear sightlines
  • Well-maintained condition with documented service history

This excavator is available for inspection and suitable for regional deployment or export. Contact us for detailed specifications, current condition reports, and shipping arrangements.

SpecificationsValue
No.1110287
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1110287

Brand Name:

XCMG

Model Number:

XE135B

Year:

2022

Location:

Guangxi China

Pub Date

Are you interested in this machine?

Please contact us
