Product Description

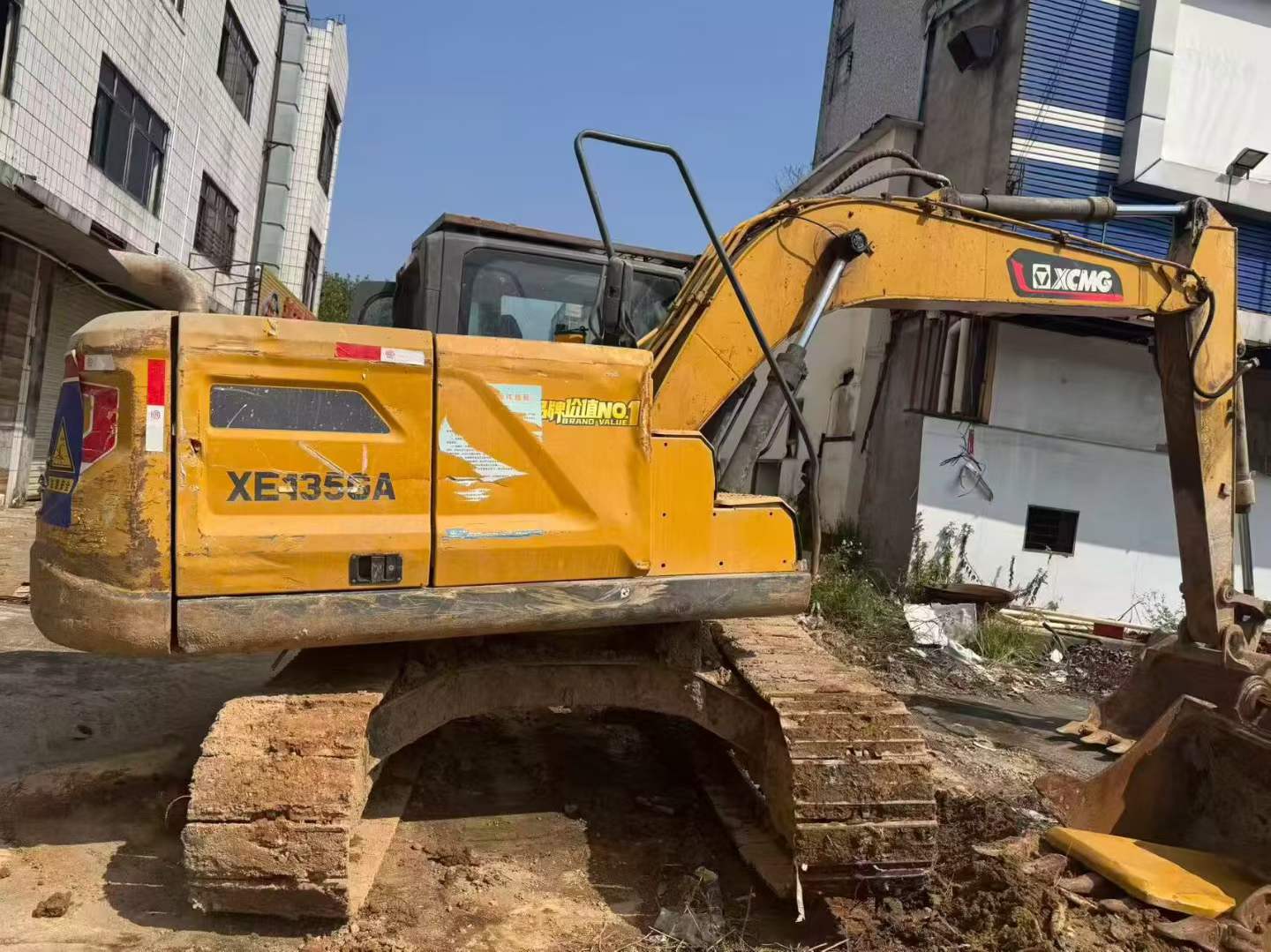

Backed by China's largest construction machinery manufacturer, this 2023 XCMG XE135B delivers proven reliability in the 13-ton excavator class. Powered by a dependable ISUZU BB-4BG1TRP engine producing 69.6kW, this machine combines robust hydraulic performance with exceptional parts availability worldwide. With an impressive 8296mm maximum digging radius and 5538mm digging depth, operators gain productivity without sacrificing fuel efficiency from its 250L tank.
XCMG's global dealer network ensures parts support in over 180 countries, protecting your investment long-term. This unit features dual plunger pumps delivering 2×123 L/min flow, 85kN bucket digging force, and a spacious 0.4-0.52m³ bucket capacity. Currently located in Kunming, Yunnan, the XE135B maintains strong resale values thanks to XCMG's reputation for durability and standardized components.
Key Specifications:
- Operating Weight: 13,800kg with proven stability
- ISUZU 4-cylinder turbocharged engine (4.329L displacement)
- Maximum digging height: 8641mm for versatile applications
- 500mm track plates for superior ground contact
- Compact transport dimensions: 7770×2512×2880mm
| Specifications | Value |
|---|---|
| No. | 1024818 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

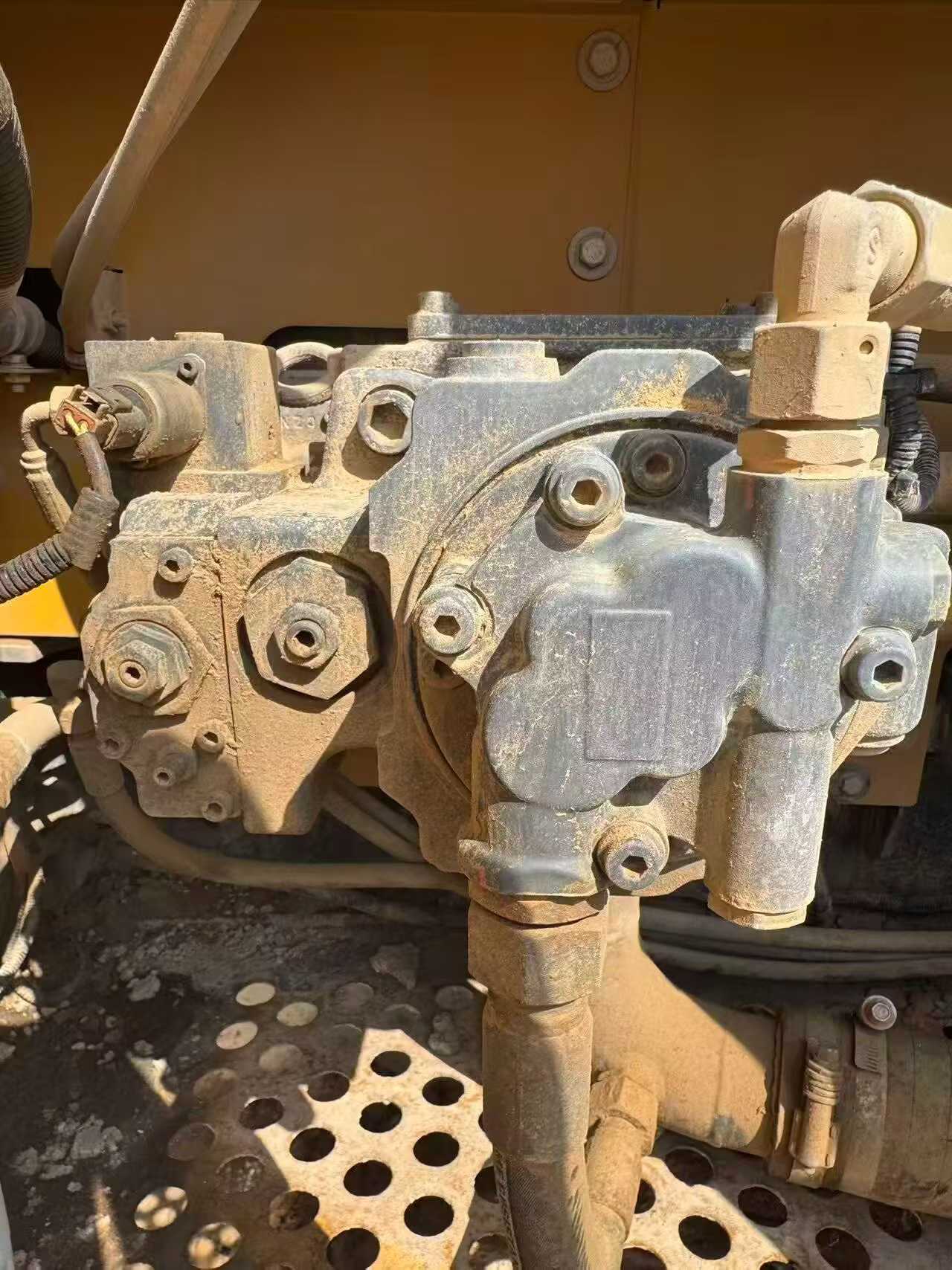

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
