Product Description

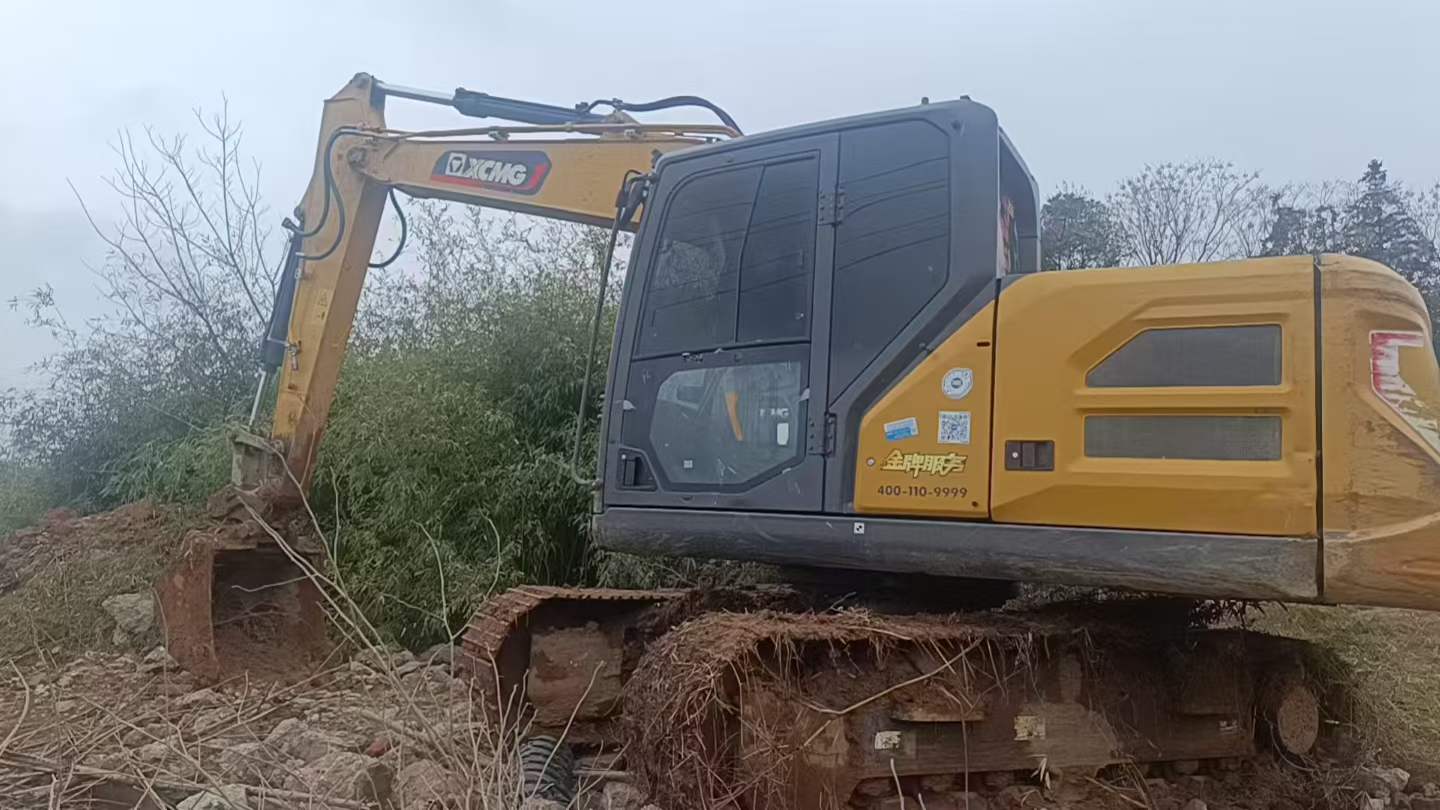

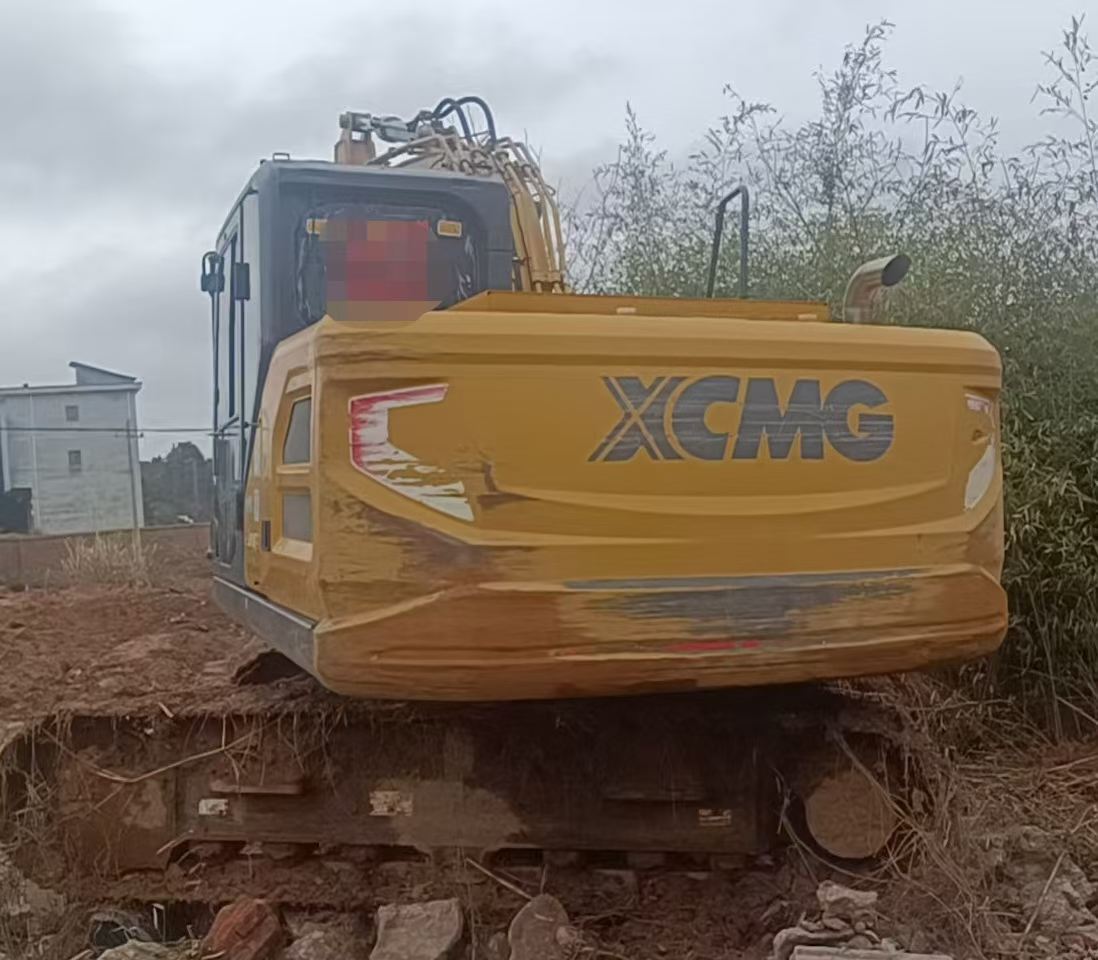

Maximize your ROI with this 2024 XCMG XE135B excavator, delivering flagship performance at a fraction of new equipment costs. Powered by a robust ISUZU BB-4BG1TRP engine generating 69.6kW, this 13-ton workhorse combines proven reliability with exceptional digging capabilities—85kN bucket force and 8,296mm maximum reach handle demanding applications with ease.
- Operating Weight: 13,800 kg with 0.4-0.52 m³ bucket capacity
- Engine: Water-cooled 4-cylinder ISUZU, turbocharged, 4.329L displacement
- Hydraulics: Dual plunger pumps (2×123 L/min) with 31.4/34.3 MPa pressure
- Performance: 5,538mm max digging depth, 35° climbing ability, 12.3 rpm rotation speed
- Dimensions: 7,770mm transport length, 2,512mm width, 2,880mm height
- Location: Fuzhou, Jiangxi—ready for immediate deployment
Built in Xuzhou with quality components and minimal operating hours, this machine represents smart capital allocation for contractors seeking premium Chinese engineering without premium pricing. Operational efficiency meets financial prudence.
| Specifications | Value |
|---|---|
| No. | 1027112 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
