Product Description

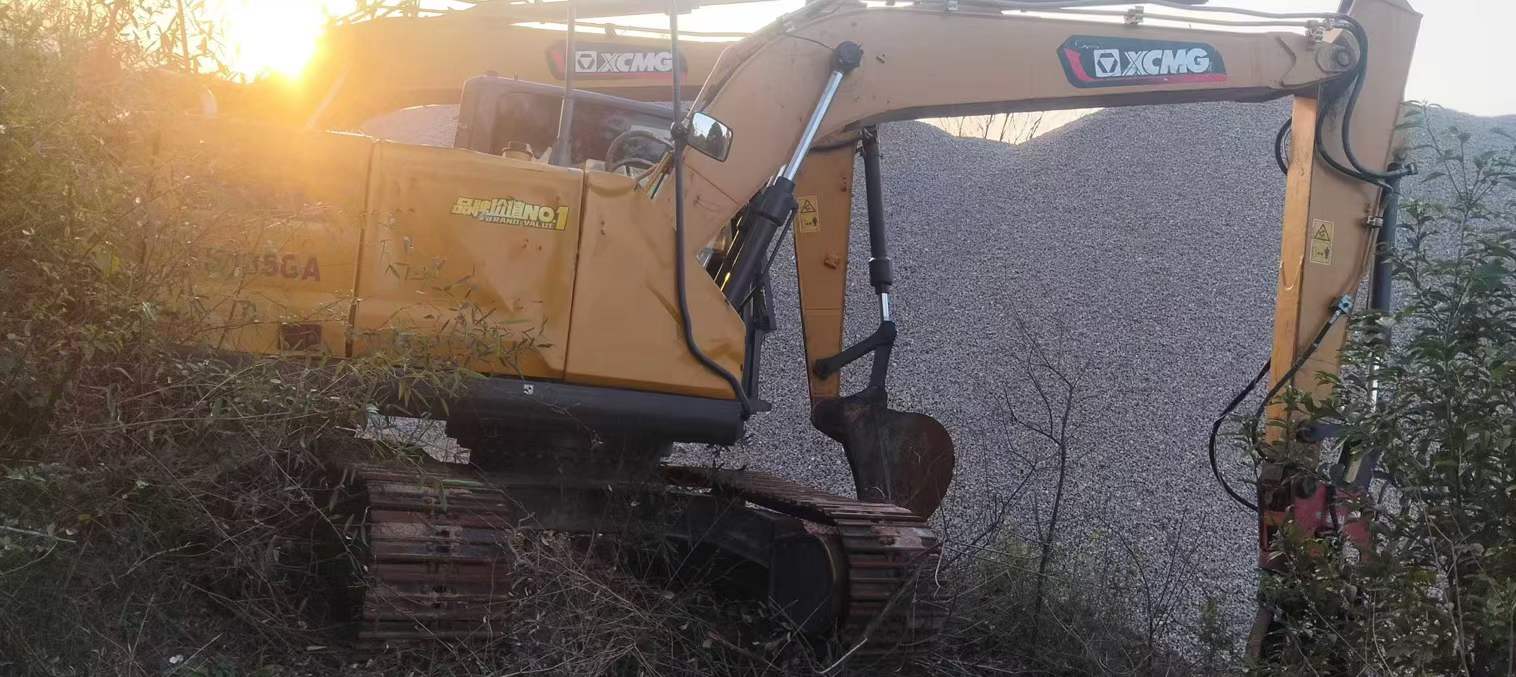

Strengthen your operational capacity with this 2024 XCMG XE135B excavator, now available from Fujian Ningde. Built for contractors managing multiple jobsites simultaneously, this 13-ton machine delivers consistent performance when your primary fleet is stretched thin. Powered by an ISUZU BB-4BG1TRP engine generating 69.6 kW at 2200 rpm, it handles mid-range excavation tasks with reliable efficiency.
- Operating weight: 13,800 kg with 0.4–0.52 m³ bucket capacity
- Maximum digging depth of 5,538 mm; reach extends to 8,296 mm
- Bucket digging force: 85 kN; arm digging force: 65 kN

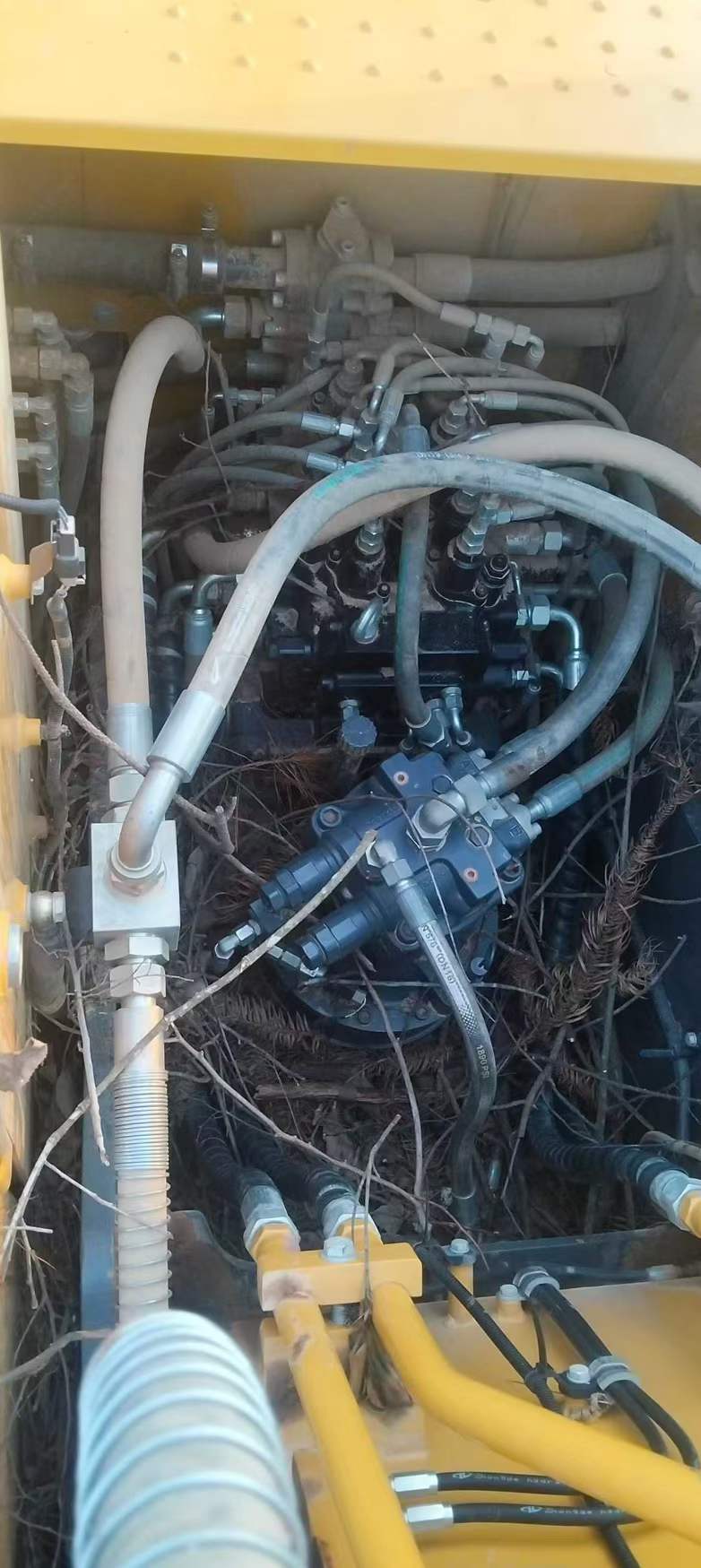

- Dual plunger pumps supply 2×123 L/min hydraulic flow
- 4,600 mm boom and 2,510 mm arm optimize versatility
- 35° grading capability; 12.3 rpm slew speed
Water-cooled turbocharged engine ensures sustained output across extended shifts. Compact 7,770 mm transport length simplifies mobilization between projects. Manufactured in Xuzhou, this unit integrates seamlessly into existing XCMG fleets while providing the redundancy growing operations demand.
| Specifications | Value |
|---|---|
| No. | 1030676 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
