Product Description

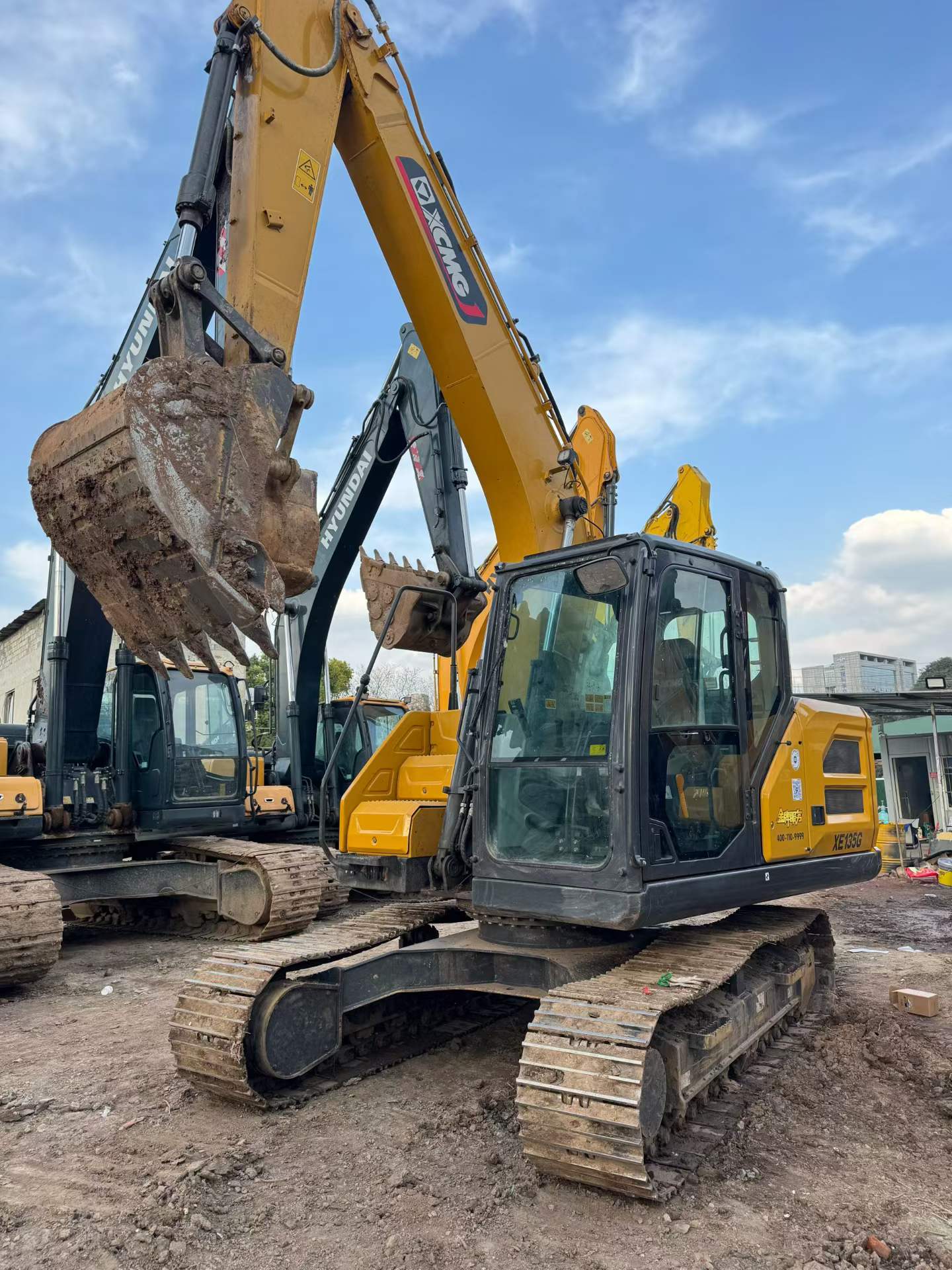

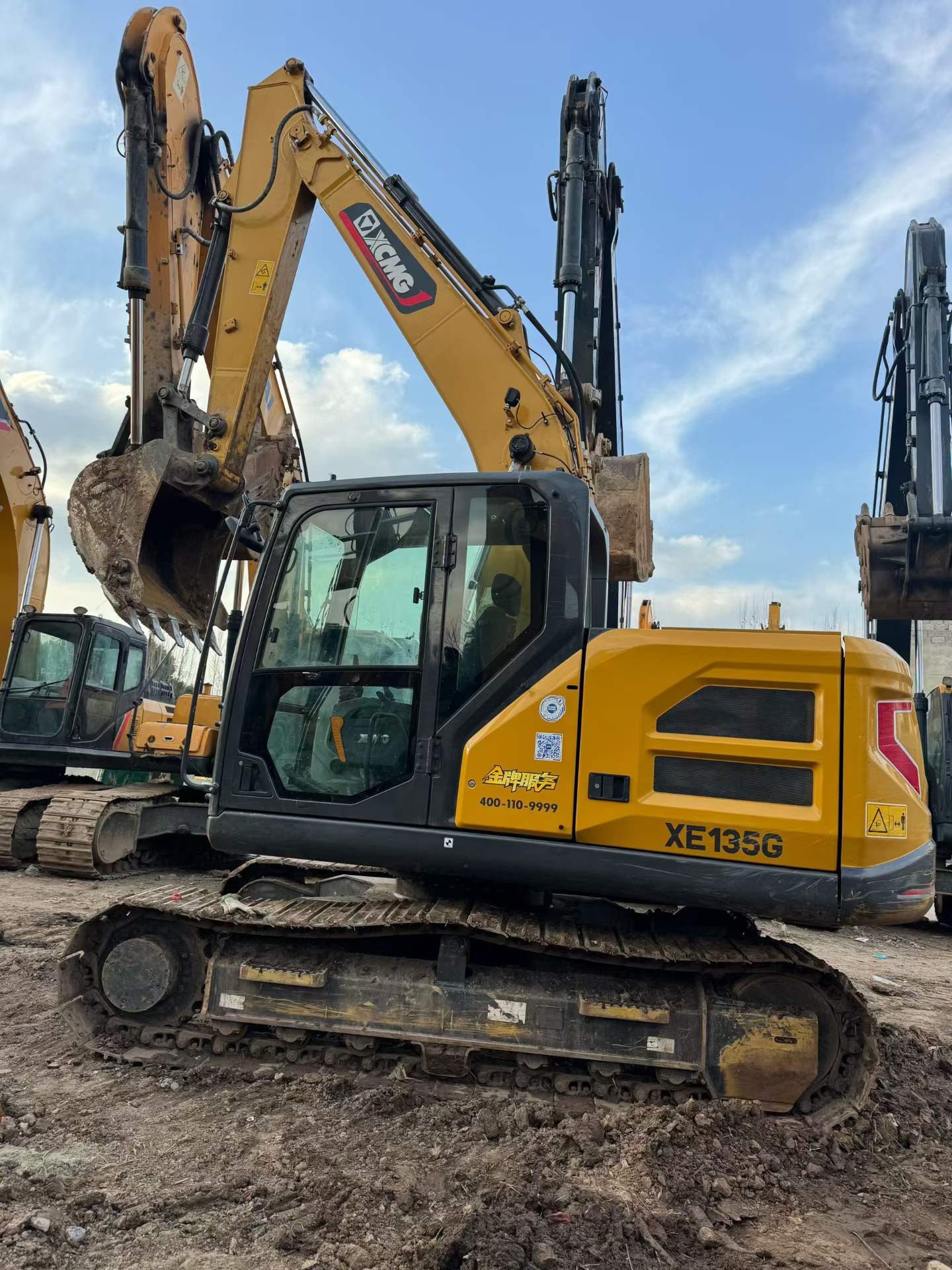

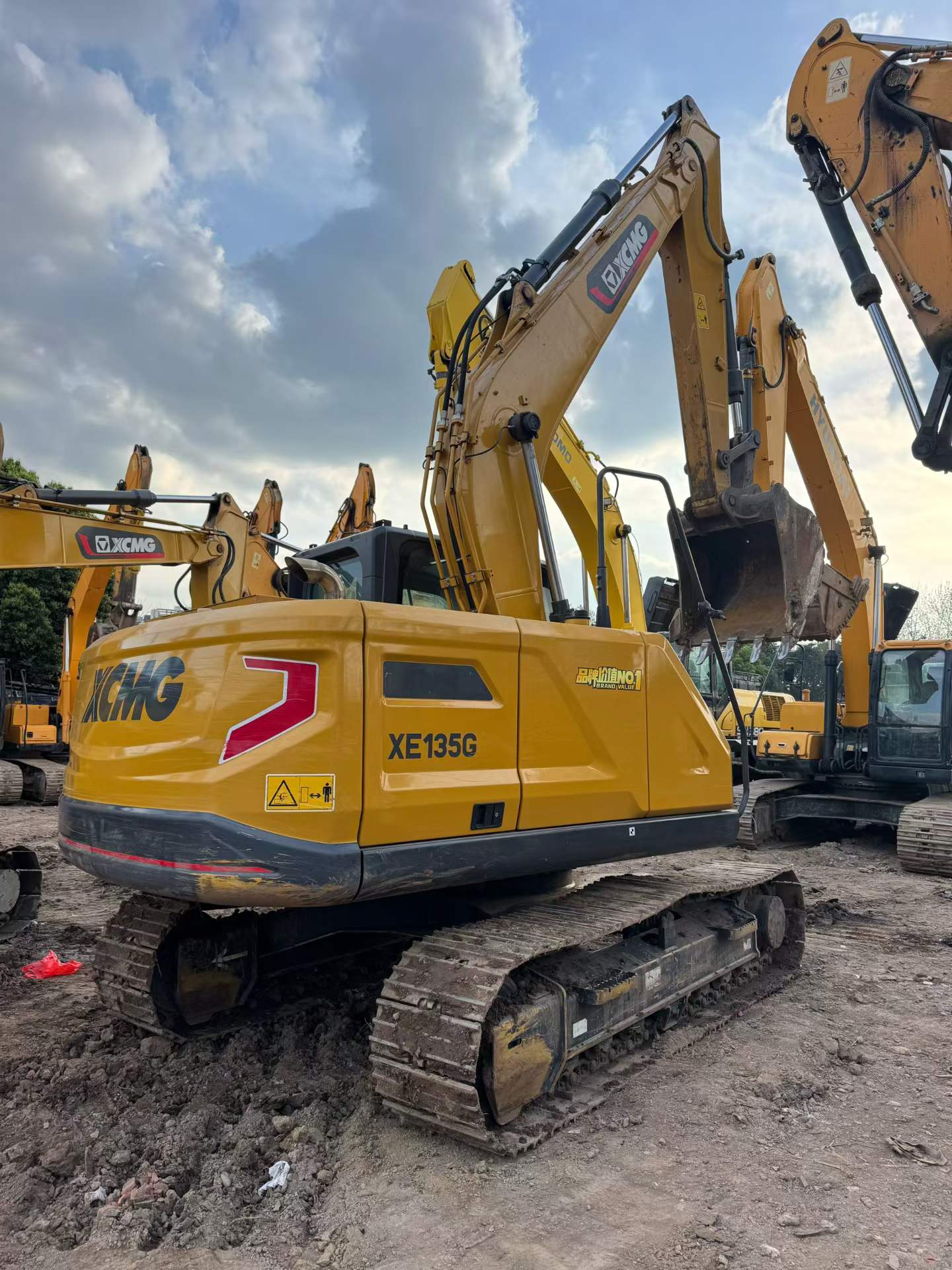

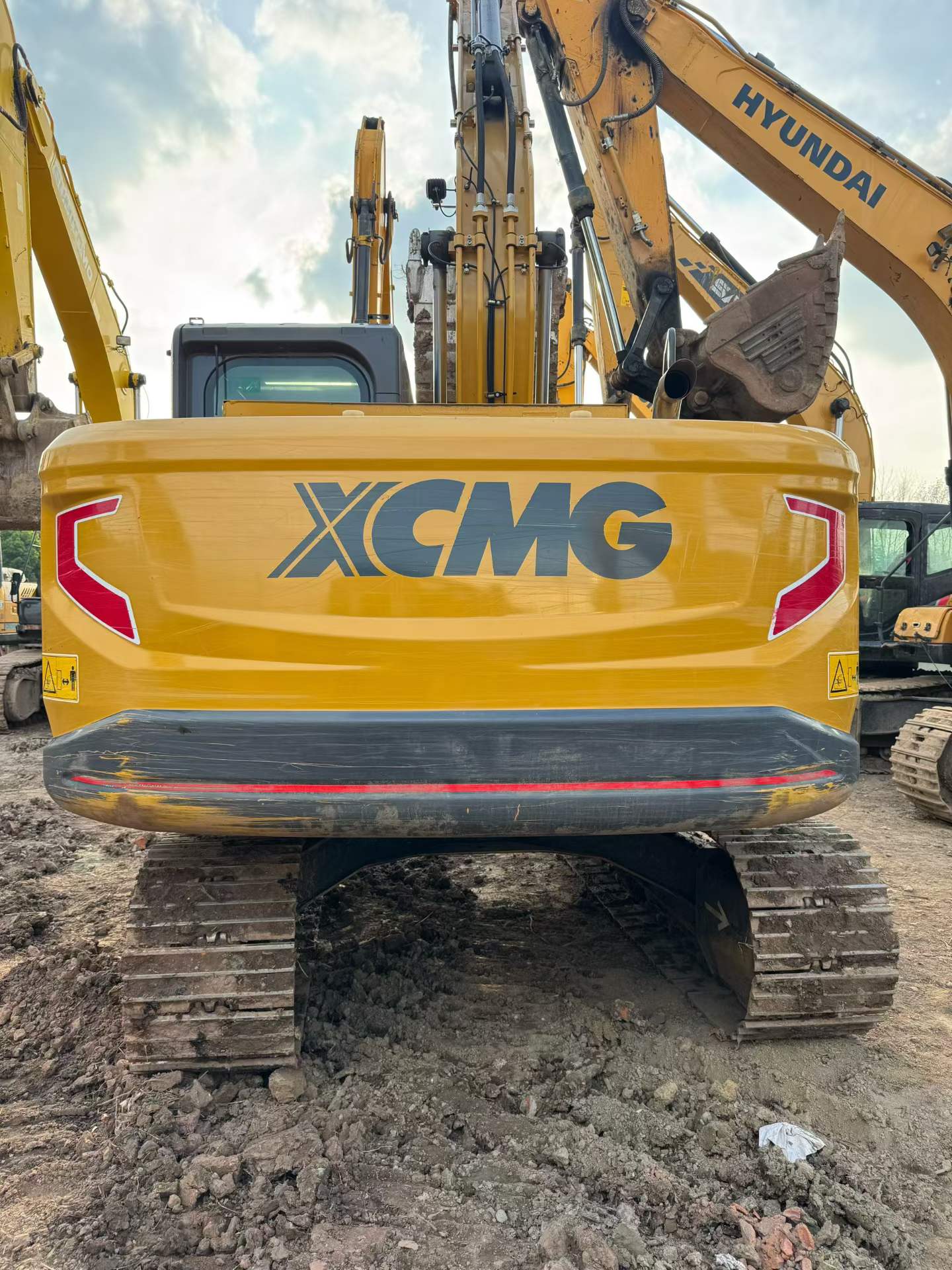

Built for precision and control, this 2025 XCMG XE135B excavator delivers reliable performance across demanding jobsites. Operating at 13 tons with an ISUZU BB-4BG1TRP engine producing 69.6 kW, this machine combines proven hydraulic efficiency with responsive handling. Operators benefit from dual plunger pumps delivering 2×123 L/min flow, ensuring smooth multi-function work cycles during extended shifts.

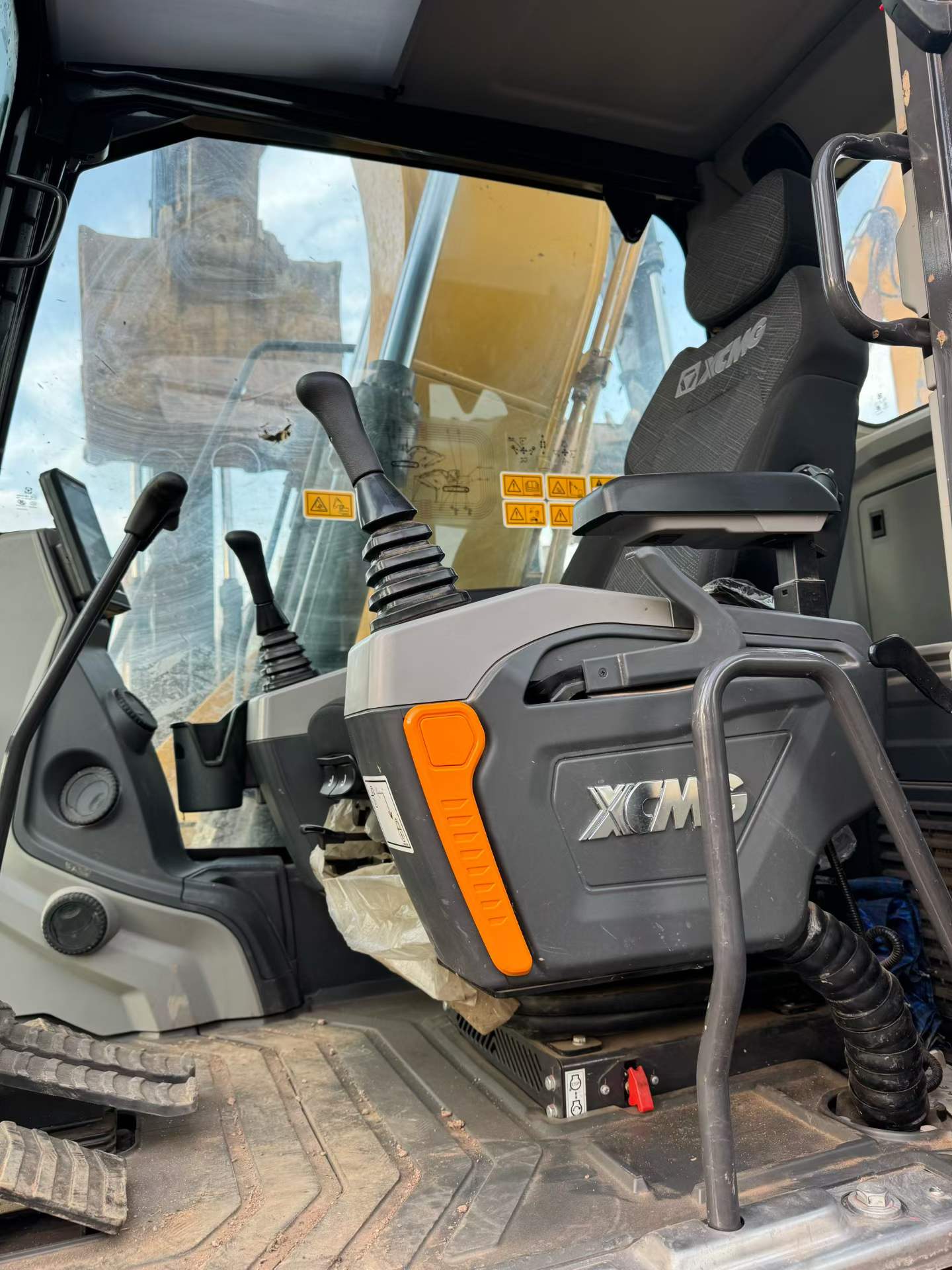

Stability remains consistent across varied terrain, supported by 2,910 mm track ground contact and 500 mm-wide track plates that distribute 42 kPa ground pressure. The cabin provides commanding visibility over an 8,296 mm maximum digging radius and 5,538 mm digging depth. Hydraulic controls respond precisely through a 3.9 MPa pilot circuit, reducing operator fatigue during repetitive cycles. With 35° climbing ability and 12.3 rpm rotation speed, positioning accuracy stays sharp on slopes and confined areas.
- ISUZU turbocharged engine: 69.6 kW at 2,200 rpm
- Bucket digging force: 85 kN; rod force: 65 kN
- Dual-speed travel: 5.16/3.03 km/h
- 250 L fuel capacity for extended runtime
- Currently located in Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1022516 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

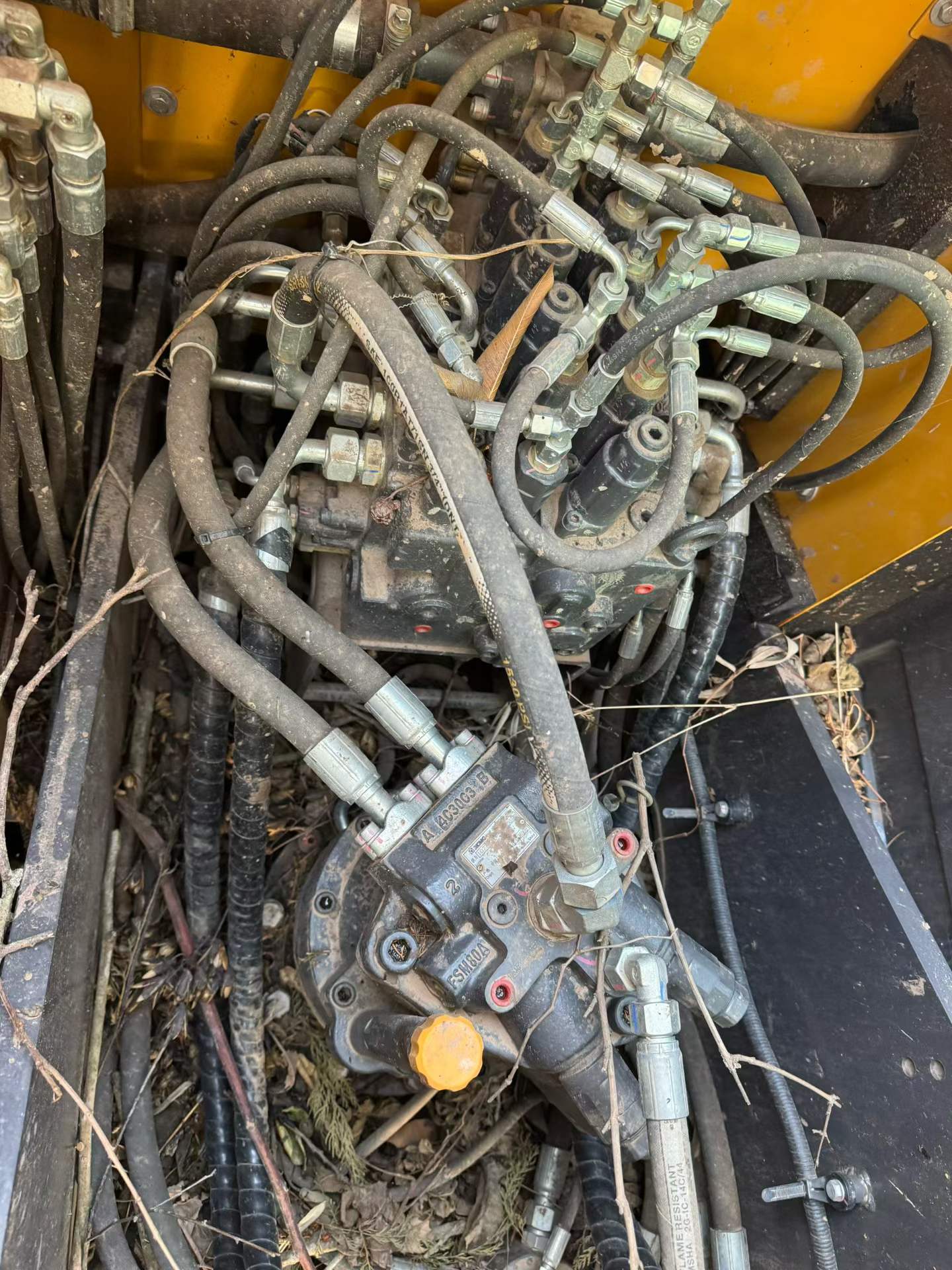

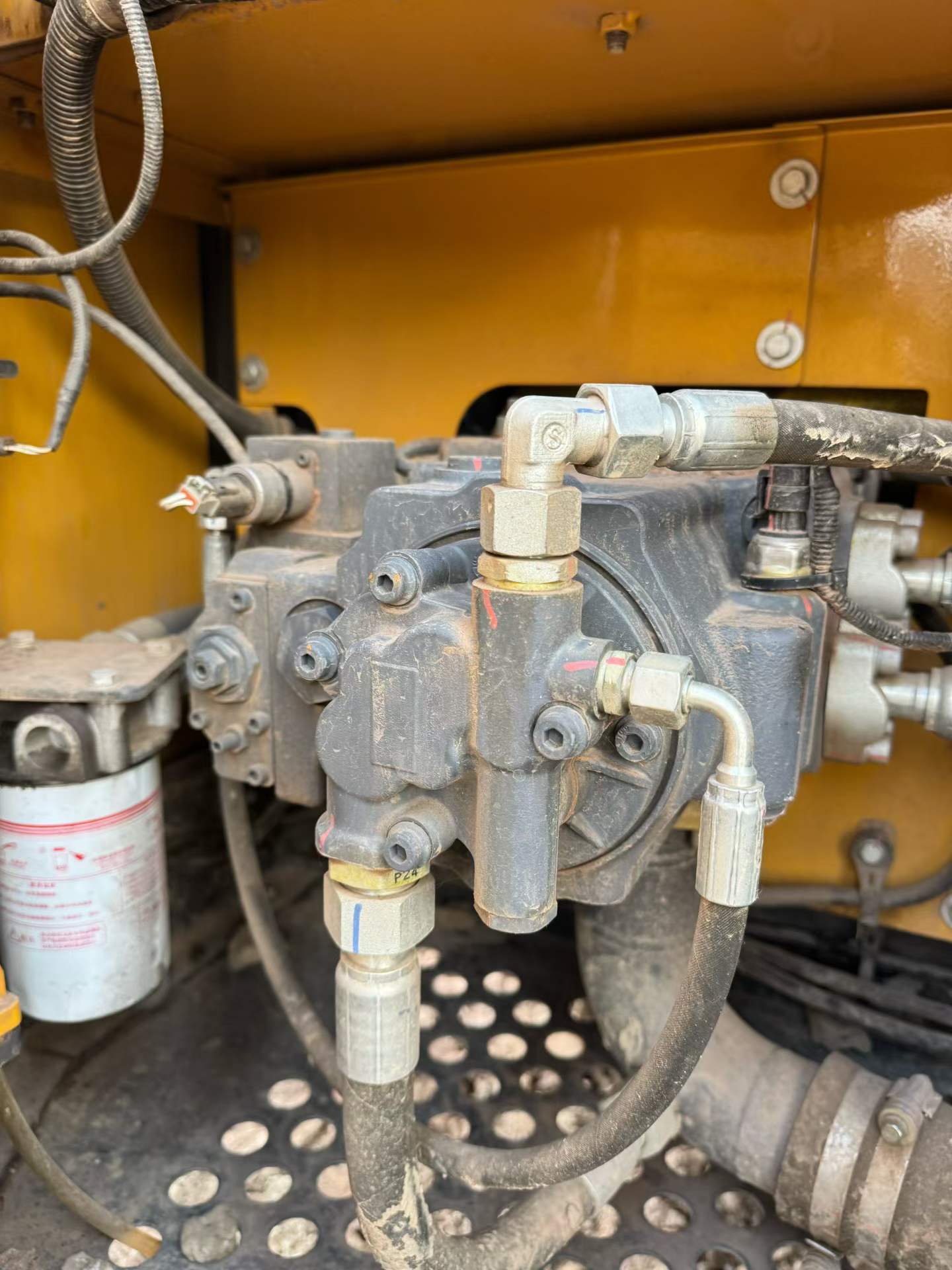

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
