Product Description

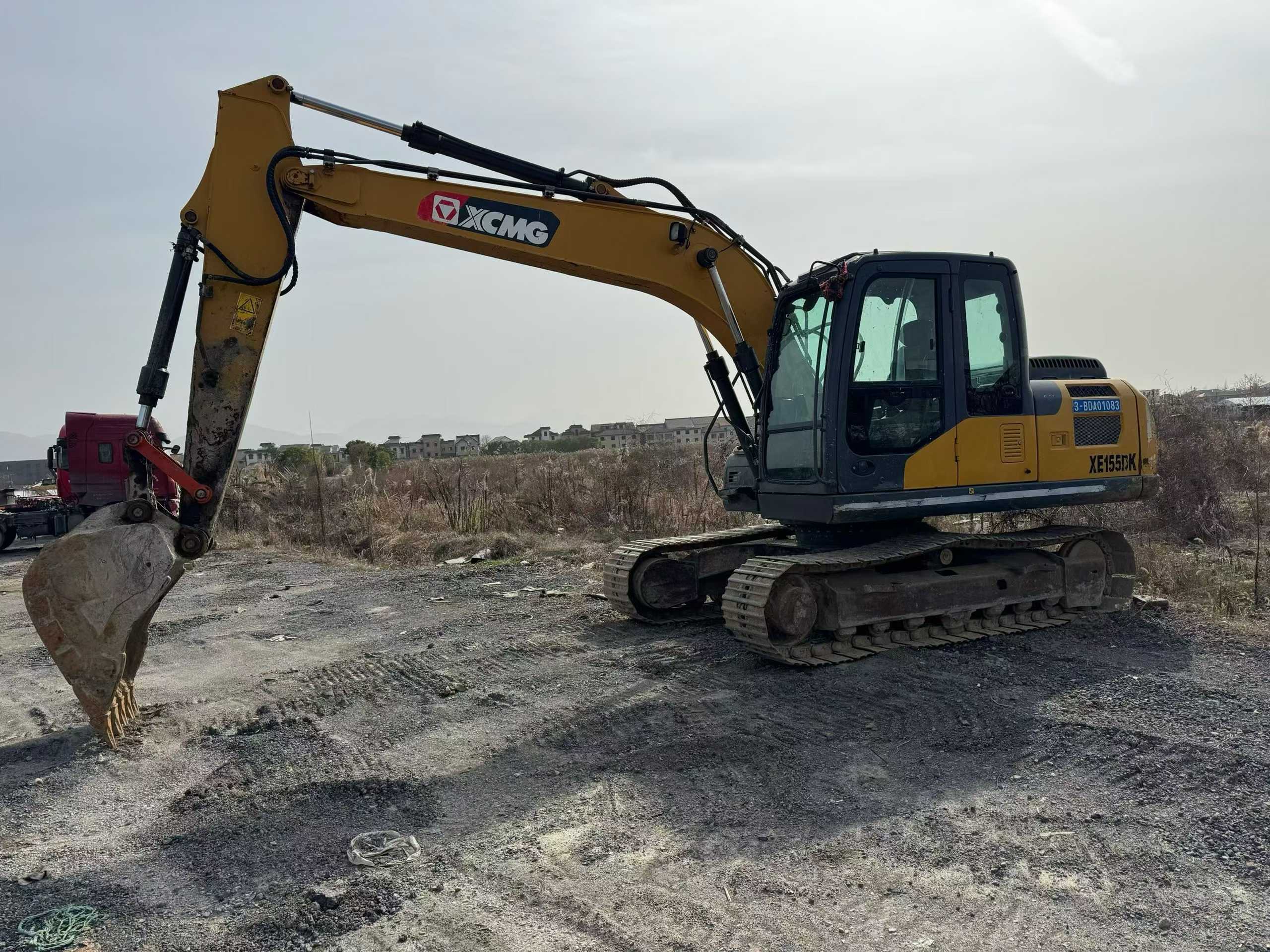

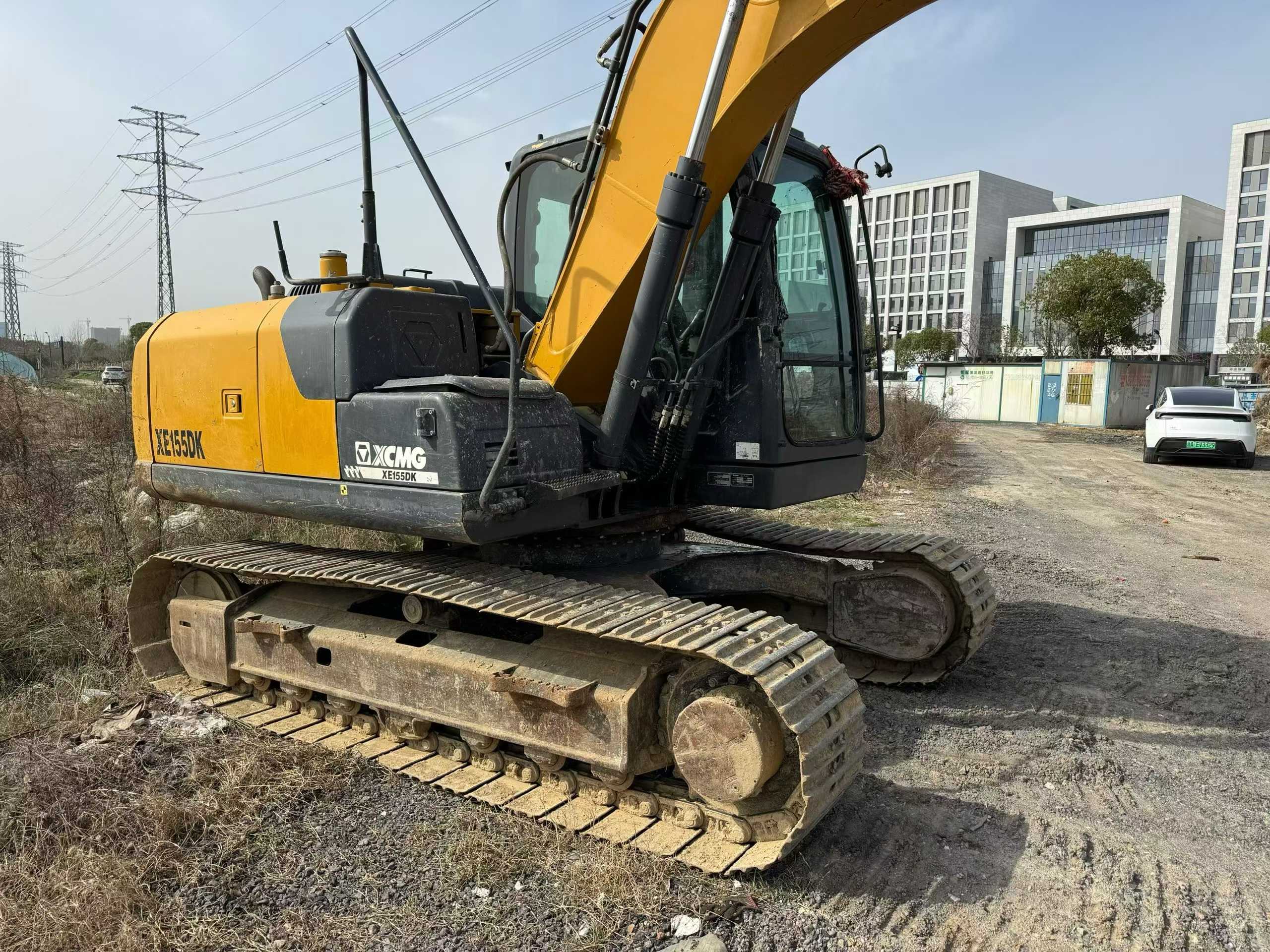

Available now in Hangzhou, Zhejiang, this 2016 XCMG XE135D crawler excavator eliminates factory wait times and accelerates your project timeline. Operating at 13 tons with a robust QSF3.8 engine delivering 86kW at 2200 rpm, this machine provides immediate productivity without procurement delays. Water-cooled turbocharged performance meets the demands of infrastructure, earthmoving, and construction applications across Asia and beyond.
- Working weight: 13,200 kg with 0.52 m³ bucket capacity
- Maximum digging reach: 8,304 mm / digging depth: 5,546 mm

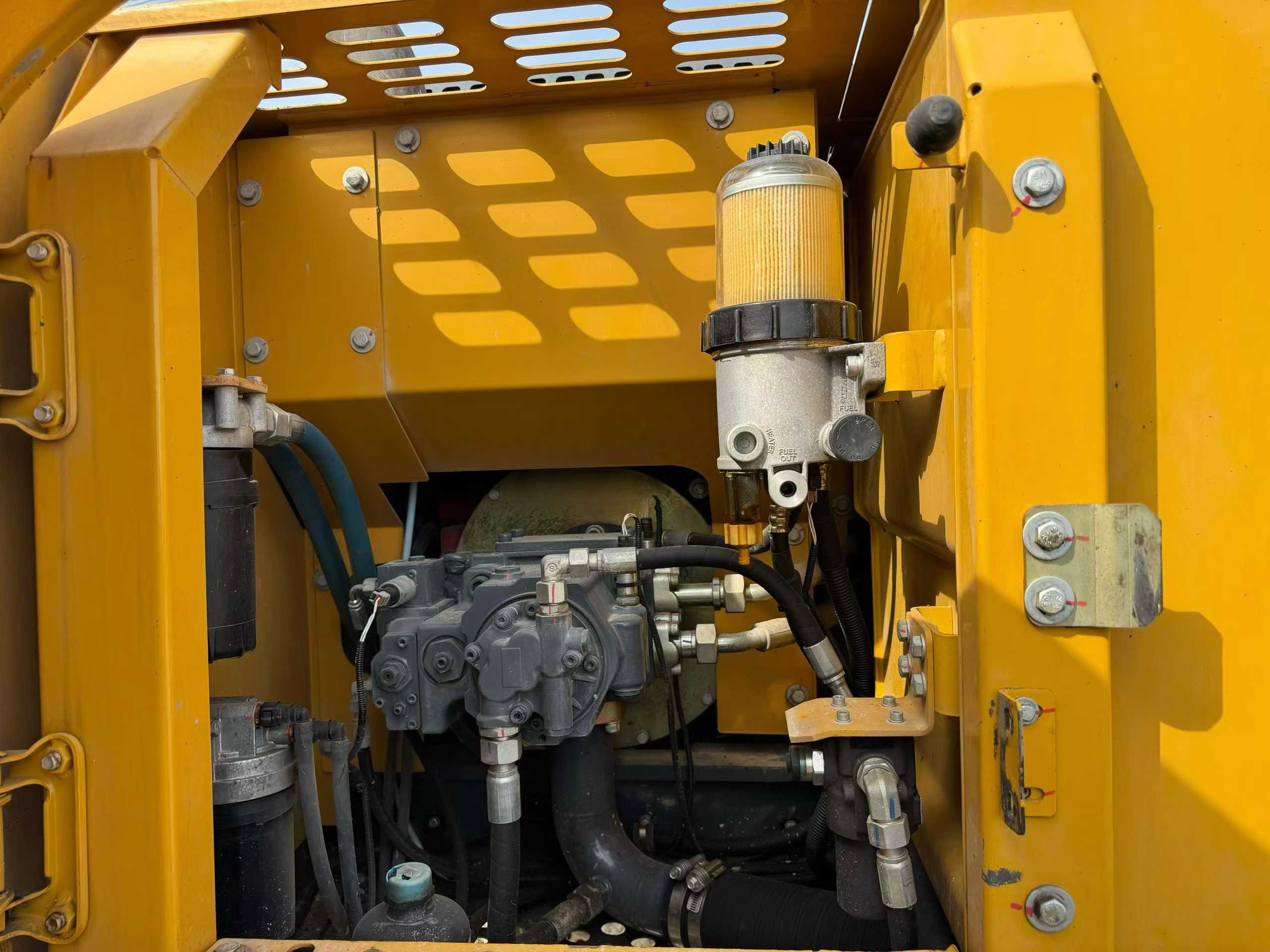

- Dual main pumps: 125.4 L/min each for responsive hydraulic flow
- Bucket digging force: 99.1 kN / stick force: 68 kN
- Transport dimensions: 7,795 × 2,525 × 2,880 mm
- 260L fuel capacity for extended operating shifts
Skip months of lead time. Fast deployment from Hangzhou to your site means work begins immediately. Direct injection EFI technology and proven Chinese manufacturing deliver dependable performance at competitive value. Inspect in Zhejiang and mobilize within days.
| Specifications | Value |
|---|---|
| No. | 1017787 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

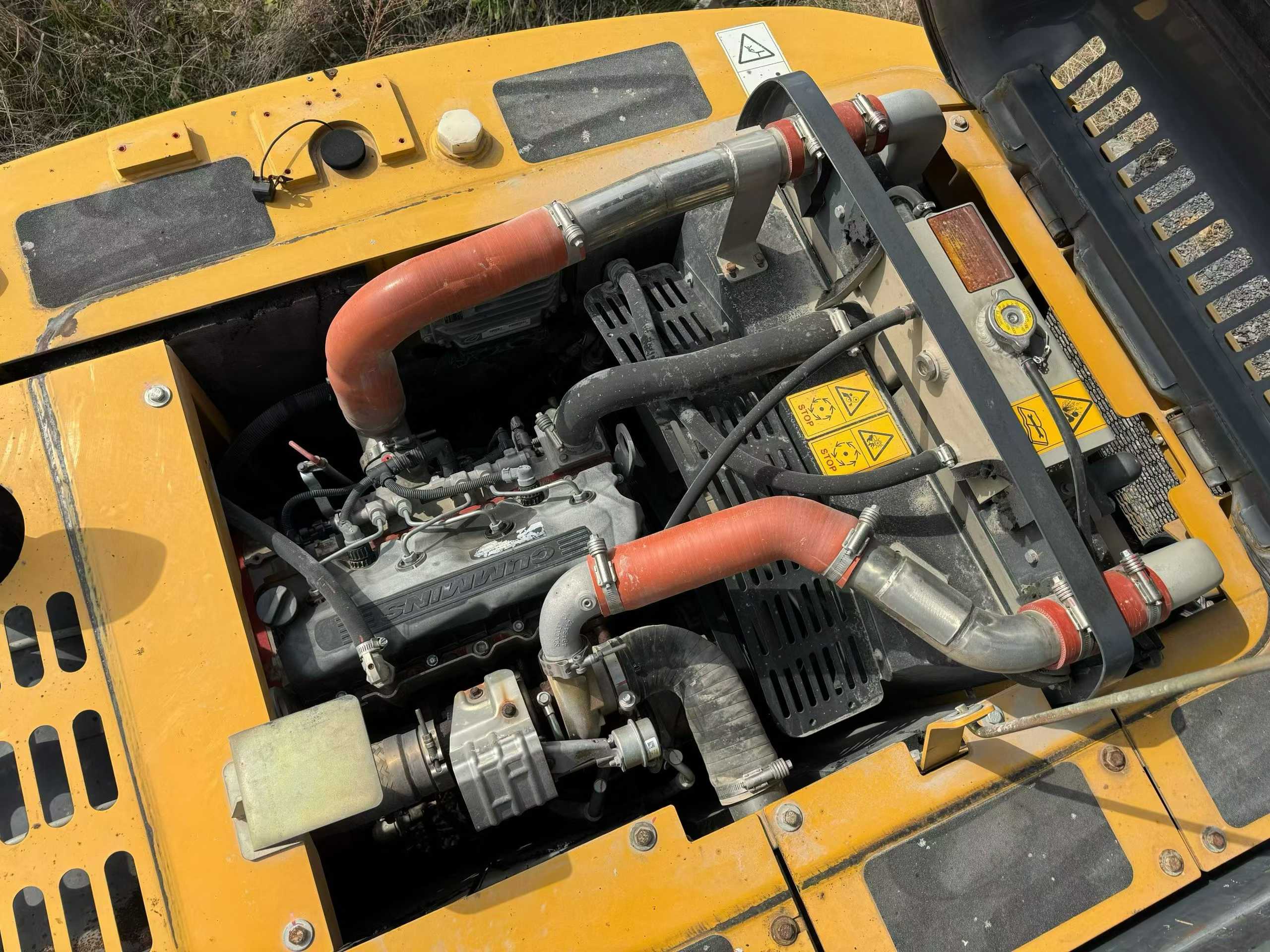

| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
