Product Description

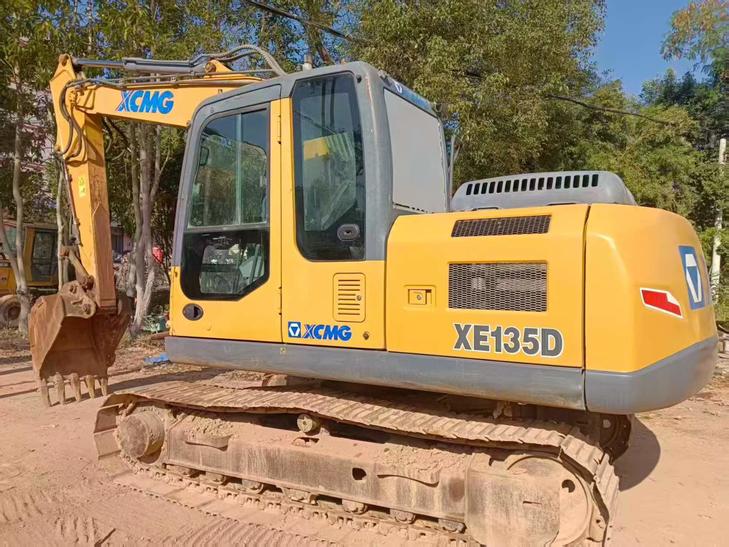

With a working weight of 13,200 kg and a bucket capacity ranging from 0.32 to 0.61 m³, the XCMG XE135D excavator, manufactured in 2018, offers robust performance and reliability. Equipped with a QSF3.8 engine, this machine delivers 86 kW at 2200 rpm, ensuring efficient and powerful operation. Its water-cooled, 4-stroke, turbocharged engine provides a maximum torque of 470 N.m at 1300 rpm, enhancing its capability in demanding environments.
- Handling and Stability: The XE135D features a ground specific pressure of 40.4 Kpa, a climbing ability of 35%, and a maximum tractive force of 134 kN, making it highly stable and maneuverable on various terrains.
- Cabin Visibility: Operators benefit from excellent visibility, with a minimum turning radius of the front working device at 2445 mm and a back end turning radius of 2325 mm, ensuring clear sightlines for precise control.
Designed for operator comfort and efficiency, the XCMG XE135D is a reliable choice for construction and excavation projects. Located in 广东河源, this excavator is ready to meet your heavy machinery needs.
| Specifications | Value |
|---|---|
| No. | 1020654 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
