Product Description

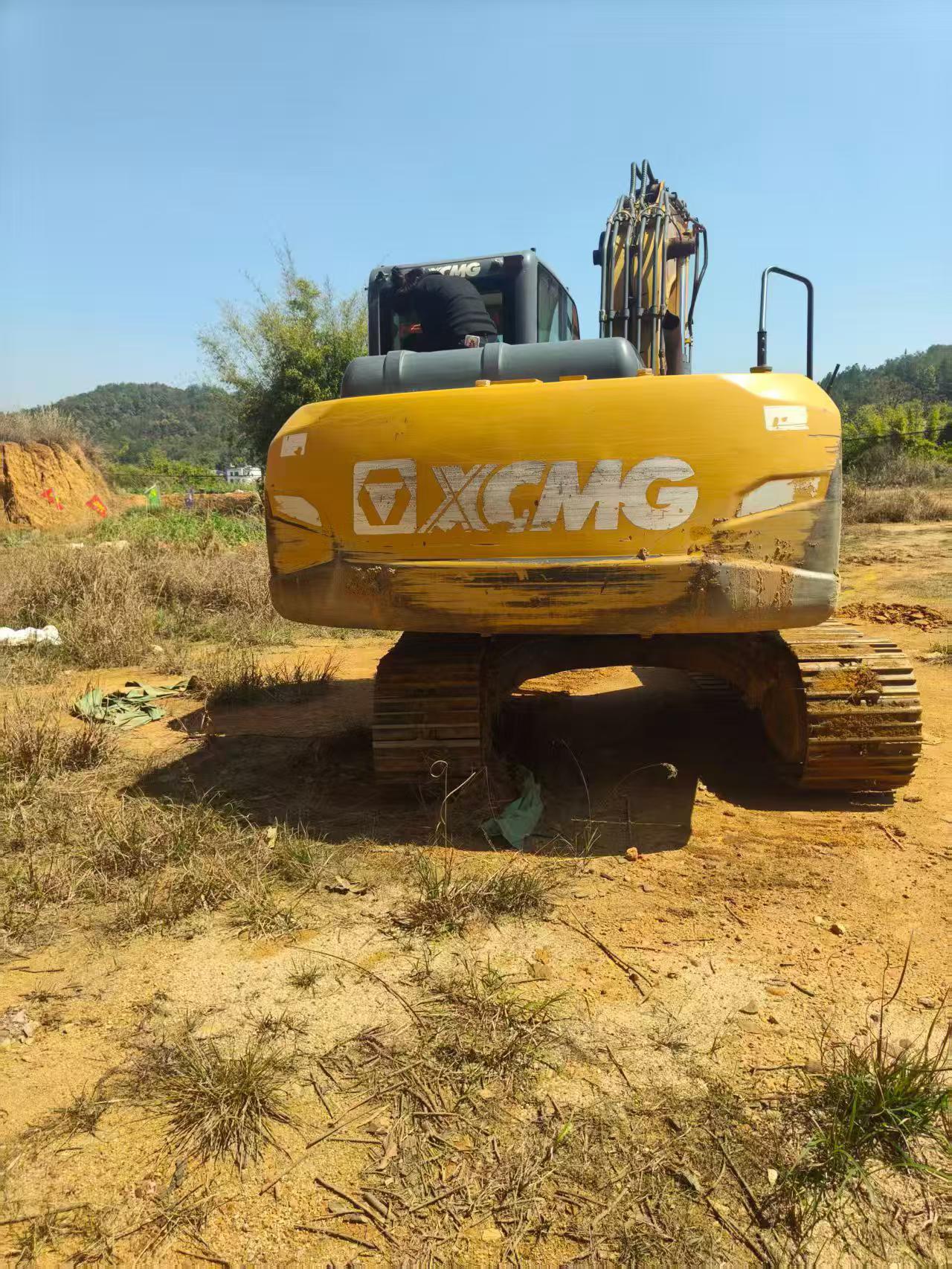

Proven in the field since 2019, this XCMG XE135D excavator delivers unwavering performance backed by years of reliable operation. Built with a robust 13-ton working weight and powered by a QSF3.8 engine generating 86kW at 2200 rpm, this machine tackles demanding excavation work with consistent efficiency. The 4600mm boom and 2520mm arm provide an impressive 8304mm maximum digging radius, while the 0.52m³ bucket capacity ensures productive material handling on every cycle.
Engineered for longevity, this workhorse features water-cooled direct injection technology and turbocharged performance, delivering 470 N.m of torque when you need it most. With 99.1kN bucket digging force and 68kN arm digging force, this excavator powers through tough ground conditions without hesitation. The dual main pumps supply 125.4 L/min each, maintaining hydraulic responsiveness throughout extended shifts.
- Working Weight: 13,200 kg with proven durability
- Maximum Digging Depth: 5546mm for versatile applications
- 260L Fuel Tank: Extended runtime between refueling
- Location: Putian, Fujian – ready for deployment
Currently located in Putian, Fujian, this tested XE135D represents dependable Chinese ma
| Specifications | Value |
|---|---|
| No. | 1030445 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
