Product Description

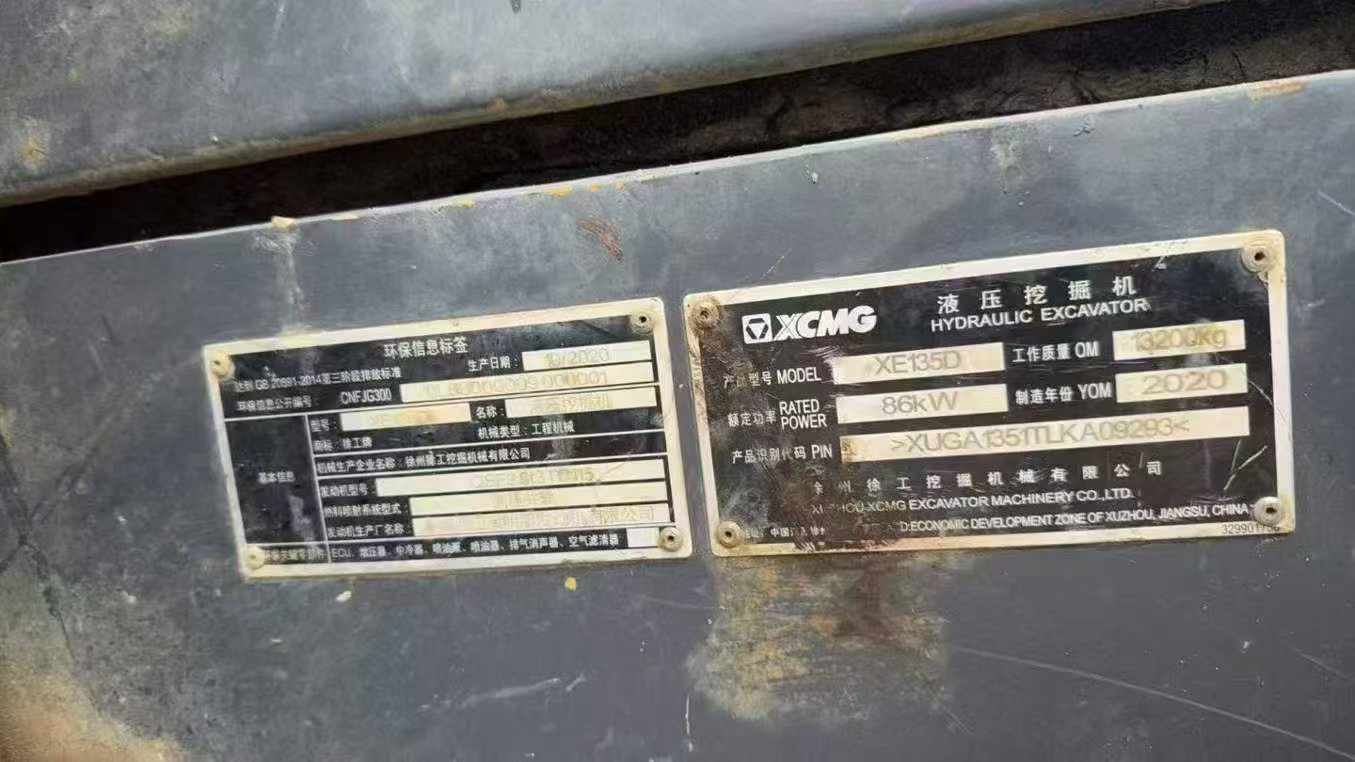

Built for precision work in demanding environments, this 2020 XCMG XE135D delivers 13-ton performance with operator-focused engineering. Powered by a QSF3.8 engine producing 86kW at 2200rpm, the machine combines 99.1kN bucket digging force with refined hydraulic controls for responsive handling across excavation, trenching, and loading applications.
Operators benefit from proven cabin design featuring expansive glass coverage for unobstructed sightlines to the bucket, tracks, and surrounding workspace. The 500mm track width and 40.4kPa ground pressure provide stable footing on soft terrain, while the 11rpm swing speed enables smooth, controlled rotation without cab jolt. Hydraulic pilot controls respond predictably under the 34.3MPa working circuit, reducing fatigue during extended shifts.
Key operational specifications include:
- Working weight: 13,200kg with 0.52m³ standard bucket
- Maximum digging reach: 8,304mm; depth to 5,546mm
- Dual main pumps: 125.4L/min each for simultaneous functions
- Travel speeds: 5.2km/h high, 2.9km/h low range
- 260L fuel capacity for full-day autonomy
Currently located in Jiangsu, China. Inspection reports available upon request.
| Specifications | Value |
|---|---|
| No. | 1017053 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
