Product Description

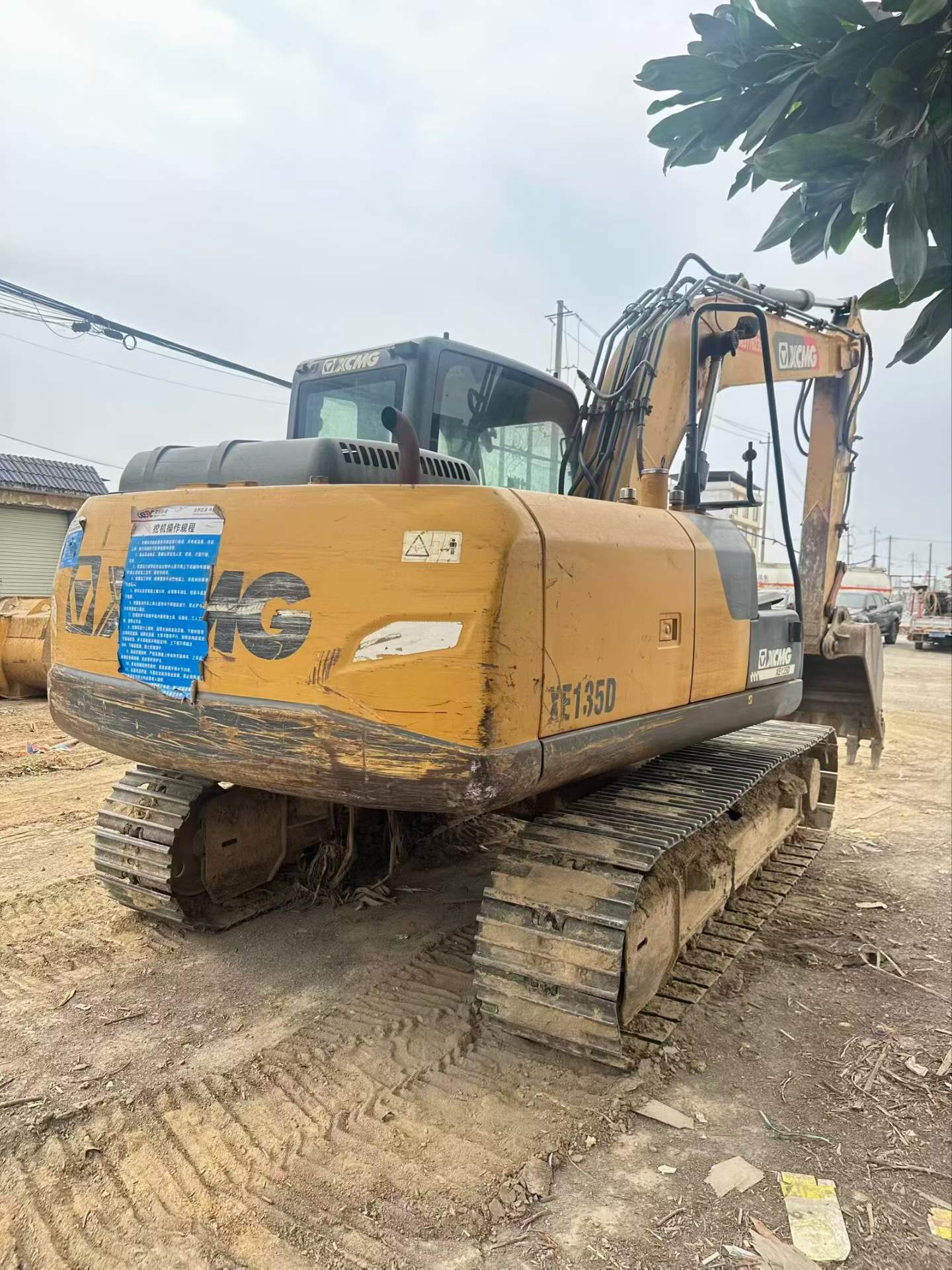

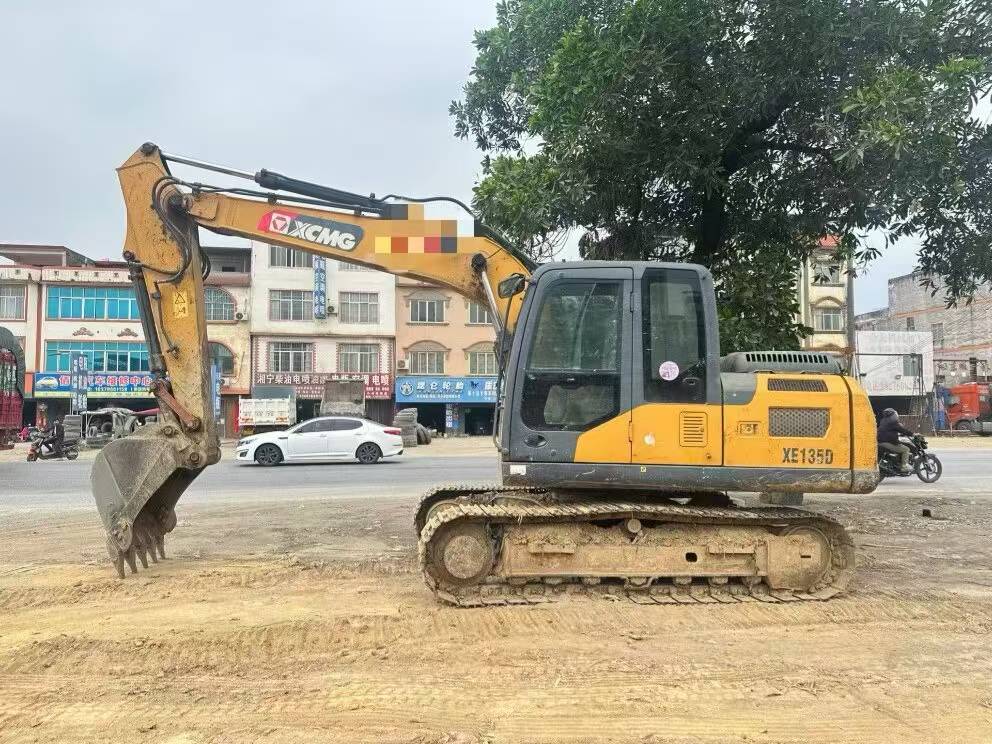

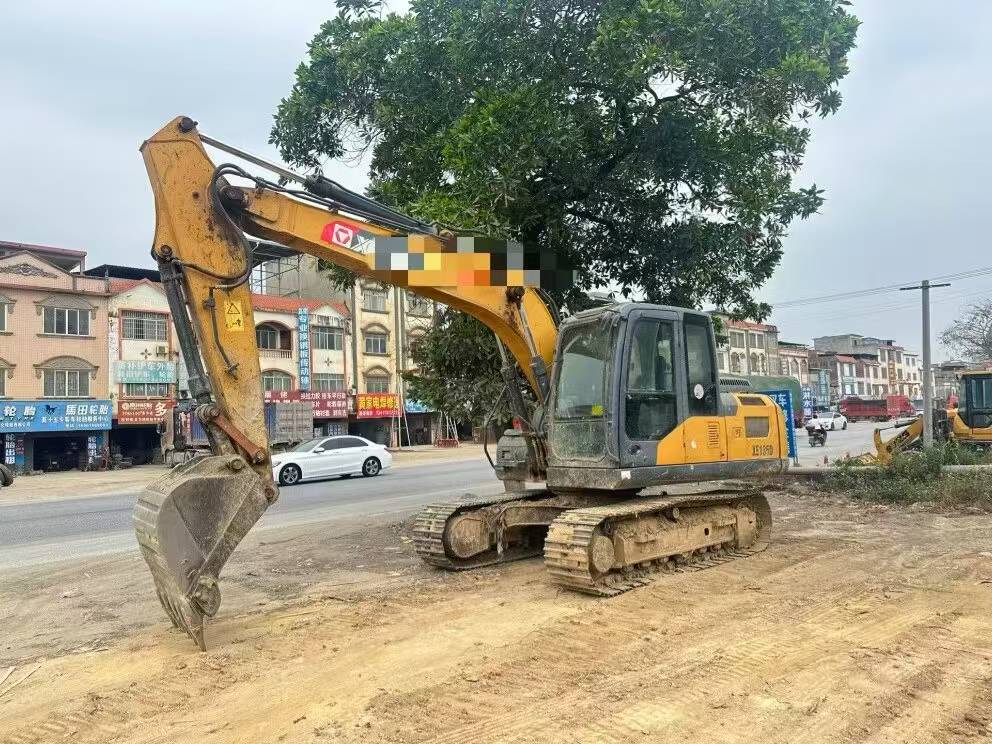

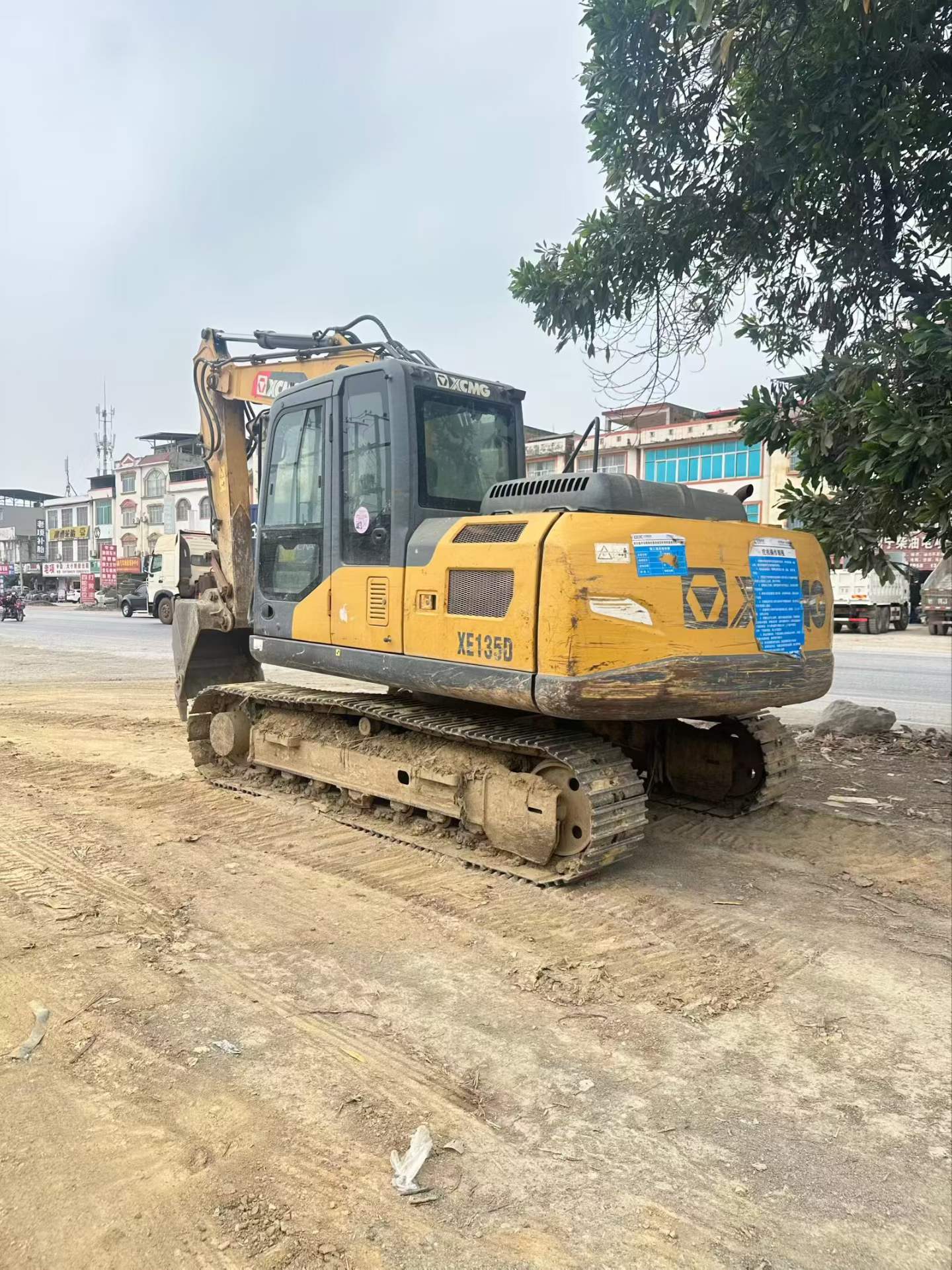

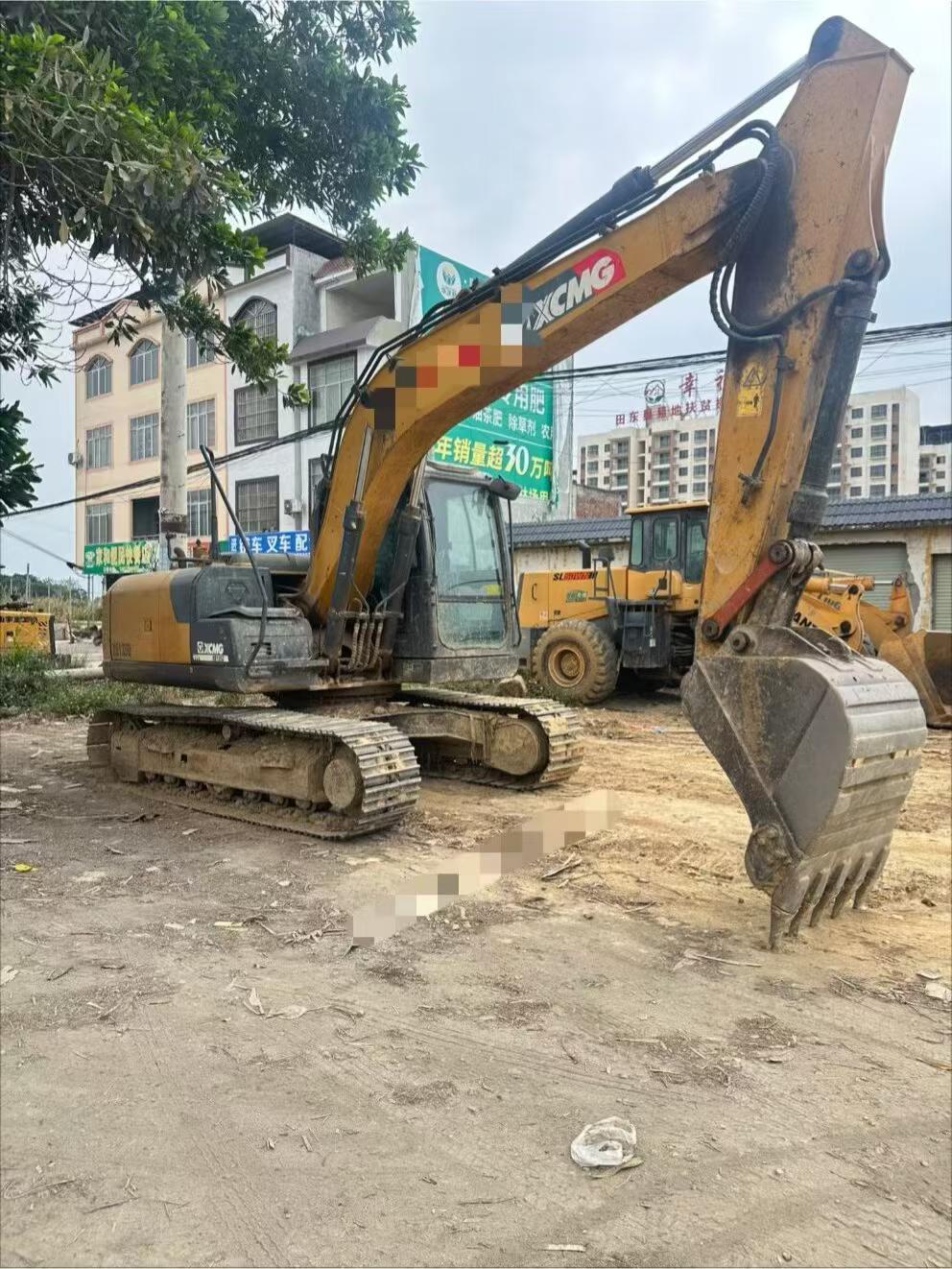

Maximize your excavation budget with this 2020 XCMG XE135D—a 13-ton workhorse delivering professional-grade performance at a fraction of new equipment cost. Powered by a robust QSF3.8 engine producing 86kW at 2200 rpm, this mid-size excavator combines proven reliability with impressive digging capabilities. Equipped with a 0.52m³ bucket, 4600mm boom, and 2520mm arm, it tackles demanding jobsites with 99.1kN bucket digging force and reaches up to 8304mm maximum digging radius.
- Year & Hours: 2020 model—minimal depreciation, maximum remaining service life

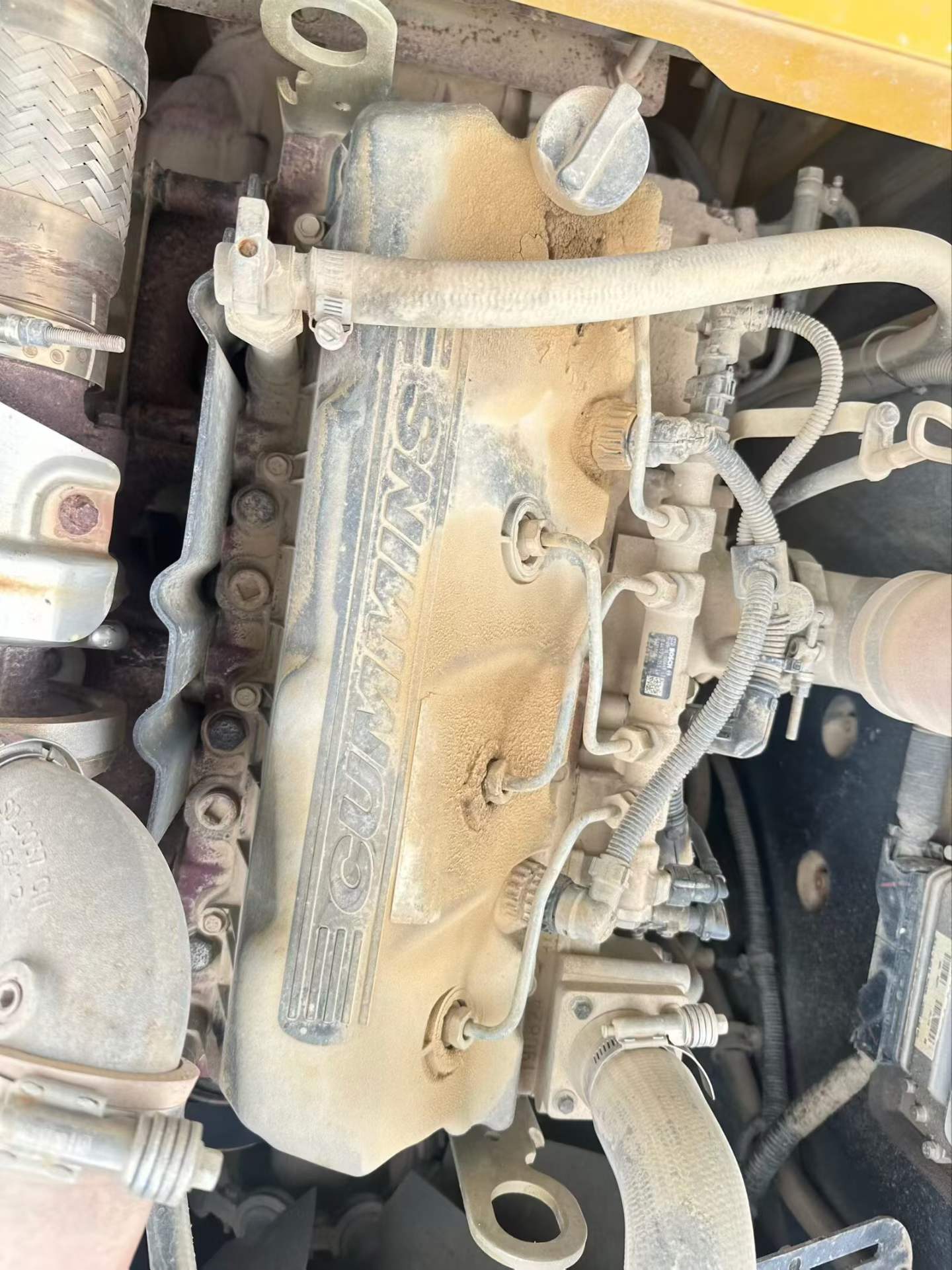

- Power System: Water-cooled 4-cylinder turbocharged engine with direct fuel injection

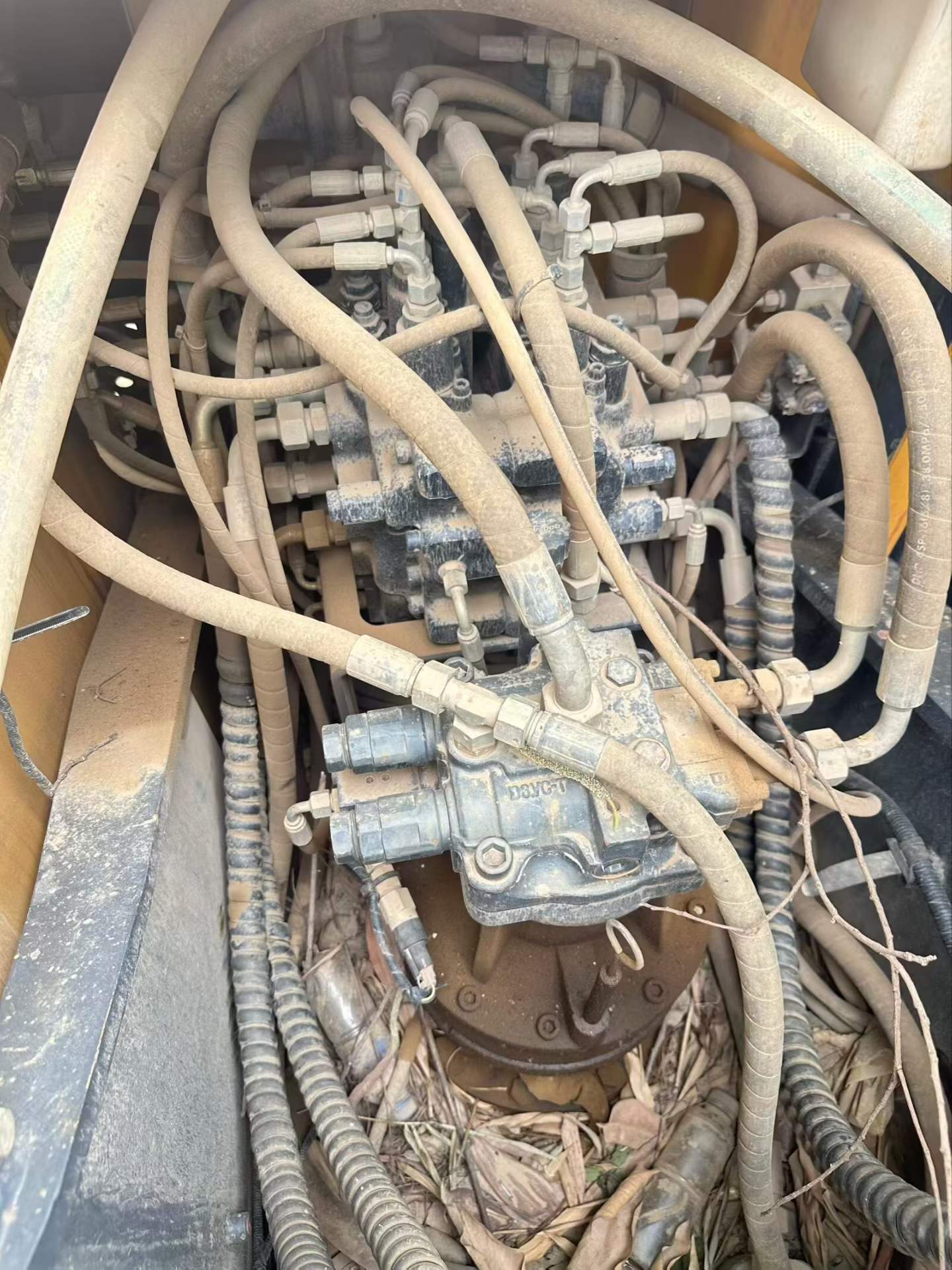

- Hydraulics: Dual main pumps delivering 125.4 L/min each for responsive control
- Versatility: 5546mm maximum digging depth, 8638mm excavation height
- Mobility: 35% climbing ability, 11 rpm rotation speed for efficient positioning
- Location: Currently in Nanning, Guangxi—ready for international shipping
Invest smart. Pay significantly less than new pricing while securing a late-model machine backed by XCMG's engineering standards. Co
| Specifications | Value |
|---|---|
| No. | 1036124 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
