Product Description

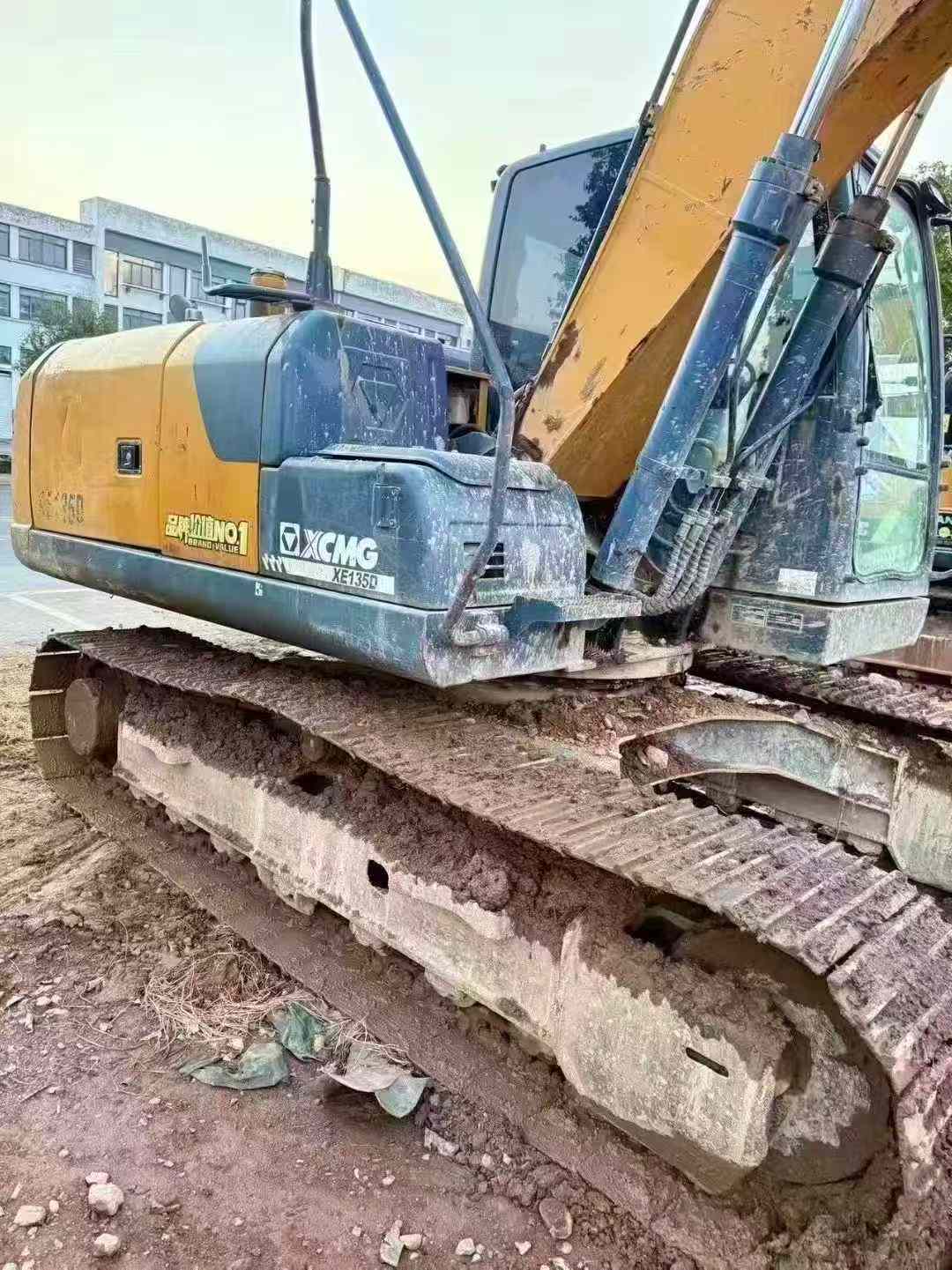

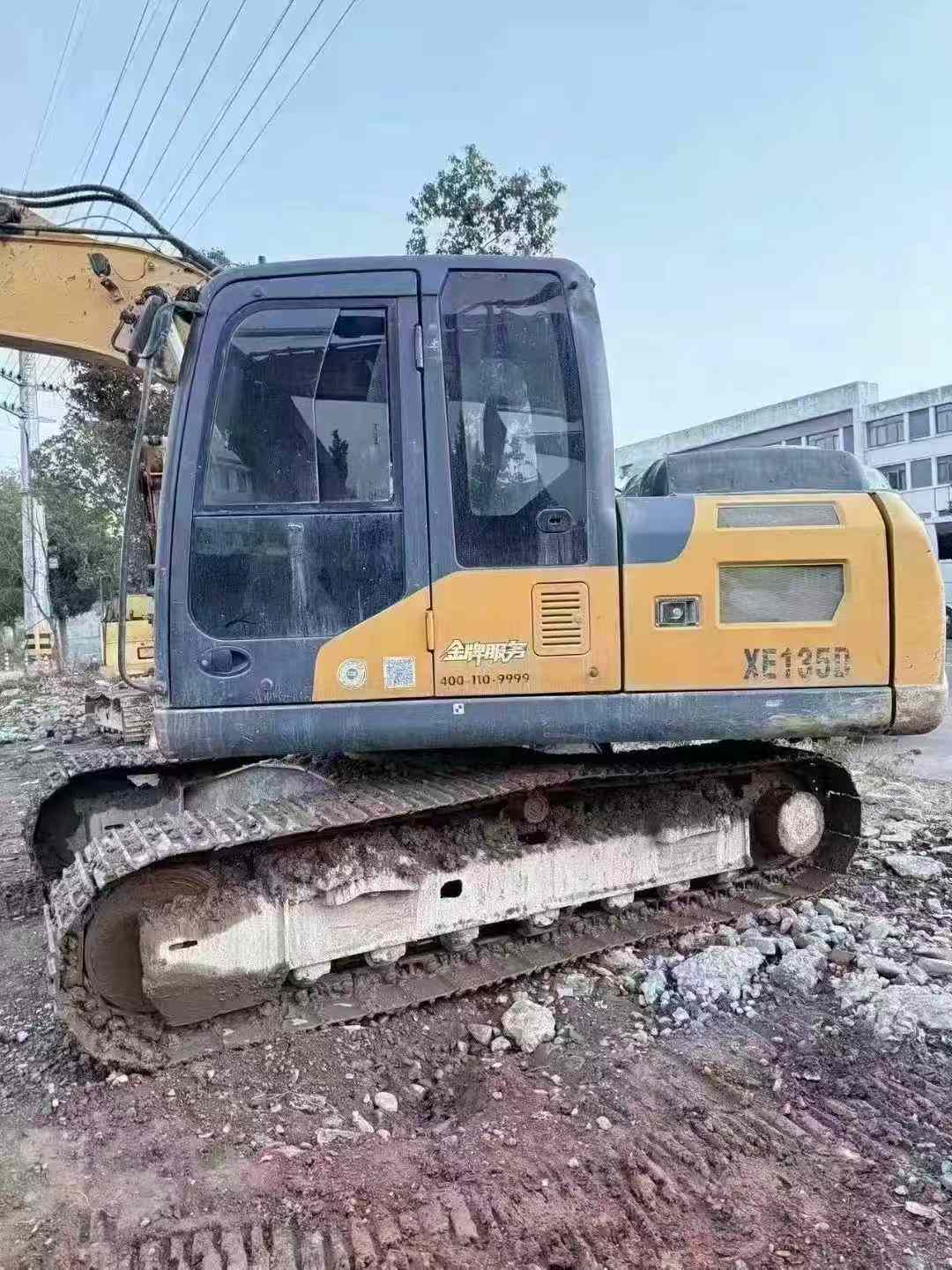

Built for high-output earthmoving operations, this 2022 XCMG XE135D delivers 13-ton performance with precision hydraulics and a QSF3.8 turbocharged engine. Powered by 86 kW at 2200 rpm, it generates 99.1 kN bucket digging force and reaches 8.3 meters maximum digging radius—ideal for foundation work, trenching, and site preparation across commercial and residential projects.

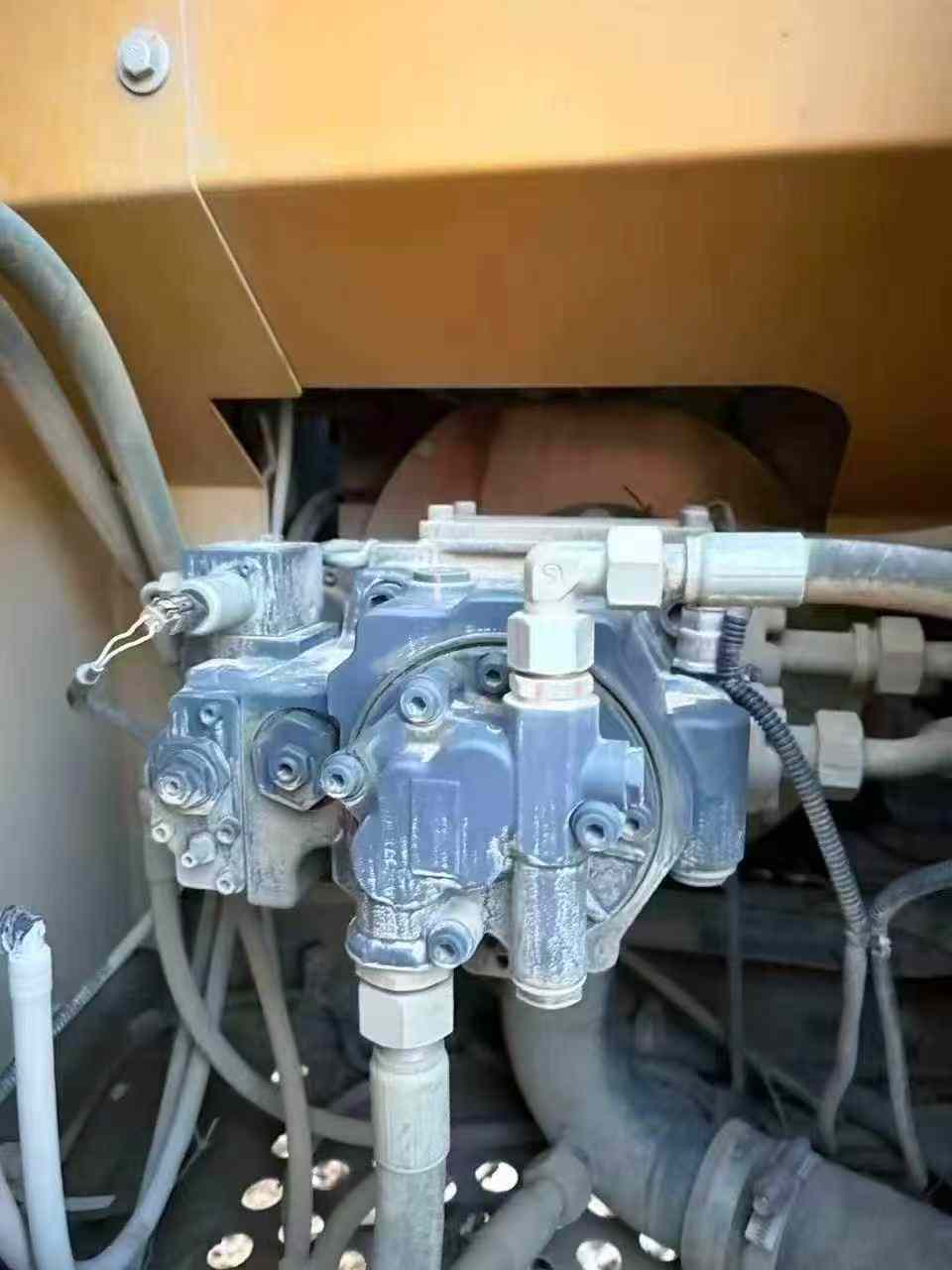

Equipped with a 0.52 m³ bucket, 4600mm boom, and 2520mm arm, this excavator tackles deep excavations up to 5.5 meters and maintains 5.2 km/h travel speed for efficient repositioning. The dual main pumps deliver 125.4 L/min each, ensuring responsive cycle times under demanding loads. Water-cooled direct injection engine provides reliable operation in extended shifts.
Key Specifications:
- Operating weight: 13,200 kg with 931mm counterweight clearance
- Hydraulic system: 31.4 MPa working pressure, 105L tank capacity
- Mobility: 35% grading ability, 2.3m rear turning radius
- Fuel capacity: 260L for full-day autonomy
- Transport dimensions: 7795 × 2525 × 2880 mm
Currently located in Hangzhou, Zhejiang. Inspection available upon request.
| Specifications | Value |
|---|---|
| No. | 1015727 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

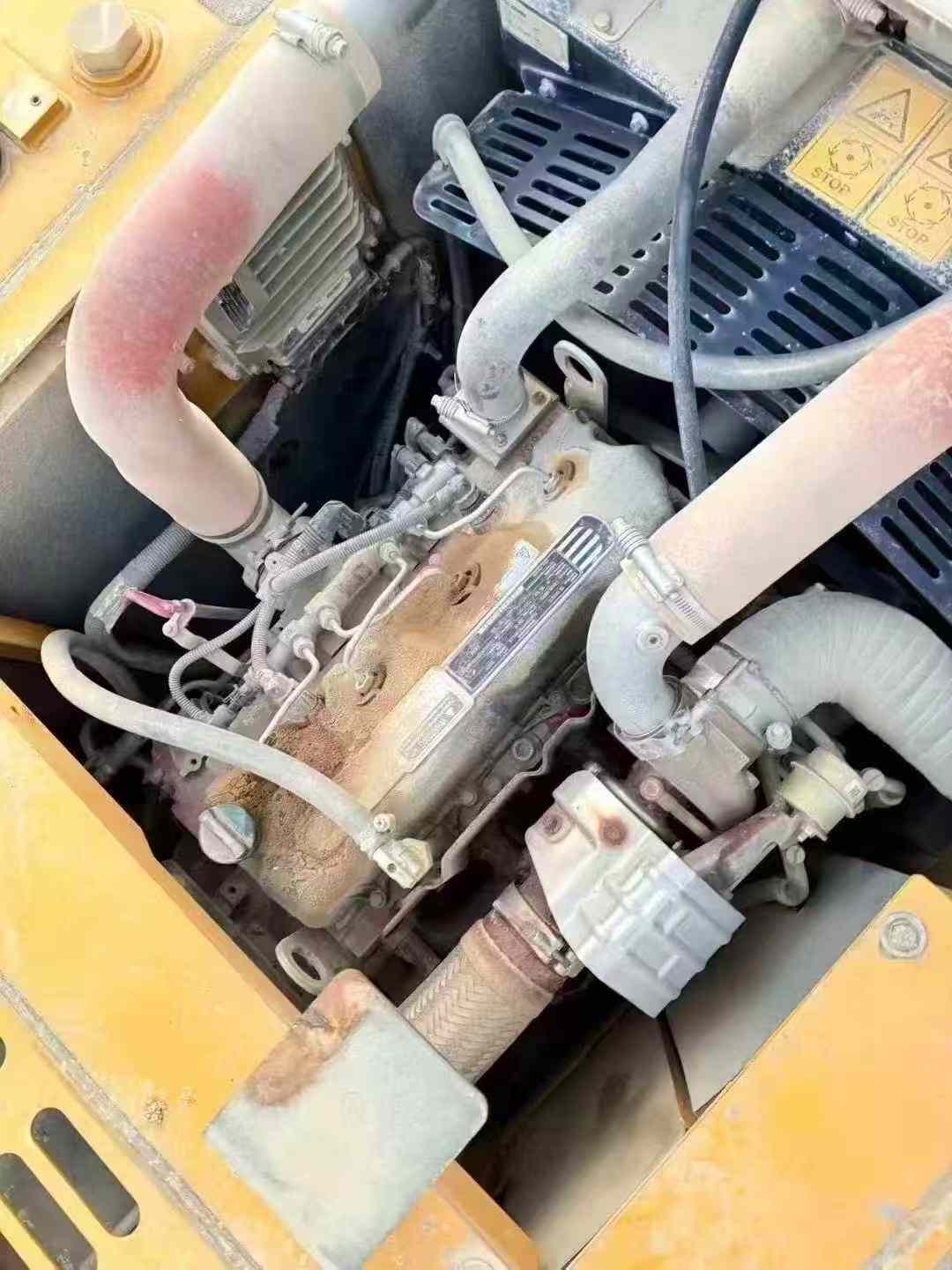

| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
