Product Description

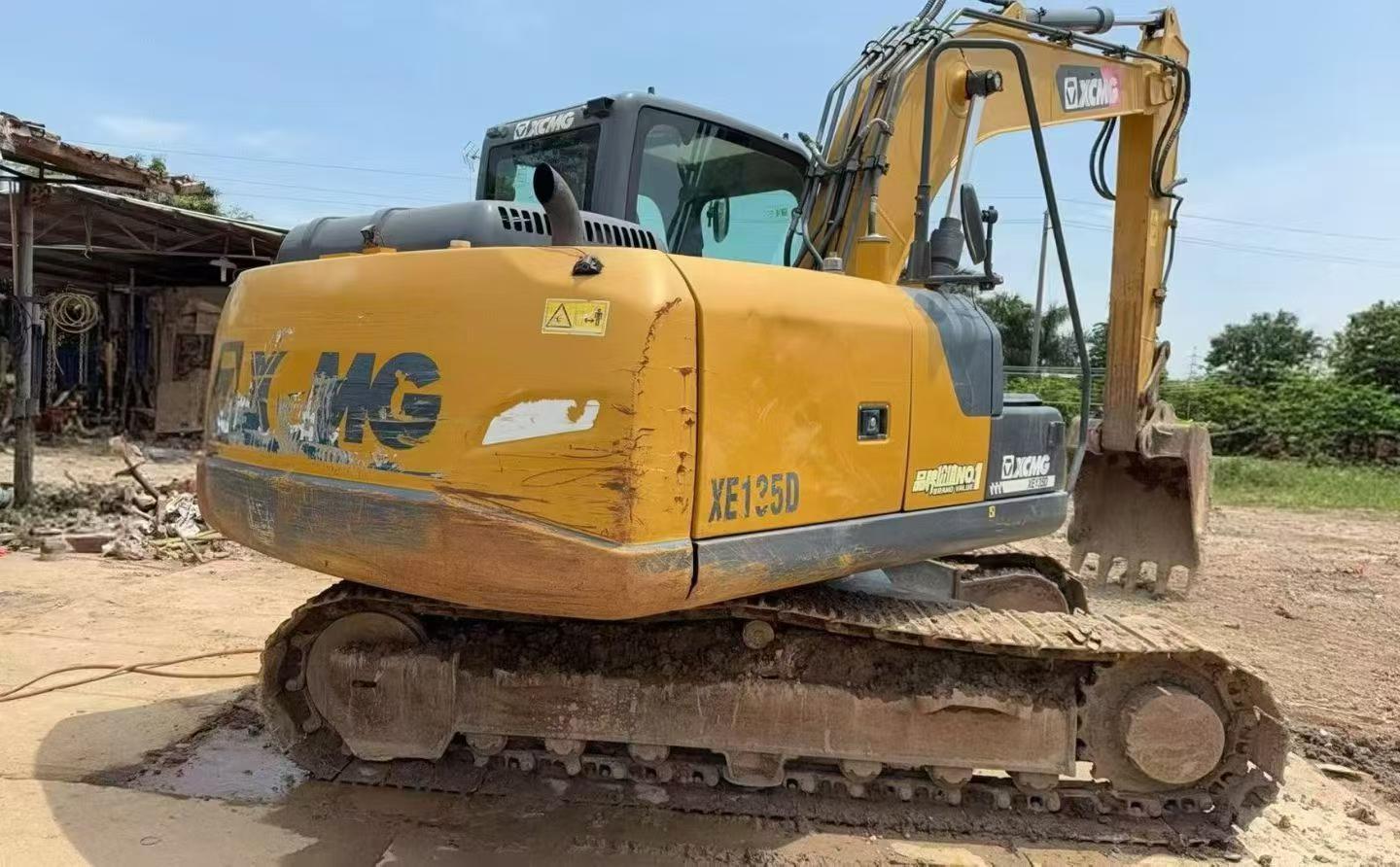

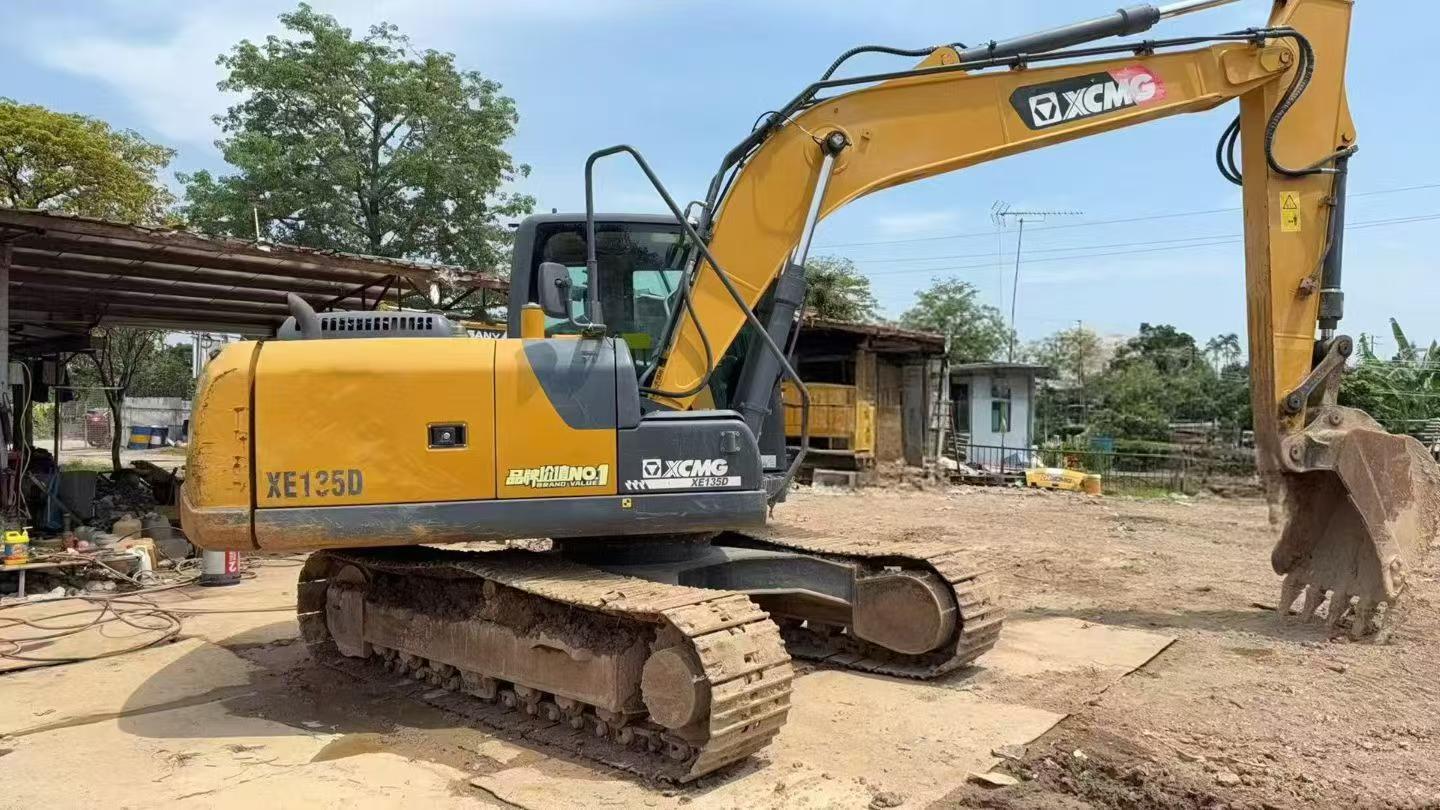

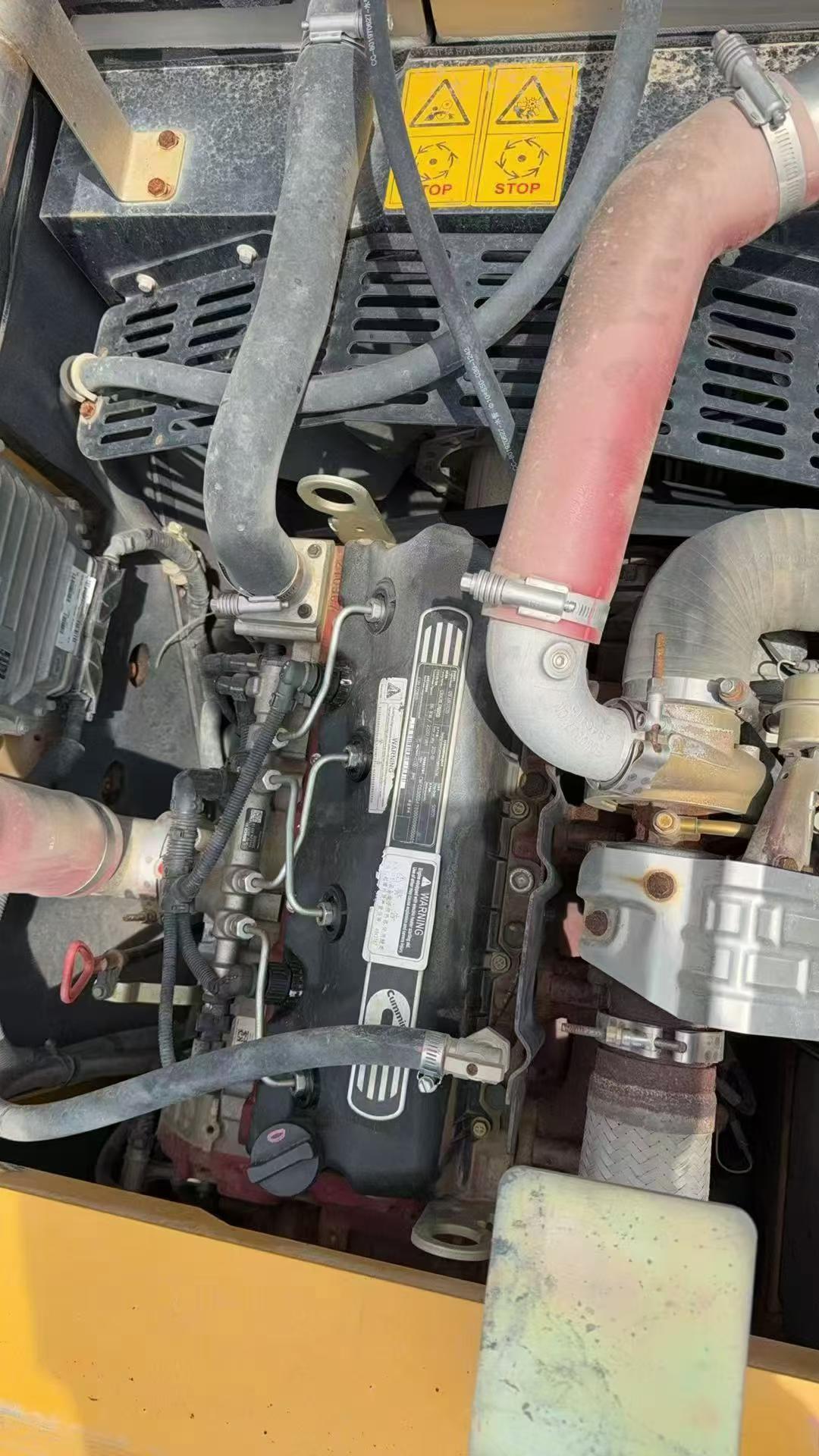

Strengthen your fleet capacity with this 2022 XCMG XE135D excavator, currently located in Shenzhen, Guangdong. Operating at 13 tons with a robust QSF3.8 engine delivering 86kW at 2200 rpm, this machine provides reliable backup power when primary units are deployed or under maintenance. Its 0.52m³ bucket handles diverse material loads, while 99.1kN bucket digging force and 68kN arm force tackle demanding excavation tasks without hesitation.

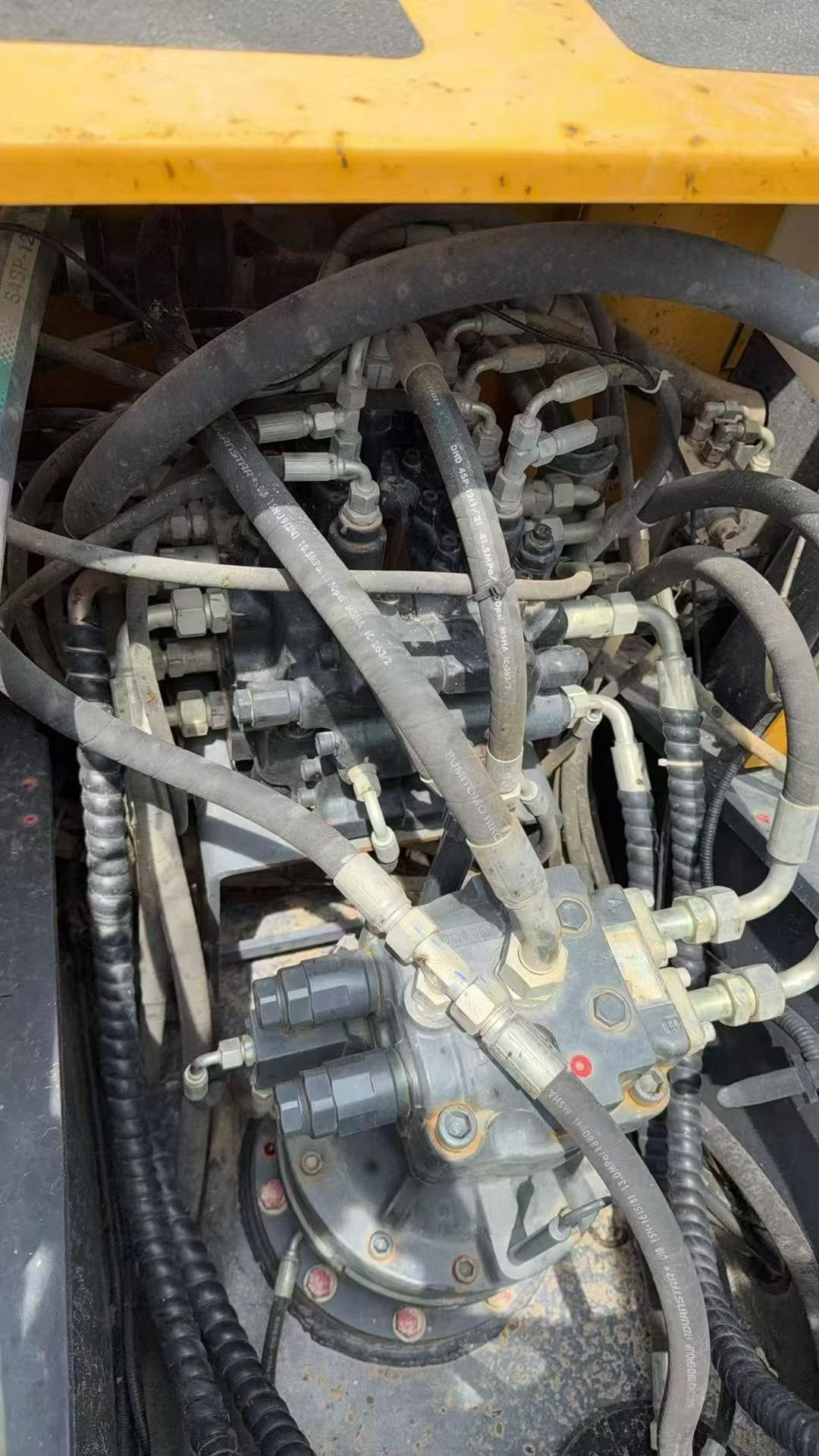

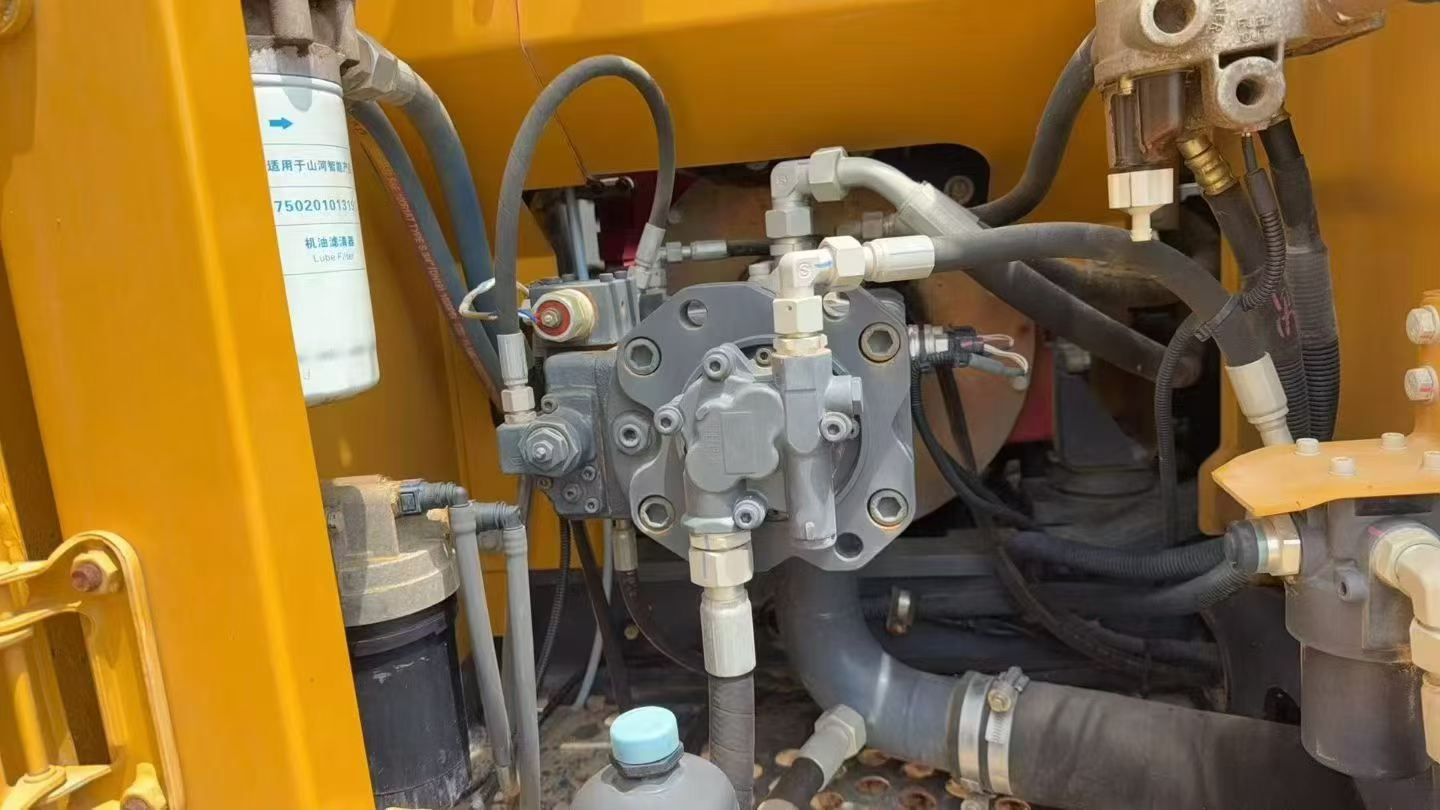

Built for contractors managing multiple job sites, this hydraulic excavator features dual main pumps flowing 125.4 L/min each, ensuring consistent performance across long shifts. The 8304mm maximum digging radius and 5546mm digging depth cover standard foundation, trenching, and utility work. Water-cooled turbocharged operation maintains efficiency in subtropical climates, while 260L fuel capacity extends operational hours between refills.
Key specifications include:
- Working weight: 13,200kg with 931mm counterweight clearance
- Transport dimensions: 7795mm × 2525mm × 2880mm for standard trailer movement
- Travel speeds: 5.2/2.9 km/h with 35% grading ability
- Direct injection EFI system with 470 N·m maximum torque
Chinese-manufacture
| Specifications | Value |
|---|---|
| No. | 1023659 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
