Product Description

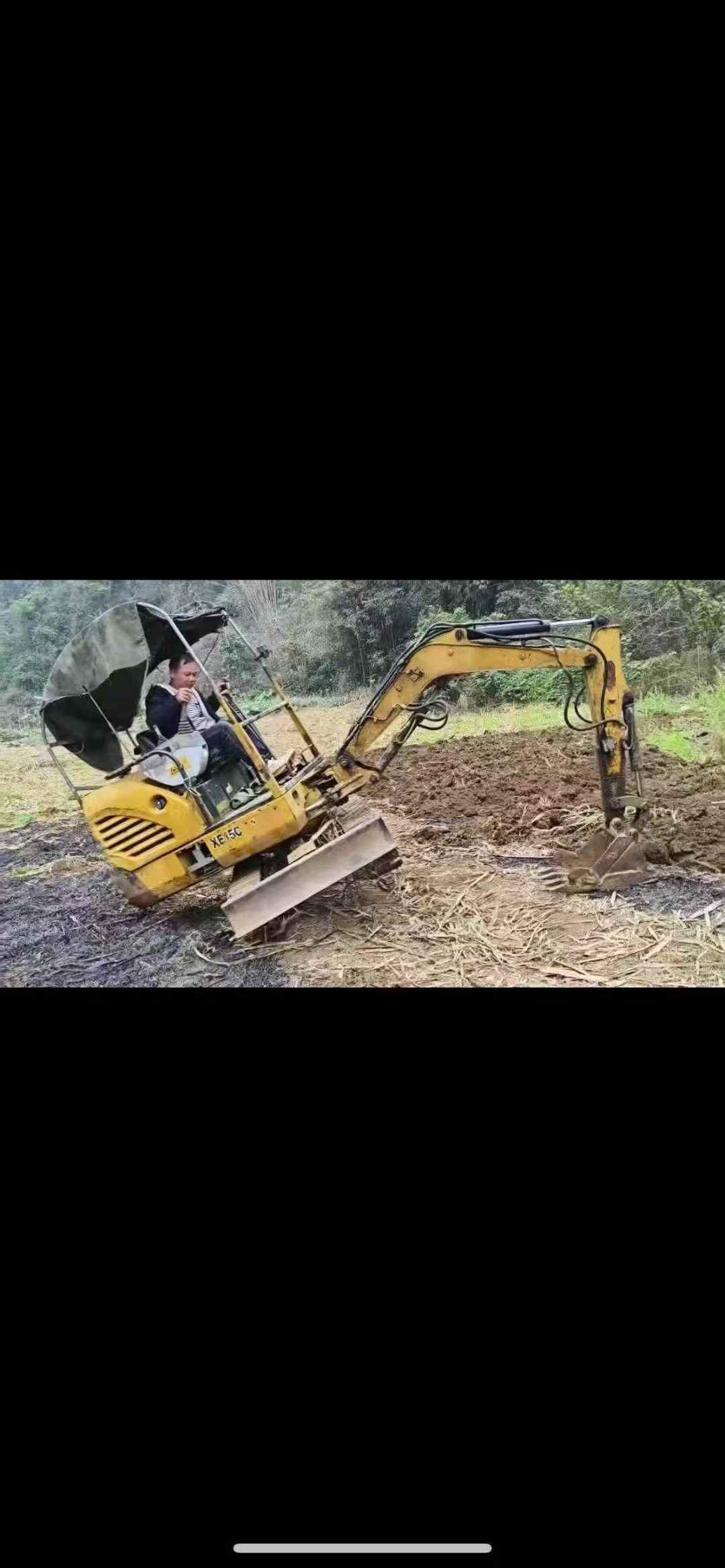

Compact power meets exceptional value in this 2016 XCMG XE15 mini excavator, currently available from our Fujian location. Weighing just 1,640 kg with a 1-ton operating capacity, this machine delivers impressive performance for tight urban sites, landscaping projects, and utility work. Powered by a reliable Yanmar 3TNV82A engine producing 16.5 kW at 2,200 rpm, it offers a maximum digging depth of 2,320 mm and a reach of 3,915 mm—substantial capability in an ultra-compact footprint measuring only 3,760 mm in transport length.
Equipped with Japanese Fujikoshi hydraulic pumps and a water-cooled 3-cylinder engine, this XE15 provides dependable operation with minimal maintenance requirements. Key performance features include:
- Bucket digging force: 13.9 kN with 0.044 m³ capacity
- 30° climbing ability and 11 rpm rotation speed
- Dual travel speeds: 4.4/2.4 km/h for versatile maneuverability
- Narrow 1,080 mm width for access through standard doorways
Purchasing pre-owned equipment like this 2016 model means acquiring proven XCMG engineering at a fraction of new equipment cost—smart economics without compromising job site productivity.
| Specifications | Value |
|---|---|
| No. | 1014528 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

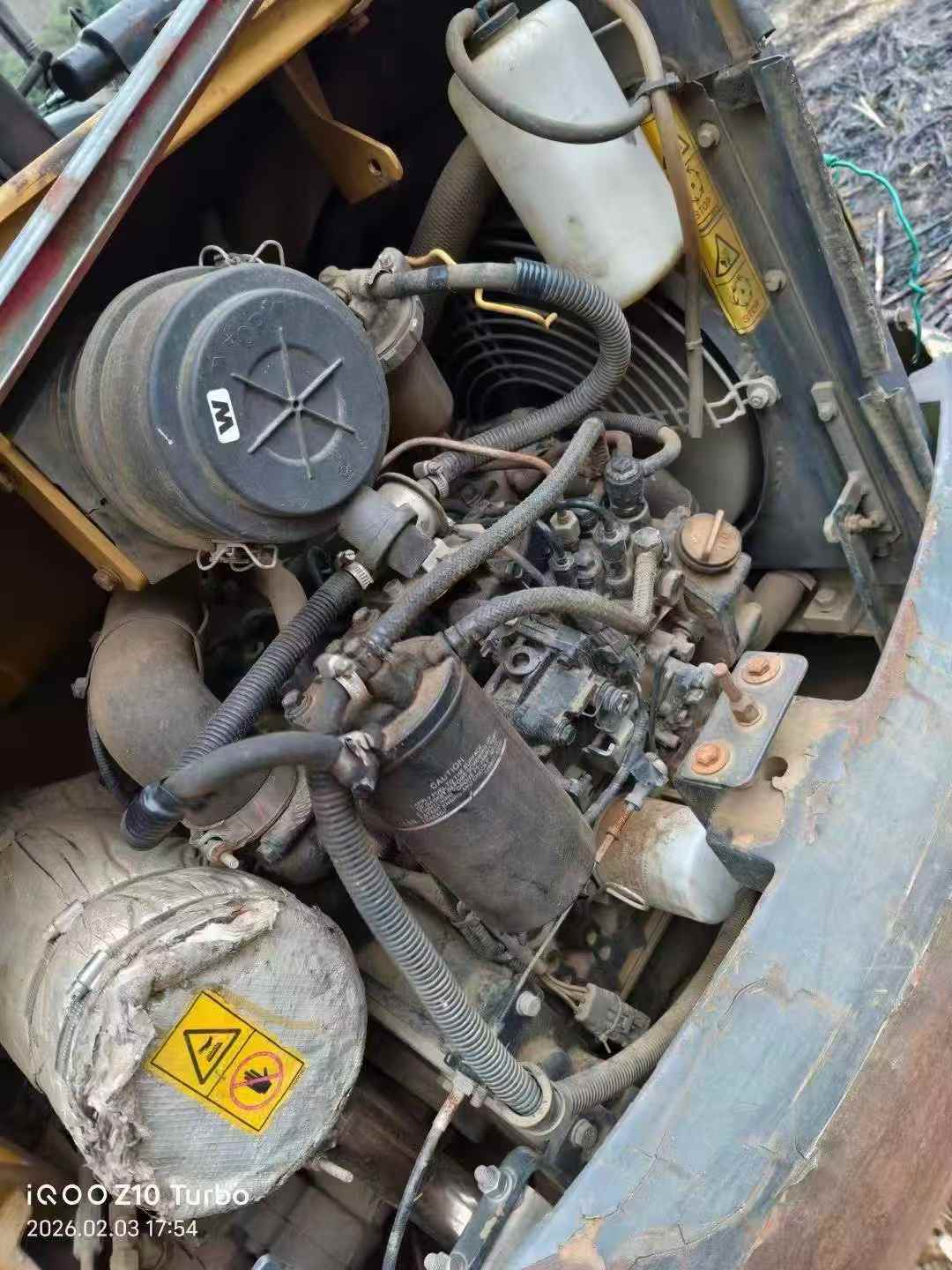

| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |

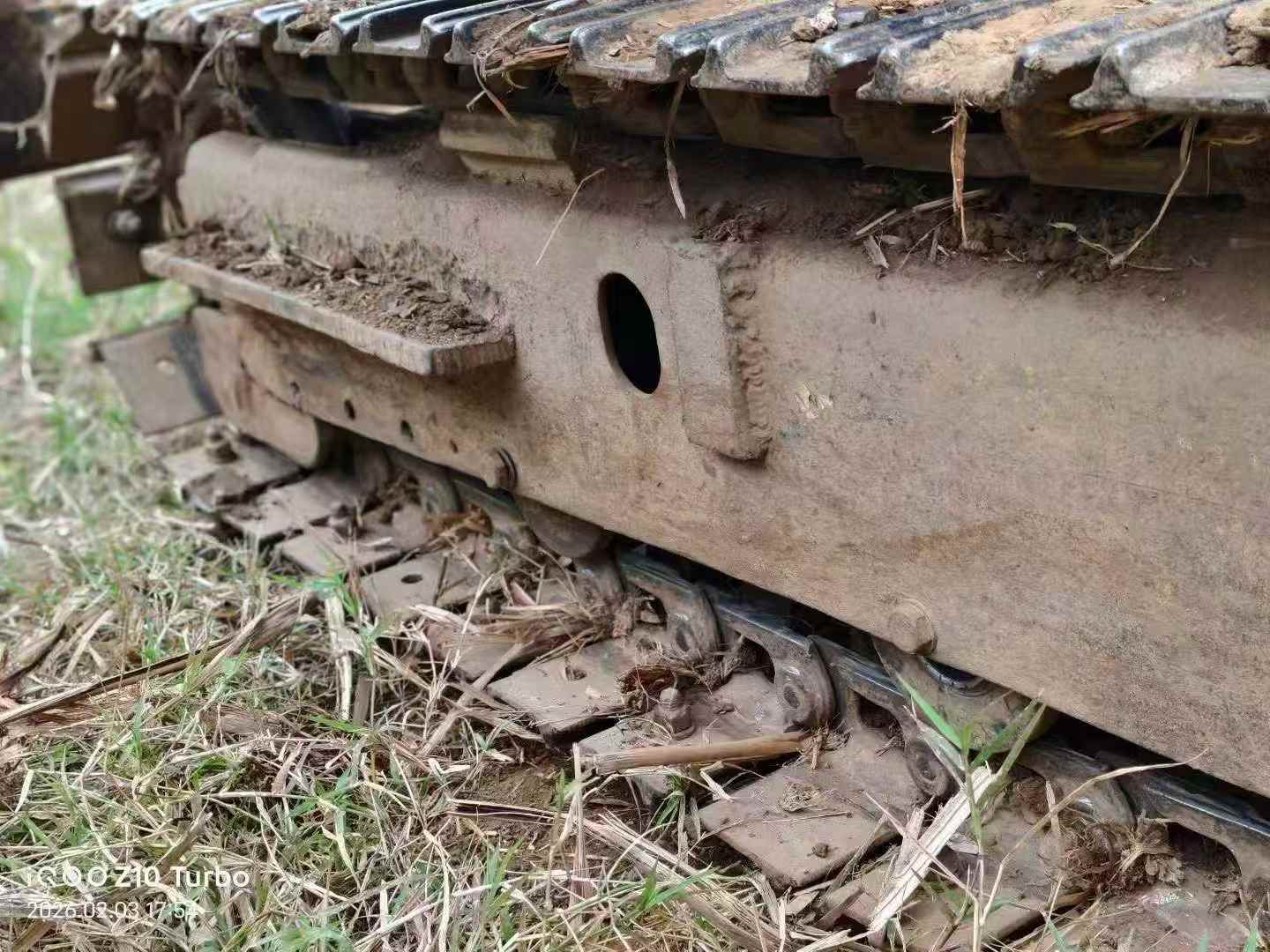

| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
