Product Description

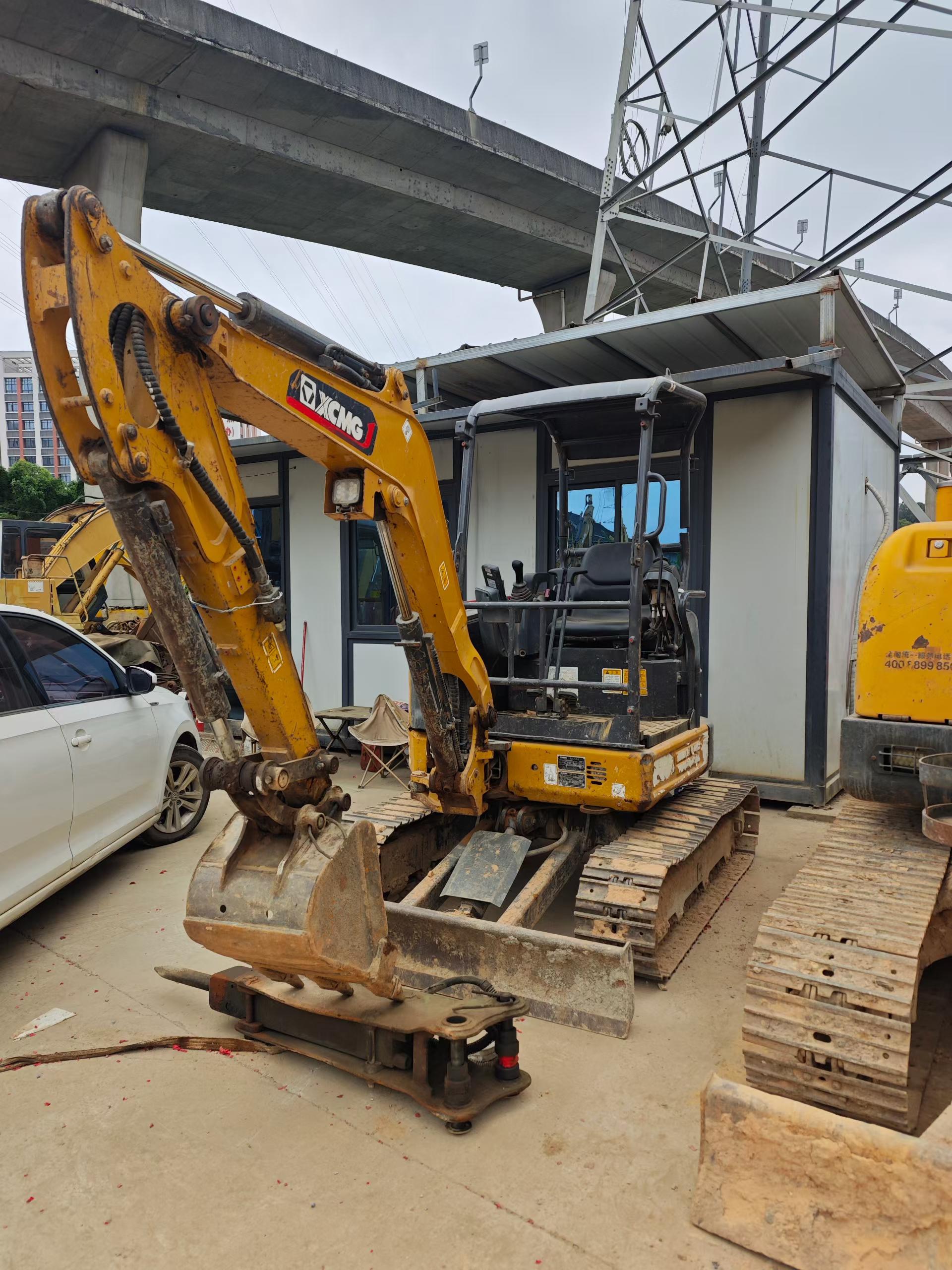

Proven performance meets compact versatility with this 2016 XCMG XE15 mini excavator, currently located in Guangzhou, Guangdong. Weighing just 1,640 kg with a 1-ton operating capacity, this machine delivers reliable power through its Yanmar 3TNV82A engine rated at 16.5 kW. XCMG's reputation for robust construction ensures consistent parts availability across global markets, making maintenance straightforward and cost-effective for used equipment owners.
Built with a Japanese Fujikoshi main pump and water-cooled 3-cylinder engine, this XE15 offers exceptional durability for tight-access projects. Key specifications include:
- Maximum digging depth: 2,320 mm with 3,915 mm working radius
- Bucket digging force: 13.9 kN for efficient material handling
- Compact dimensions: 3,760 mm length × 1,080 mm width for confined spaces
- 30° climbing capability with 4.4 km/h travel speed
XCMG's strong resale value and widespread dealer network make this XE15 a smart investment for contractors seeking dependable used equipment with predictable ownership costs. Ready for immediate deployment in landscaping, utility work, or urban construction applications.
| Specifications | Value |
|---|---|
| No. | 1016775 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
