Product Description

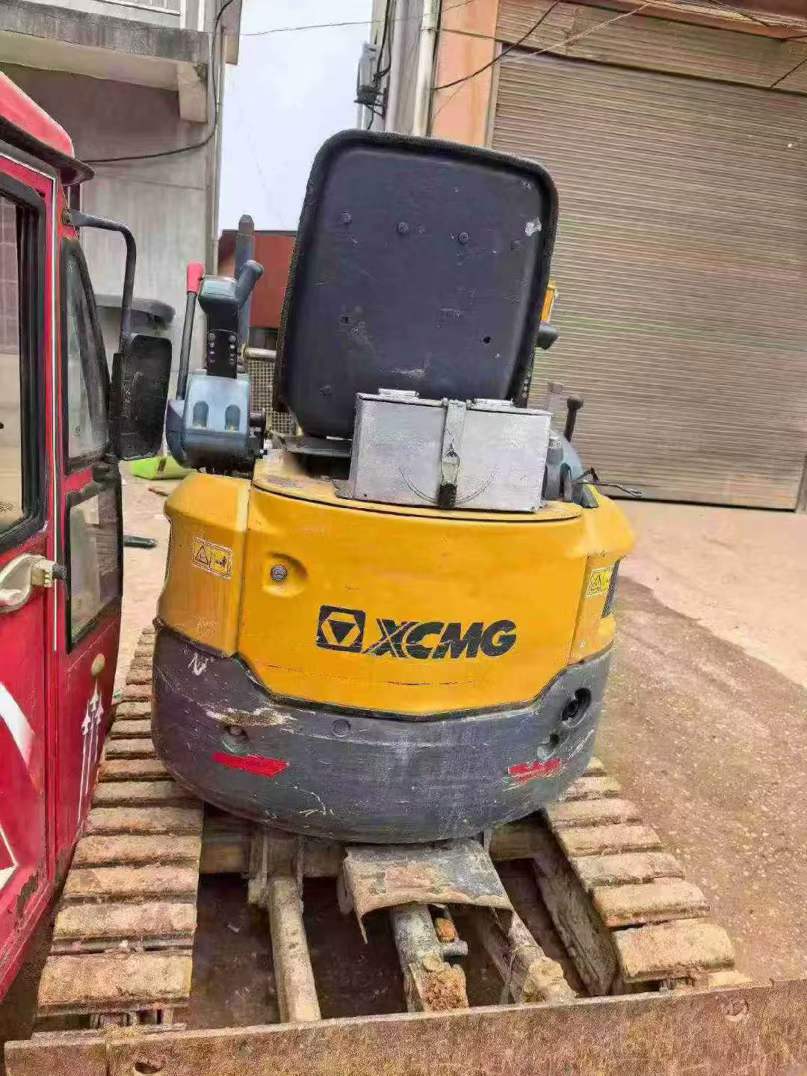

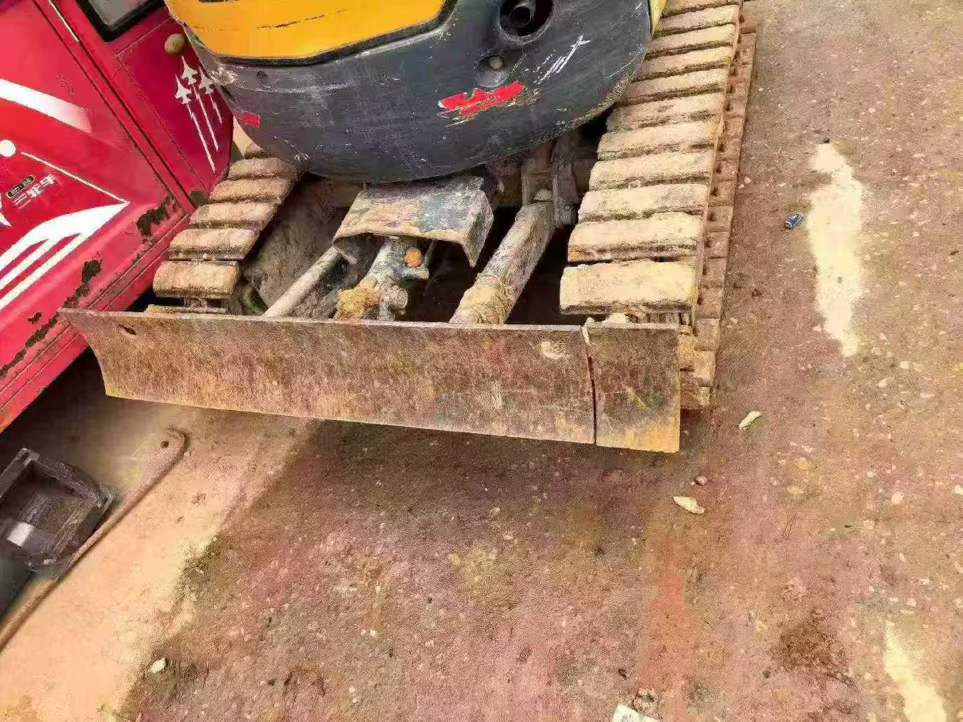

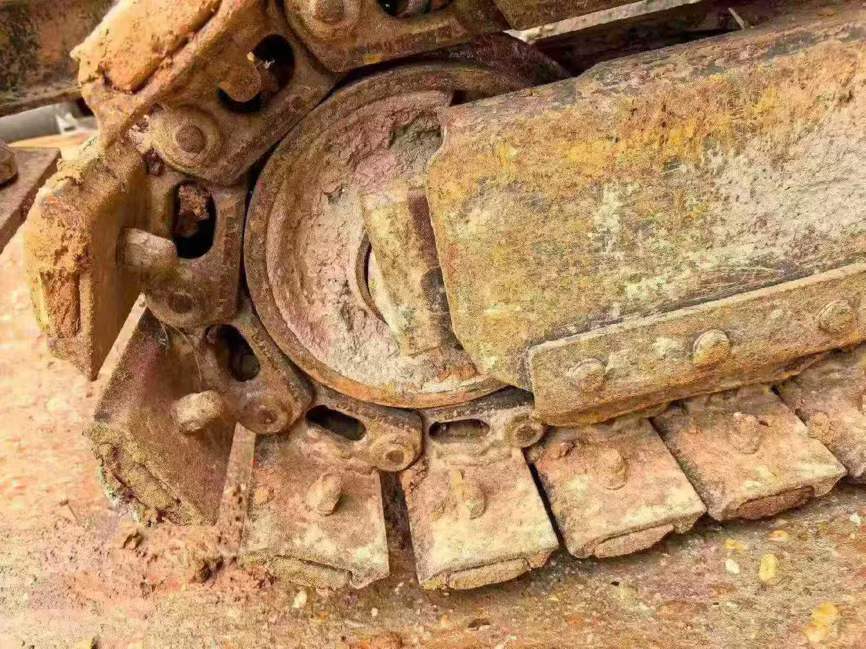

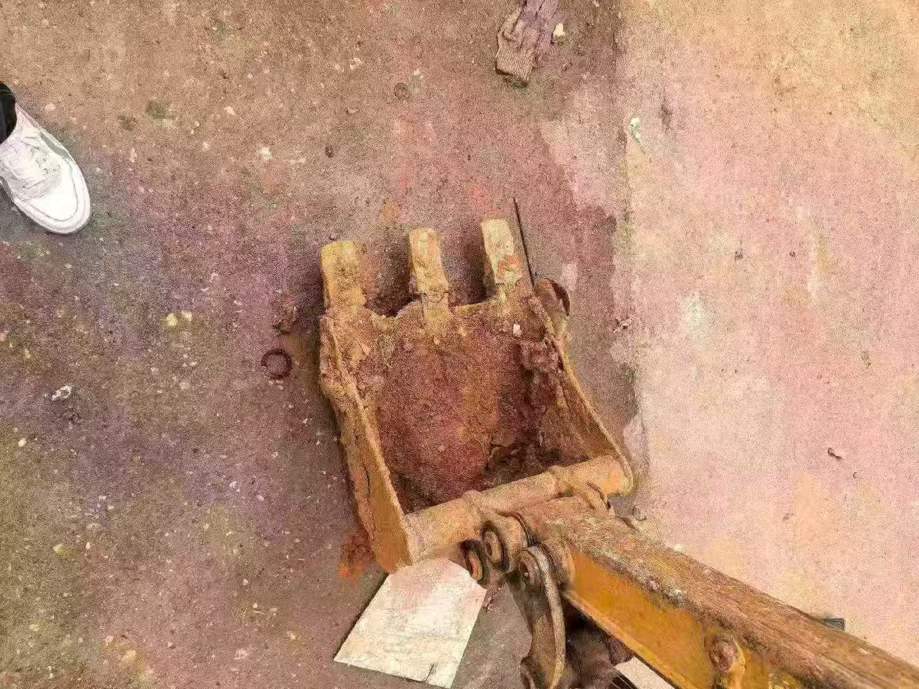

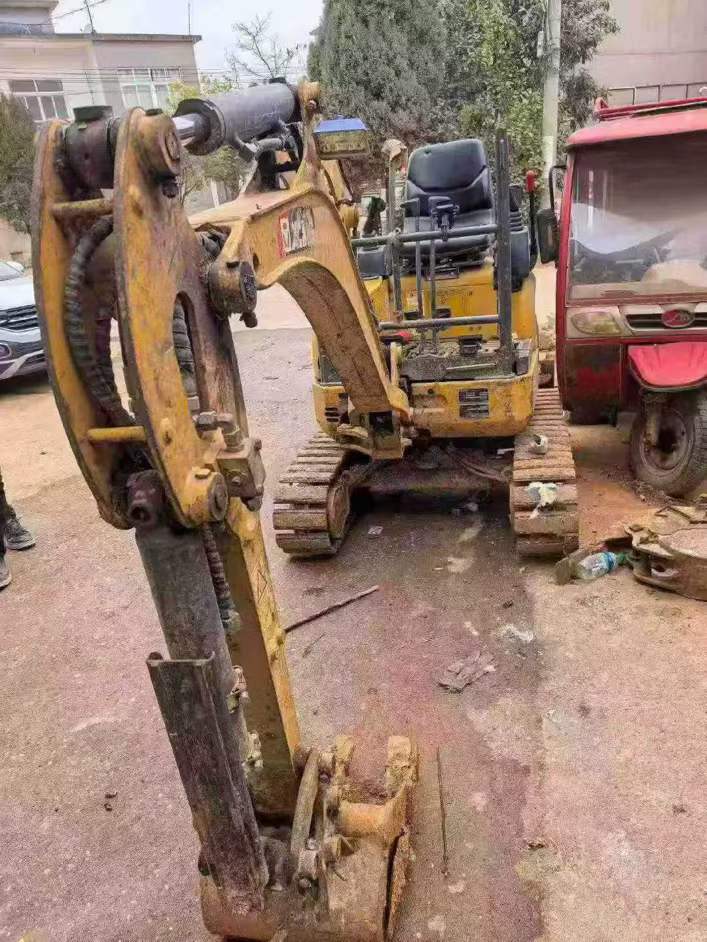

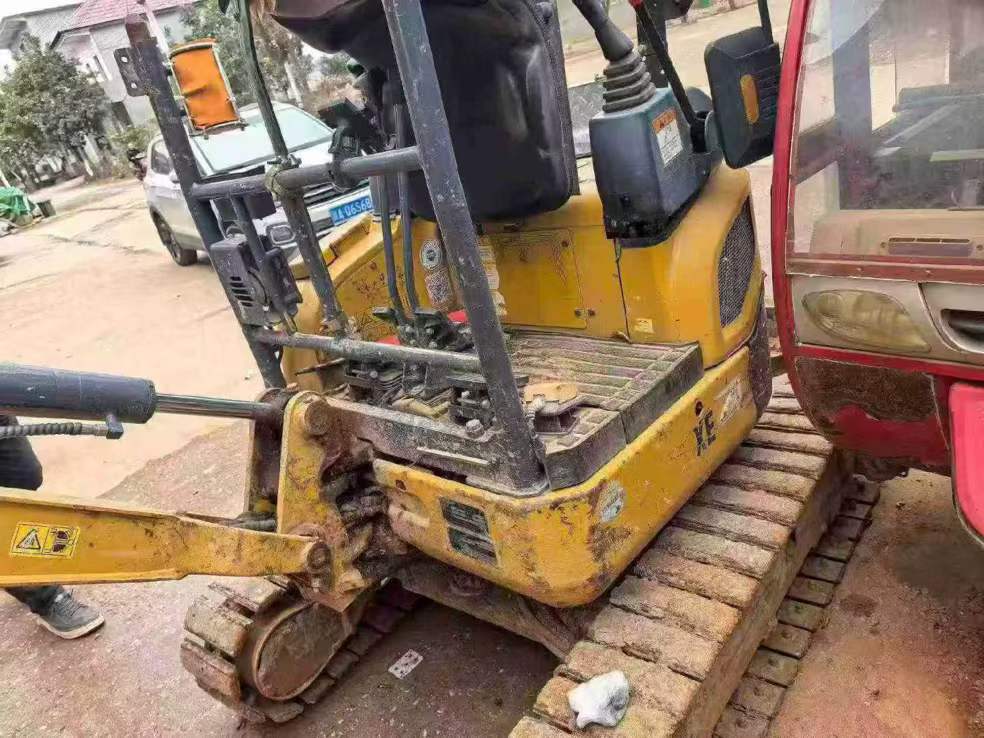

Compact power meets proven reliability in this 2016 XCMG XE15 mini excavator, delivering exceptional value for budget-conscious contractors. Operating at just 1.64 tons with a Yanmar 3TNV82A engine producing 16.5kW, this machine handles tight-access projects with precision and efficiency. Originally manufactured in Xuzhou, China, it features dual Japanese Fujikoshi main pumps and water-cooled hydraulics engineered for consistent performance in demanding conditions.
Acquire professional-grade capability without the premium price tag:
- Maximum digging depth of 2,320mm and reach of 3,915mm for versatile excavation tasks
- Bucket digging force of 13.9kN tackles compacted soil and light demolition work
- Ultra-compact transport dimensions (3,760mm × 1,080mm) enable easy jobsite mobility
- Dual-speed travel system (4.4/2.4 km/h) optimizes productivity and maneuverability
- 30° climbing ability and 1,675mm turning radius excel in confined urban spaces
Currently located in Hunan, this low-hour unit represents smart capital allocation—delivering new-machine performance at a fraction of replacement cost. Ideal for landscaping, utility installation, and residential construction pro
| Specifications | Value |
|---|---|
| No. | 1025511 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
