Product Description
Built for precision work in tight spaces, this 2019 XCMG XE15 mini excavator delivers reliable performance with its Yanmar 3TNV82A engine producing 16.5kW at 2200 rpm. Weighing just 1,640 kg with a compact 1,080 mm width, this machine navigates confined job sites while maintaining impressive digging capabilities—maximum reach of 3,915 mm and digging depth of 2,320 mm make it ideal for trenching, utility installation, and landscaping projects.

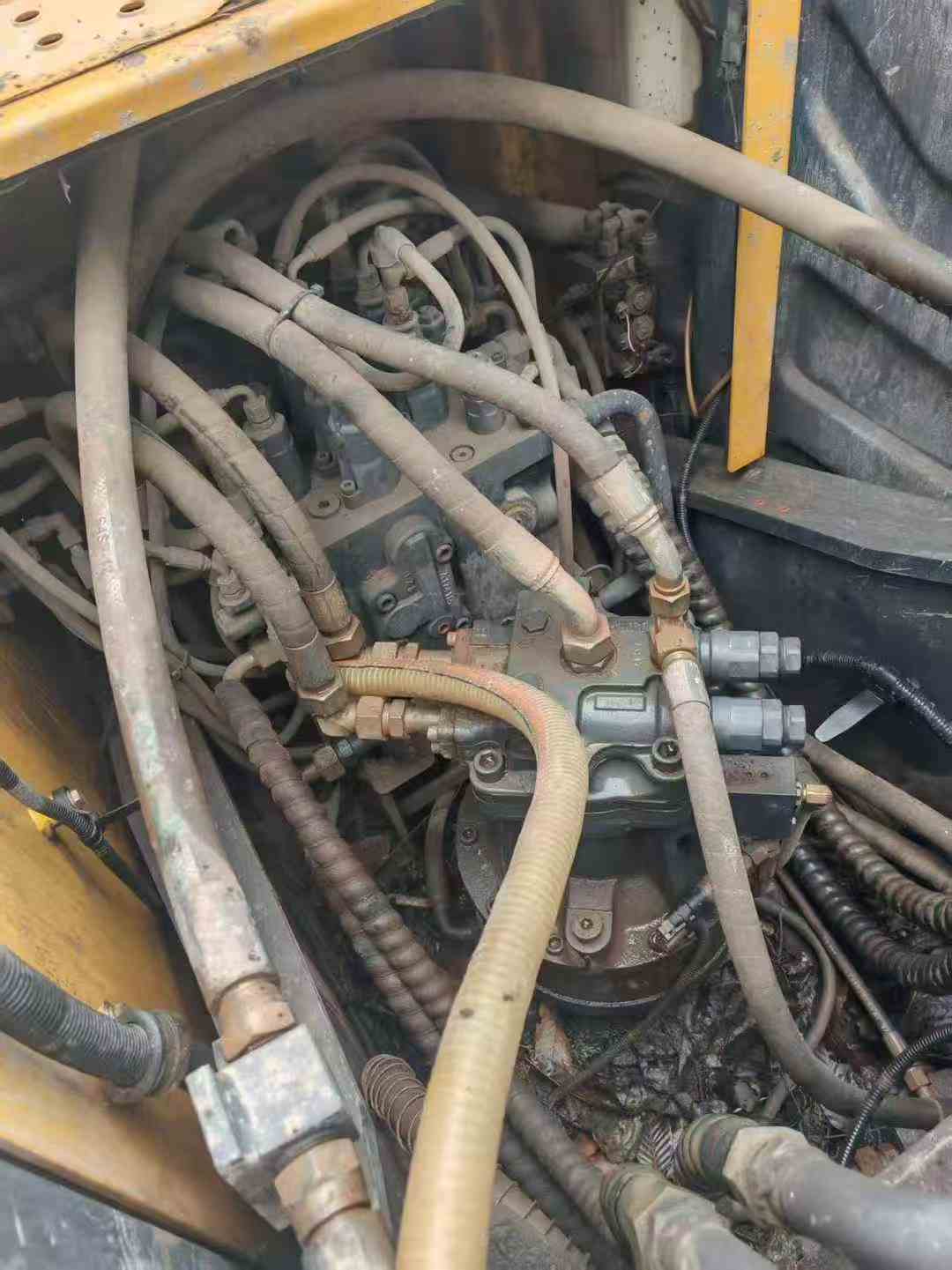

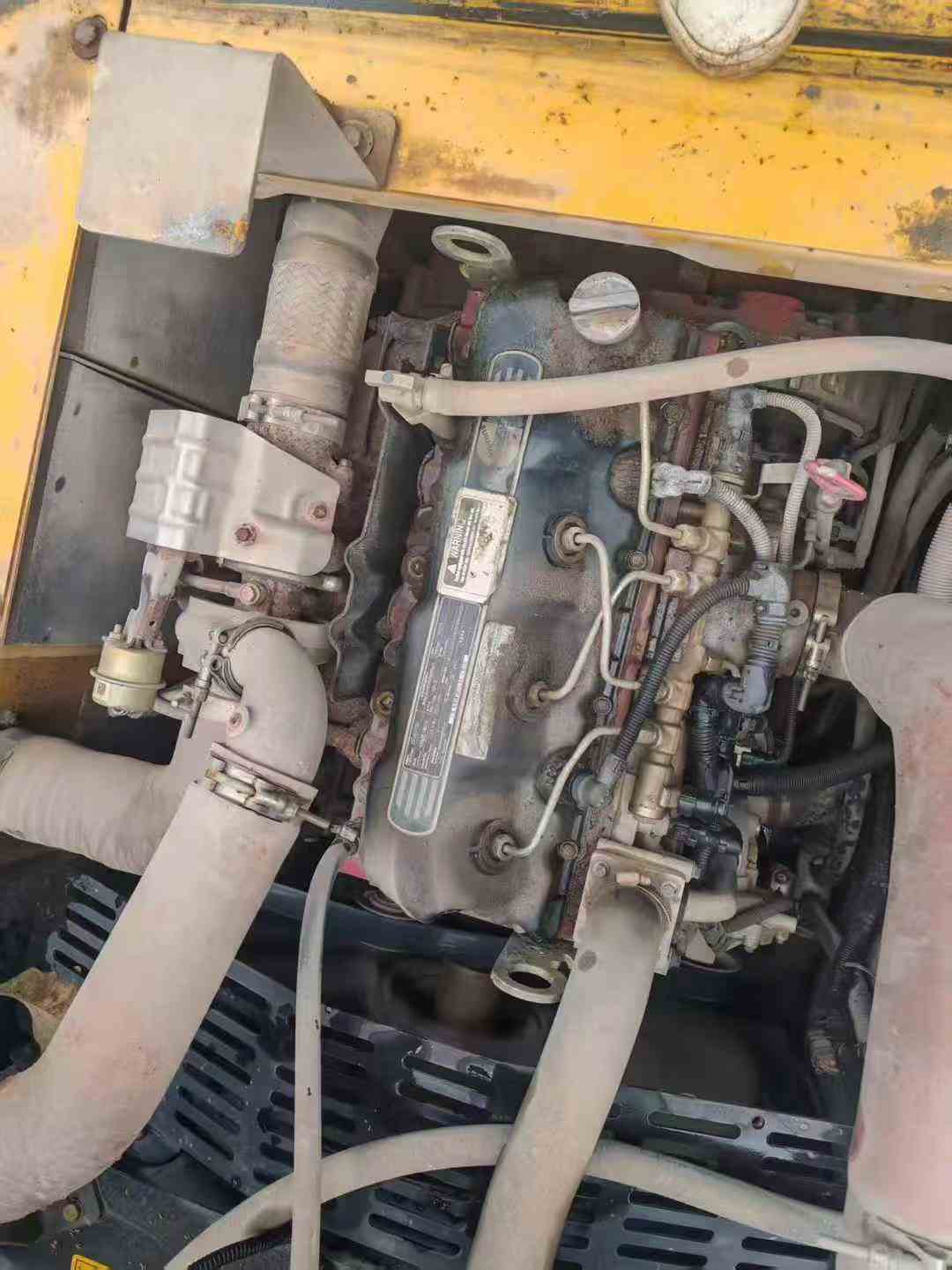

Equipped with Japan Fujikoshi hydraulic pumps and water-cooled 3-cylinder engine, this excavator operates with consistent power in demanding conditions. The 0.044 m³ backhoe bucket generates 13.9 kN digging force, handling everything from foundation work to drainage systems. With 30° climbing ability and 4.4 km/h travel speed, productivity remains high across varied terrain.
Key specifications:
- Operating weight: 1,640 kg for minimal ground disturbance
- Maximum digging depth: 2,320 mm
- Boom/rod configuration: 1,690/1,100 mm for optimal reach
- Fuel capacity: 20L for extended runtime
- Currently located in Lishui, Zhejiang—ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1026696 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
