HOME>>XCMG>>XCMG XE15

2020 XCMG XE15

1/9

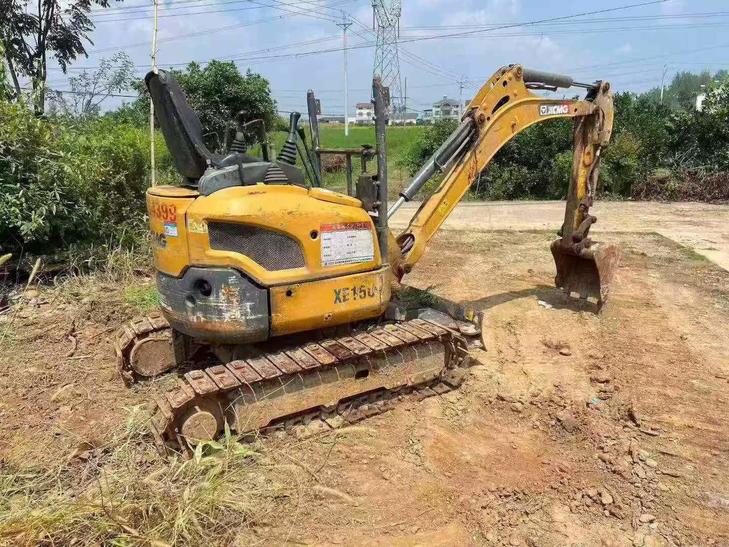

Buy XCMG XE15 Used Excavator / 1
Buy XCMG XE15 Used Excavator / 2
Buy XCMG XE15 Used Excavator / 3

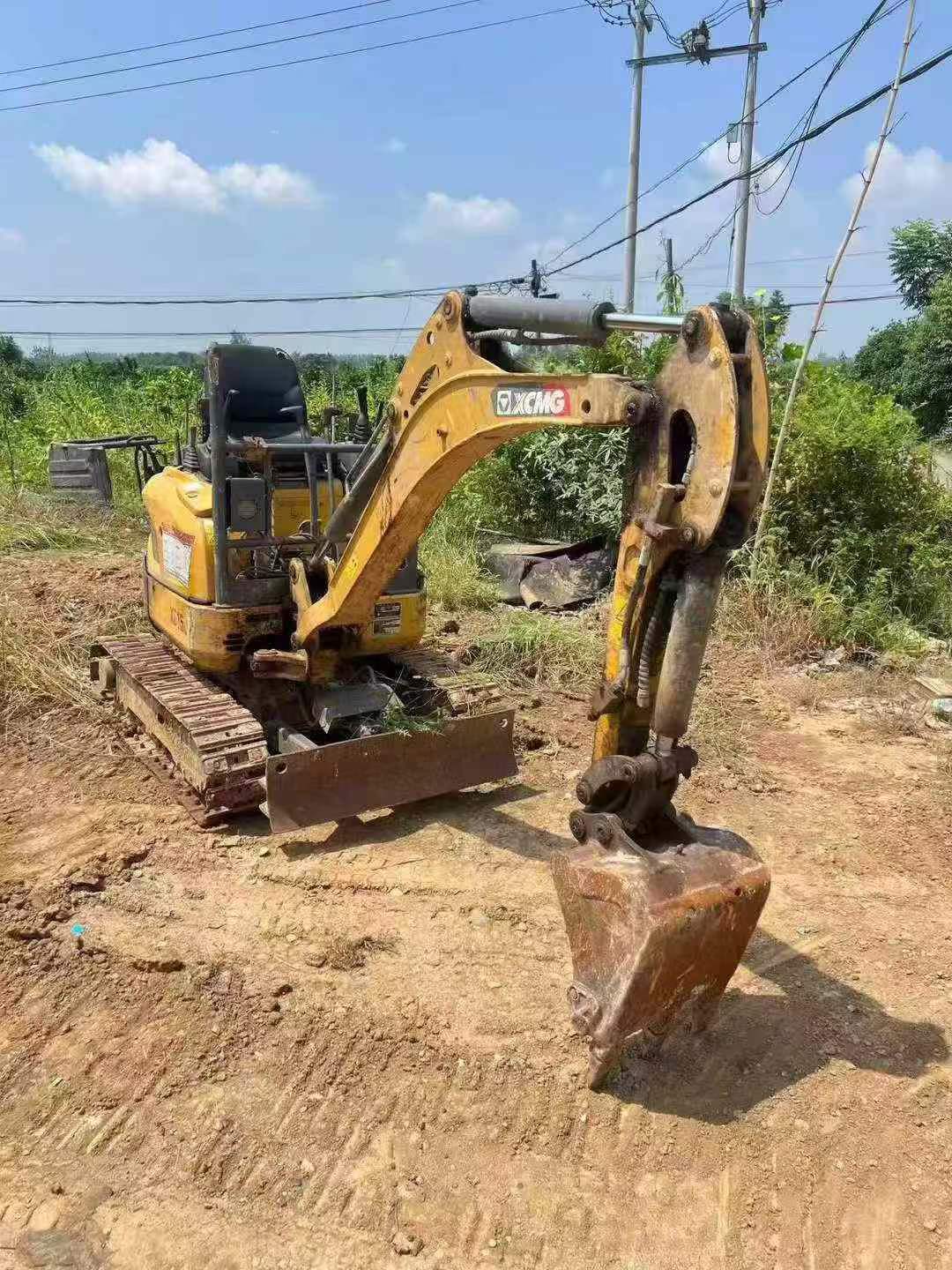

Buy XCMG XE15 Used Excavator / 4

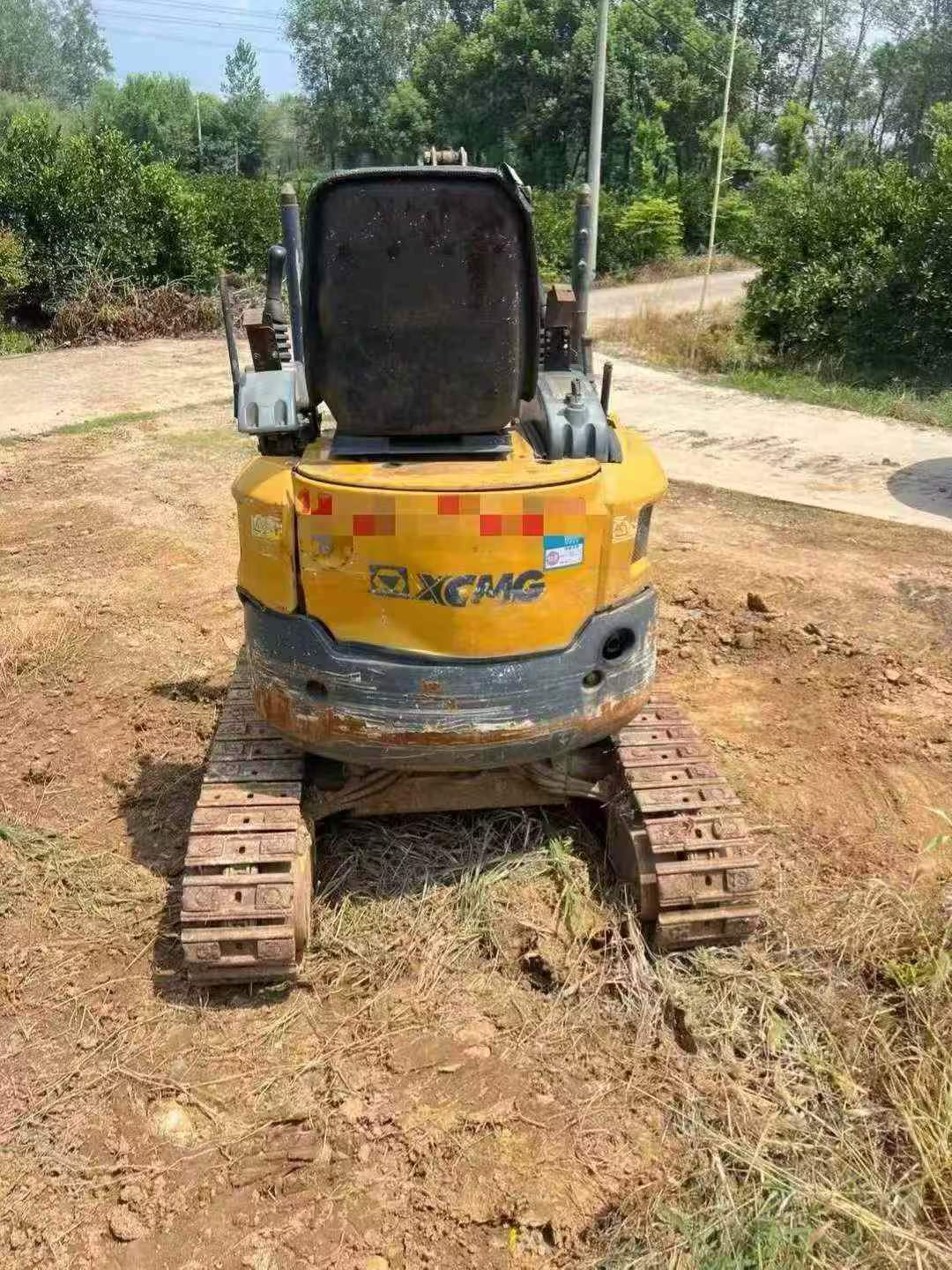

Buy XCMG XE15 Used Excavator / 5
Buy XCMG XE15 Used Excavator / 6
Buy XCMG XE15 Used Excavator / 7
Buy XCMG XE15 Used Excavator / 8
Buy XCMG XE15 Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 XCMG XE15 mini excavator, available for purchase in Zhejiang, China. This compact machine, with over 30,000 operational hours, is designed to meet the demands of various construction and excavation projects. Ideal for tight spaces and precise work, the XE15 combines power and versatility, making it a valuable addition to any fleet. Built by XCMG, a globally recognized leader in construction machinery, this model ensures high performance and durability, backed by the brand's commitment to quality and innovation.

  • Year: 2020
  • Brand: XCMG
  • Model: XE15
  • Operational Hours: Over 30,000
  • Location: Zhejiang, China
SpecificationsValue
No.1129621
Tonnage (tons)1
Working weight (kg)1640
Bucket capacity (m³)0.044
Boom length (mm)1690
Rod length (mm)1100
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 3TNV82A
Rated power (kw/rpm)16.5/2200
Cooling modewater-cooling
Number of cylinders (PCS)3
Displacement (L)1.33
Ground specific pressure (Kpa)23.8
Rotation speed (rpm)11
Climbing ability (%)30 °
Bucket digging force (kN)13.9
Rod digging force (kN)8.8
Travel speed (km/h)4.4/2.4
Main overflow set pressure (Mpa)24
Maximum flow of main pump (l/min)2*19.8+14.1
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)18
Hydraulic crushing pipeline is standardno
Main pump typeJapan Fujikoshi
Pilot pump flow (L/min)3.3
Fuel Tank (L)20
Hydraulic Tank (L)29
Engine Oil changes (L)5.5
Total transport length (mm)3760
Total transport width (mm)1080
Total transport height (mm)2400
Counterweight ground clearance (mm)472
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1675
Back end turning radius (mm)1190
Track gauge (mm)850
Track plate width (mm)230
Track ground length (mm)1217
Maximum digging radius (mm)3915
Maximum digging depth (mm)2320
Maximum excavation height (mm)3615
Maximum unloading height (mm)2480
Maximum vertical digging depth (mm)1520
Dodging plate width × height (mm)1080*225
see more

Overview

No.1129621

Brand Name:

XCMG

Model Number:

XE15

Year:

2020

Location:

Zhejiang China

Pub Date
