Product Description

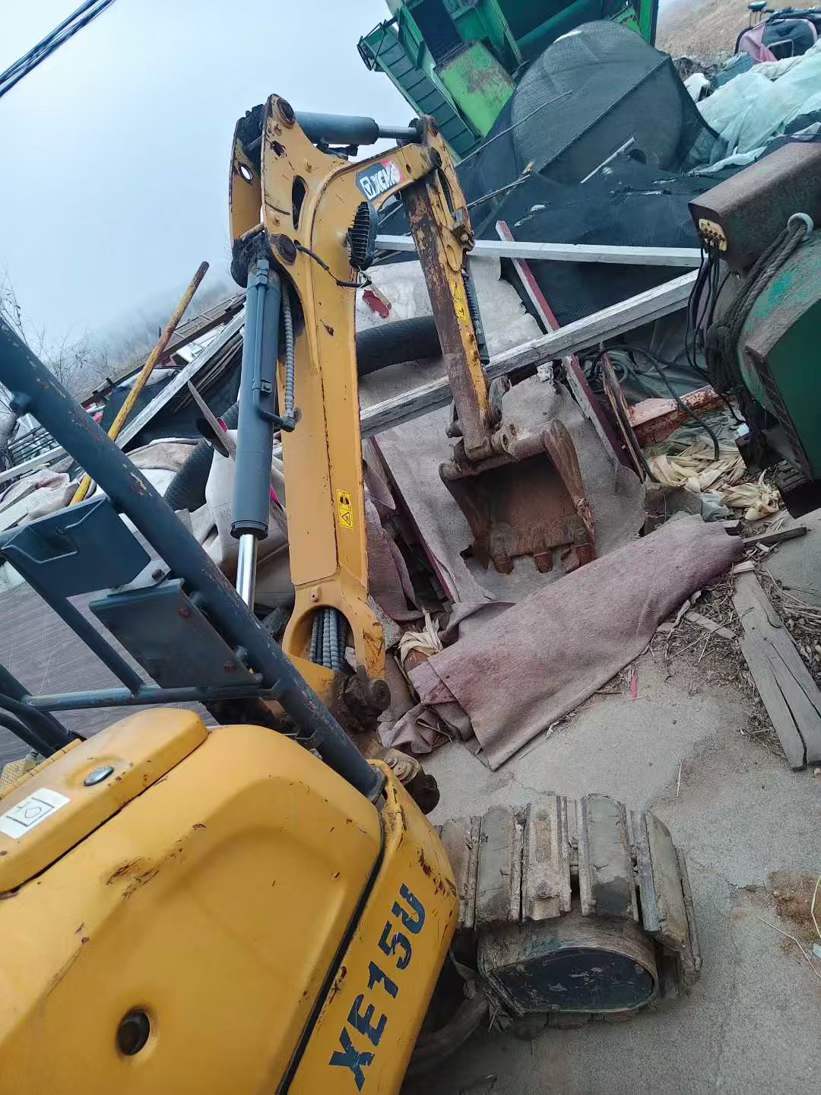

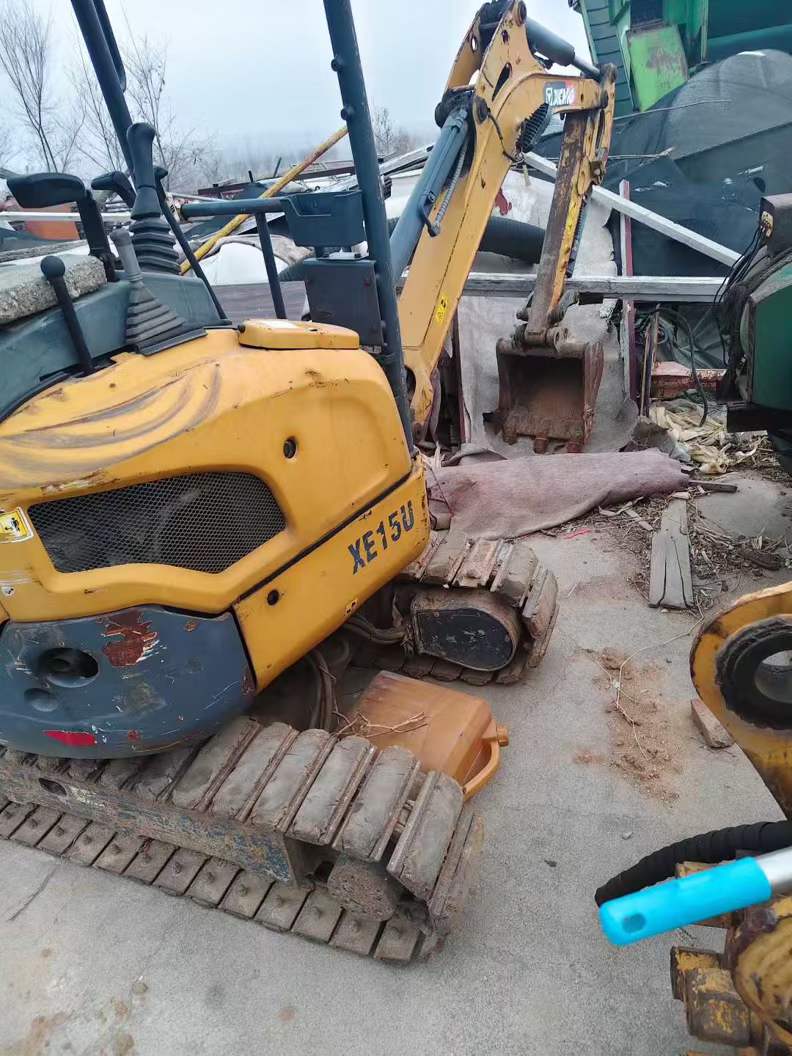

Available now in 山东济南 (Shandong Jinan), this 2021 XCMG XE15 mini excavator is ready for immediate deployment to your site. Skip the factory lead times and put this compact 1-ton machine to work without delay. Powered by a reliable Yanmar 3TNV82A engine delivering 16.5kW at 2200rpm, this unit combines Japanese hydraulic components with proven Chinese manufacturing for dependable performance in tight spaces.
Engineered for versatility, the XE15 offers a maximum digging depth of 2320mm and a digging radius of 3915mm despite its compact 3760mm transport length. With a working weight of just 1640kg and a narrow 1080mm width, this machine navigates confined job sites while maintaining a robust 13.9kN bucket digging force. The dual-speed travel system (4.4/2.4 km/h) and 30° climbing ability ensure productivity across varied terrain.
- Immediate availability in 山东济南 – no waiting

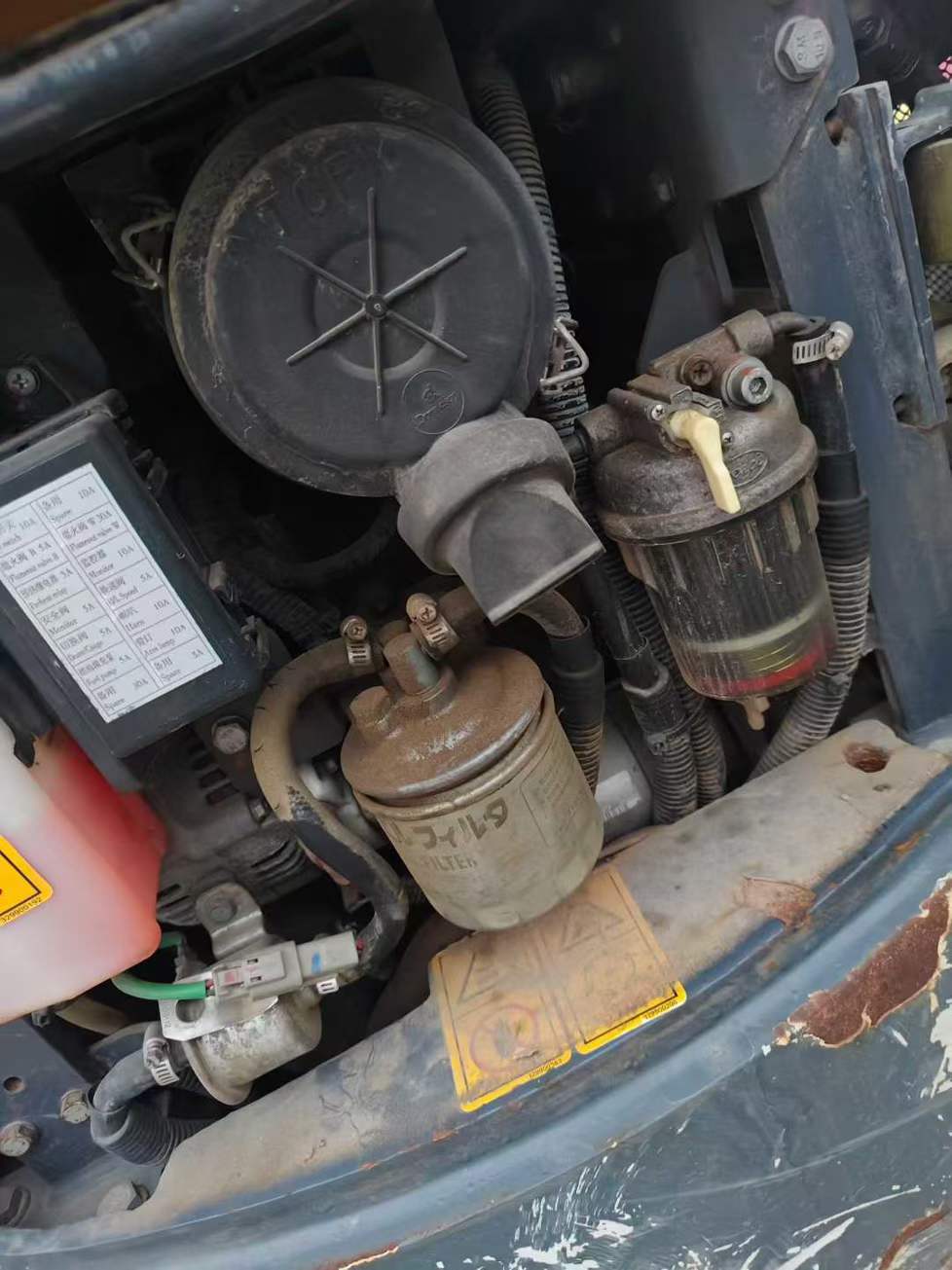

- Yanmar 3TNV82A water-cooled diesel engine
- Japan Fujikoshi main pump with dual 19.8 L/min circuits
- 0.044m³ bucket capacity with backhoe configuration
- Fast deployment: ready for transport today
| Specifications | Value |
|---|---|
| No. | 1004763 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
