Product Description

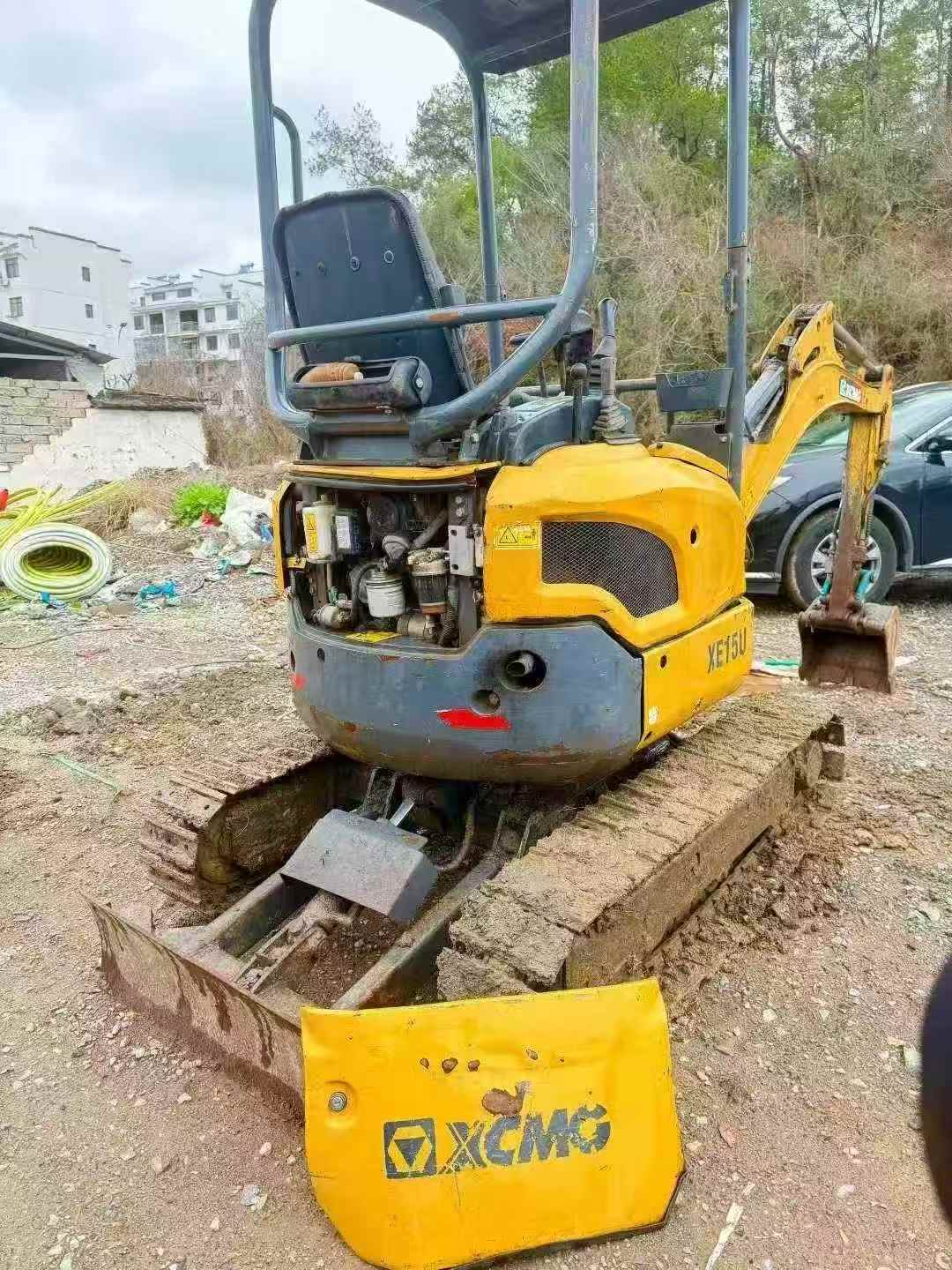

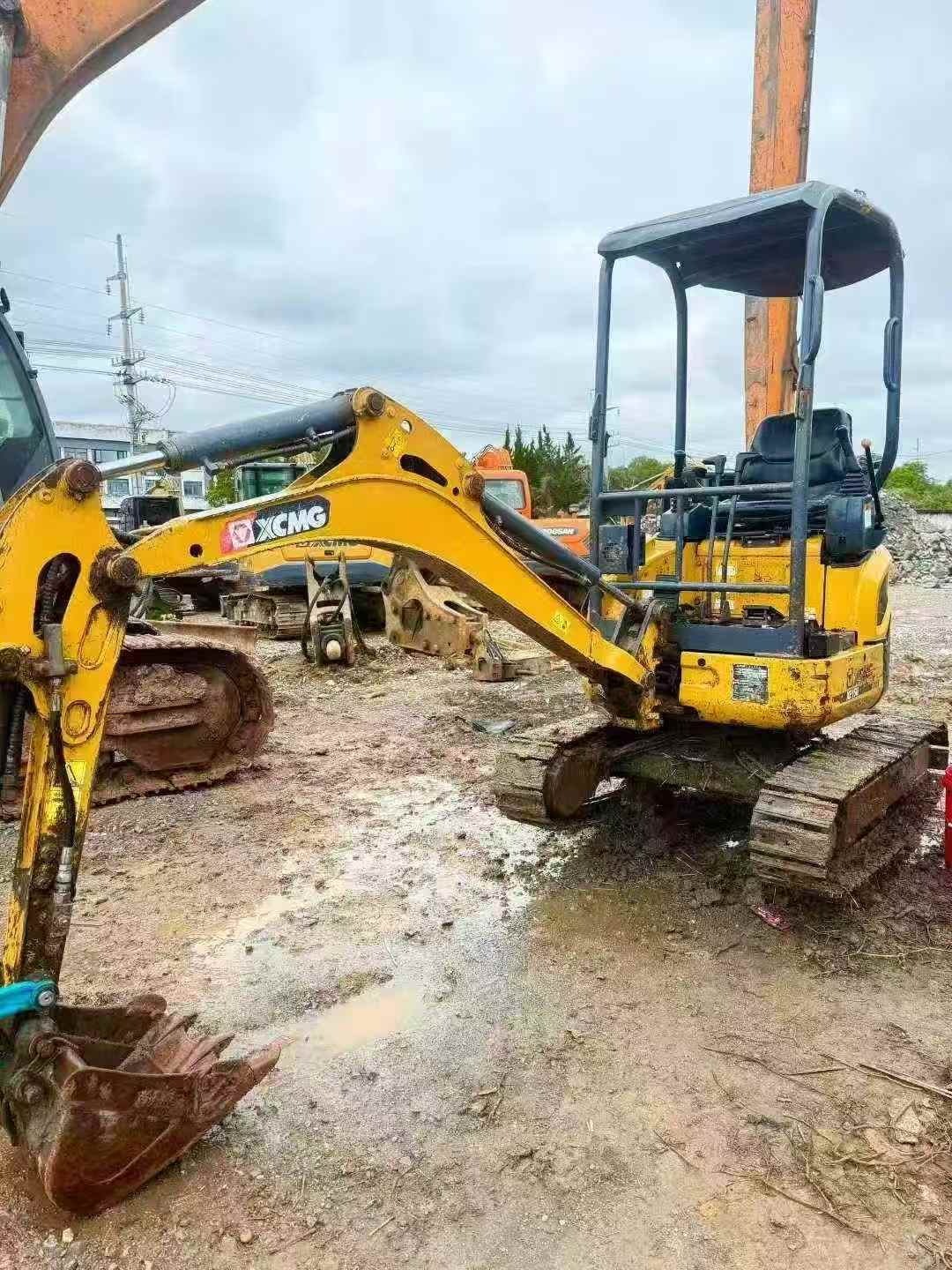

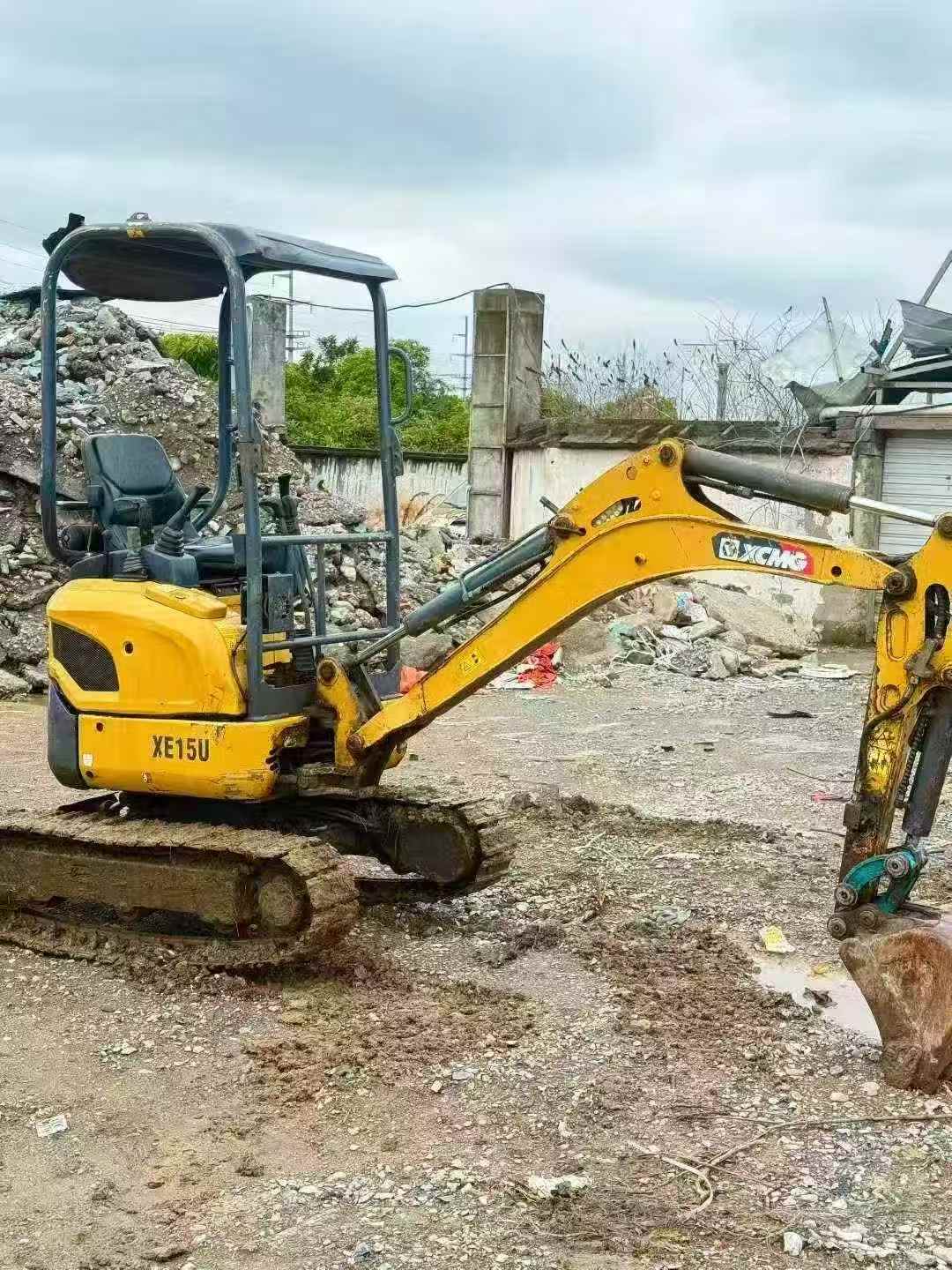

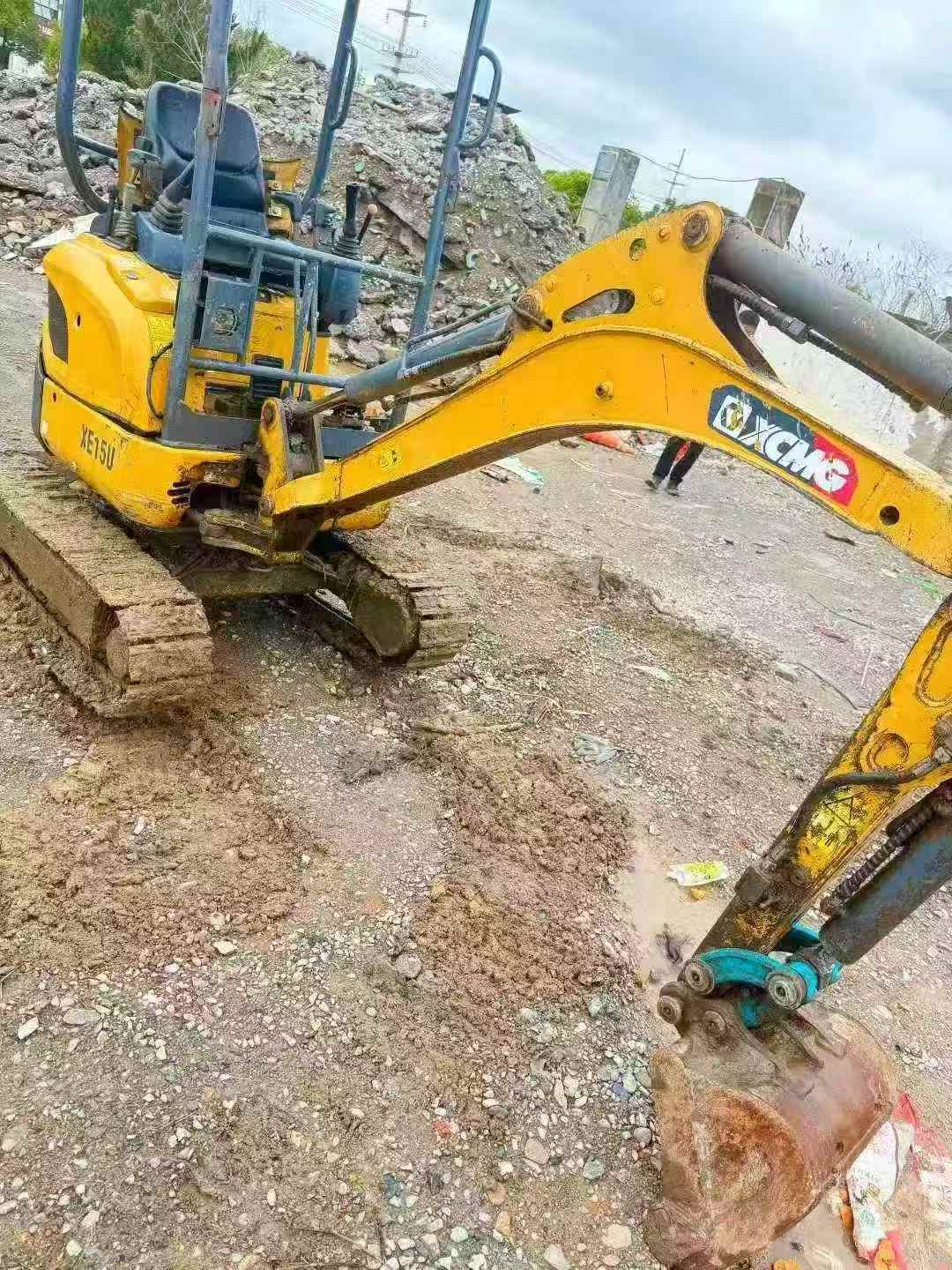

Available now in Fujian Sanming, this 2021 XCMG XE15 mini excavator is ready for immediate deployment to your site. Skip the factory lead times and put this compact 1.6-ton machine to work within days, not months. Powered by a reliable Yanmar 3TNV82A engine delivering 16.5 kW, this unit combines Japanese hydraulic components with proven Chinese manufacturing for dependable performance in tight urban spaces, landscaping projects, and utility installations.
Key specifications include:
- Working weight: 1,640 kg with 0.044 m³ bucket capacity
- Maximum digging depth: 2,320 mm; maximum reach: 3,915 mm
- Compact transport dimensions: 3,760 mm (L) × 1,080 mm (W) × 2,400 mm (H)
- Dual main pumps (Fujikoshi) delivering 2×19.8 + 14.1 L/min
- 30° climbing ability with 23.8 kPa ground pressure
- Water-cooled 3-cylinder engine; 20L fuel tank for extended runtime
Sourced directly from Fujian, this machine offers fast logistics throughout Southeast Asia and beyond. Inspect in person or arrange immediate shipping—no waiting for production slots.
| Specifications | Value |
|---|---|
| No. | 1019796 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
