Product Description

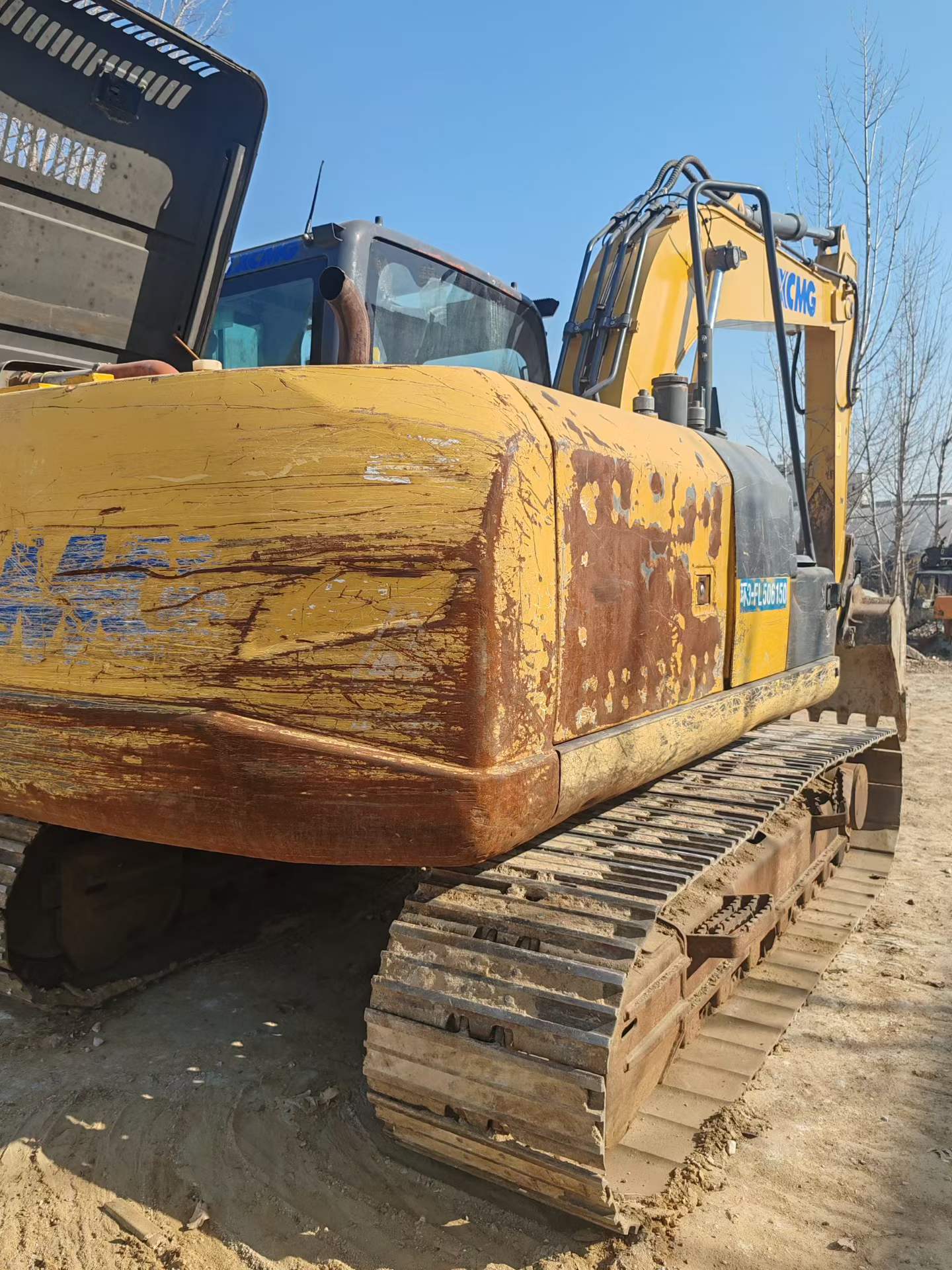

Proven performance meets robust engineering in this 2017 XCMG XE150D excavator, currently located in Shandong Linyi. With over six years of operational history, this 15-ton workhorse demonstrates the exceptional build quality that XCMG is renowned for. Powered by a reliable QSF3.8 engine delivering 93kW at 2200rpm, this machine combines a 4600mm boom and 2520mm arm to achieve an impressive 8304mm maximum digging radius and 5535mm digging depth.
Built to endure demanding jobsites, this excavator features:

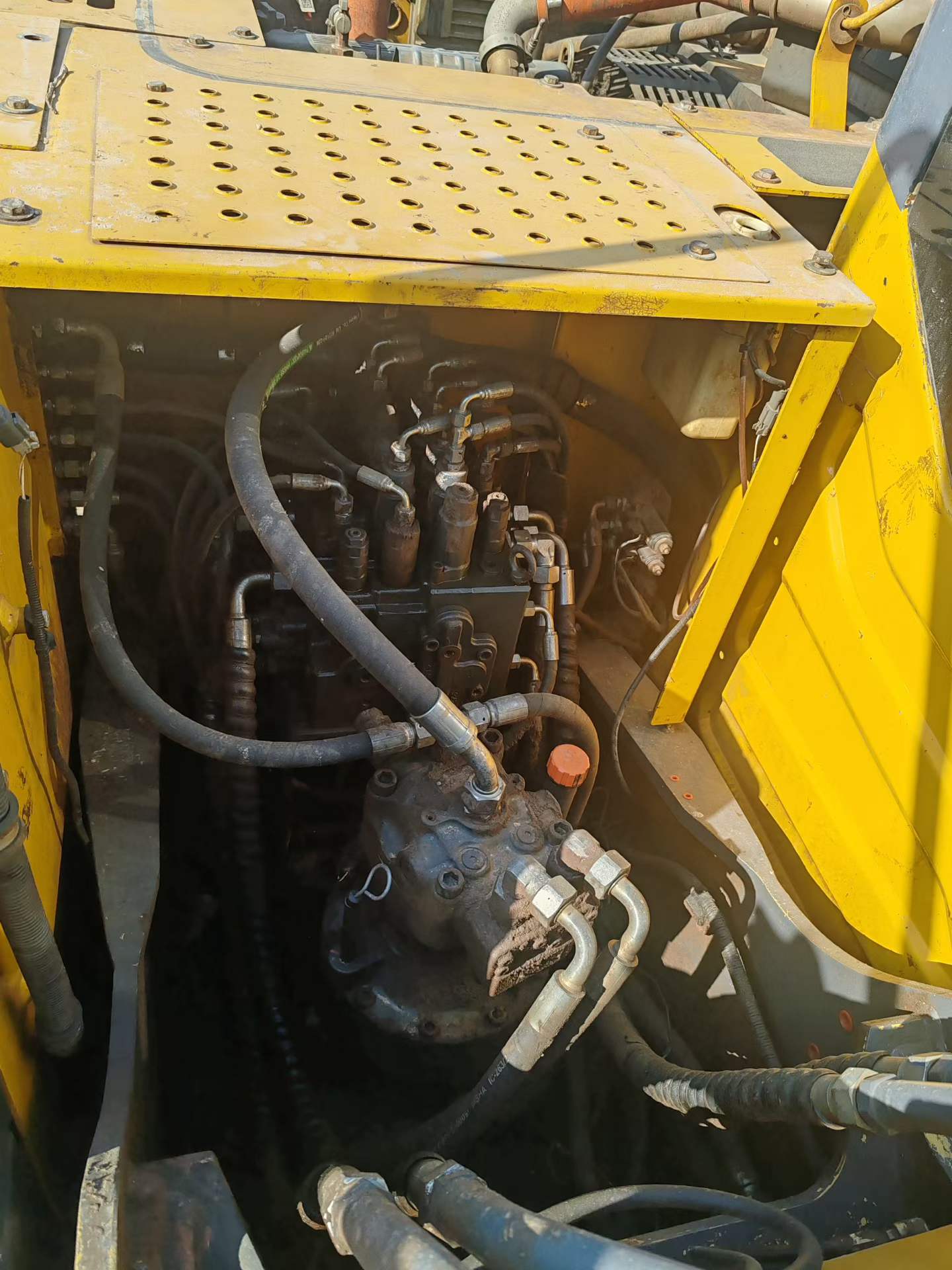

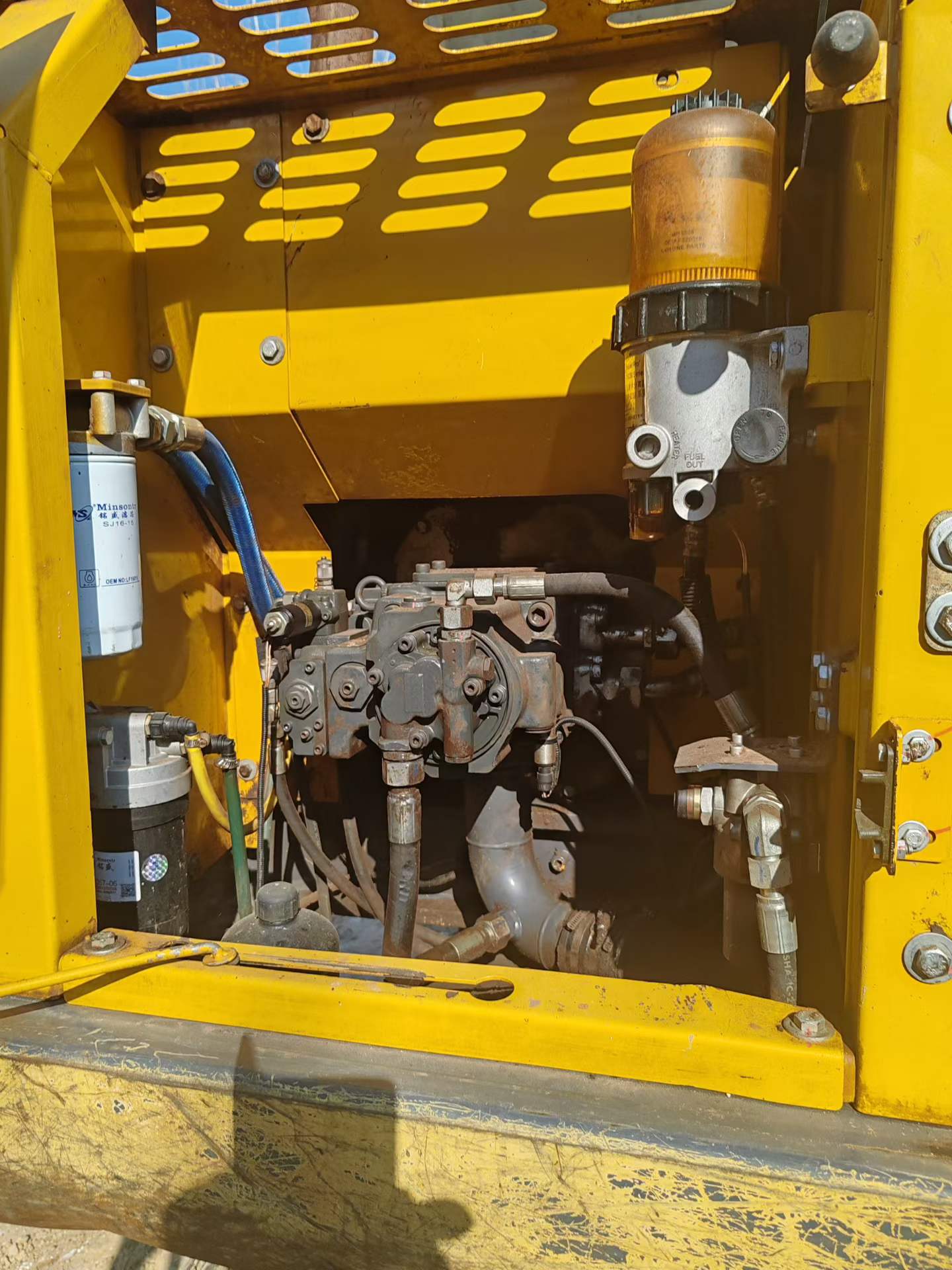

- Dual variable piston pumps with 2×123.5 L/min flow capacity for consistent hydraulic performance
- Powerful digging forces: 106.9kN bucket force and 73.4kN arm force
- 14,600kg working weight with 0.32-0.71m³ bucket capacity range

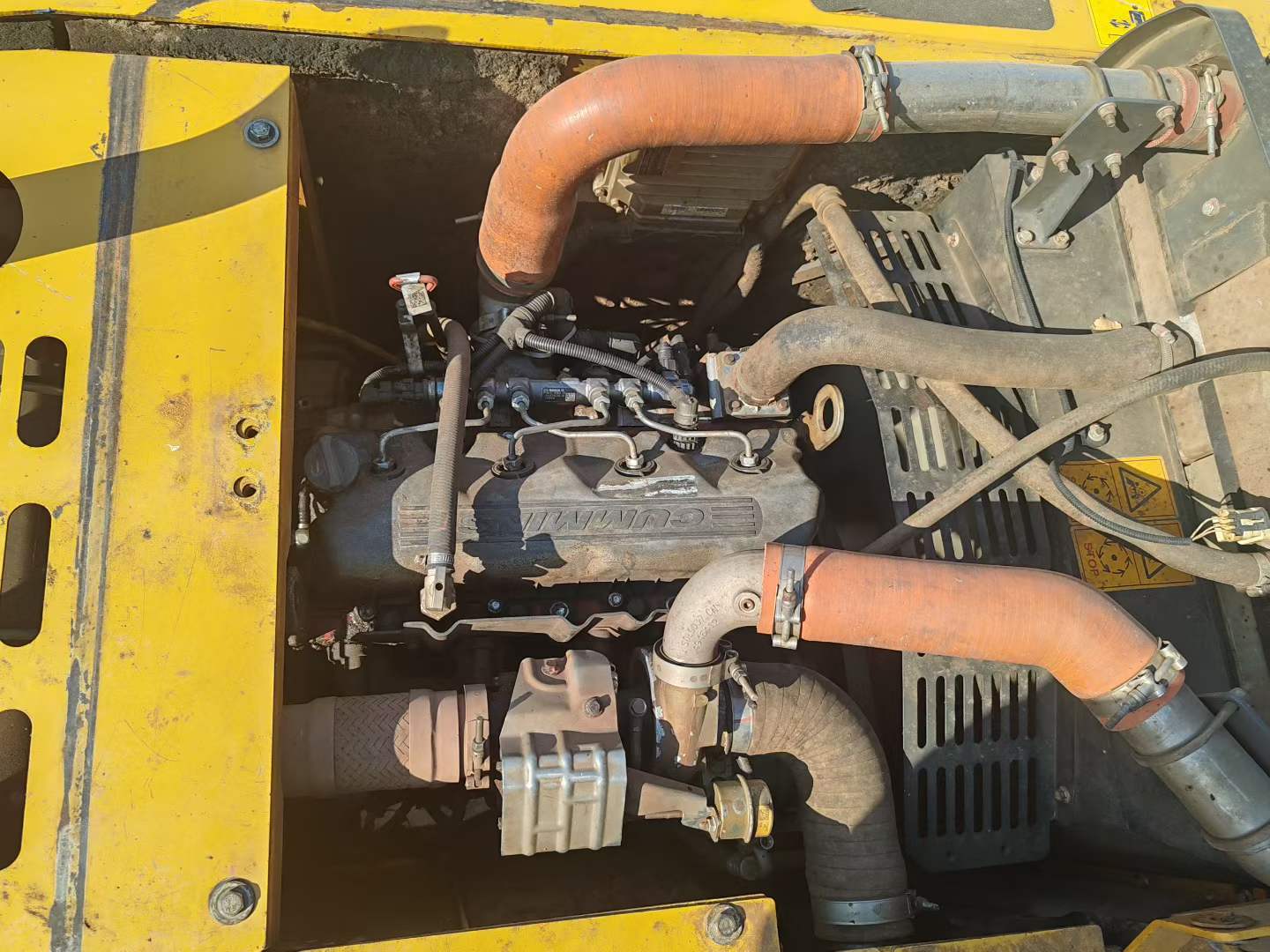

- Water-cooled turbocharged engine with air-to-air intercooling for reliable operation
- 35% climbing ability and 134kN maximum tractive force
- Plunger hydraulic motors for both rotation and travel systems
Years of proven service validate this machine's durability. Manufactured in Xuzhou, China, this XE150D represents dependable productivity for contractors seeking a tested, reliable excavator ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 996349 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.3/3.2 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 123.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
