2019 XCMG XE155D

1/4
Buy XCMG XE155D Used Excavator / 1
Buy XCMG XE155D Used Excavator / 2
Buy XCMG XE155D Used Excavator / 3
Buy XCMG XE155D Used Excavator / 4

Product Description

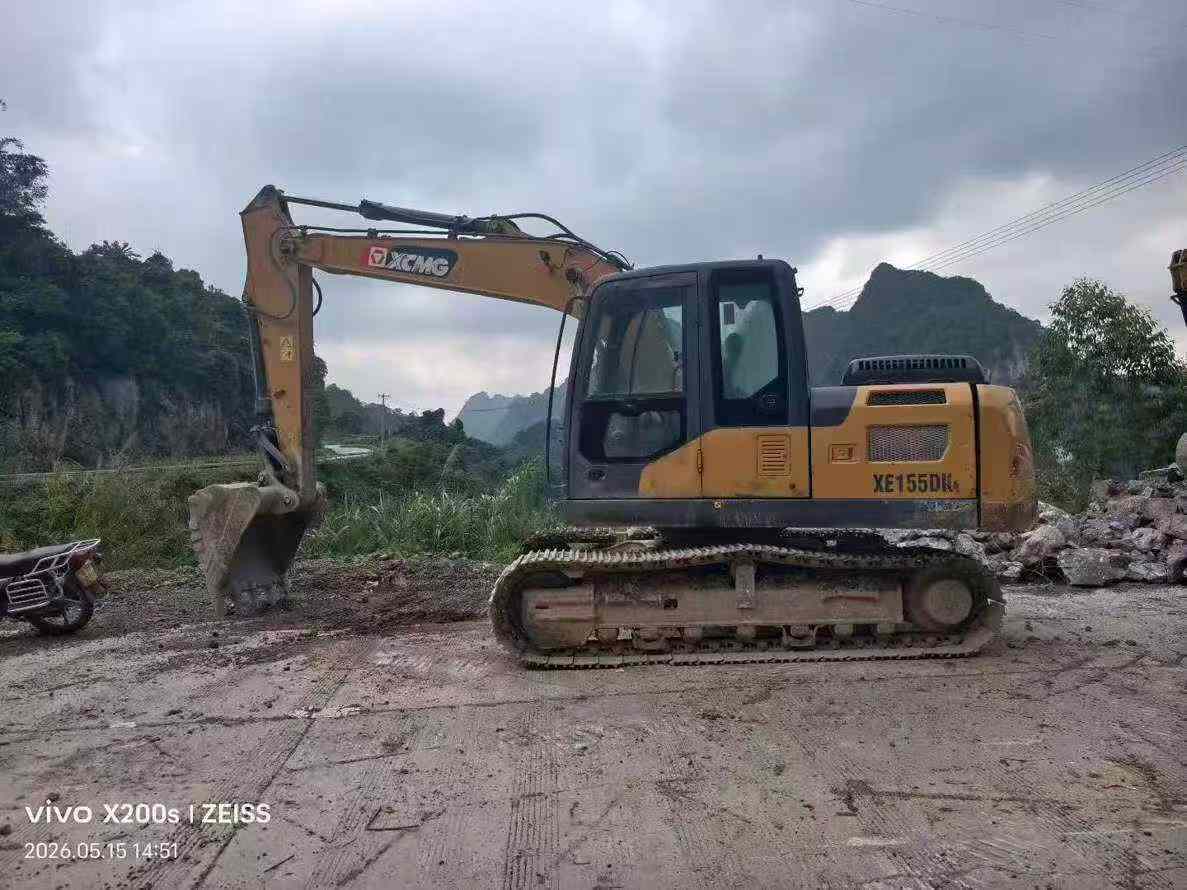

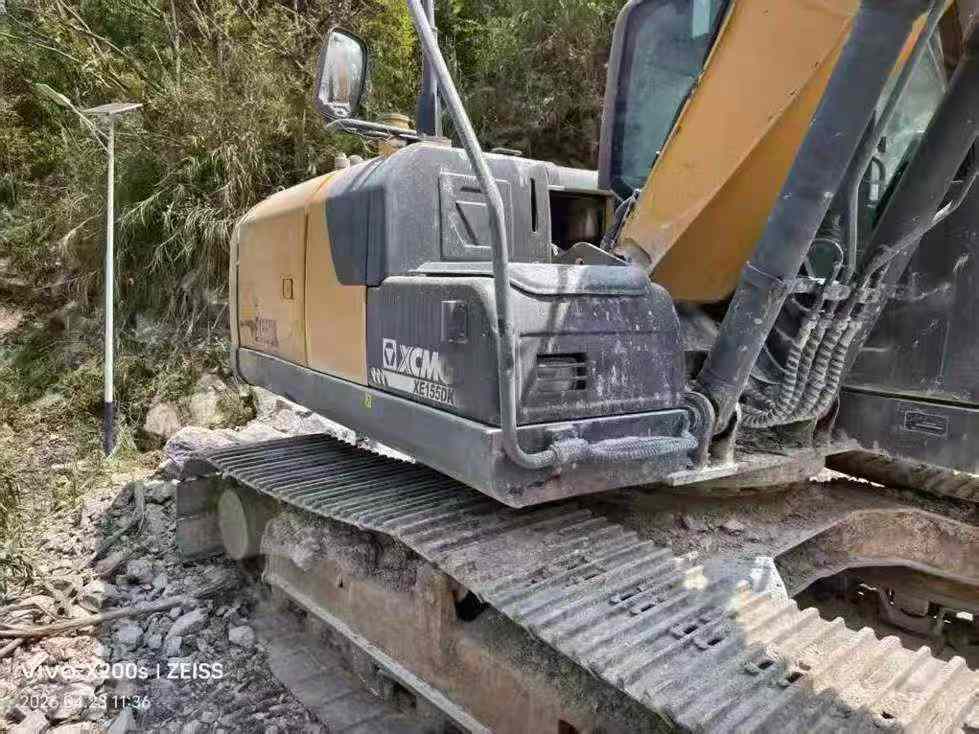

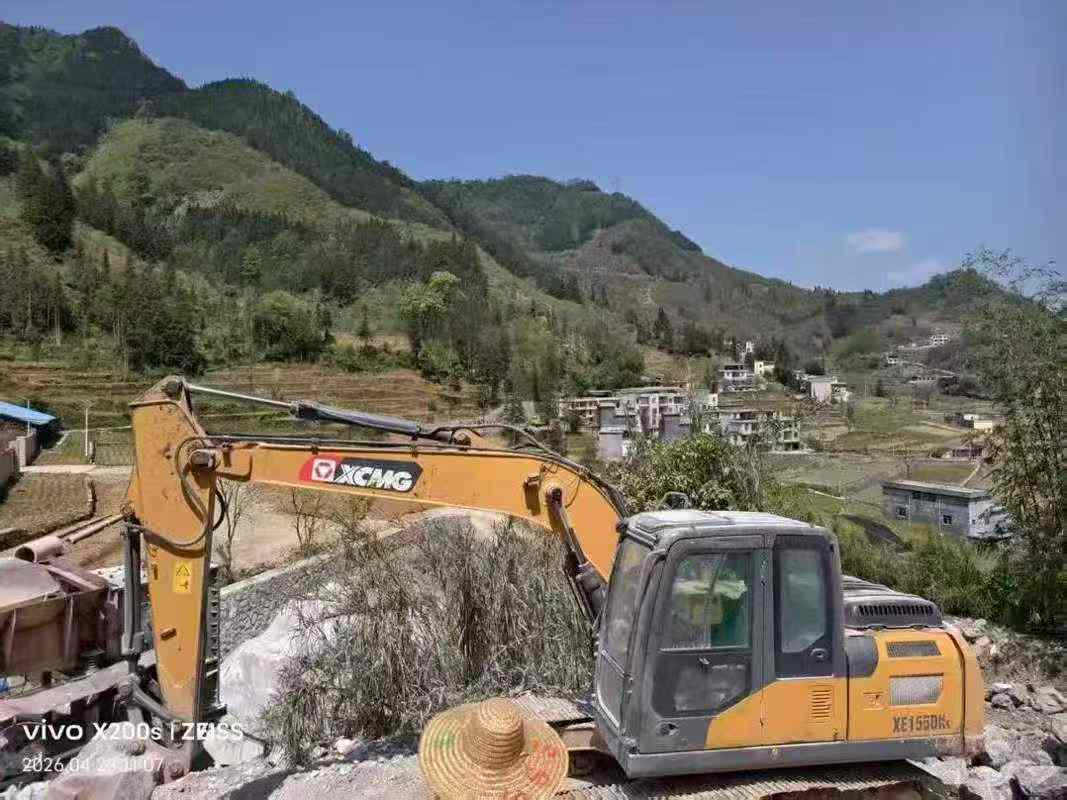

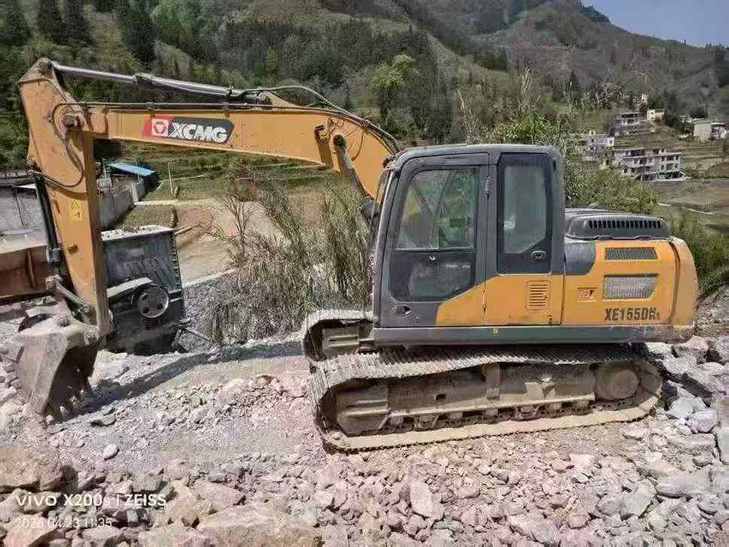

This 2019 XCMG XE155D hydraulic excavator offers reliable performance for medium-duty earthmoving and construction applications. Located in Guangxi, China, this 15-ton class machine features XCMG's proven engineering with a focus on operational efficiency and durability.

Key features include:

  • Operating weight: approximately 15,500 kg
  • Hydraulic system designed for responsive control and fuel efficiency
  • Robust undercarriage suitable for varied terrain conditions
  • Spacious operator cab with standard ergonomic controls
  • Well-maintained condition with consistent performance history

The XE155D is suitable for general excavation, trenching, material handling, and site development projects. Available for inspection in Guangxi province. Contact us for detailed service records and current availability.

SpecificationsValue
No.1082541
Tonnage (tons)15
Working weight (kg)14600
Bucket capacity (m³)0.32-0.71 (0.61)
Boom length (mm)4600
Rod length (mm)2520
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSF3.8
Rated power (kw/rpm)93/2200
Cooling modewater-cooling
Maximum torque (N.m)500/1300
Number of cylinders (PCS)4
Displacement (L)3.8
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)37
Rotation speed (rpm)11
Climbing ability (%)35
Bucket digging force (kN)106.9
Rod digging force (kN)73.4
Maximum tractive force (kN)134
Travel speed (km/h)5.2/2.9
Fuel Tank (L)260
Hydraulic Tank (L)105
Engine Oil changes (L)11
Total transport length (mm)7795
Total transport width (mm)2590
Total transport height (mm)2900
Counterweight ground clearance (mm)948
Minimum ground clearance (mm)477
Minimum turning radius of front working device (mm)2445
Back end turning radius (mm)2325
Total track length (mm)3658
Track gauge (mm)1990
Total track width (mm)600
Maximum digging radius (mm)8304
Maximum digging depth (mm)5535
Maximum excavation height (mm)8649
Maximum unloading height (mm)6185
Maximum vertical digging depth (mm)4697
see more

Overview

No.1082541

Brand Name:

XCMG

Model Number:

XE155D

Year:

2019

Location:

Guangxi China

Pub Date
