Product Description

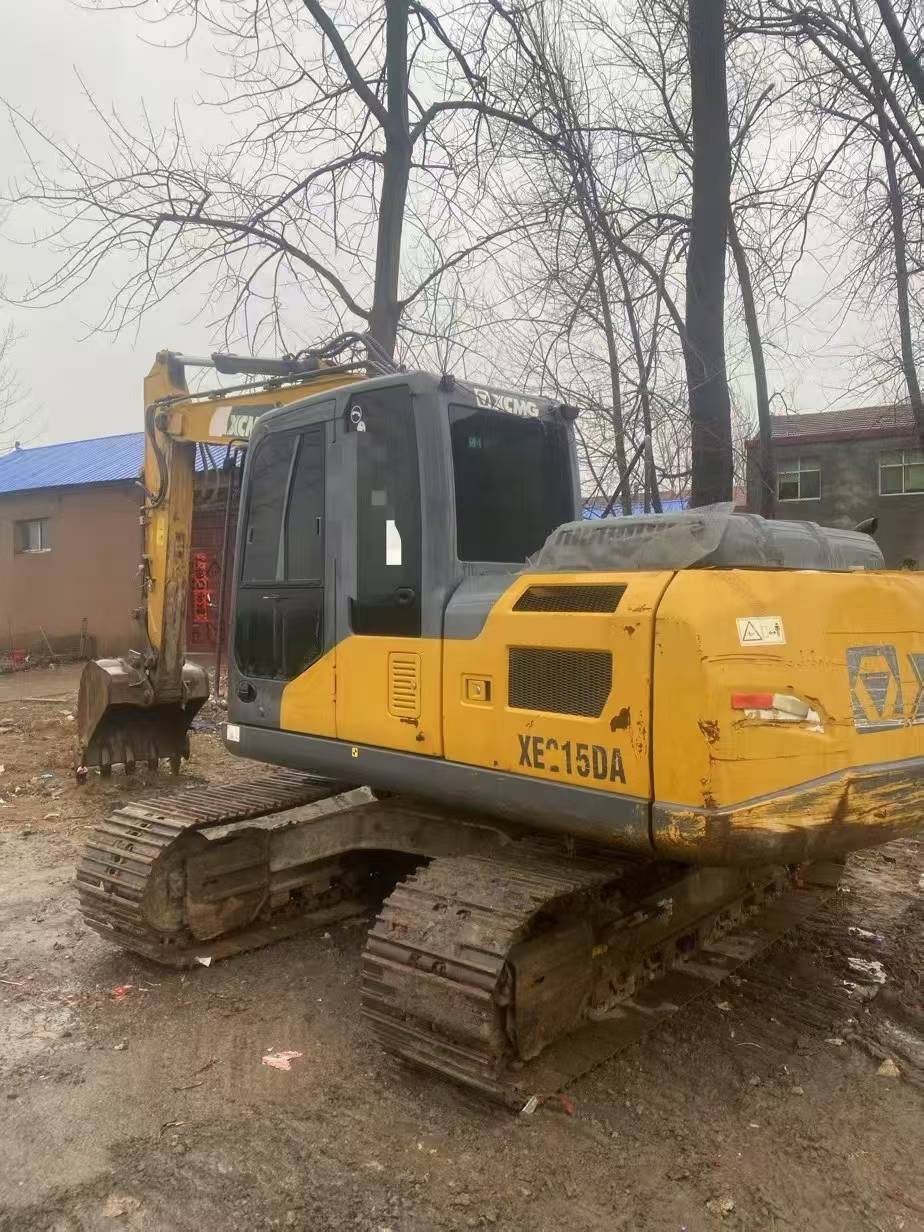

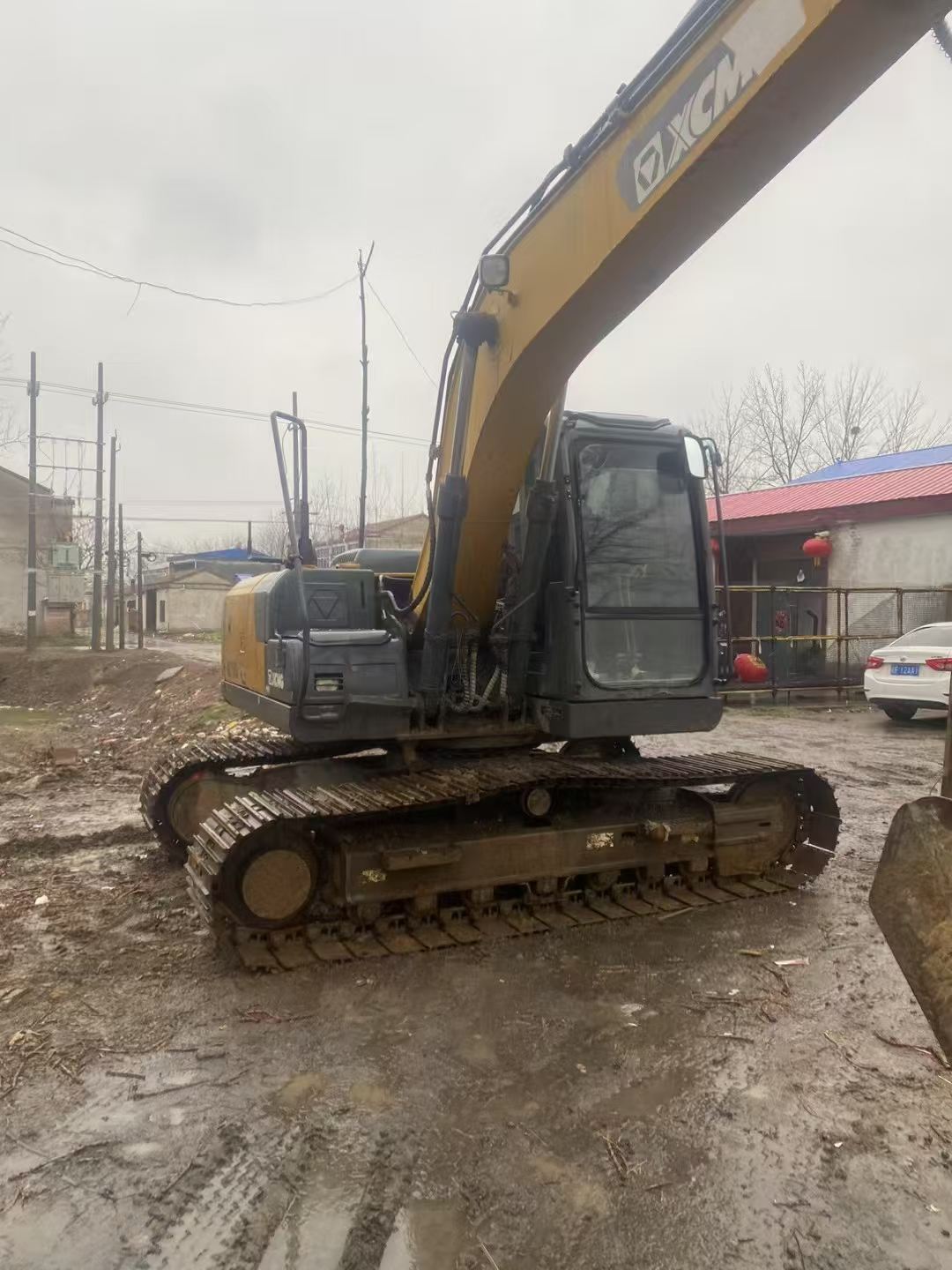

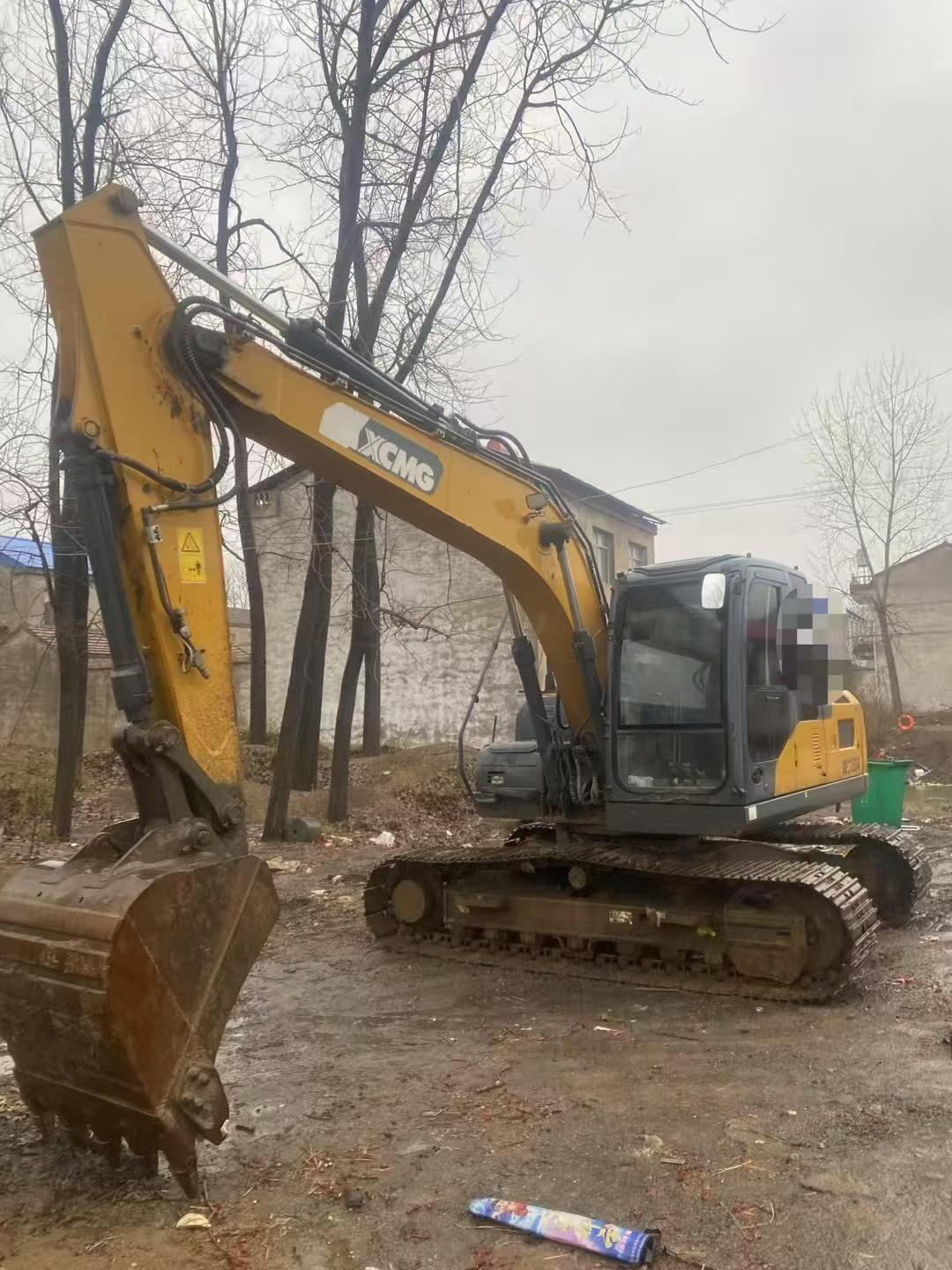

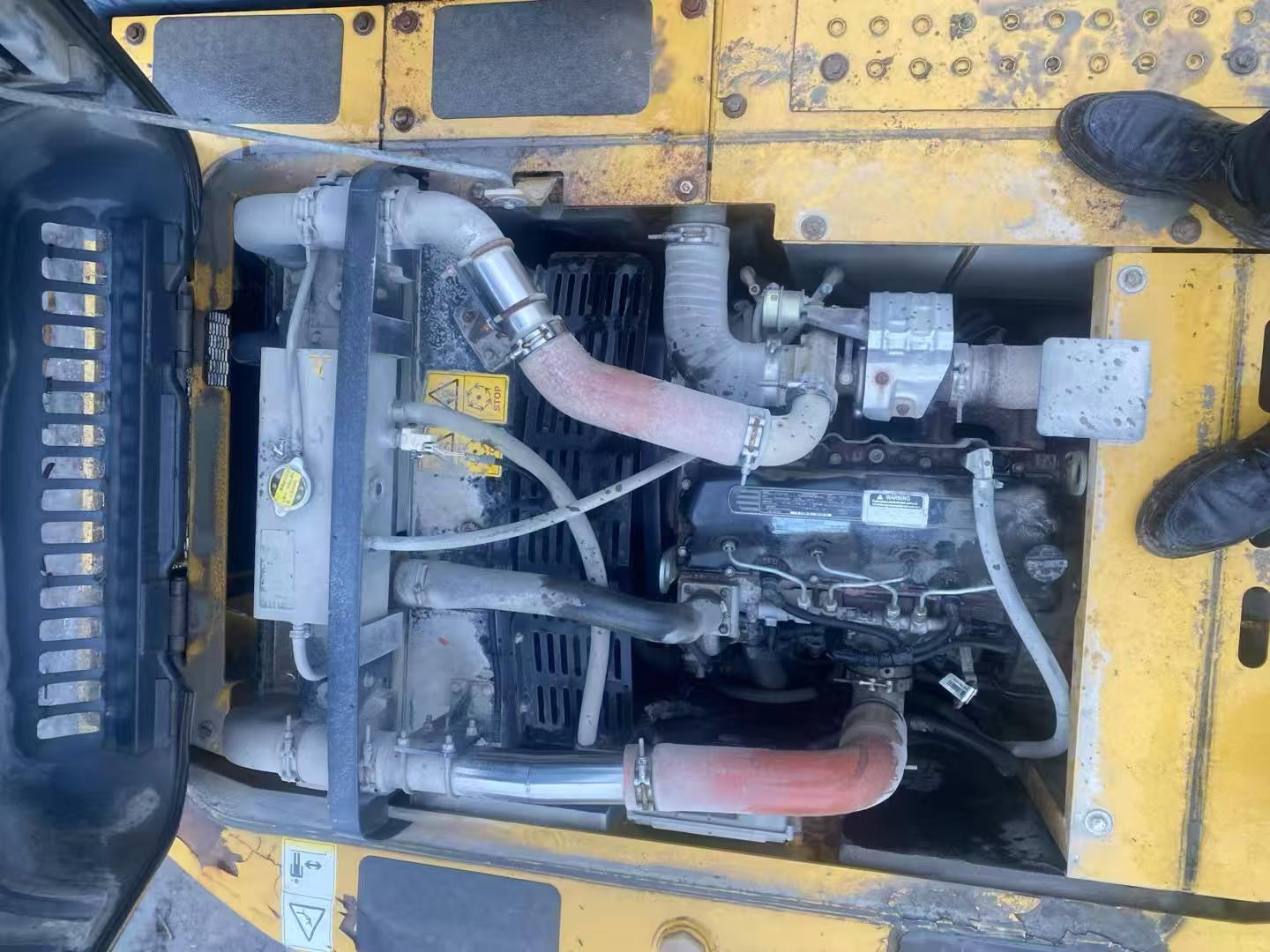

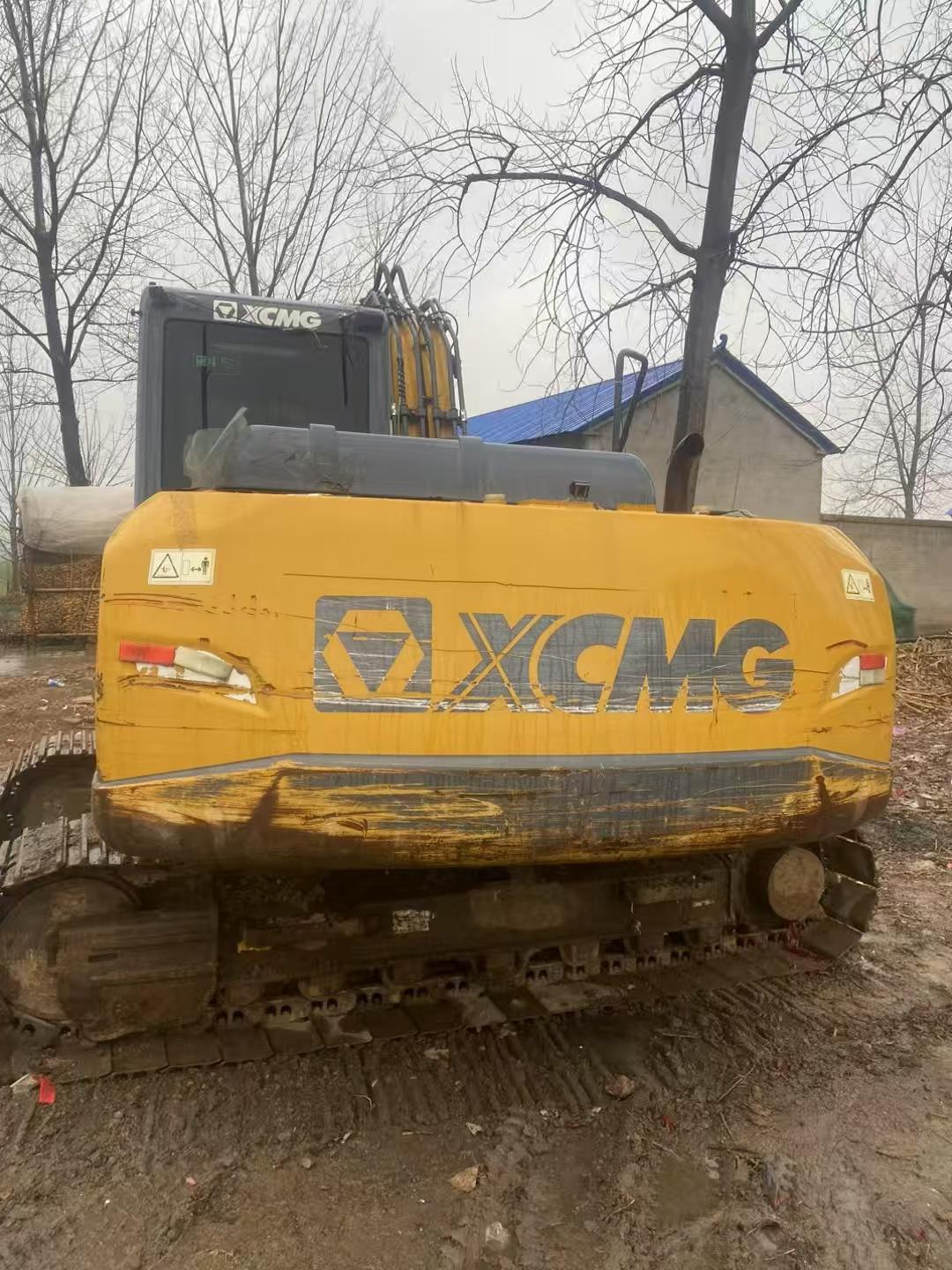

Built to endure the toughest job sites, this 2020 XCMG XE155D excavator delivers proven performance with minimal wear. Operating at 15 tons with a robust 14,600 kg working weight, this machine combines power and precision for demanding excavation tasks. Powered by a QSF3.8 turbocharged engine producing 93 kW at 2200 rpm, it generates exceptional digging force—106.9 kN bucket force and 73.4 kN rod force—ensuring productivity in challenging ground conditions.
- Maximum Digging Reach: 8,304 mm with 5,535 mm depth capability
- Efficient Hydraulics: 0.61 m³ bucket capacity for optimal cycle times
- Reliable Powertrain: Water-cooled 3.8L engine with 500 N.m torque
- Superior Mobility: 35% climbing ability, 5.2 km/h travel speed
- Extended Operation: 260L fuel tank for longer work intervals
- Compact Transport: 7,795 mm length fits standard trailers
Currently located in Jiangsu Suqian, China, this proven workhorse represents dependable Chinese manufacturing at its finest. Ready for immediate deployment across construction, mining, and infrastructure projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1020231 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
