Product Description

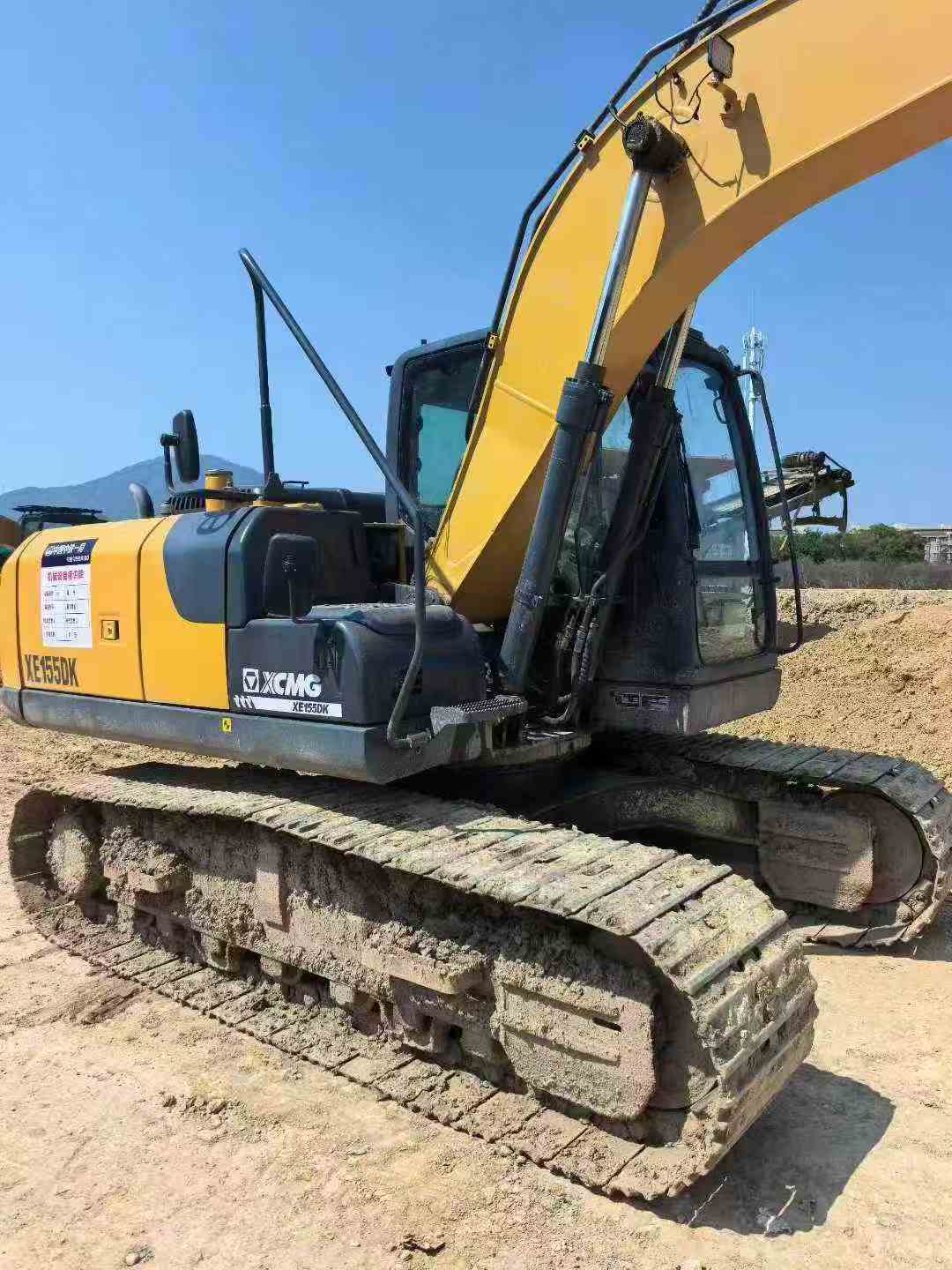

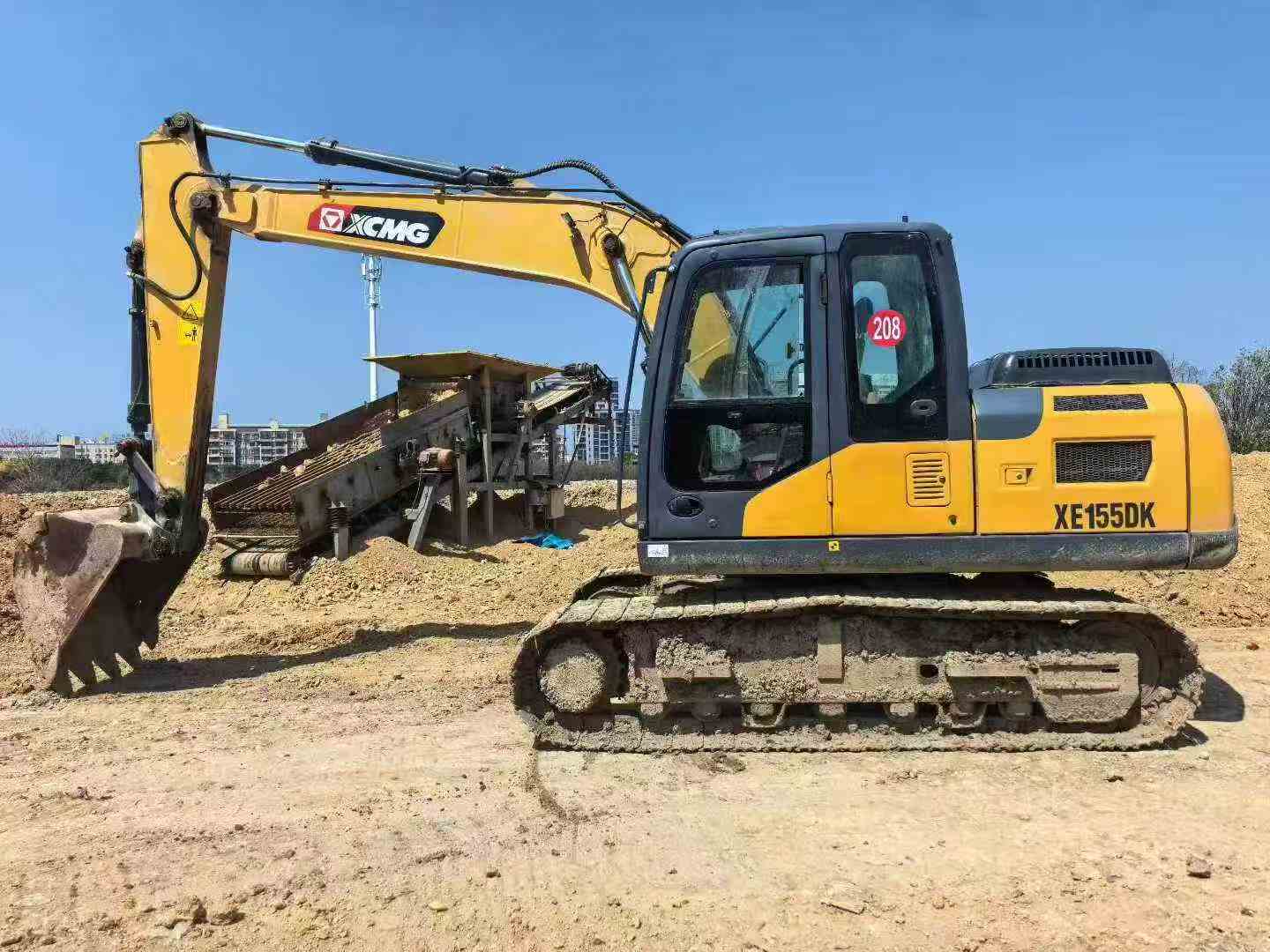

With a working weight of 14,600 kg and a bucket capacity ranging from 0.32 to 0.71 m³, the XCMG XE155D is a robust and reliable choice for your construction needs. Located in Zhejiang Wenzhou, this 2022 model features a QSF3.8 engine, delivering 93 kW at 2200 rpm, ensuring efficient and powerful performance. XCMG's reputation for durability and widespread parts availability makes it a trusted option in the used heavy machinery market. This excavator offers a maximum digging depth of 5535 mm and a maximum unloading height of 6185 mm, making it versatile for various applications. Its 4-stroke, turbocharged, and air-to-air cooled engine ensures optimal operation under different conditions. Trust in XCMG for high resale value and consistent performance.
- Engine: QSF3.8, 4-stroke, turbocharged, water-cooled
- Power: 93 kW at 2200 rpm
- Maximum digging depth: 5535 mm
- Bucket capacity: 0.32-0.71 m³
- Working weight: 14,600 kg
| Specifications | Value |
|---|---|
| No. | 1030914 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
