Product Description

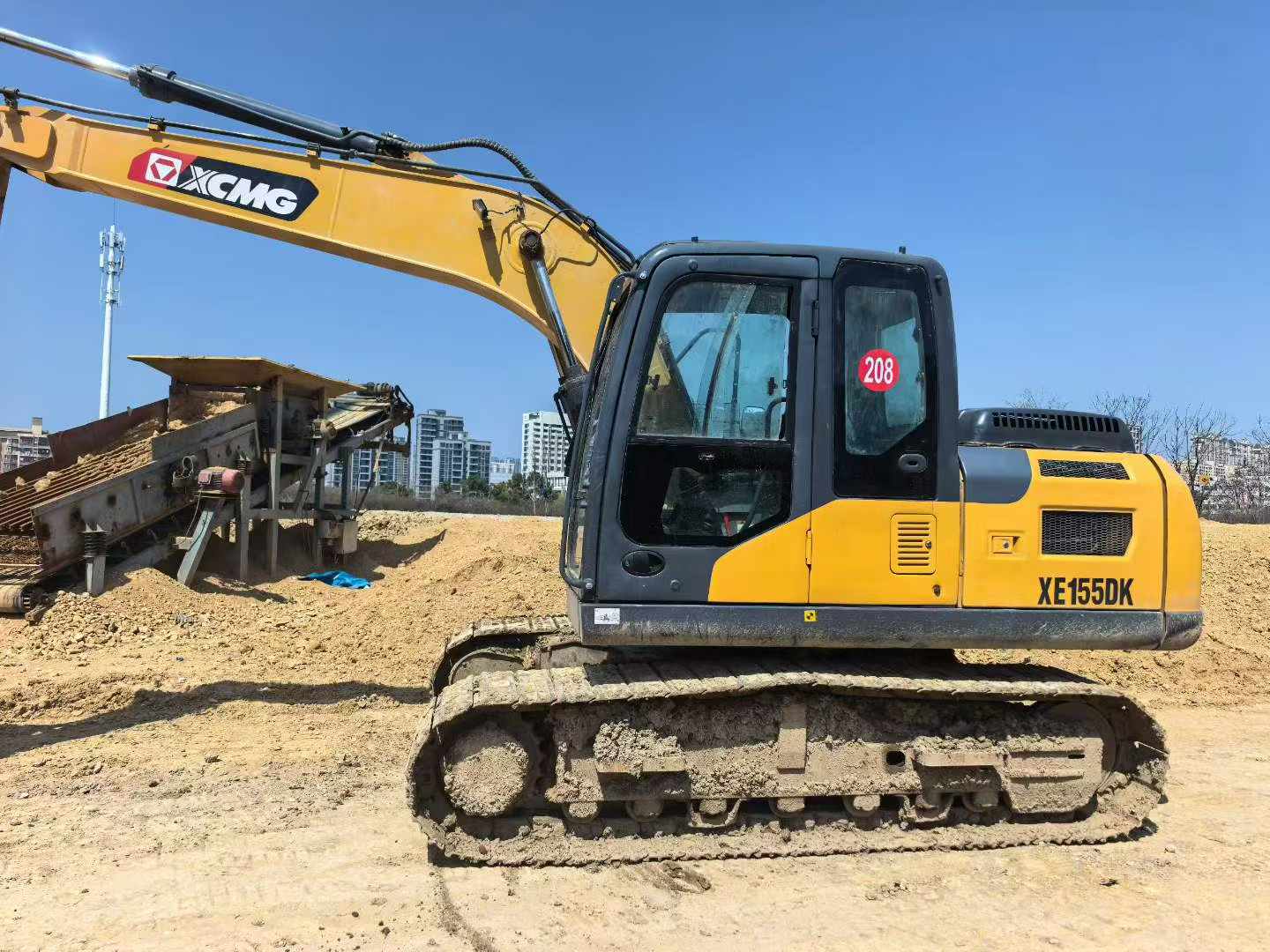

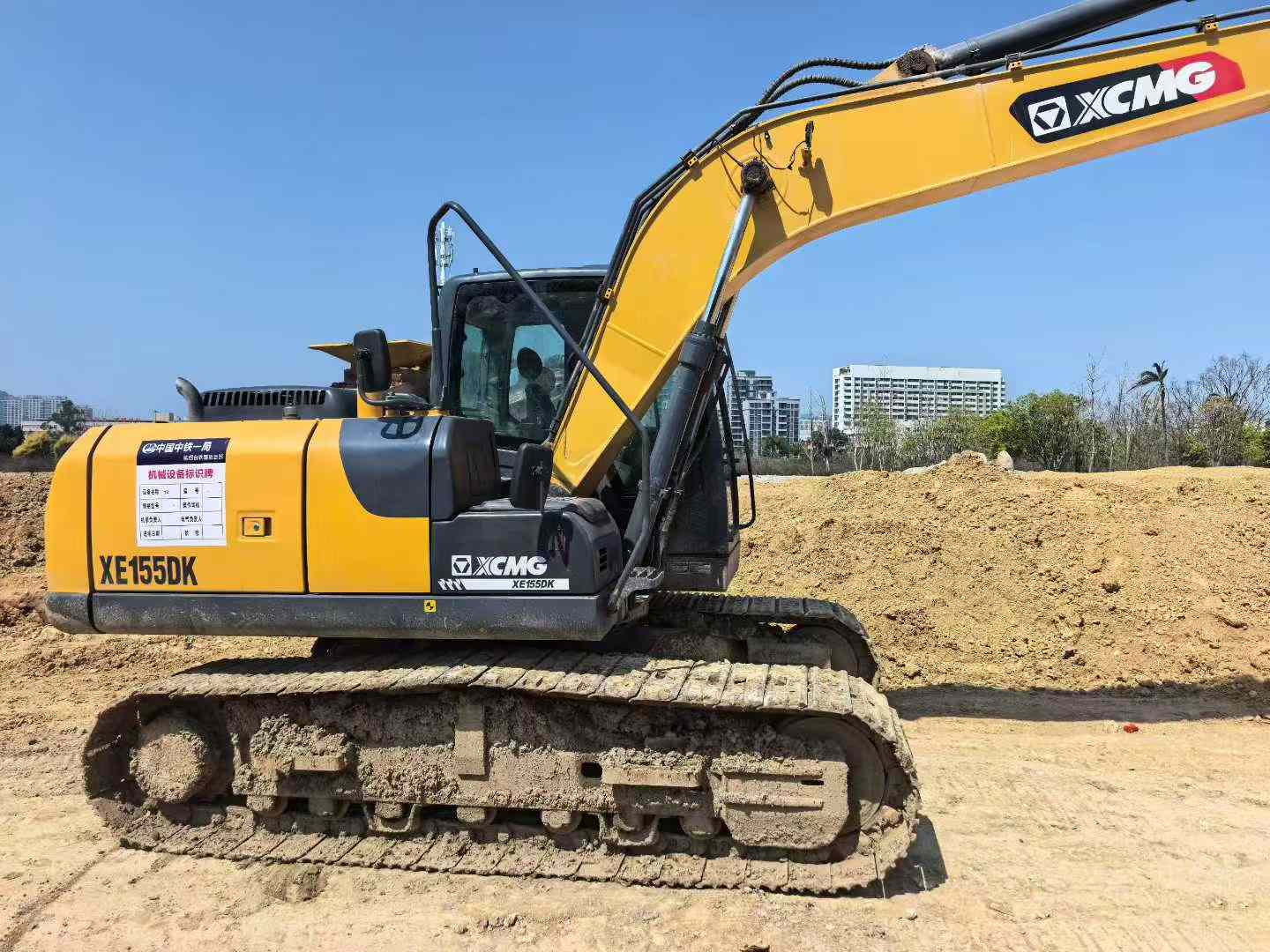

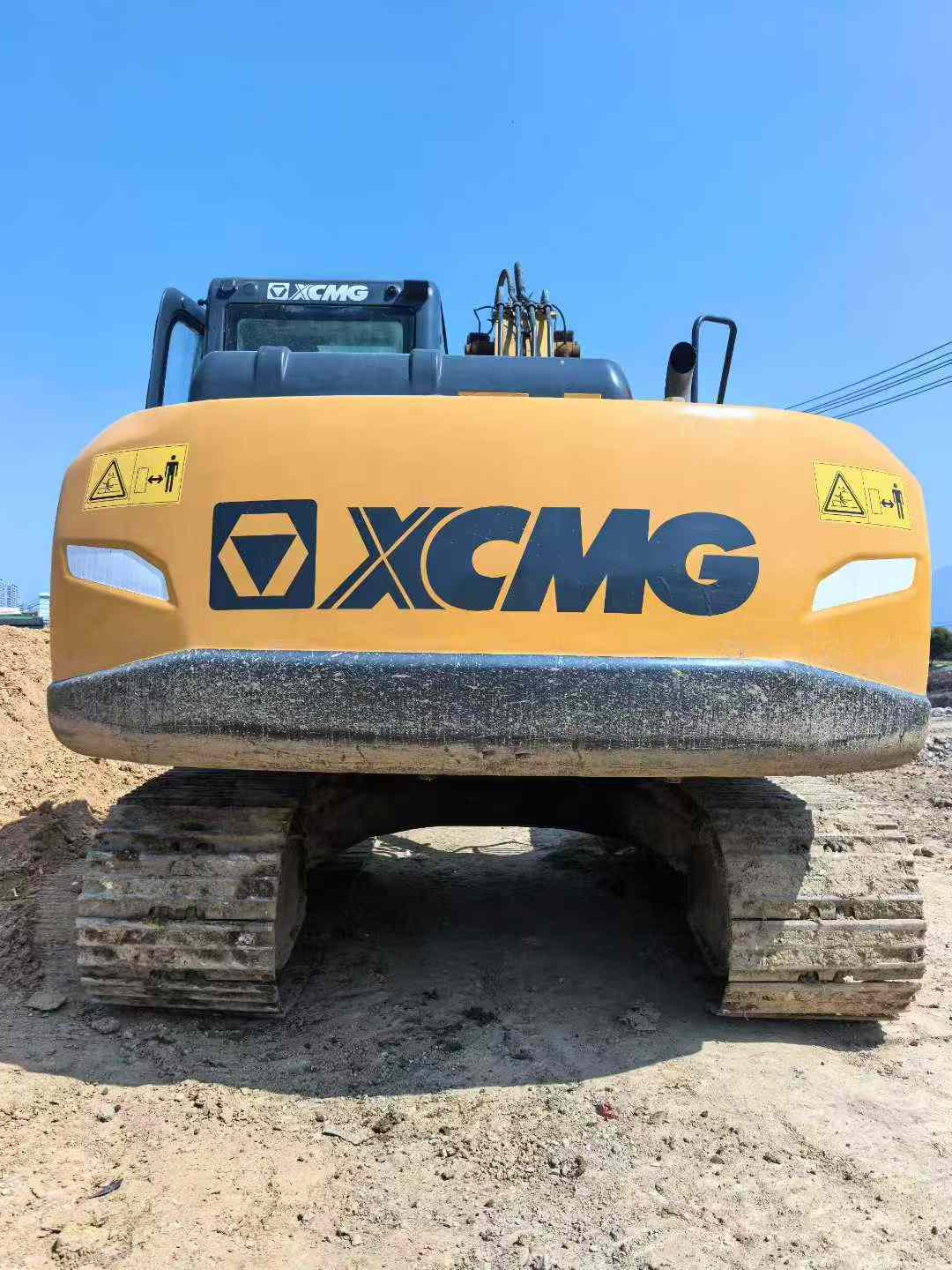

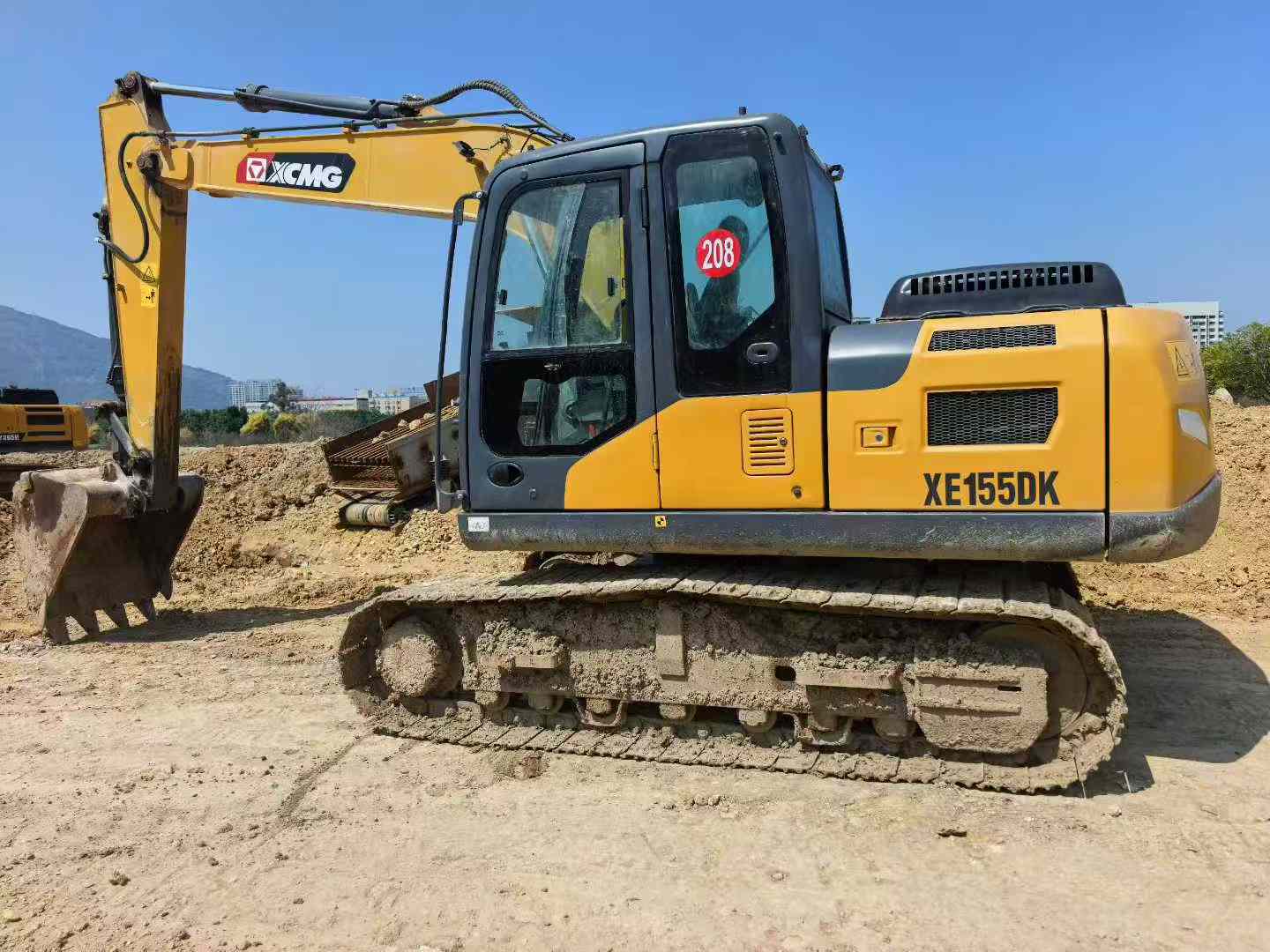

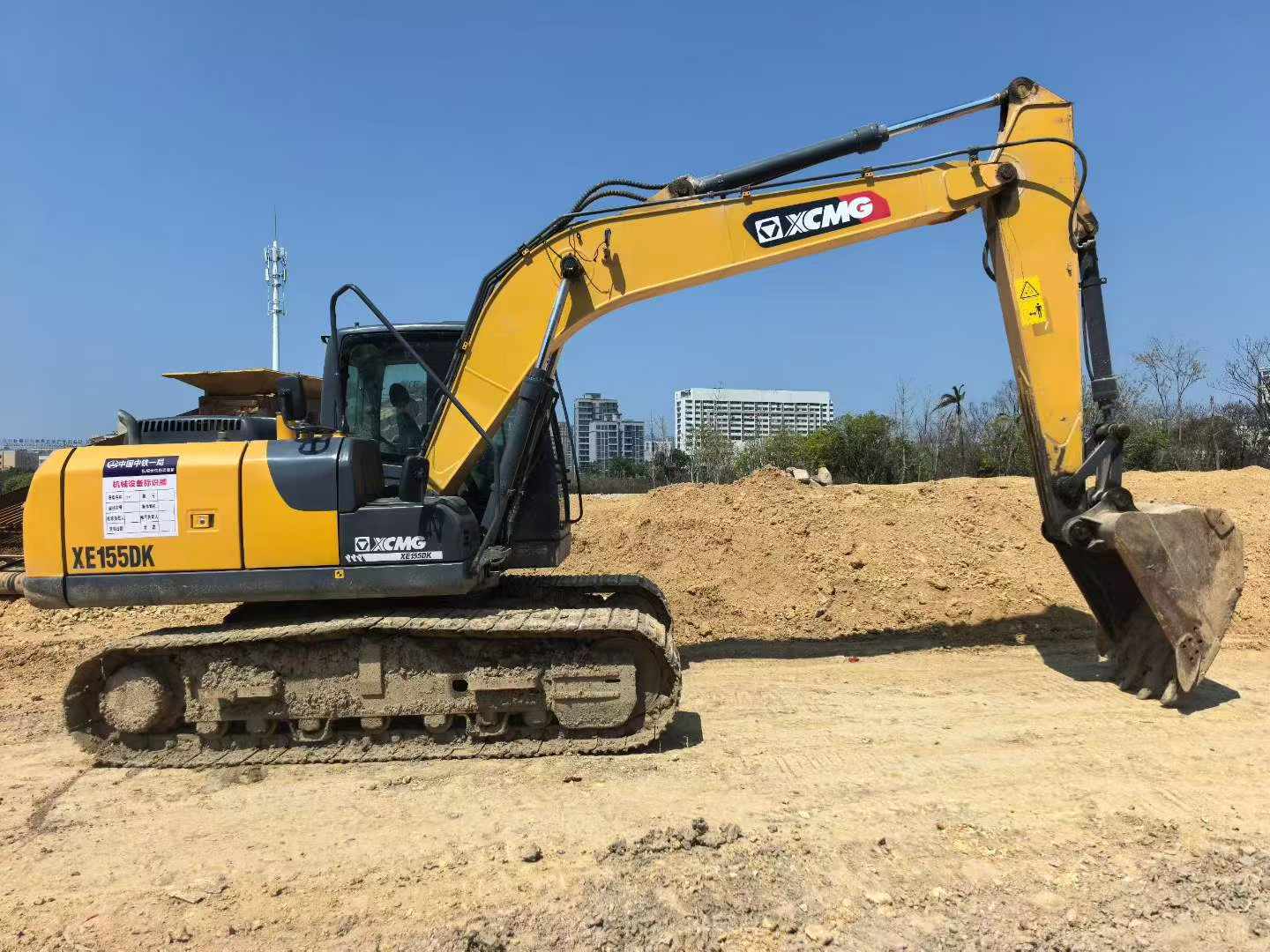

With a tonnage of 15 and a working weight of 14,600 kg, the XCMG XE155D excavator, located in Zhejiang, offers high performance at a fraction of the cost of new equipment. Powered by a QSF3.8 engine with 93 kW of power, this model ensures efficient operation and reliability. Featuring a bucket capacity ranging from 0.32 to 0.71 m³, it is ideal for various construction and excavation tasks. The XE155D boasts a maximum digging depth of 5,535 mm and a maximum unloading height of 6,185 mm, making it versatile for different job sites. Equipped with a 4-stroke, turbocharged, air-to-air cooled engine, this excavator delivers consistent power and fuel efficiency. Invest smartly in the XCMG XE155D, where robust performance meets economic value.
- Tonnage: 15 tons
- Working weight: 14,600 kg
- Bucket capacity: 0.32-0.71 m³
- Maximum digging depth: 5,535 mm
- Engine type: QSF3.8, 4-cylinder, 3.8 L displacement
- Fuel tank: 260 L
- Travel speed: 5.2/2.9 km/h
| Specifications | Value |
|---|---|
| No. | 1033800 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
