Product Description

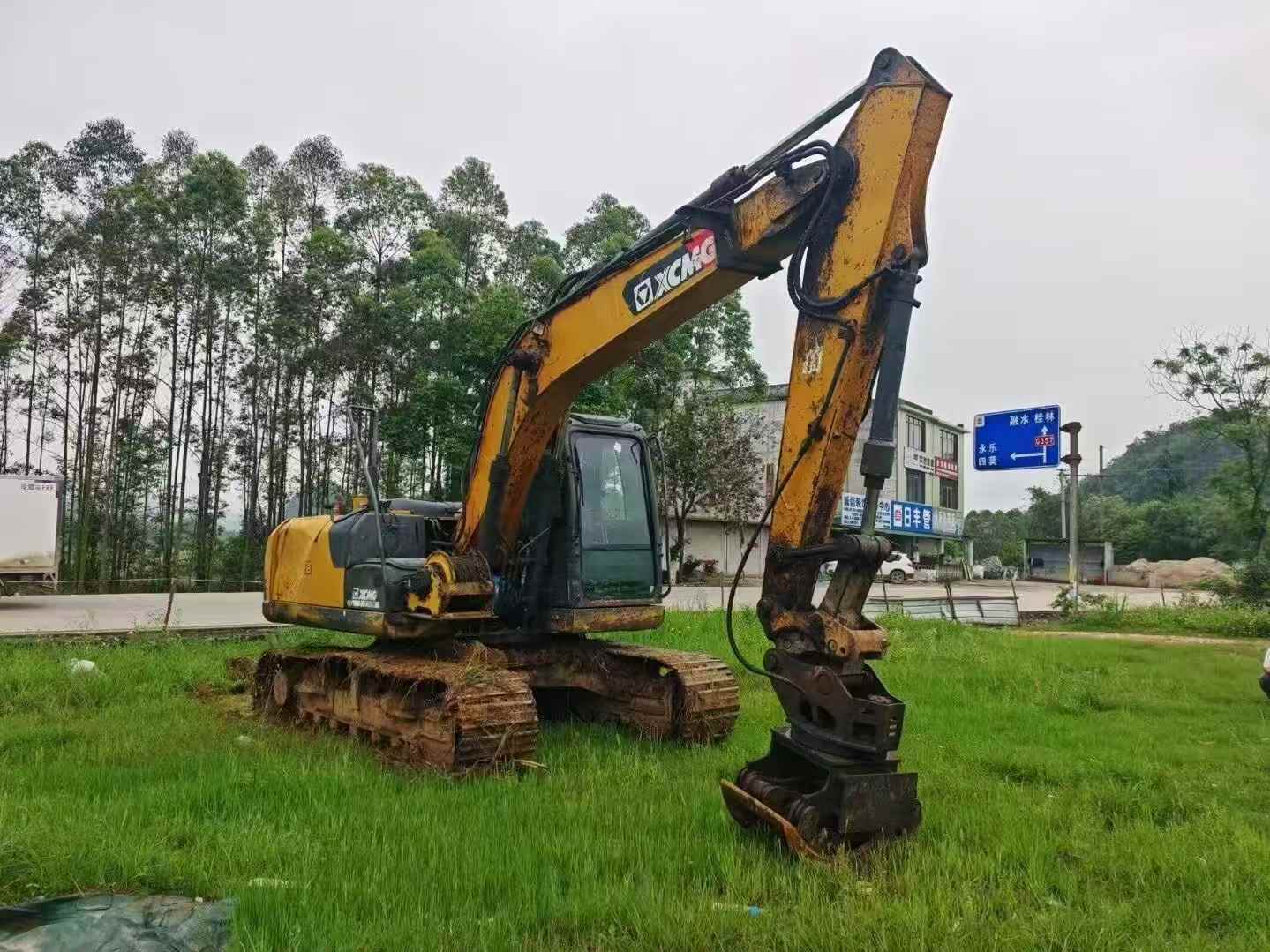

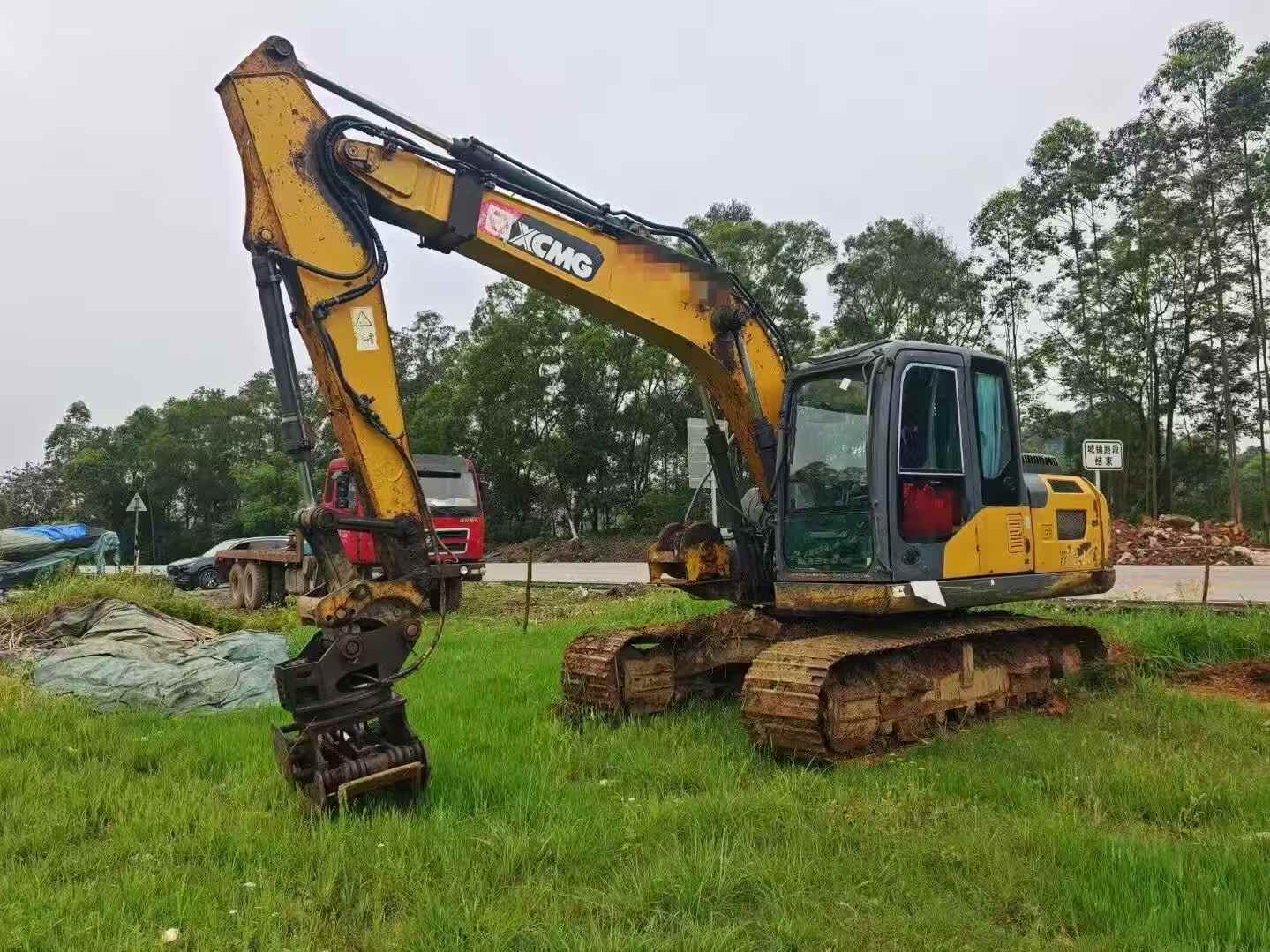

With a working weight of 14,600 kg and a bucket capacity ranging from 0.32 to 0.72 m³, the XCMG XE155DK excavator, located in Guizhou, China, offers robust performance and reliability. Powered by a QSF3.8 engine with 93 kW at 2200 rpm, this 2020 model ensures efficient operation and high productivity.
- Enhanced operator comfort and visibility from the spacious cabin, providing clear sightlines for precise control.
- Stable and smooth operation, thanks to a well-balanced design and a ground pressure of 37 Kpa, ensuring stability on various terrains.
- Equipped with a 4-stroke, turbocharged, water-cooled engine, delivering maximum torque of 500 N.m at 1300 rpm for powerful digging and lifting.
- Travel speed of 5.3 km/h (high) and 3.2 km/h (low), enabling quick repositioning and maneuverability on site.
- Maximum digging force of 106.9 kN and rod digging force of 73.4 kN, making it suitable for tough excavation tasks.
| Specifications | Value |
|---|---|
| No. | 1057635 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.72 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

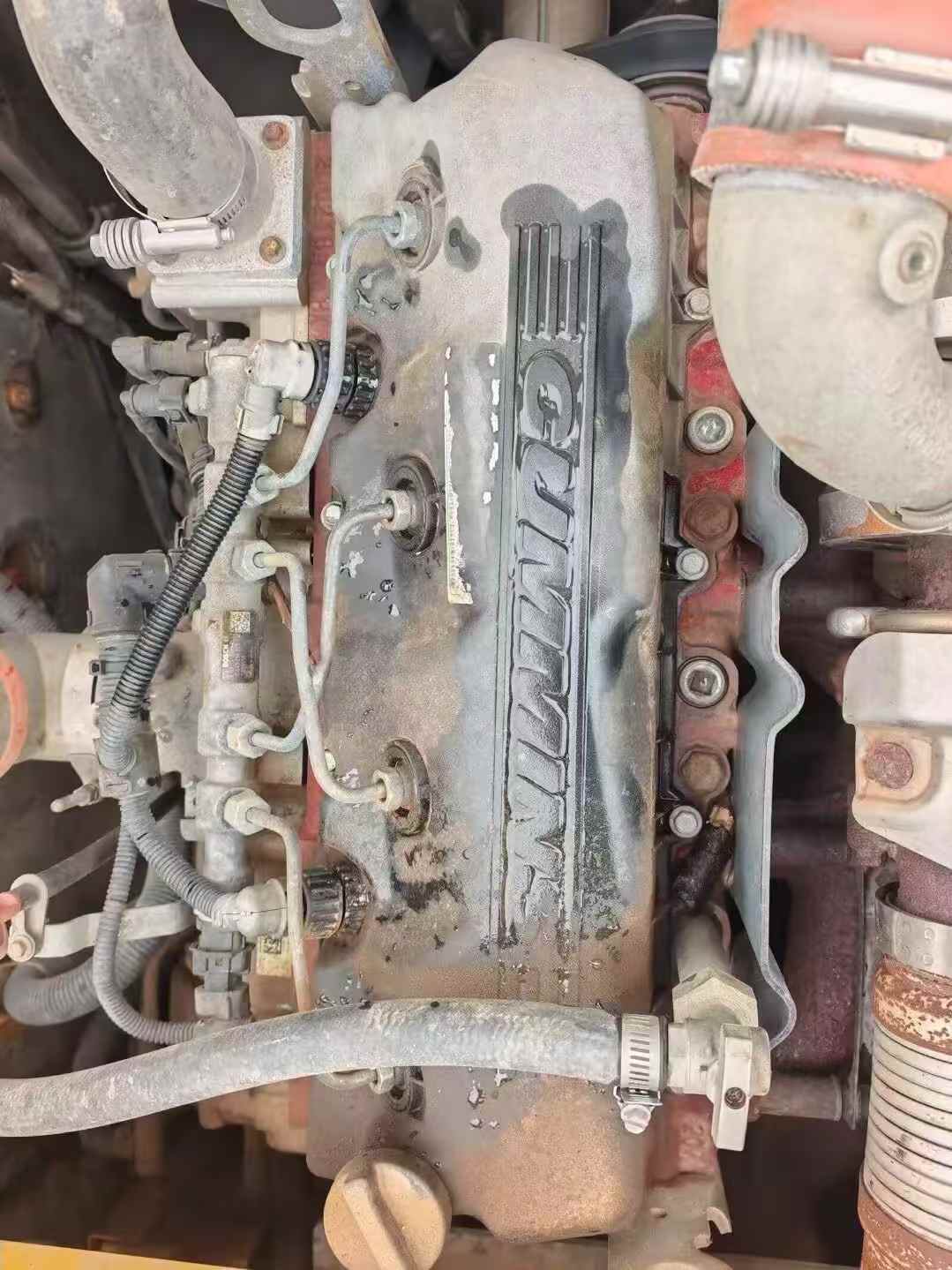

| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 123.5*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 34.3/37 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2672 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
| Maximum effective digging depth (mm) | 5324 |
