2021 XCMG XE155DK

1/8

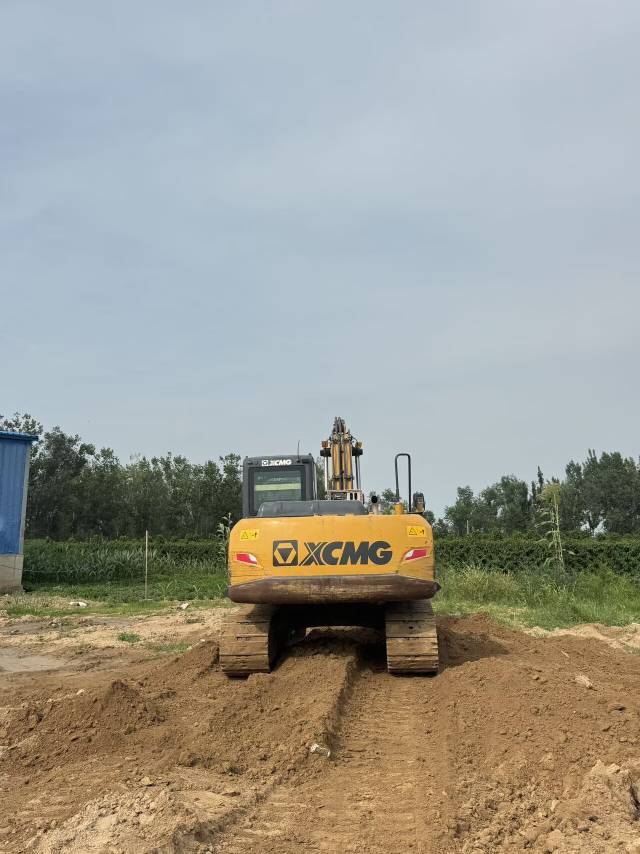

Buy XCMG XE155DK Used Excavator / 1
Buy XCMG XE155DK Used Excavator / 2

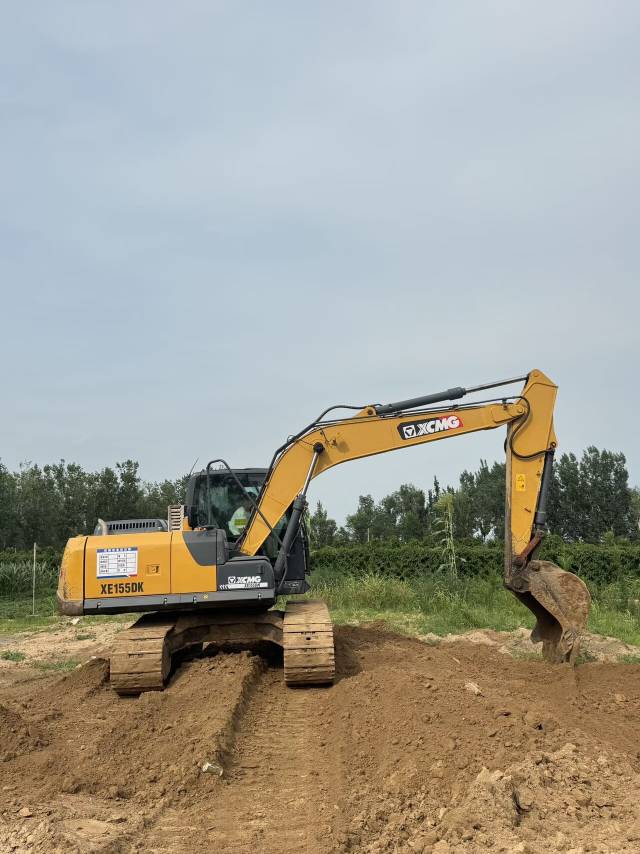

Buy XCMG XE155DK Used Excavator / 3

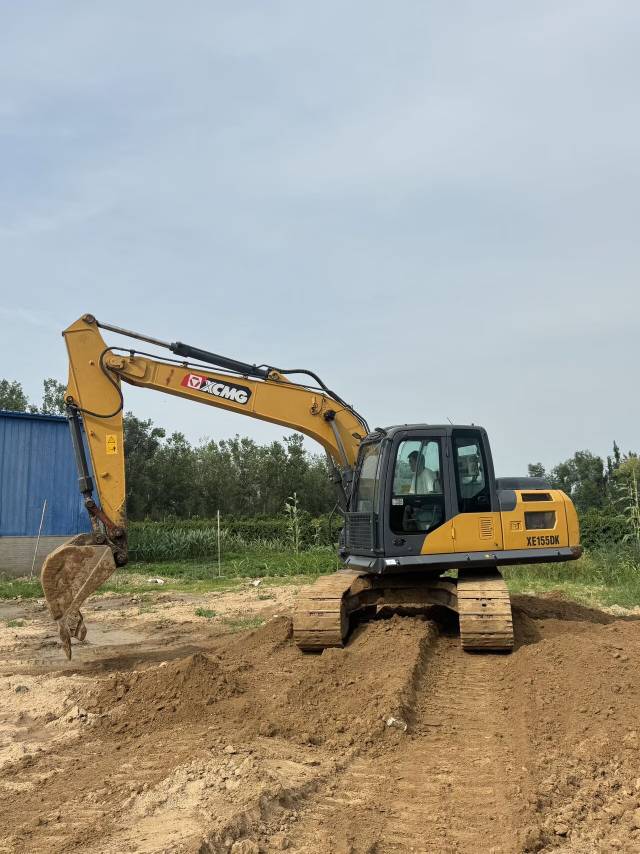

Buy XCMG XE155DK Used Excavator / 4

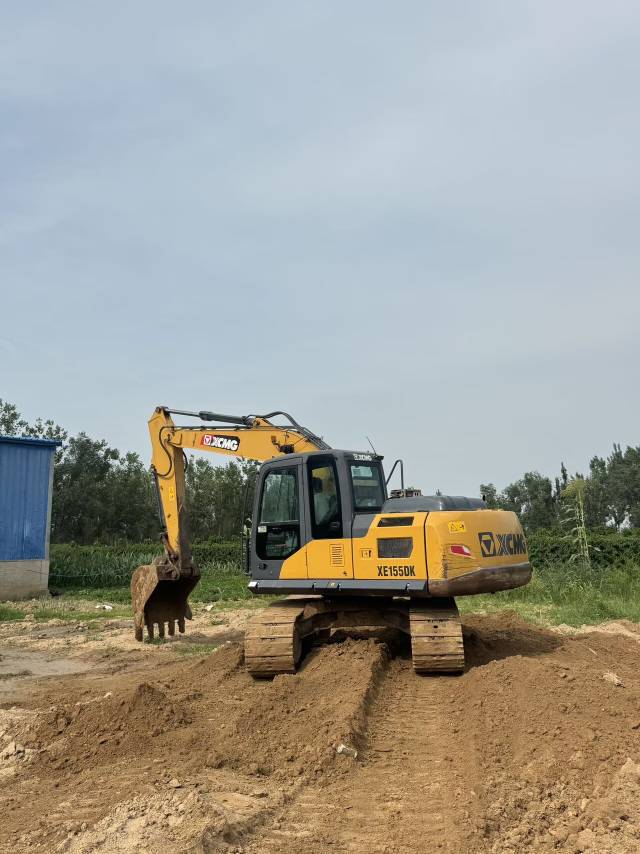

Buy XCMG XE155DK Used Excavator / 5

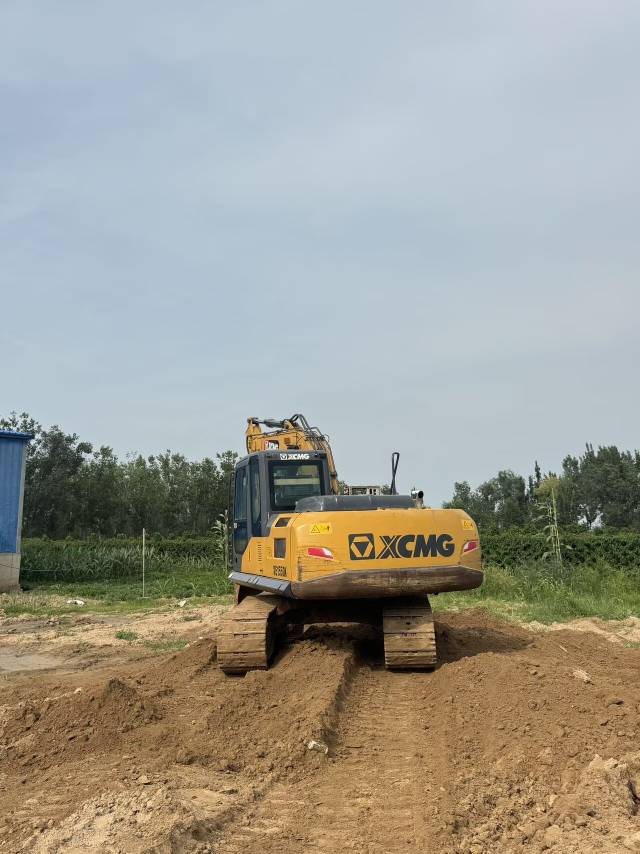

Buy XCMG XE155DK Used Excavator / 6

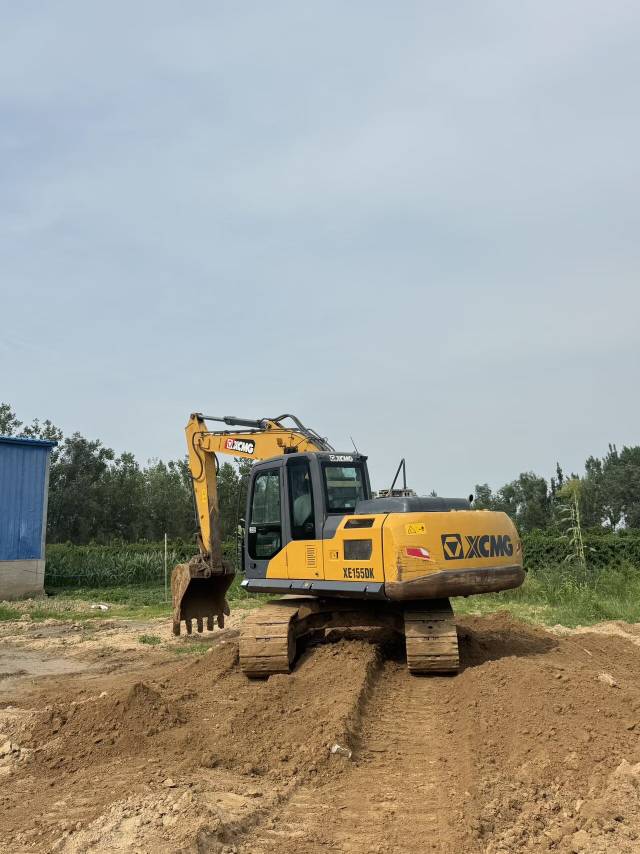

Buy XCMG XE155DK Used Excavator / 7

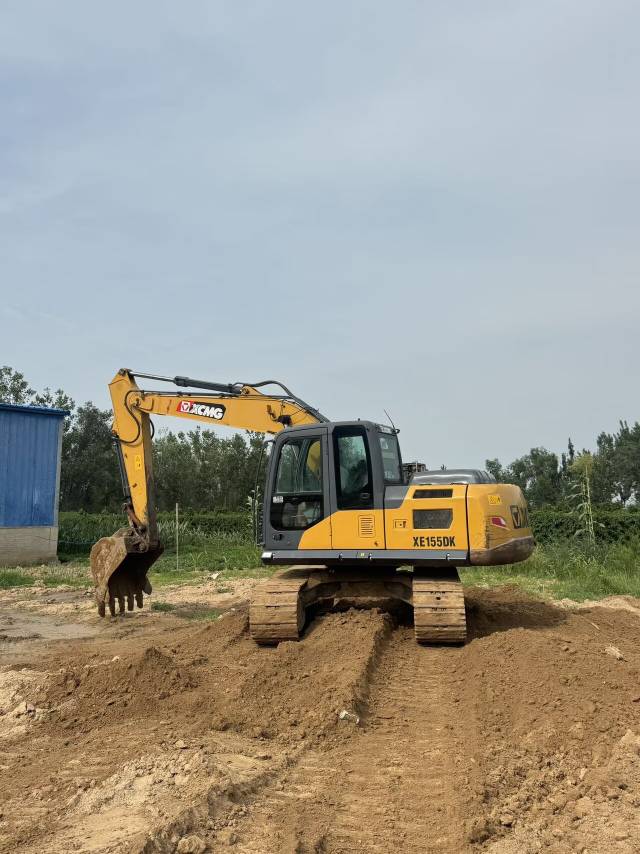

Buy XCMG XE155DK Used Excavator / 8

Product Description

This 2021 XCMG XE155DK excavator is available for sale from Hebei, China. The machine features original factory engine, hydraulic pump, and valve components, ensuring reliable performance for demanding excavation work. With strong power output and smooth operational characteristics, this mid-size excavator is well-suited for construction, earthmoving, and site development applications.

The unit shows normal wear consistent with its age and operational history. Complete documentation is available for verification. Interested buyers are welcome to arrange on-site inspection and test operation in Hebei to assess machine condition firsthand.

  • Year: 2021
  • Model: XCMG XE155DK
  • Location: Hebei, China
  • Engine, pump, and valve: Original equipment
  • Condition: Normal operational wear
  • Documentation: Complete paperwork available
SpecificationsValue
No.1101204
Tonnage (tons)15
Working weight (kg)14600
Bucket capacity (m³)0.32-0.72
Boom length (mm)4600
Rod length (mm)2520
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSF3.8
Rated power (kw/rpm)93/2200
Cooling modewater-cooling
Maximum torque (N.m)500/1300
Number of cylinders (PCS)4
Displacement (L)3.8
Working formEfi, Direct injection, 4-stroke, turbocharged
Ground specific pressure (Kpa)37
Rotation speed (rpm)11.7
Climbing ability (%)35
Bucket digging force (kN)106.9
Rod digging force (kN)73.4
Maximum tractive force (kN)134
Travel speed (km/h)5.3/3.2
Maximum flow of main pump (l/min)123.5*2
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)25
Working Hydraulic Circuit (Mpa)34.3/37
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)260
Hydraulic Tank (L)105
Engine Oil changes (L)11
Total transport length (mm)7795
Total transport width (mm)2672
Total transport height (mm)2900
Counterweight ground clearance (mm)948
Minimum ground clearance (mm)477
Minimum turning radius of front working device (mm)2445
Back end turning radius (mm)2325
Total track length (mm)3658
Track gauge (mm)1990
Total track width (mm)600
Maximum digging radius (mm)8304
Maximum digging depth (mm)5535
Maximum excavation height (mm)8649
Maximum unloading height (mm)6185
Maximum vertical digging depth (mm)4697
Maximum effective digging depth (mm)5324
see more

Overview

No.1101204

Brand Name:

XCMG

Model Number:

XE155DK

Year:

2021

Location:

Hebei China
