Product Description

This 2022 XCMG XE155DK hydraulic excavator is available in Tianjin, China. The machine features original factory paint and delivers reliable performance for mid-sized earthmoving applications. Key components are well-maintained, with coordinated hydraulic response across all systems.

  • Year: 2022
  • Model: XCMG XE155DK
  • Condition: Used, original paint retained
  • Location: Tianjin, China
  • Hydraulic system: Coordinated and responsive
  • Major components: Dry and well-preserved

The XE155DK is a versatile 15-ton class excavator suitable for construction, demolition, and material handling. Inspection and test operation are welcome. Contact for scheduling: 13001050168.

SpecificationsValue
No.1104931
Tonnage (tons)15
Working weight (kg)14600
Bucket capacity (m³)0.32-0.72
Boom length (mm)4600
Rod length (mm)2520
powerTraditional power
manufacturerMade in China
bucketbackhoe

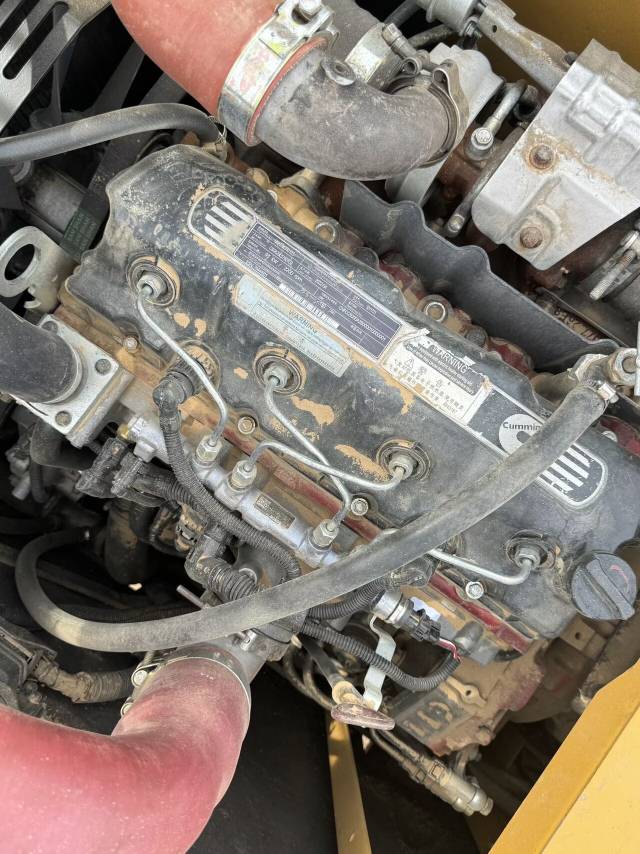

Engine typeQSF3.8
Rated power (kw/rpm)93/2200
Cooling modewater-cooling
Maximum torque (N.m)500/1300
Number of cylinders (PCS)4
Displacement (L)3.8
Working formEfi, Direct injection, 4-stroke, turbocharged
Ground specific pressure (Kpa)37
Rotation speed (rpm)11.7
Climbing ability (%)35
Bucket digging force (kN)106.9
Rod digging force (kN)73.4
Maximum tractive force (kN)134
Travel speed (km/h)5.3/3.2
Maximum flow of main pump (l/min)123.5*2
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)25
Working Hydraulic Circuit (Mpa)34.3/37
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)260
Hydraulic Tank (L)105
Engine Oil changes (L)11
Total transport length (mm)7795
Total transport width (mm)2672
Total transport height (mm)2900
Counterweight ground clearance (mm)948
Minimum ground clearance (mm)477
Minimum turning radius of front working device (mm)2445
Back end turning radius (mm)2325
Total track length (mm)3658
Track gauge (mm)1990
Total track width (mm)600
Maximum digging radius (mm)8304
Maximum digging depth (mm)5535
Maximum excavation height (mm)8649
Maximum unloading height (mm)6185
Maximum vertical digging depth (mm)4697
Maximum effective digging depth (mm)5324
see more

Overview

No.1104931

Brand Name:

XCMG

Model Number:

XE155DK

Year:

2022

Hour:

4000h

Location:

Tianjin China

Pub Date
