Product Description

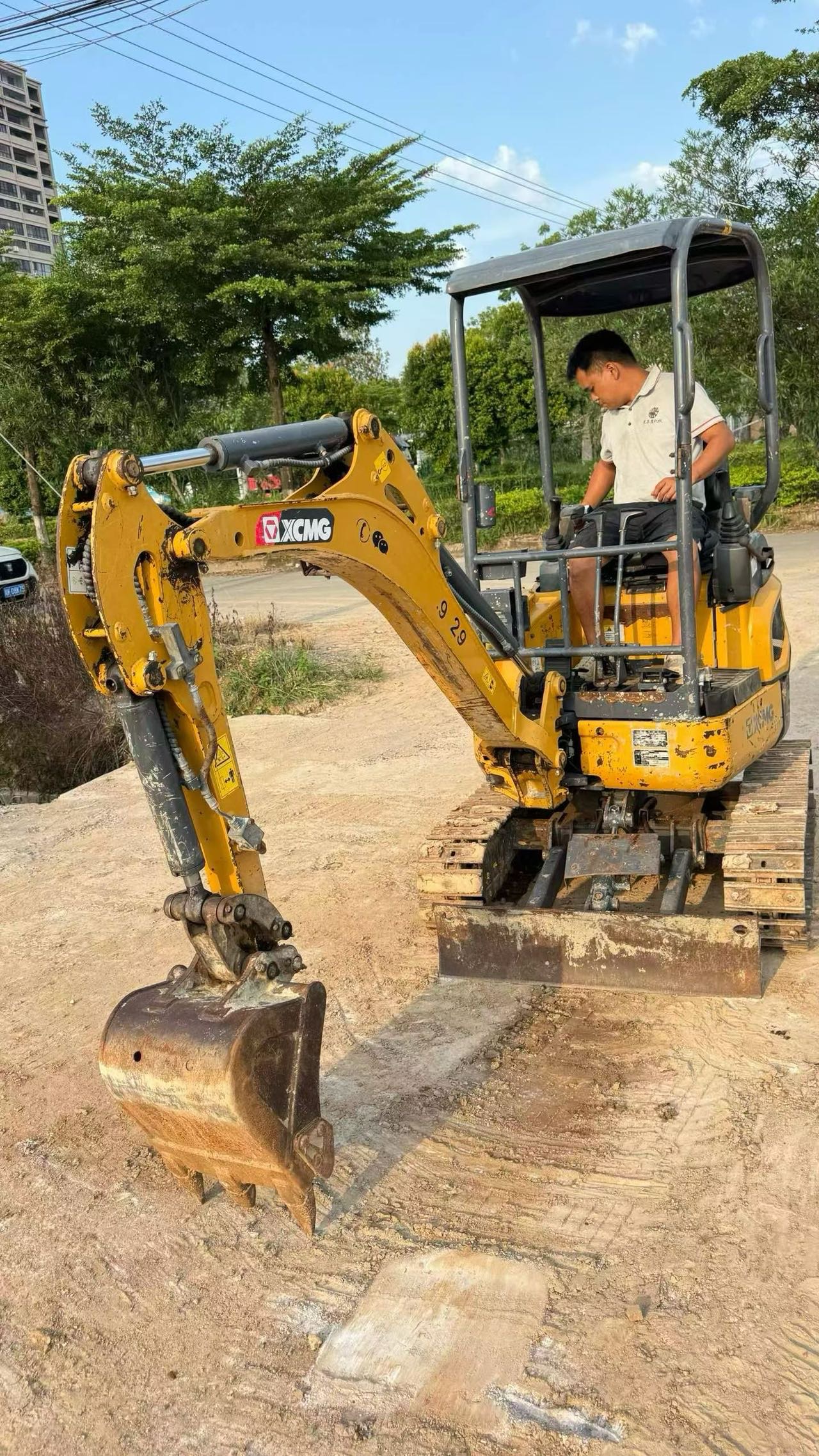

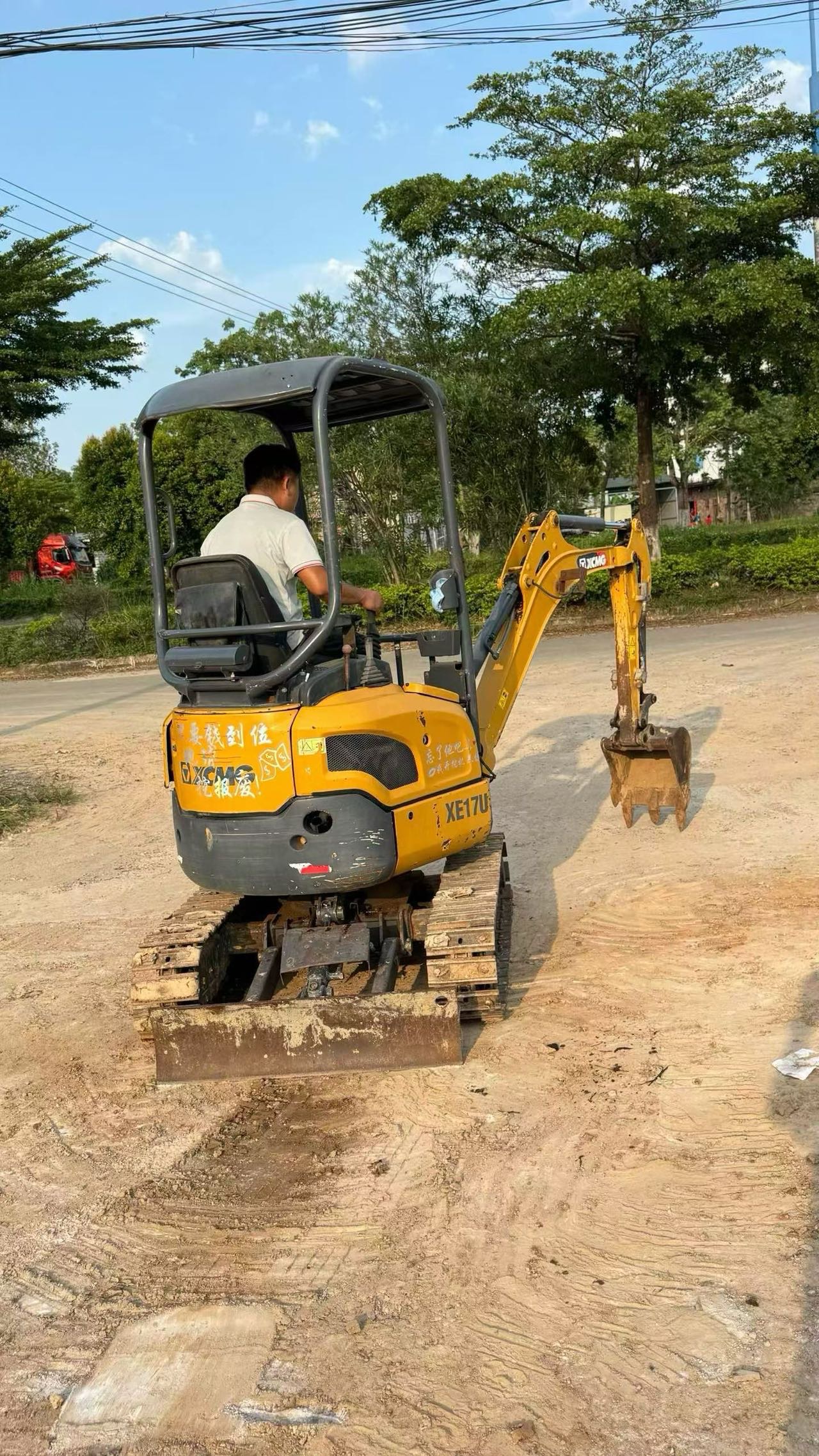

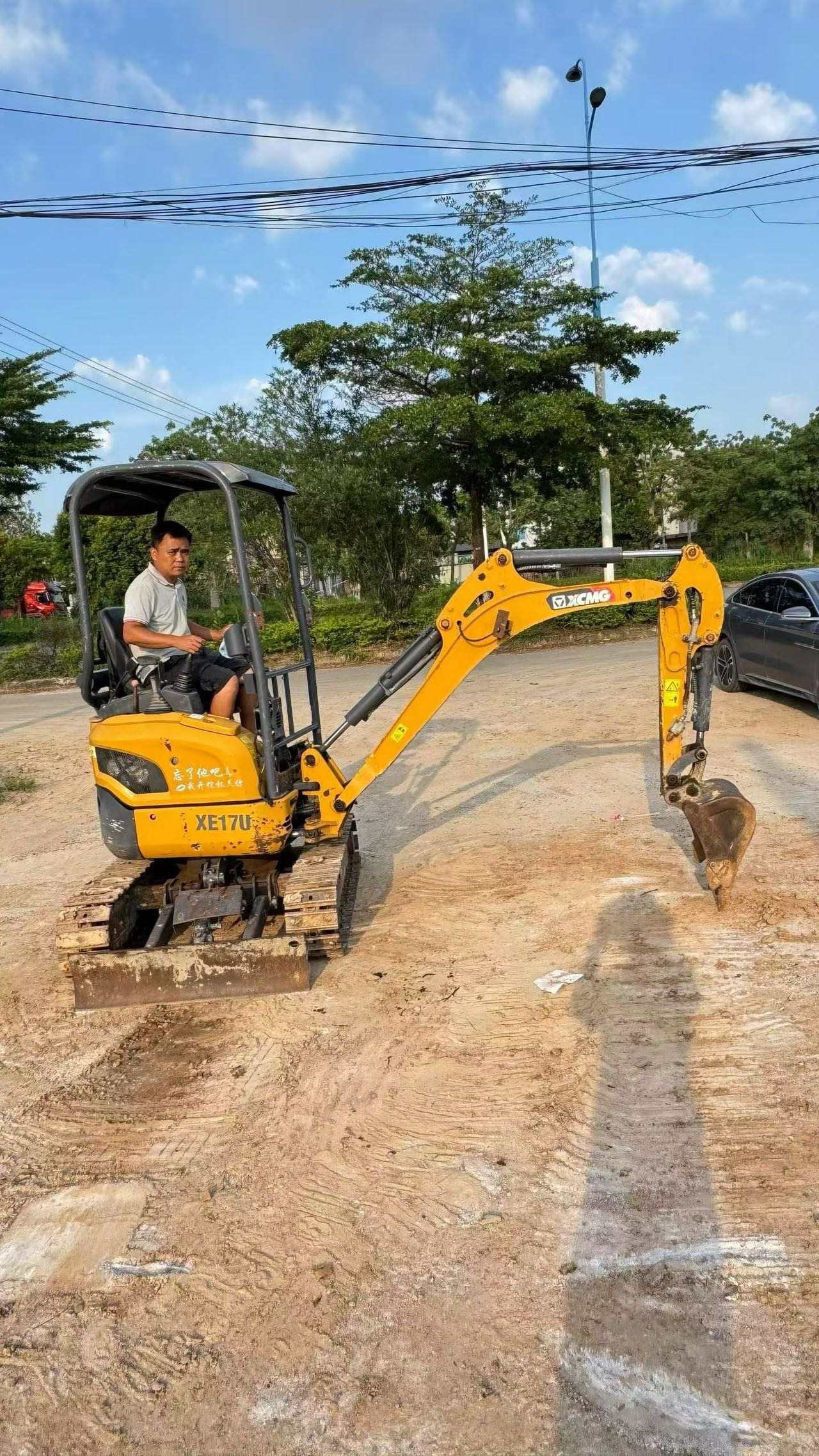

This 2021 XCMG XE15U mini excavator represents an excellent opportunity for contractors seeking reliable compact earthmoving equipment. Manufactured by XCMG, one of China's leading construction machinery producers, this unit offers proven performance in a lightweight package ideal for urban construction, landscaping, and utility work.

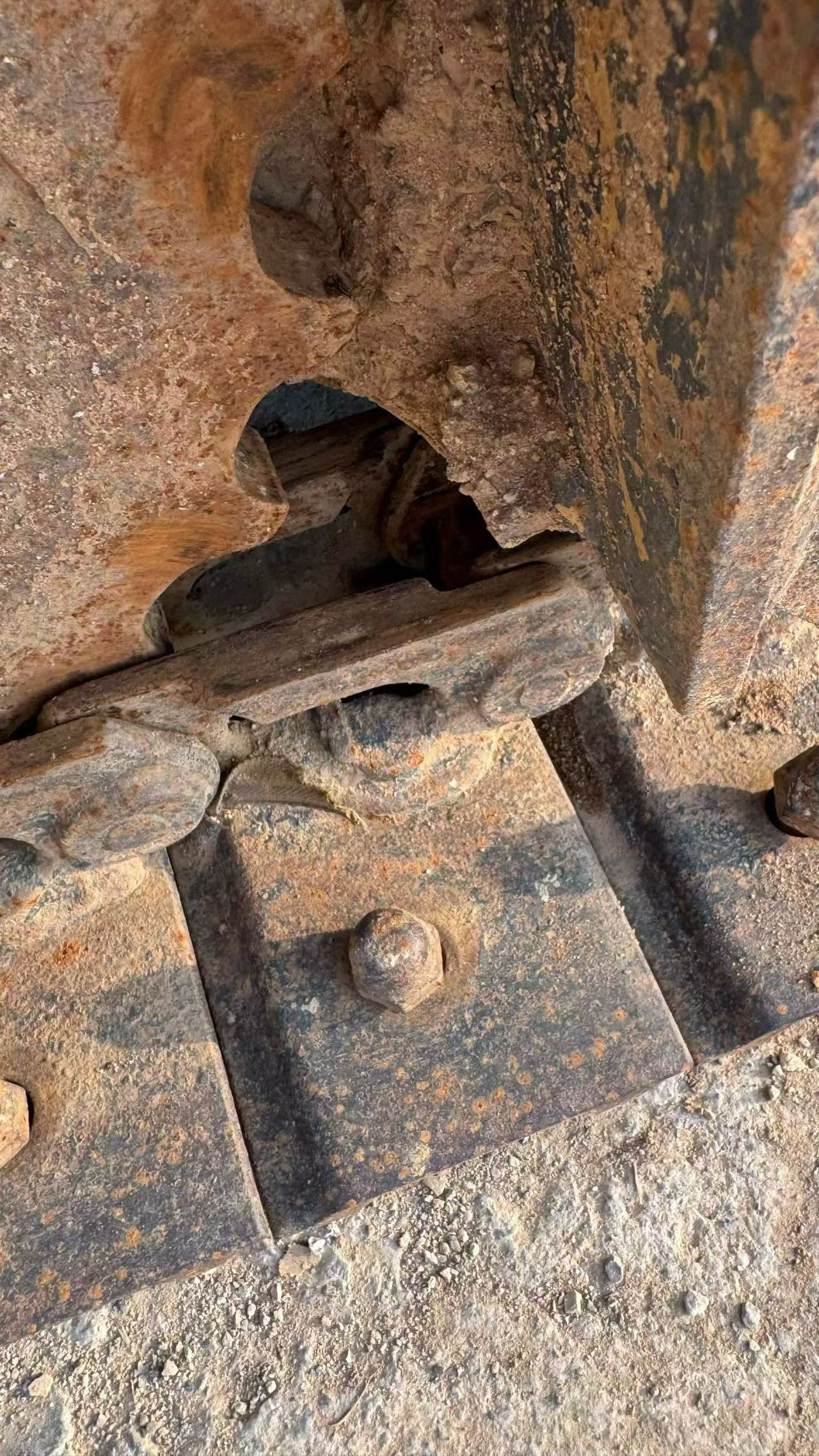

Currently located in Guangxi, China, this machine comes with comprehensive documentation including detailed photographs and operational videos, allowing potential buyers to thoroughly assess its condition remotely. The XE15U is known for its maneuverability in confined spaces while maintaining the durability expected from XCMG's engineering standards.
Key features of the XE15U series include:
- Compact design for restricted job sites
- Efficient hydraulic system
- Low operational costs
- Suitable for trenching, grading, and light demolition
This unit is priced competitively at USD 46,000 and available for immediate inspection and purchase.
| Specifications | Value |
|---|---|
| No. | 1138253 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1795 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1828 |
| Rod length (mm) | 950 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

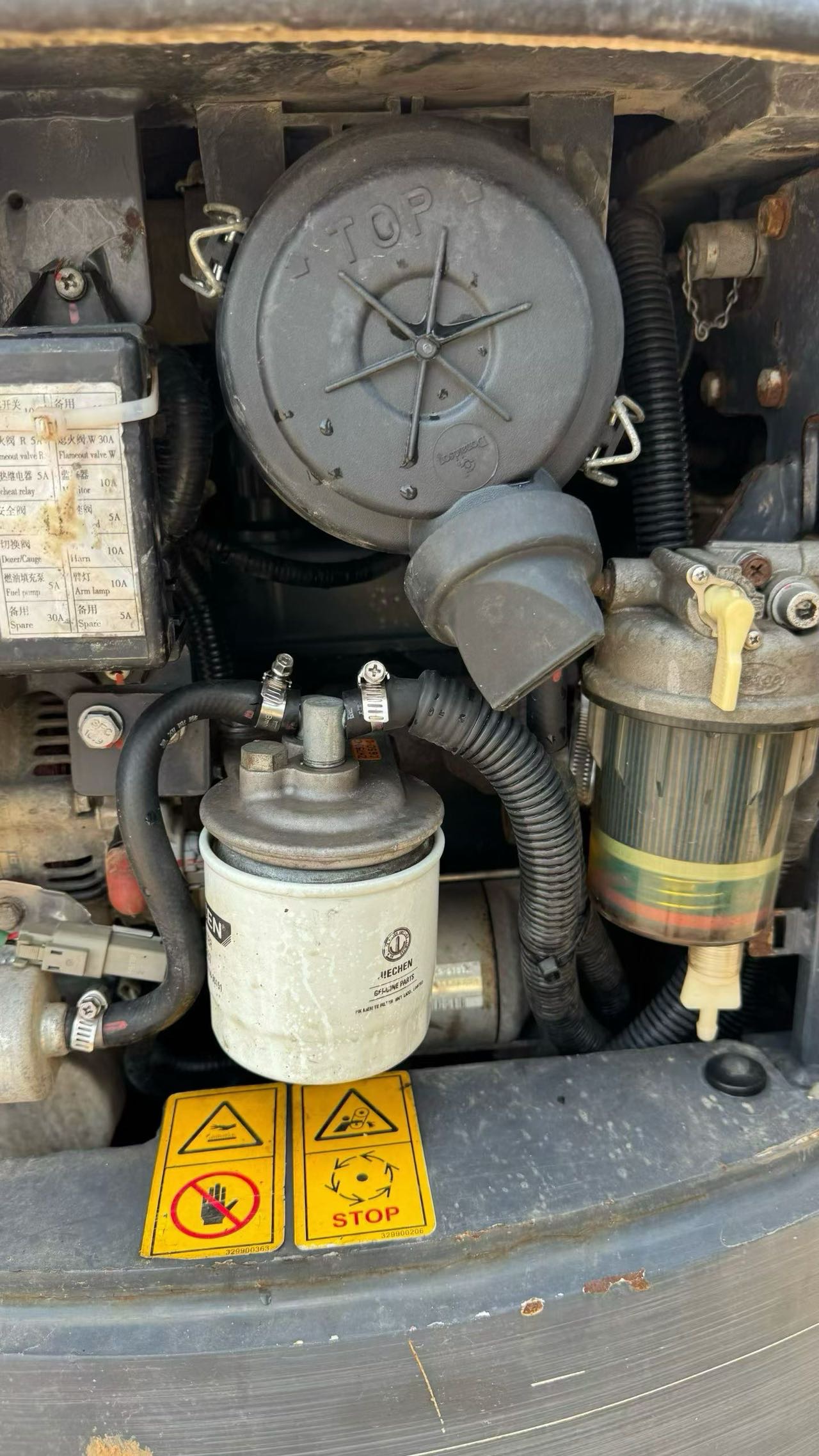

| Engine type | D782-E3B-CBH-1 |
| Rated power (kw/rpm) | 9.8/2300 |
| Maximum torque (N.m) | 44.5/1800 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.778 |
| Ground specific pressure (Kpa) | 28.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 10 |
| Maximum tractive force (kN) | 15.6 |
| Travel speed (km/h) | 3.9/1.9 |
| Maximum flow of main pump (l/min) | 56.8 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Rotary Hydraulic Circuit (Mpa) | 11 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 17 |
| Hydraulic Tank (L) | 18 |
| Engine Oil changes (L) | 3.8 |
| Total transport length (mm) | 3560 |
| Total transport width (mm) | 990/1240 |
| Total transport height (mm) | 2350 |
| Counterweight ground clearance (mm) | 450 |
| Minimum ground clearance (mm) | 145 |
| Onboard width (mm) | 990 |
| Track gauge (mm) | 760/1010 |
| Track ground length (mm) | 1270 |
| Maximum digging radius (mm) | 3900 |
| Maximum digging depth (mm) | 2290 |
| Maximum excavation height (mm) | 3475 |
| Maximum unloading height (mm) | 2415 |
| Maximum vertical digging depth (mm) | 1750 |
| Bulldozer lift or depth (mm) | 260/180 |
| Dodging plate width × height (mm) | 1240 x 258 |
