Product Description

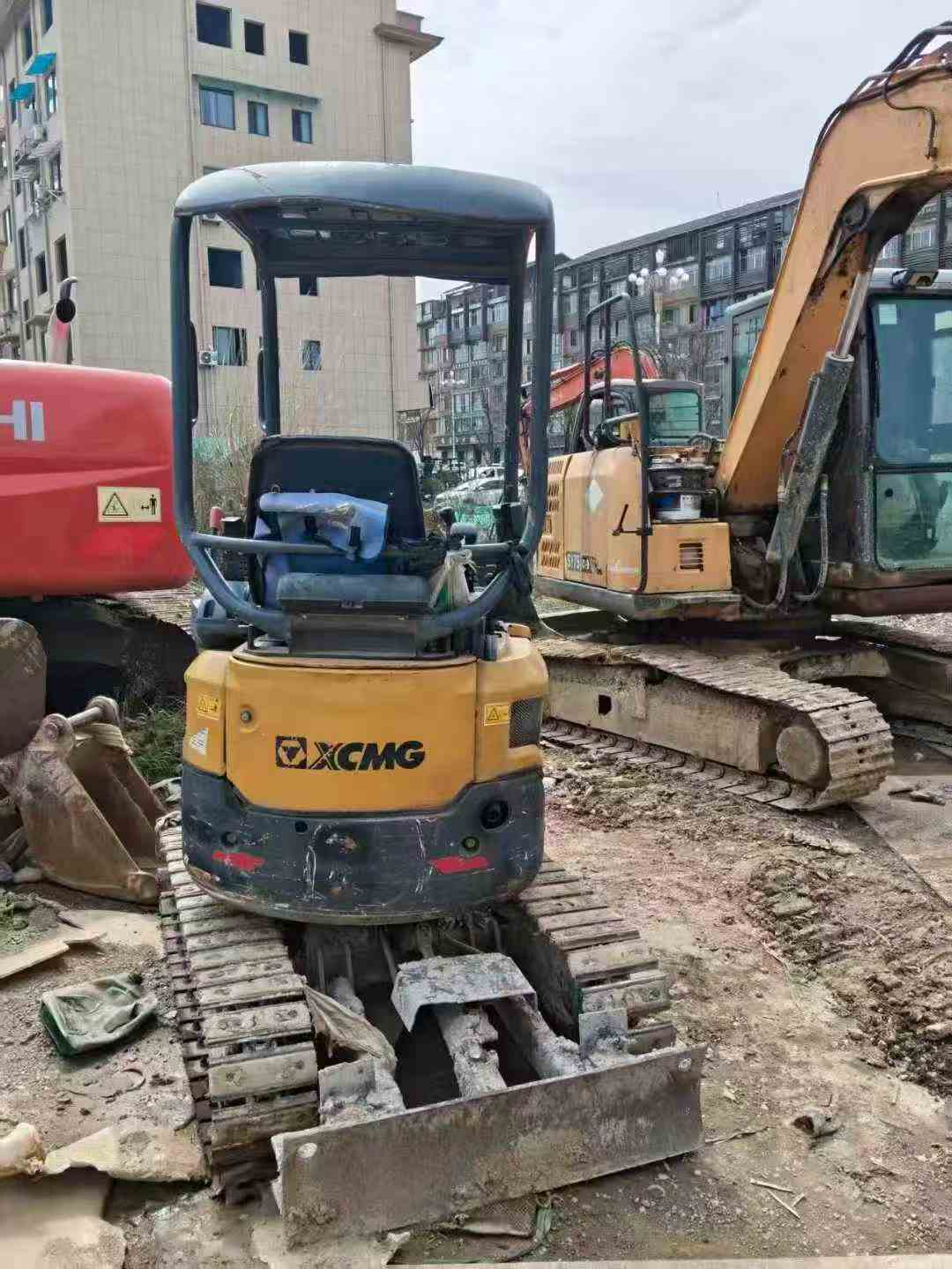

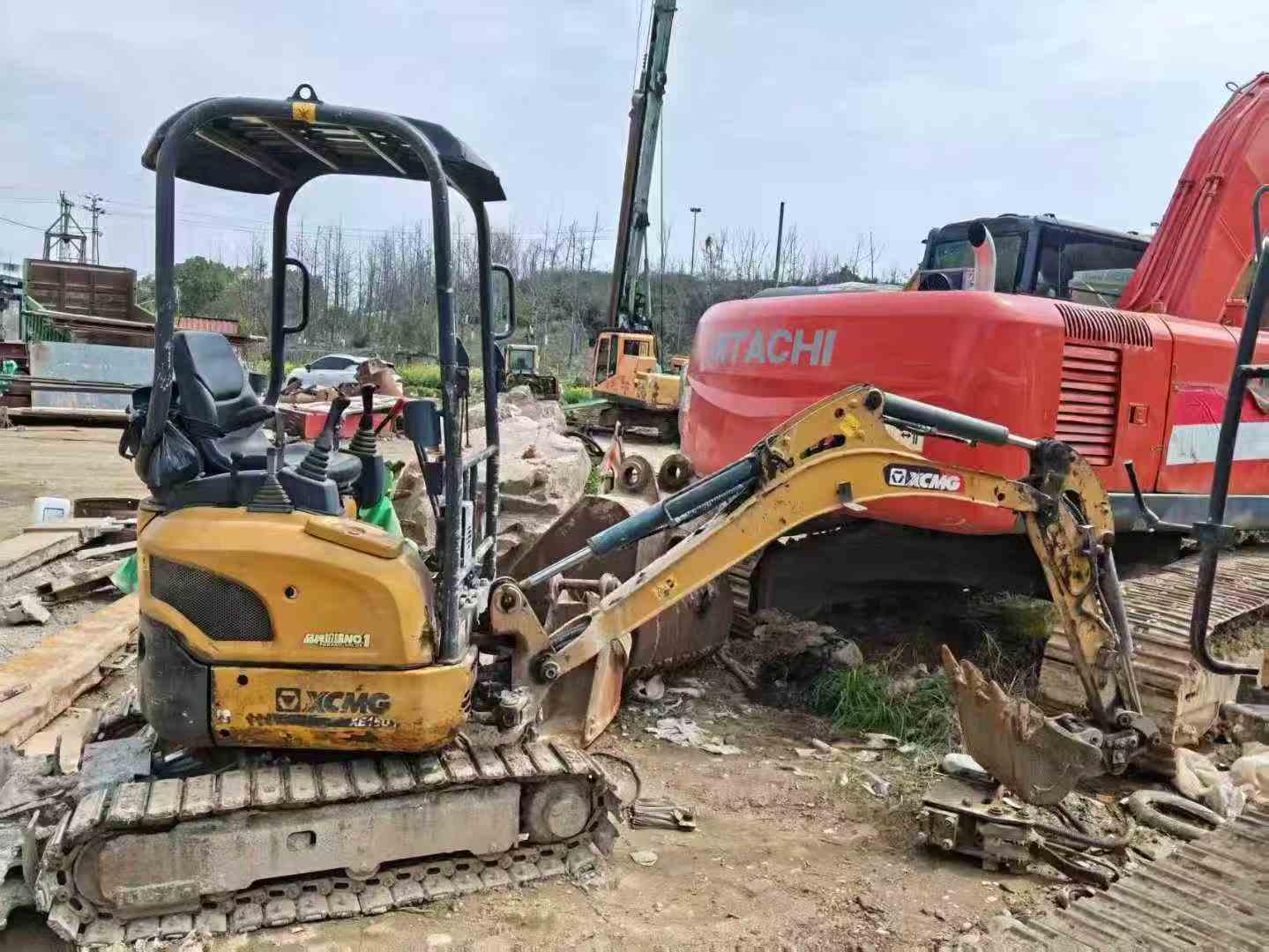

Built in 2022, this XCMG XE15U mini excavator delivers reliable performance in the 1-ton class with proven engineering from one of China's most trusted heavy equipment manufacturers. Powered by a D782-E3B-CBH-1 engine producing 9.8kW at 2300 rpm, this compact machine combines a maximum digging depth of 2,290mm with a digging radius of 3,900mm—ideal for confined jobsites, utility work, and landscaping projects. Operating weight of 1,795kg ensures stability while maintaining excellent transportability at just 3,560mm total length.
XCMG's global dealer network guarantees parts availability and technical support, protecting your investment long-term. With a resale value consistently outperforming competitors in the used market, this model represents smart capital allocation. Currently located in Zhejiang, China, the machine features a 0.044m³ bucket capacity, 16kN bucket digging force, and hydraulic systems engineered for durability in demanding applications.
- Low ground pressure: 28.5 kPa for minimal surface disruption
- Compact dimensions: 990mm width for tight-access applications
- 30% grading ability on challenging terrain
- Proven D782 engine platform with established service intervals
| Specifications | Value |
|---|---|
| No. | 1031431 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1795 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1828 |
| Rod length (mm) | 950 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D782-E3B-CBH-1 |
| Rated power (kw/rpm) | 9.8/2300 |
| Maximum torque (N.m) | 44.5/1800 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.778 |
| Ground specific pressure (Kpa) | 28.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 10 |
| Maximum tractive force (kN) | 15.6 |
| Travel speed (km/h) | 3.9/1.9 |
| Maximum flow of main pump (l/min) | 56.8 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Rotary Hydraulic Circuit (Mpa) | 11 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 17 |
| Hydraulic Tank (L) | 18 |
| Engine Oil changes (L) | 3.8 |
| Total transport length (mm) | 3560 |
| Total transport width (mm) | 990/1240 |
| Total transport height (mm) | 2350 |
| Counterweight ground clearance (mm) | 450 |
| Minimum ground clearance (mm) | 145 |
| Onboard width (mm) | 990 |
| Track gauge (mm) | 760/1010 |
| Track ground length (mm) | 1270 |
| Maximum digging radius (mm) | 3900 |
| Maximum digging depth (mm) | 2290 |
| Maximum excavation height (mm) | 3475 |
| Maximum unloading height (mm) | 2415 |
| Maximum vertical digging depth (mm) | 1750 |
| Bulldozer lift or depth (mm) | 260/180 |
| Dodging plate width × height (mm) | 1240 x 258 |
