Product Description
Available now in Guizhou, this 2016 XCMG XE18 mini excavator delivers immediate deployment without factory wait times. Powered by a reliable Yanmar 3TNV82A engine generating 16.5 kW at 2200 rpm, this compact 1.78-ton machine combines nimble maneuverability with serious digging capability. Its 3915 mm maximum digging radius and 2285 mm maximum digging depth handle confined urban sites, utility work, and landscaping projects with precision.
- Compact Dimensions: 3760 mm transport length, 1300 mm width—fits through standard gates and narrow access points

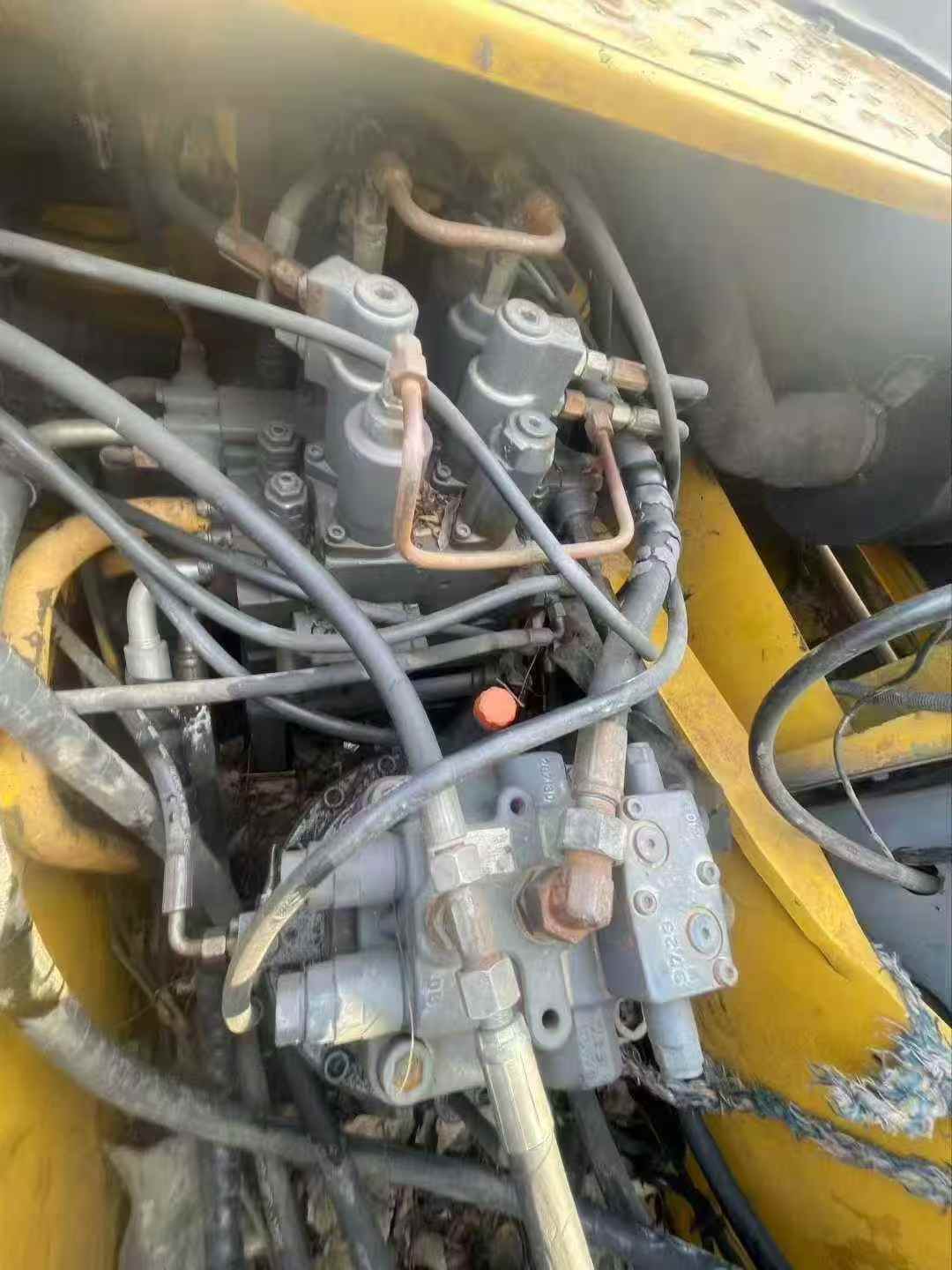

- Hydraulic Performance: Dual variable Nachi pumps + gear pump configuration; 24 MPa main overflow pressure for responsive control
- Climbing Power: 30° grading ability with 13.9 kN bucket digging force tackles challenging terrain
- Fast Deployment: Skip lead times—inspect and ship directly from Guizhou to your jobsite
- Proven Reliability: Water-cooled 3-cylinder engine, plunger hydraulic motors, standard hydraulic breaker circuit
Secure this ready-to-work XE18 today and keep your project schedules on track.
| Specifications | Value |
|---|---|
| No. | 1011845 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.044 |

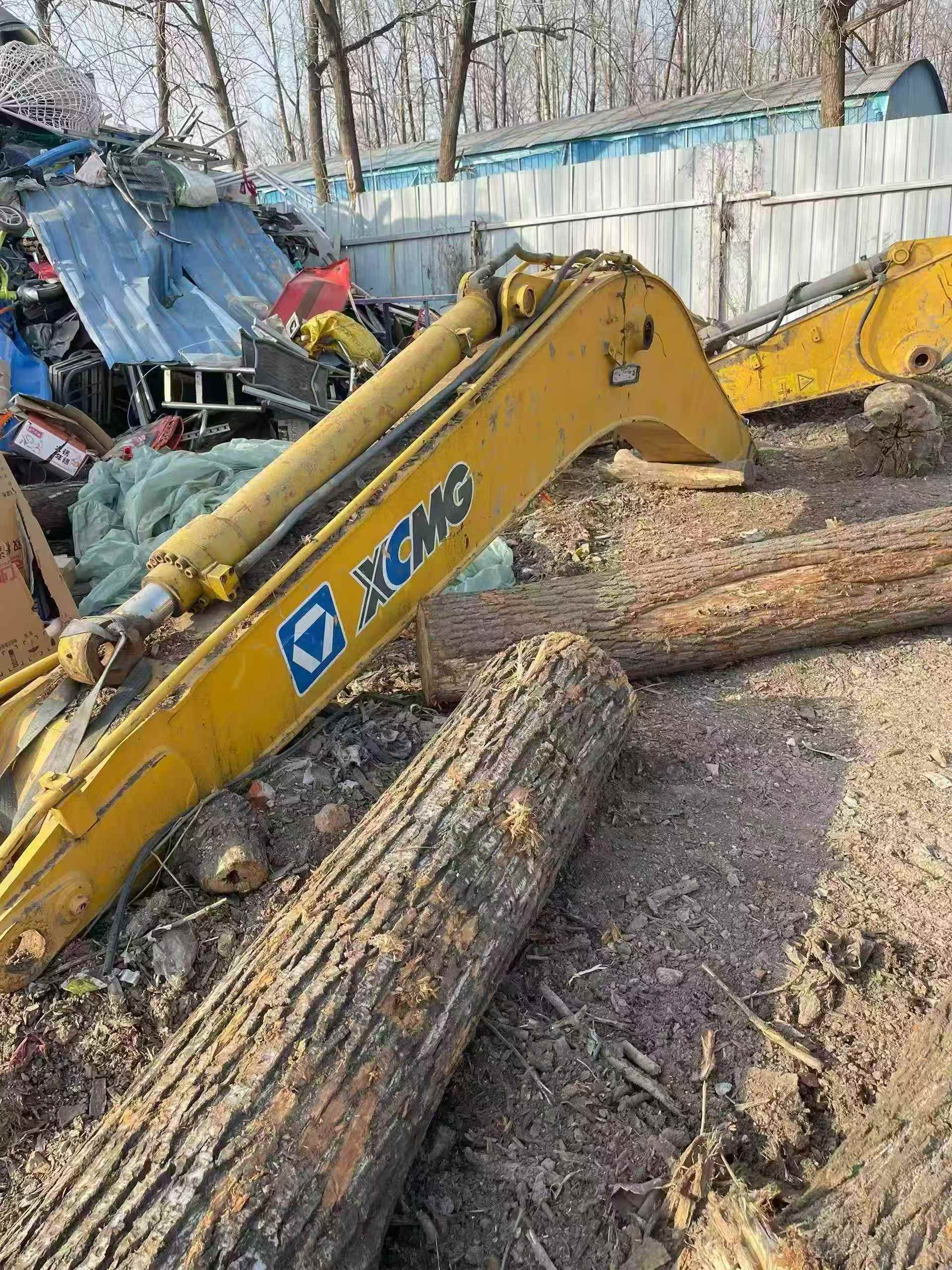

| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 25.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Japan non Fukoshi variable pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1300 |
| Total transport height (mm) | 2405 |
| Counterweight ground clearance (mm) | 509 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 1070 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2285 |
| Maximum excavation height (mm) | 2655 |
| Maximum unloading height (mm) | 2515 |
| Maximum vertical digging depth (mm) | 1485 |
| Dodging plate width × height (mm) | 1300 x 235 |
