Product Description
Built for precision work in tight spaces, this 2018 XCMG XE18 mini excavator delivers 1,780 kg of working weight with a compact 1,300 mm width—perfect for urban construction, landscaping, and utility installations. Powered by a reliable Yanmar 3TNV82A engine producing 16.5 kW, it combines efficient fuel consumption with consistent hydraulic performance across demanding job sites.
Equipped with dual variable pumps and a plunger hydraulic motor system, the machine generates 13.9 kN bucket digging force and reaches a maximum digging depth of 2,285 mm. The 3,915 mm digging radius and 30° climbing ability handle sloped terrain and foundation work with ease. Standard hydraulic crushing pipeline allows quick attachment changes between trenching, grading, and demolition tasks.
Currently located in Huizhou, Guangdong, this unit features:

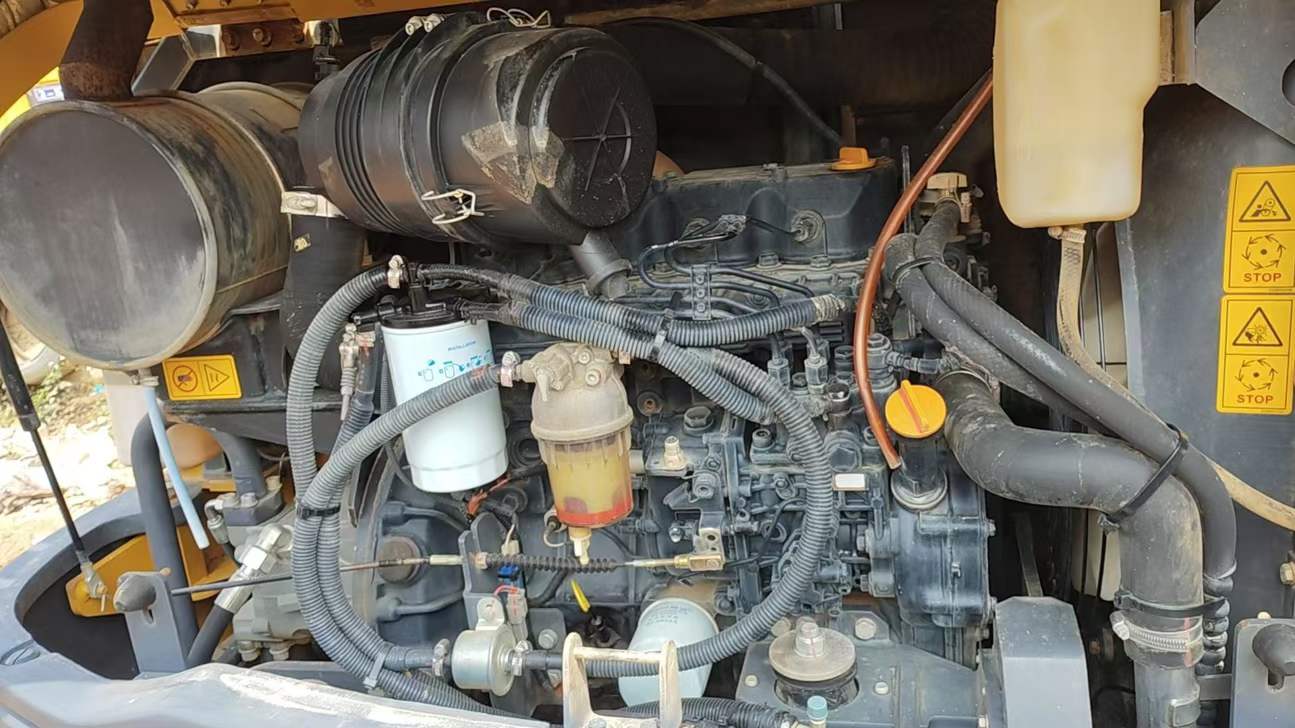

- Water-cooled 3-cylinder engine with 1.33L displacement
- Dual travel speeds (4.4/2.4 km/h) for site maneuverability
- 509 mm counterweight clearance for obstacle navigation
- 20L fuel tank and 29L hydraulic reservoir for extended operation
Ready to deploy on your next project with proven Japanese hydraulic components and Chinese manufacturing r
| Specifications | Value |
|---|---|
| No. | 1029575 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 25.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Japan non Fukoshi variable pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1300 |
| Total transport height (mm) | 2405 |
| Counterweight ground clearance (mm) | 509 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 1070 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2285 |
| Maximum excavation height (mm) | 2655 |
| Maximum unloading height (mm) | 2515 |
| Maximum vertical digging depth (mm) | 1485 |
| Dodging plate width × height (mm) | 1300 x 235 |
