Product Description

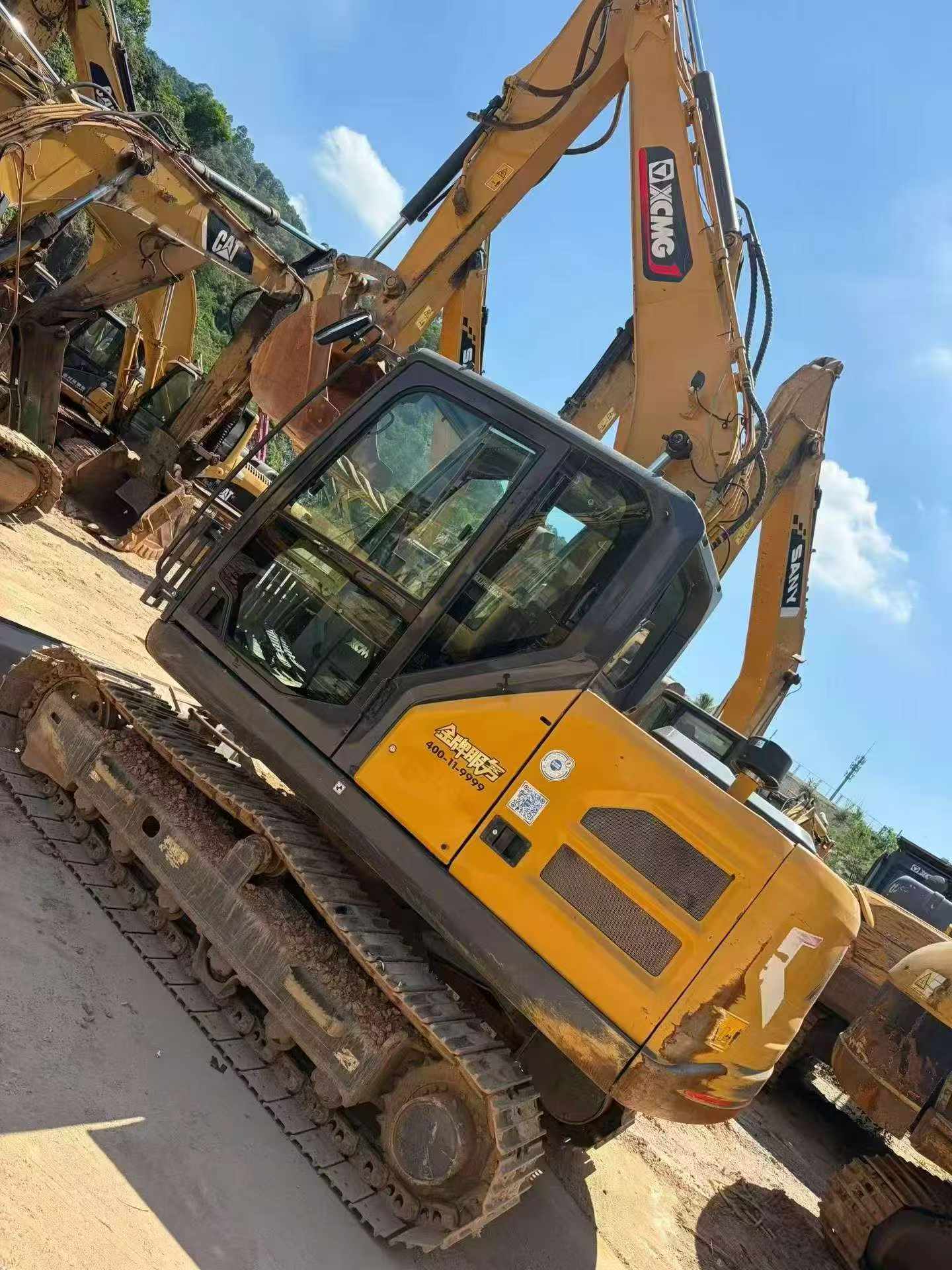

This 2024 XCMG XE18 mini excavator, currently located in Guangxi, China, offers reliable performance with 2,800 operational hours. As a recent model from one of China's leading construction equipment manufacturers, this compact excavator combines modern engineering with proven durability for various jobsite applications.
The machine comes with complete documentation, ensuring smooth ownership transfer and regulatory compliance. Its low hour count for a 2024 unit indicates moderate use with substantial service life remaining. The XCMG XE18 is designed for confined spaces and light to medium-duty excavation tasks, making it suitable for urban construction, landscaping, and utility work.
- Year of Manufacture: 2024
- Operating Hours: 2,800
- Complete documentation included
- Current Location: Guangxi, China
- Asking Price: 180,000 RMB
Ideal for contractors seeking dependable compact excavation equipment with comprehensive paperwork for international export or domestic use.
| Specifications | Value |
|---|---|
| No. | 1078570 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

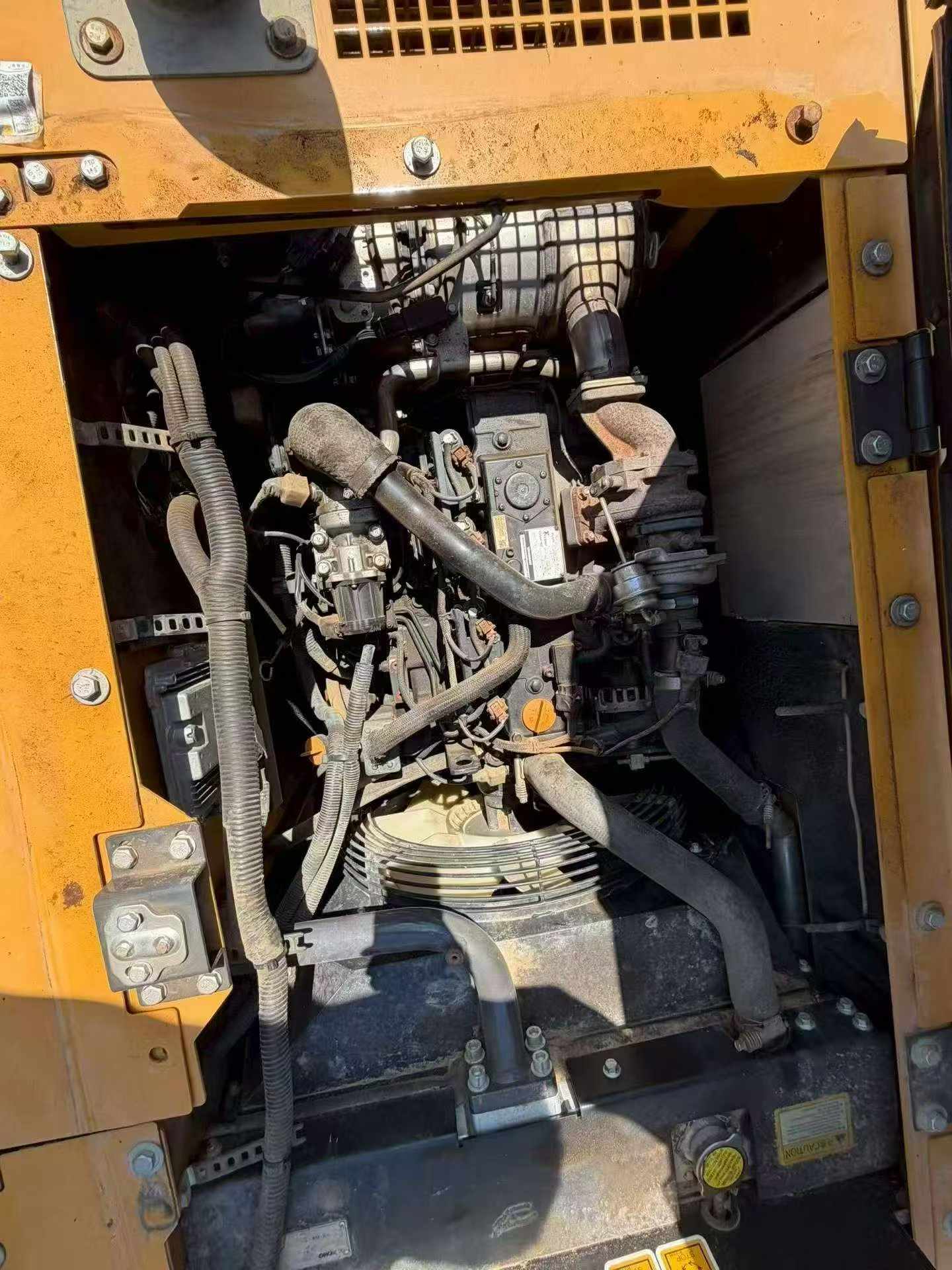

| Engine type | Yanmar Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 25.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Japan non Fukoshi variable pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1300 |
| Total transport height (mm) | 2405 |
| Counterweight ground clearance (mm) | 509 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 1070 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2285 |
| Maximum excavation height (mm) | 2655 |
| Maximum unloading height (mm) | 2515 |
| Maximum vertical digging depth (mm) | 1485 |
| Dodging plate width × height (mm) | 1300 x 235 |
