Product Description

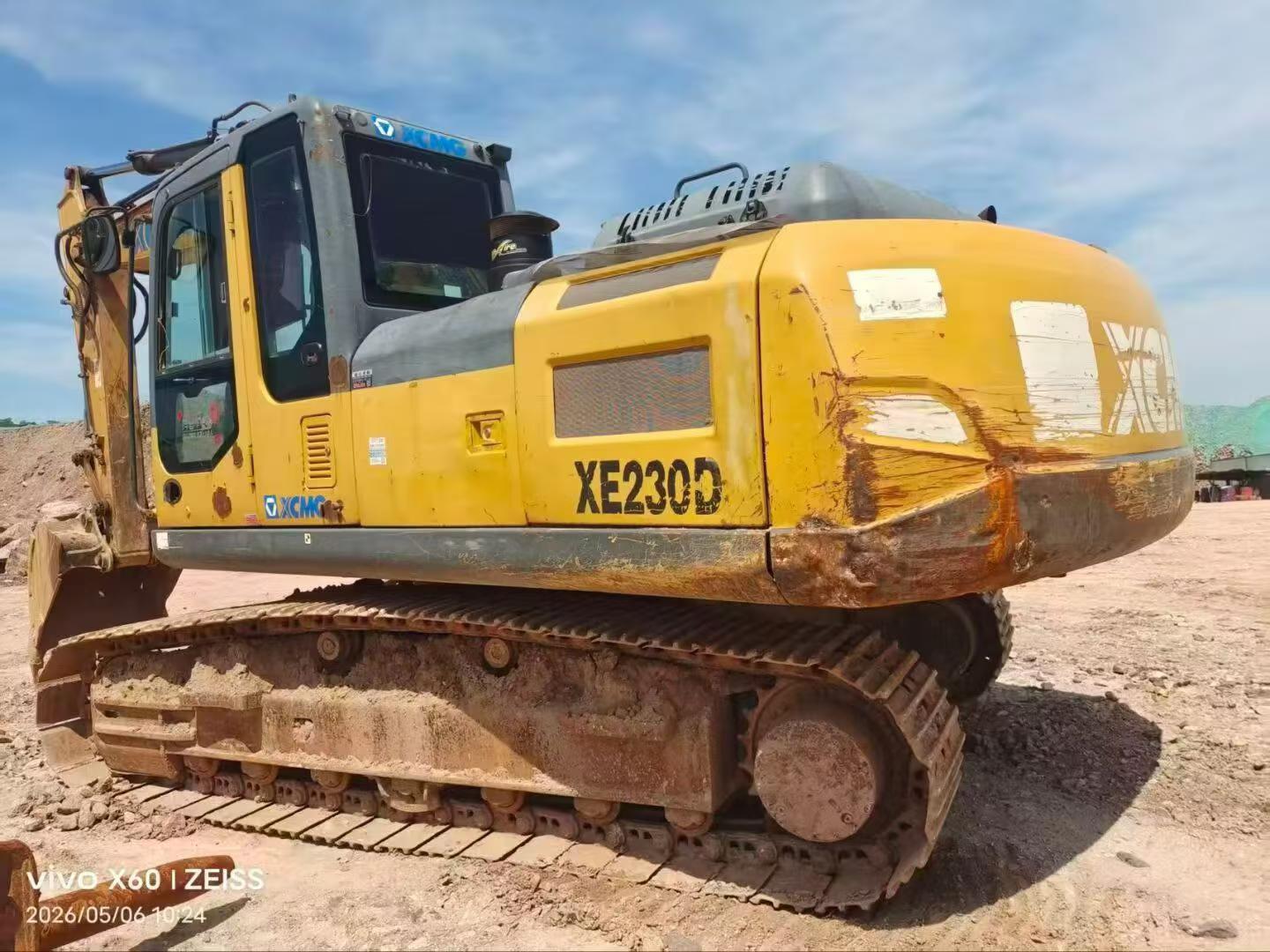

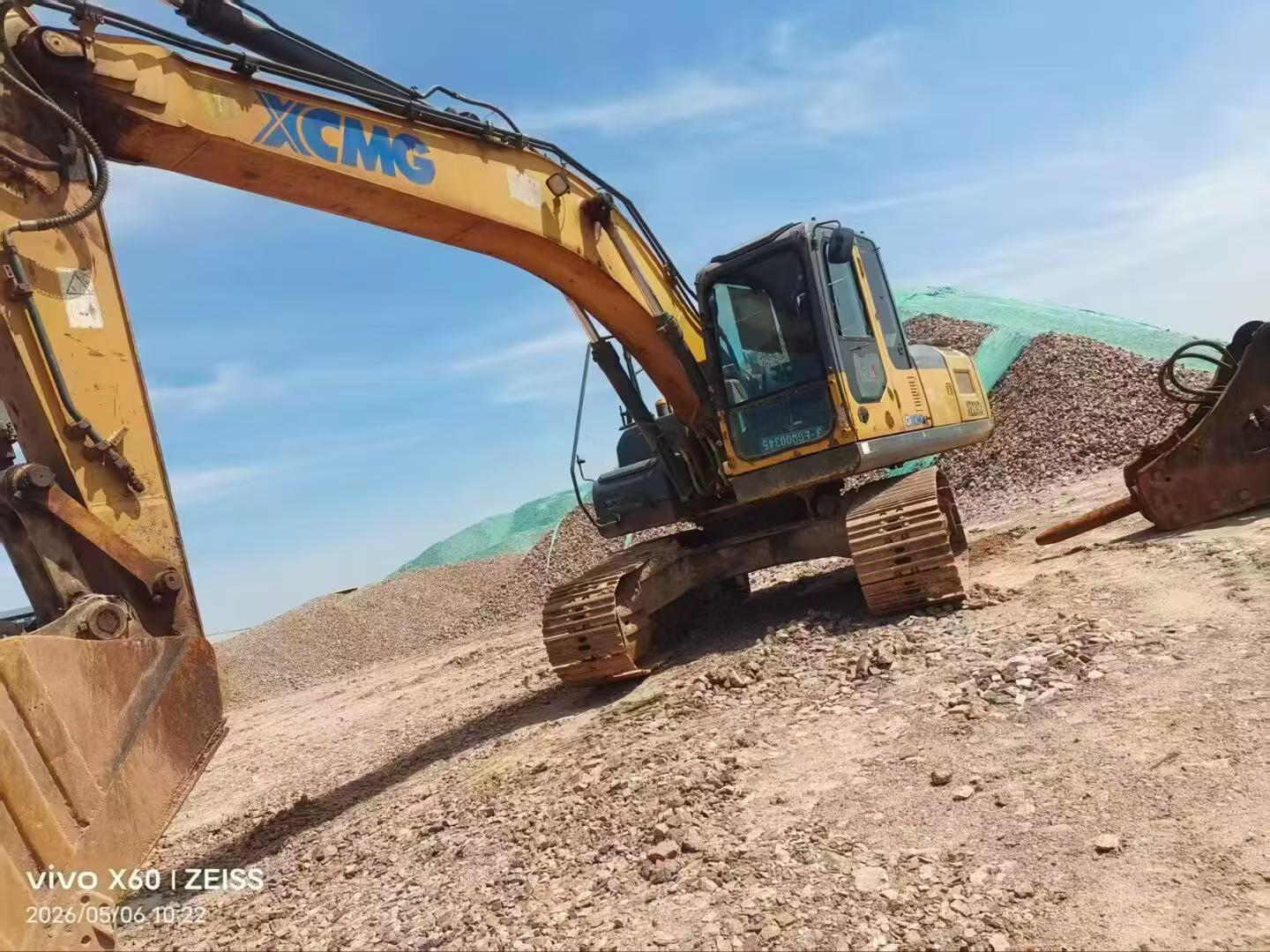

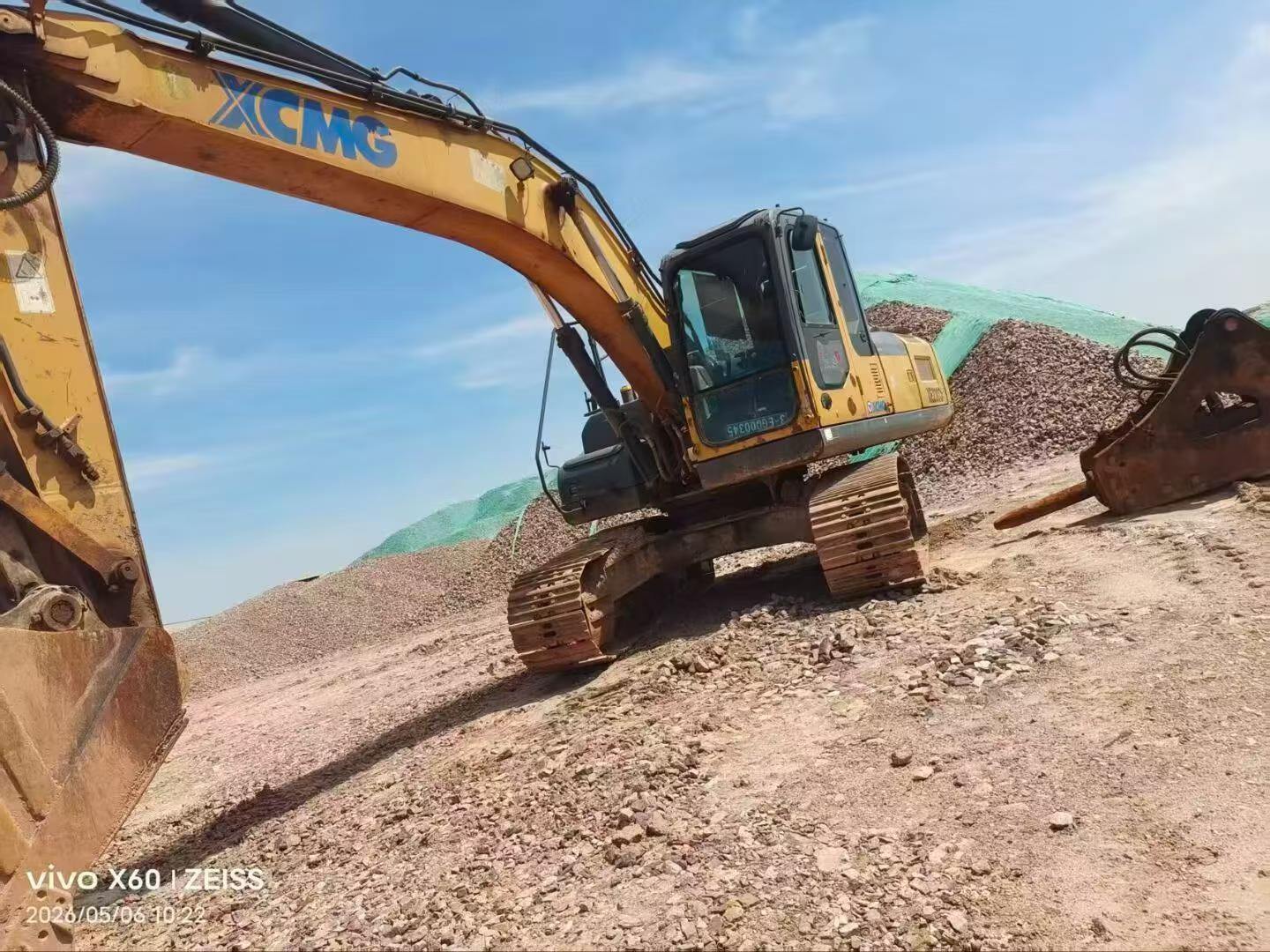

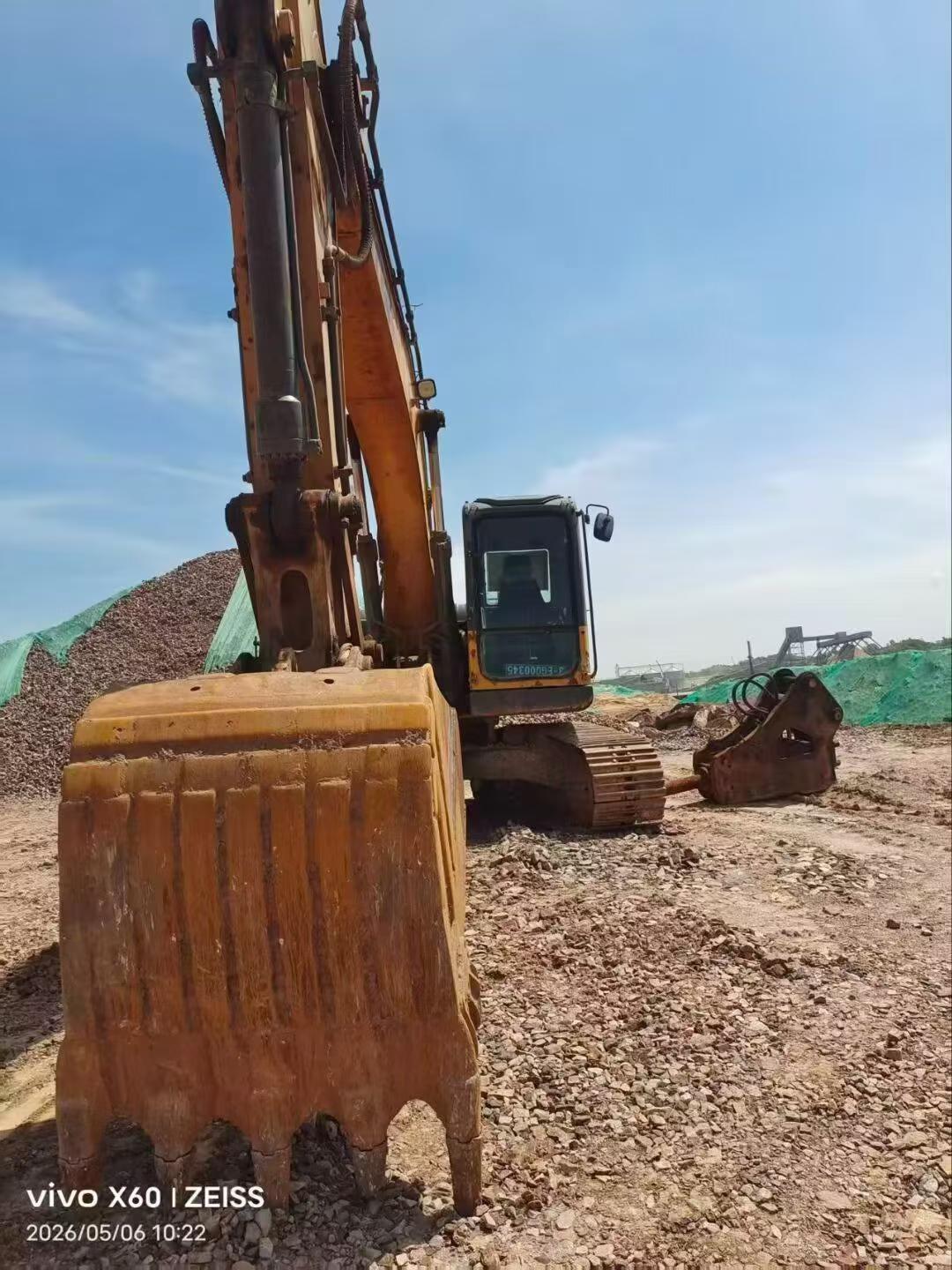

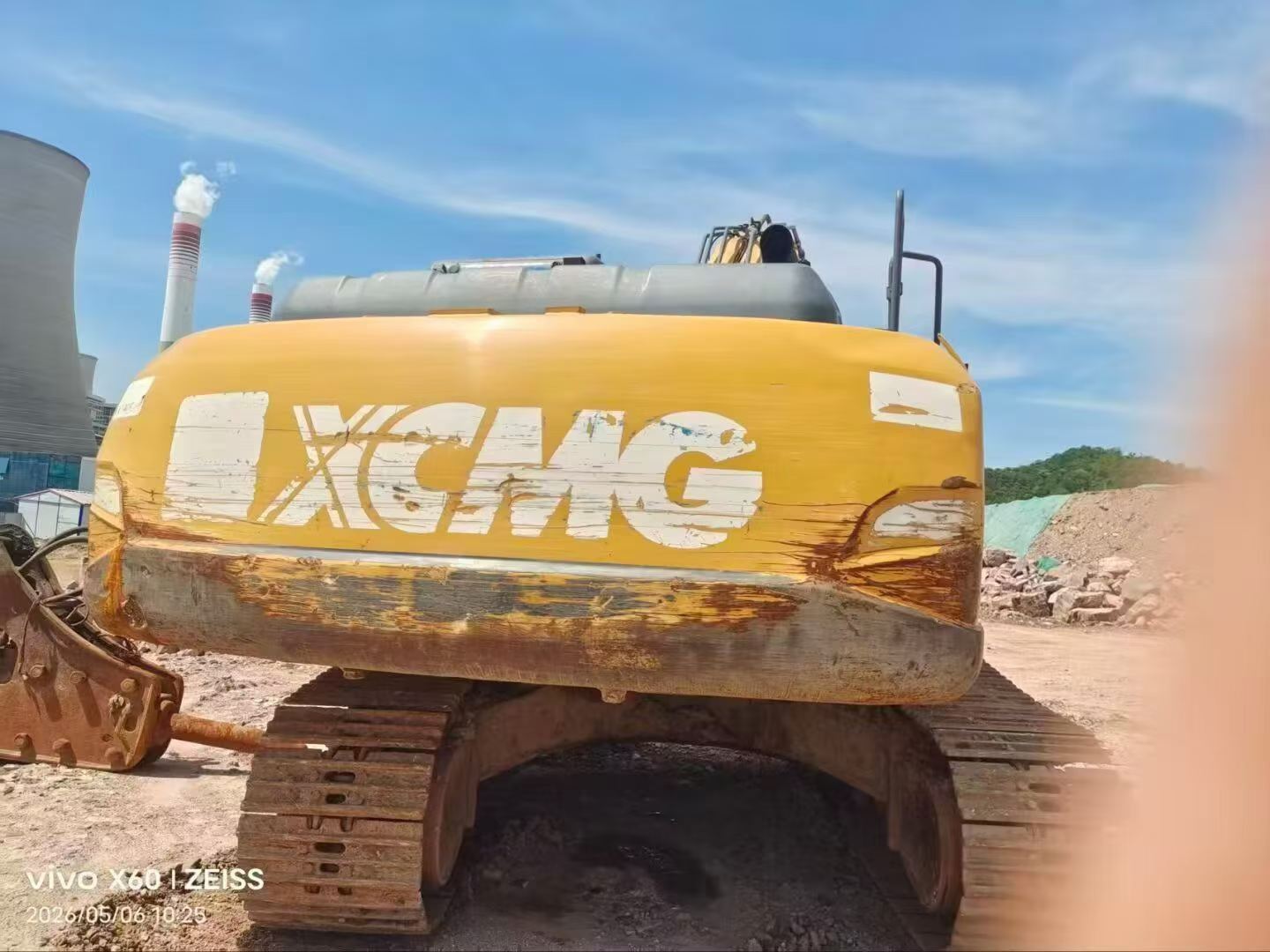

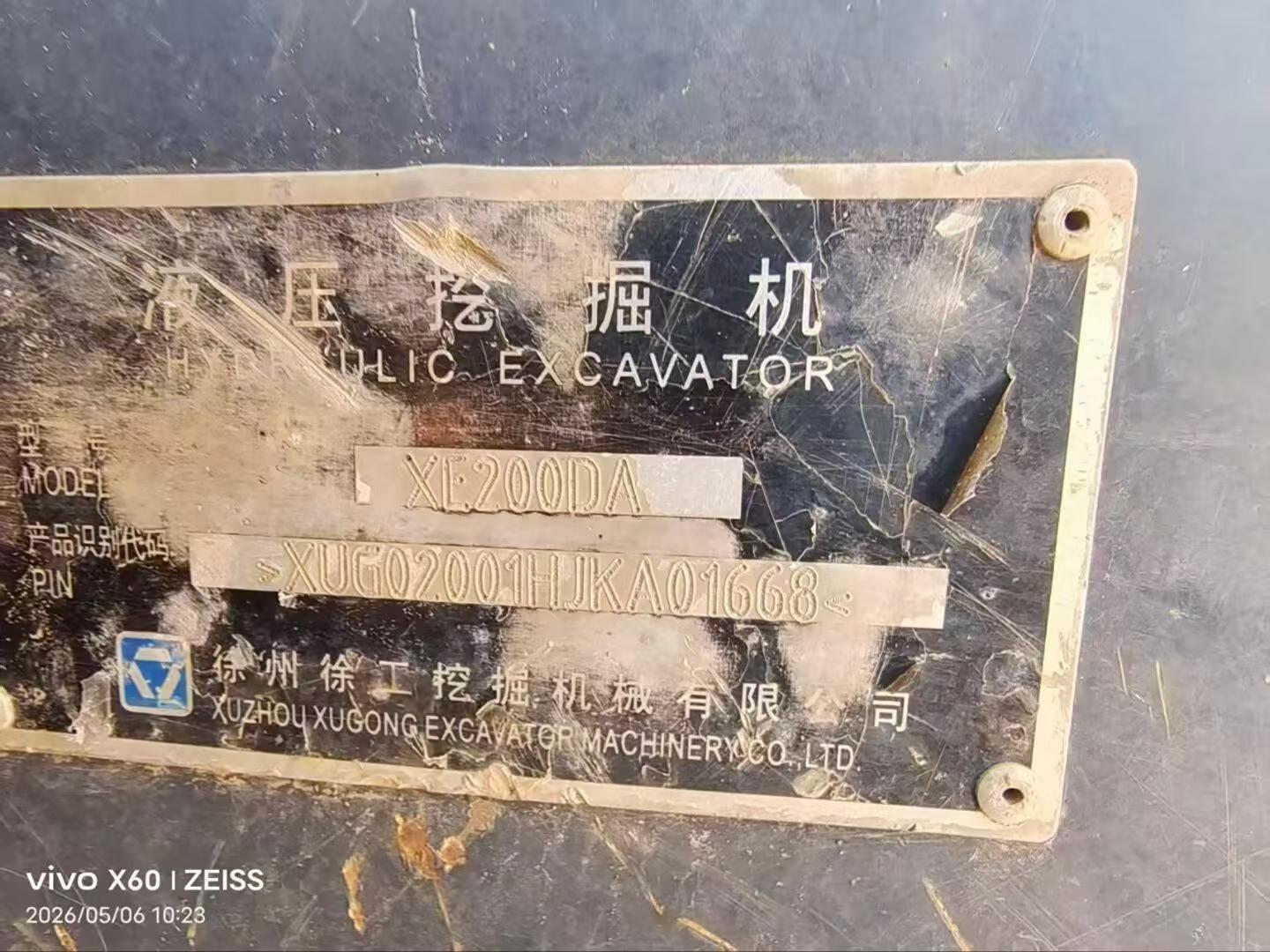

Equipped with a QSB7 engine, the XCMG XE200DA delivers 135 kW of power at 2050 rpm, ensuring robust performance. This 20-ton excavator features a bucket capacity of 0.93 m³ and a working weight of 21,200 kg, making it ideal for demanding construction sites. The hydraulics are engineered for precision, with a maximum digging force of 149 kN and a rod digging force of 121 kN, providing the strength needed for tough excavation tasks.
- Engine Type: QSB7, 6-cylinder, 6.7 L displacement
- Rated Power: 135 kW at 2050 rpm
- Maximum Torque: 740 N.m at 1250 rpm
- Boom Length: 5680 mm, Rod Length: 2710 mm
- Ground Specific Pressure: 46.9 Kpa, Climbing Ability: 35%
- Fuel Tank: 400 L, Hydraulic Tank: 220 L
With a travel speed of 5.3/2.9 km/h and a maximum tractive force of 184 kN, this machine offers both mobility and stability. The XE200DA is designed for reliability and efficiency, making it a top choice for professionals in the industry.
| Specifications | Value |
|---|---|
| No. | 1057278 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
