Product Description

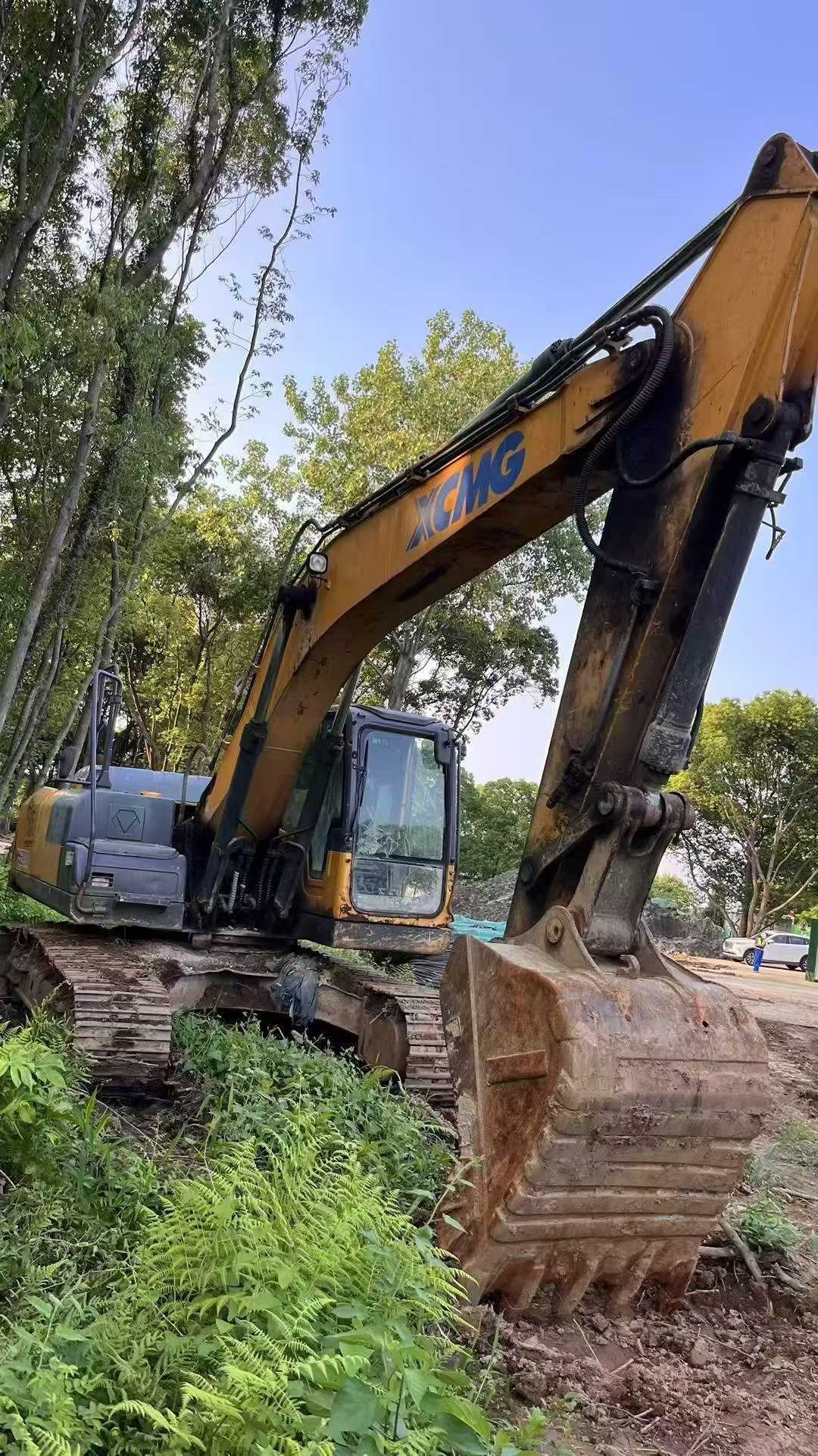

This 2018 XCMG XE200DA excavator represents a well-maintained addition to any fleet. Sourced from Zhejiang, China, this mid-sized crawler excavator delivers reliable performance for earthmoving, trenching, and general construction applications. The XE200DA series is known for its balanced combination of digging force, fuel efficiency, and operator comfort.
- Year: 2018
- Manufacturer: XCMG
- Model: XE200DA
- Location: Zhejiang, China
- Condition: Well-maintained

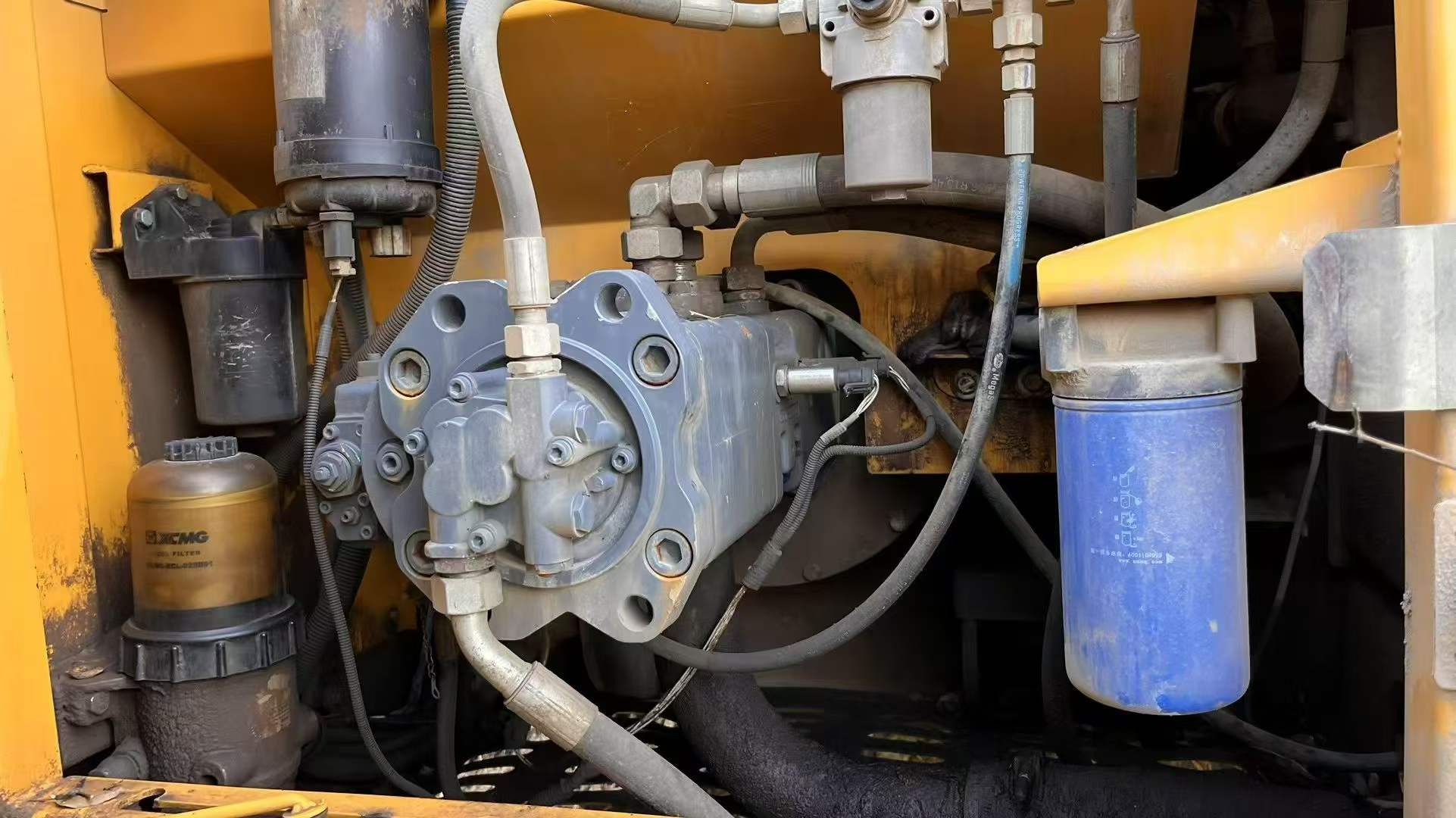

XCMG's 20-ton class excavators are engineered for durability in demanding job sites. This unit offers straightforward maintenance access and proven hydraulic systems. Suitable for contractors seeking dependable equipment with established parts availability across global markets. Inspection reports and operational history available upon request.
| Specifications | Value |
|---|---|
| No. | 1075686 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

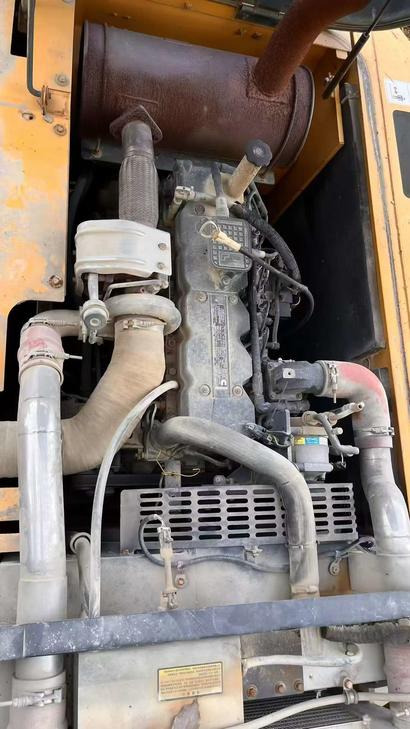

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
