Product Description

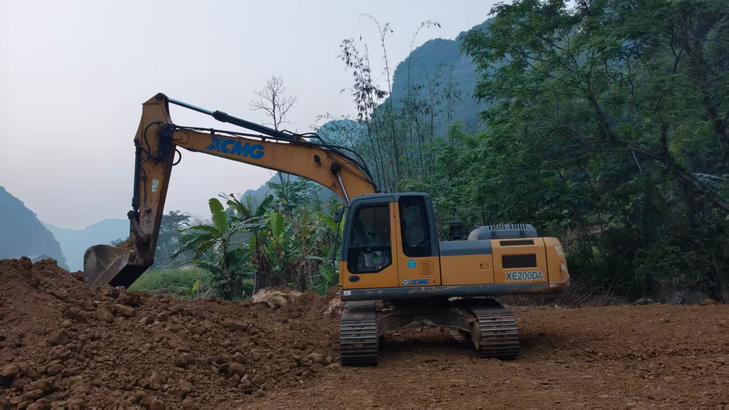

2018 XCMG XE200DA hydraulic excavator available in Guangxi, China. This mid-size crawler excavator from XCMG's DA series offers reliable performance for earthmoving, demolition, and site development applications. With approximately a decade of service, this machine represents a cost-effective solution for contractors seeking proven Chinese manufacturing quality.
Key features of the XE200DA include:
- 20-ton operating weight class suitable for general construction
- Fuel-efficient engine meeting emission standards
- Reinforced undercarriage for extended durability
- Spacious operator cabin with ergonomic controls
- Compatible with various bucket and attachment configurations
This unit is priced competitively for the current market. Inspection welcomed. Export documentation and shipping arrangements can be facilitated to international buyers.
| Specifications | Value |
|---|---|
| No. | 1083508 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
