Product Description

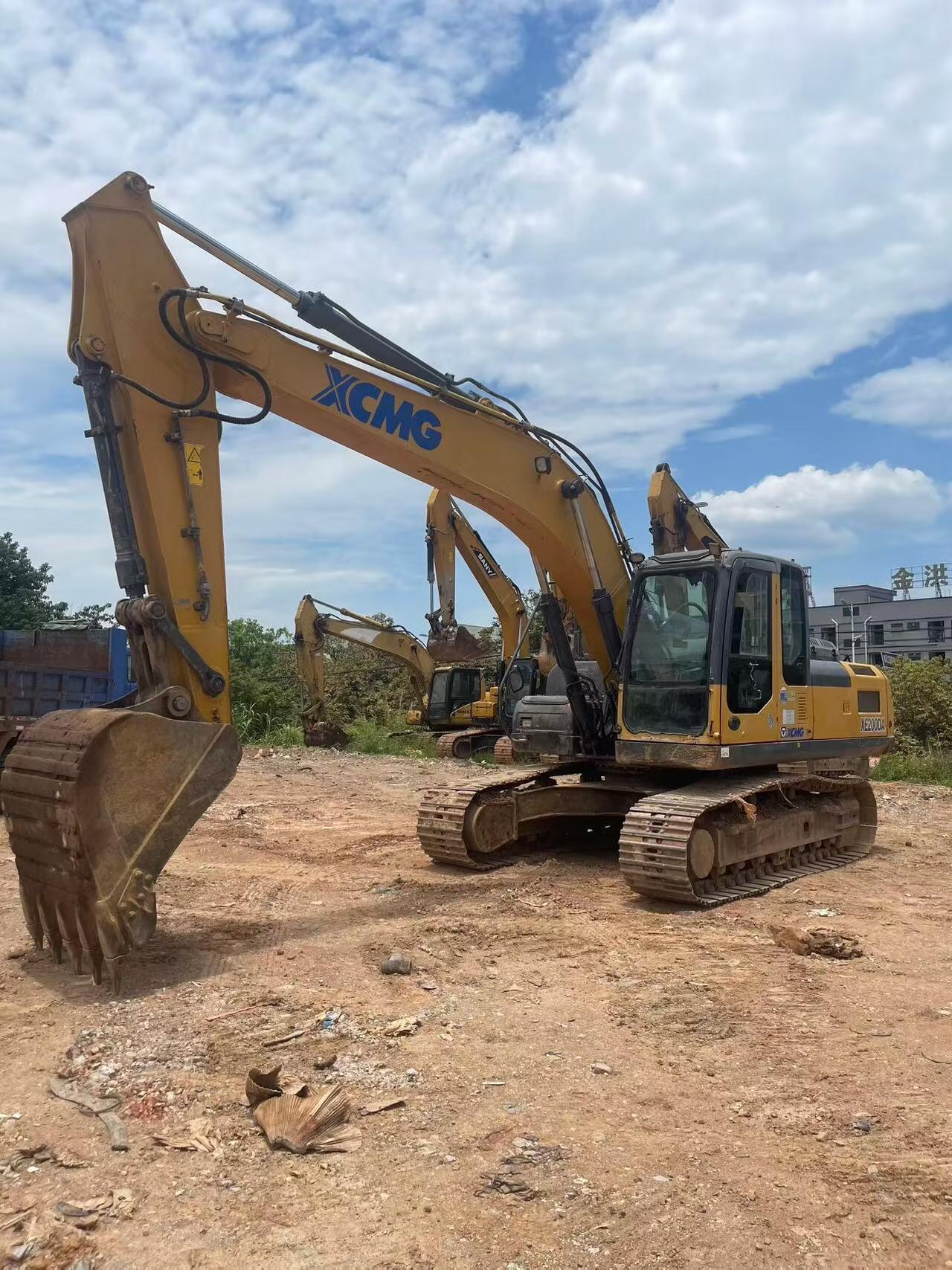

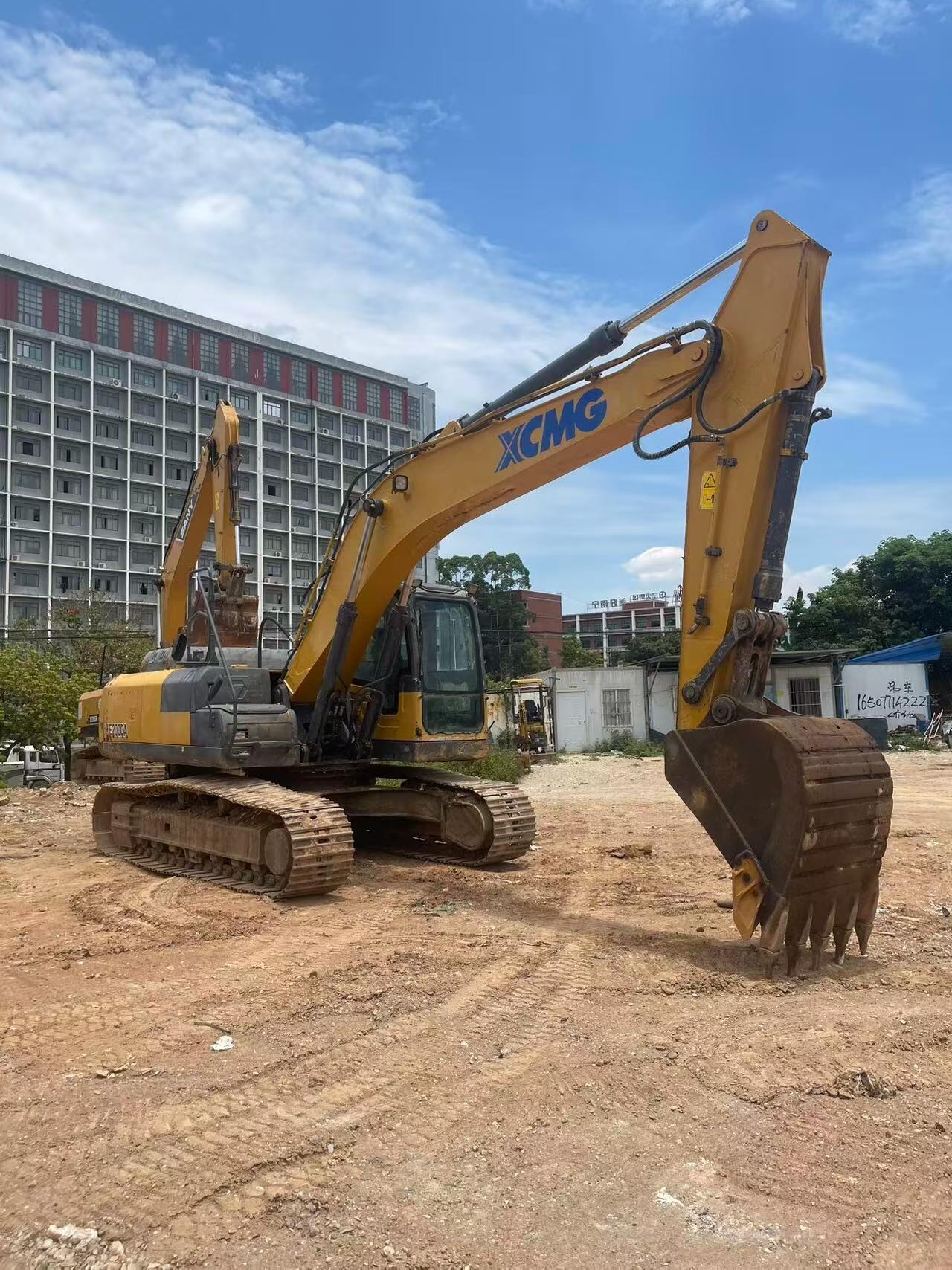

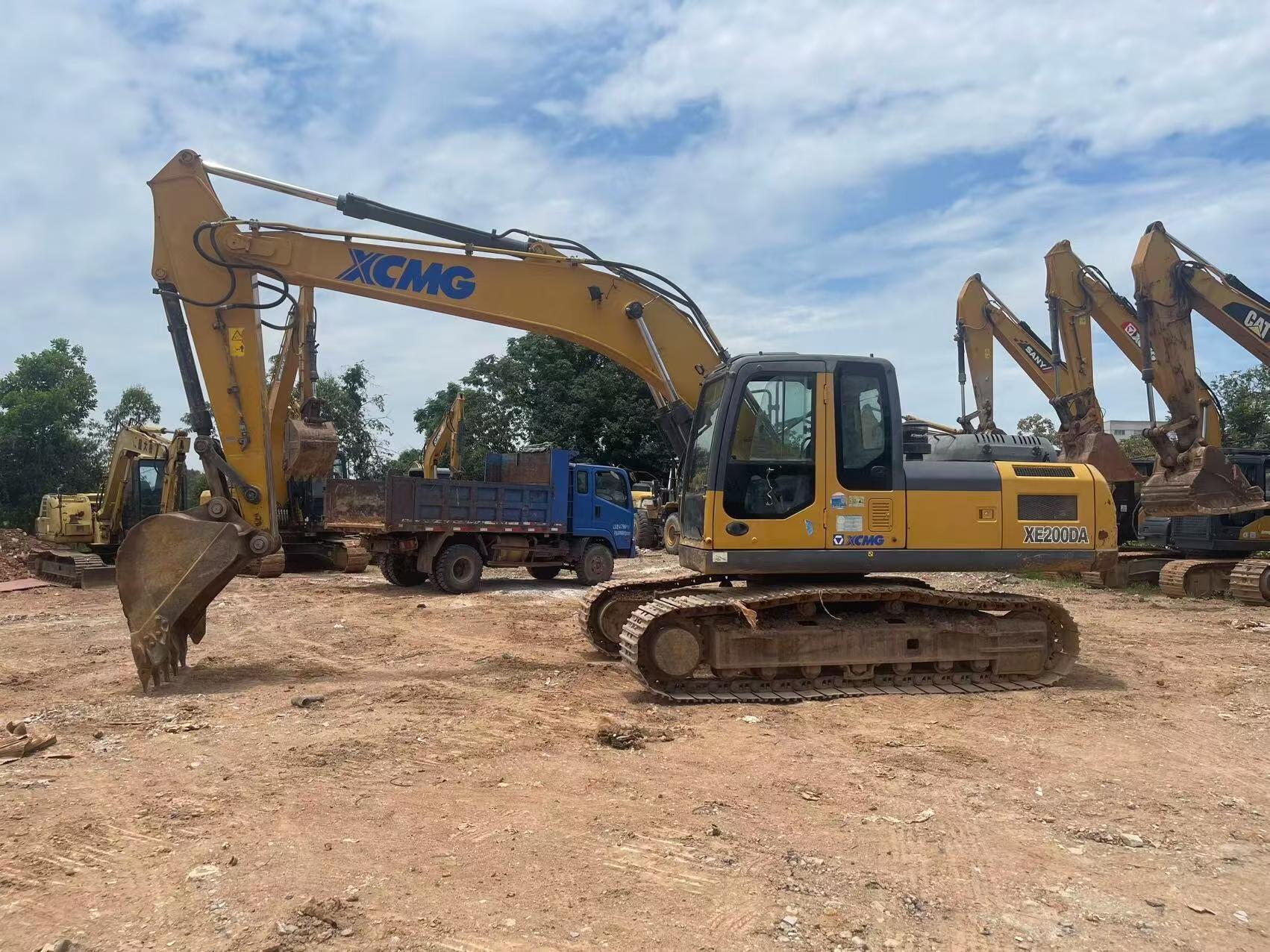

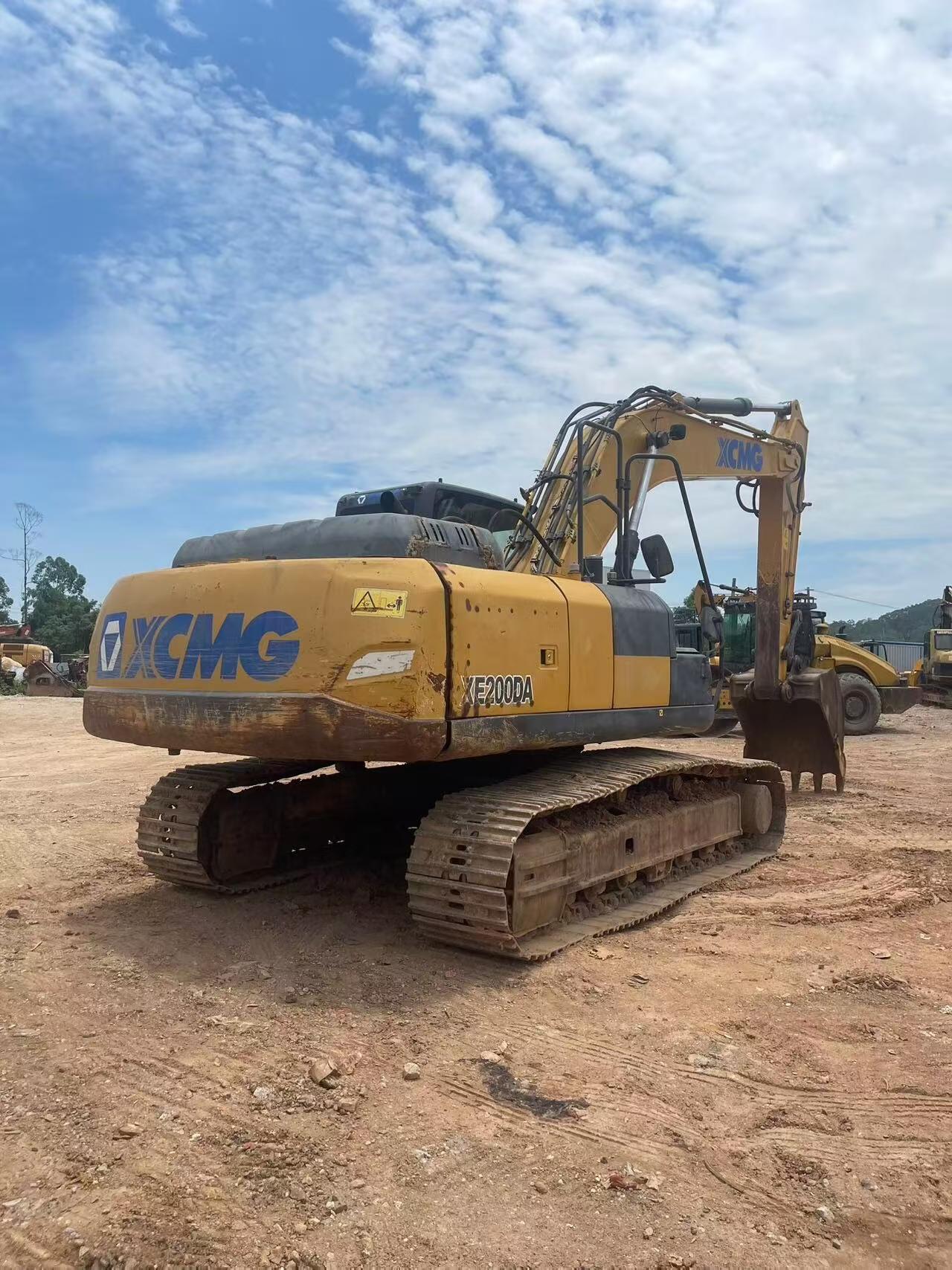

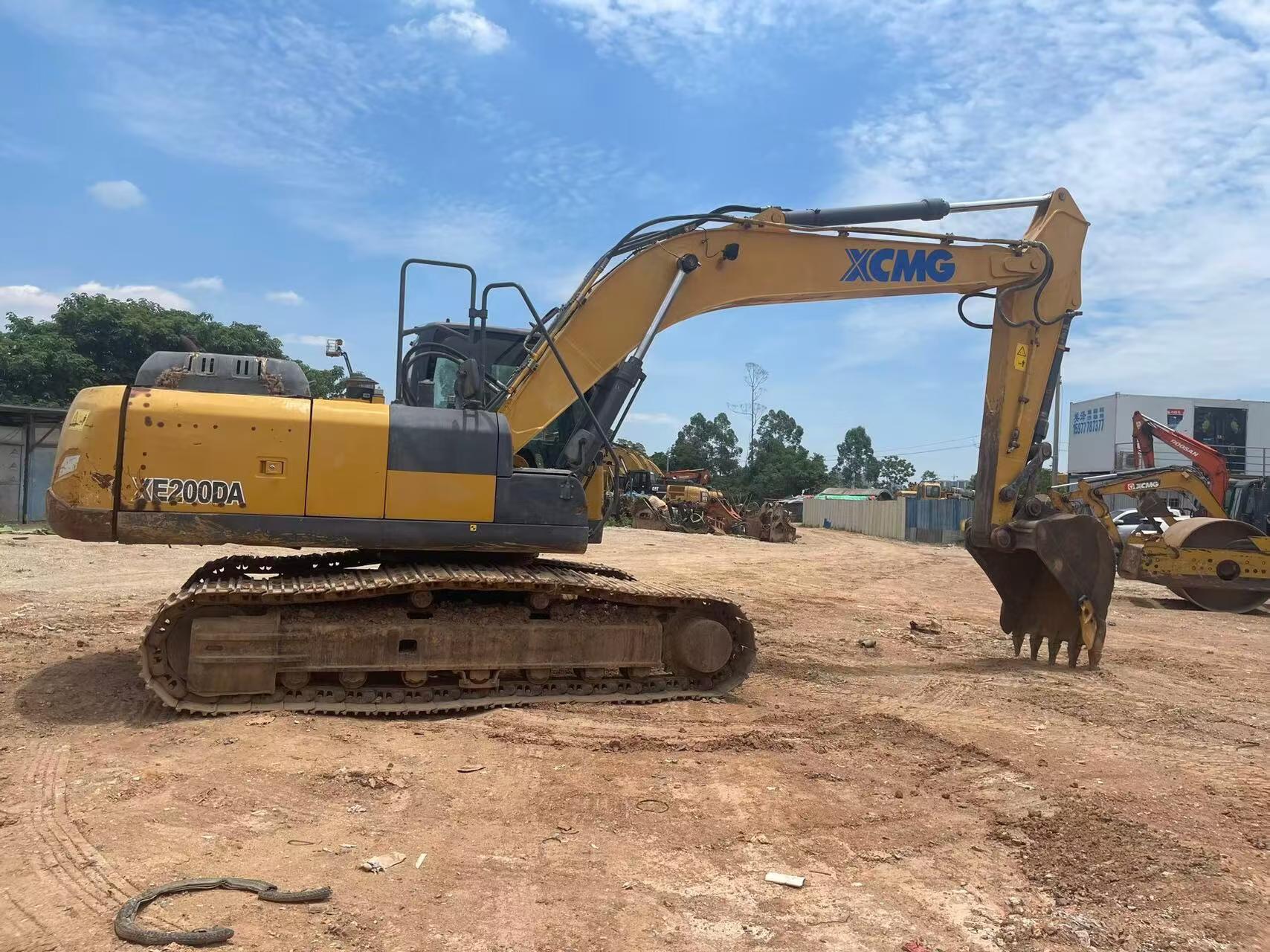

2018 XCMG XE200DA excavator available in Guangxi, China. This 20-ton class crawler excavator features 8,100 operational hours with verified meter readings. The machine has been maintained in excellent working condition and is ready for immediate deployment.
Key features:
- Year: 2018
- Model: XCMG XE200DA

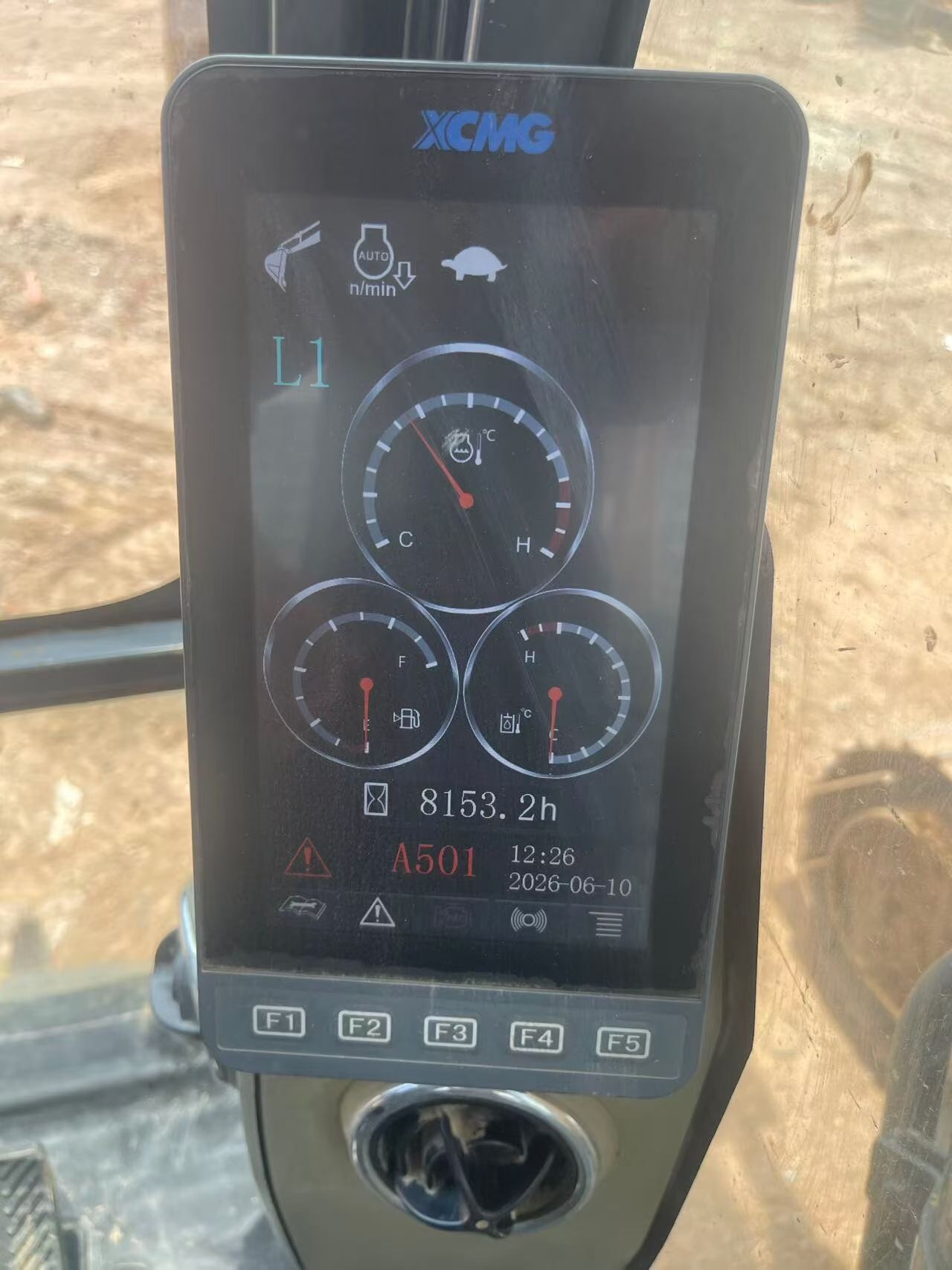

- Hours: 8,100 (verified)
- Location: Nanning, Guangxi, China
- Condition: Excellent operational status
- Inspection available on-site
This excavator is suitable for earthmoving, construction, and infrastructure projects. The unit is priced competitively for quick sale. Viewing and test operation available by appointment in Nanning. Contact us for detailed specifications and pricing information.
| Specifications | Value |
|---|---|
| No. | 1093879 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

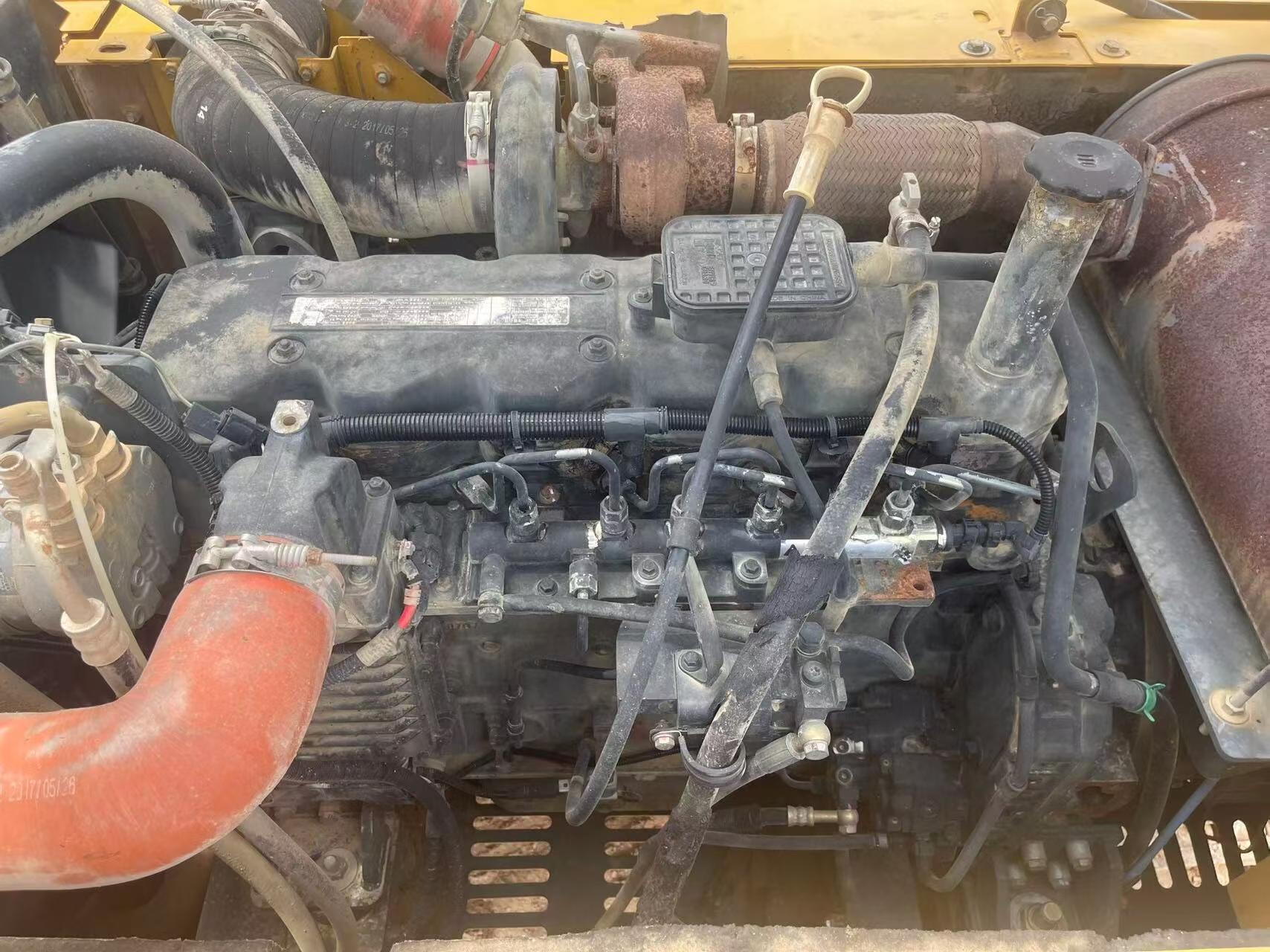

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
