Product Description

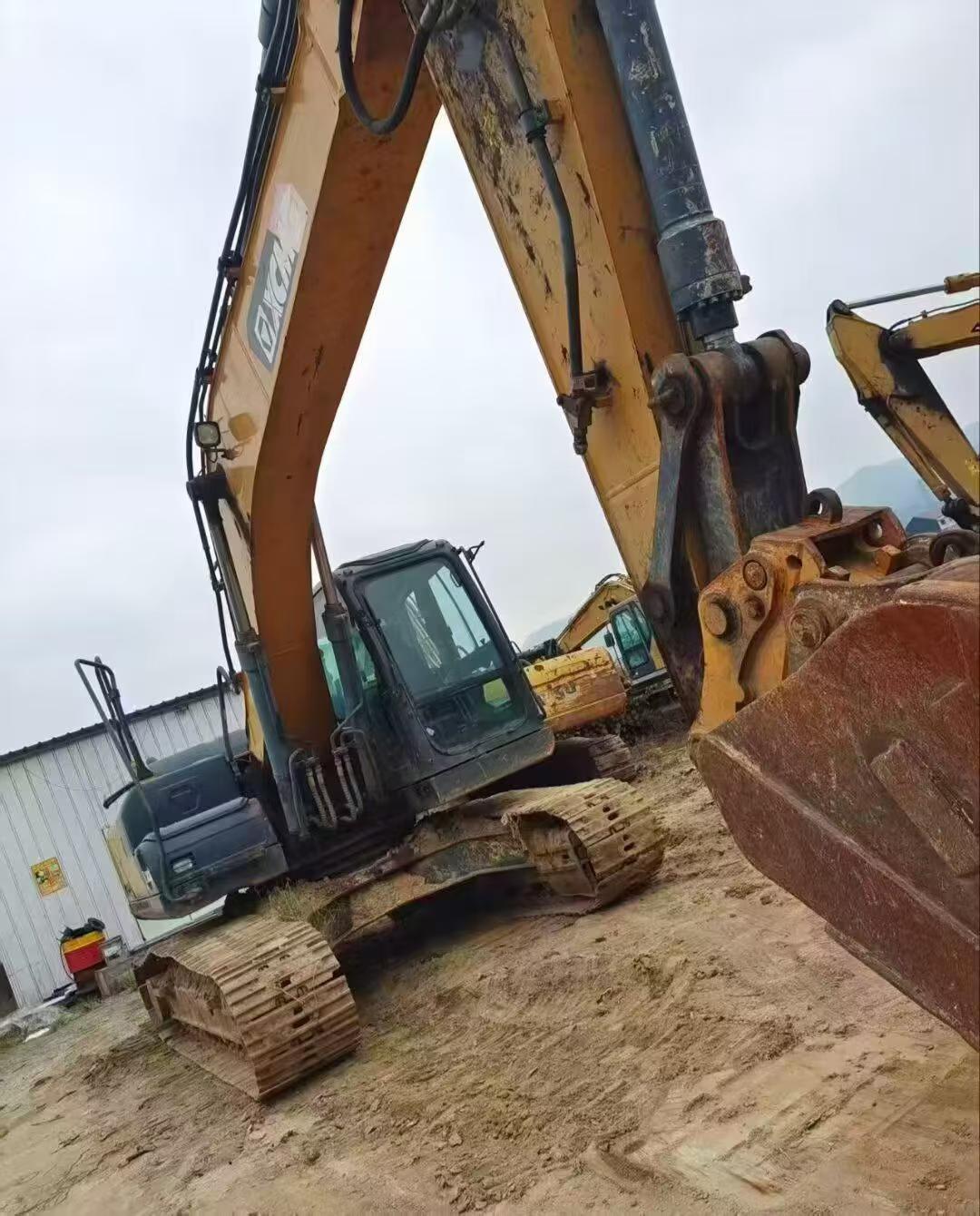

Expand your operational capacity with this 2019 XCMG XE200DA excavator, a 20-ton workhorse engineered for demanding job sites and continuous fleet deployment. Powered by a robust QSB7 engine delivering 135 kW at 2050 rpm, this machine combines proven reliability with the performance metrics busy contractors depend on when primary equipment is stretched thin.
Built on a 21,200 kg chassis with a 0.93 m³ bucket capacity, this excavator delivers impressive reach and digging force across multiple applications. Key specifications include:
- Maximum digging radius of 9,790 mm with 6,460 mm depth capability
- Bucket digging force: 149 kN; rod digging force: 121 kN
- 5,680 mm boom and 2,710 mm rod for versatile positioning
- 400L fuel tank supports extended shifts without refueling downtime
- 35% climbing ability handles challenging terrain transitions
- Compact transport dimensions: 9,625 mm × 2,900 mm × 3,100 mm
Currently located in Hunan, China, this Chinese-manufactured unit integrates seamlessly into existing XCMG fleets or serves as a reliable backup when project timelines cannot accommodate equipment gaps. Ready for immediate deployment in your rotation.
| Specifications | Value |
|---|---|
| No. | 1027811 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
