Product Description

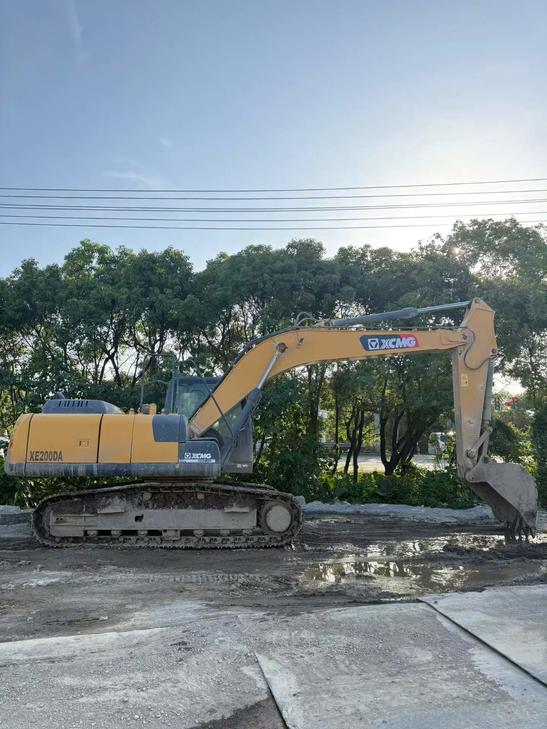

This 2020 XCMG XE200DA excavator represents a well-maintained example of reliable Chinese engineering. Located in Zhejiang, China, this machine features four major components in excellent working condition with no oil leaks. The original factory air conditioning system operates at full capacity, ensuring operator comfort during extended shifts.
Key highlights include:
- Undercarriage in near-new condition (99% remaining)
- Single owner-operator with documented maintenance history
- All major systems dry and leak-free
- Factory air conditioning fully functional
- Remote monitoring capability via mobile application
- Available for on-site inspection and test operation
This excavator has been meticulously cared for by its original operator, reflecting the attention to detail expected in professional applications. Suitable for contractors seeking dependable performance with minimal downtime. Inspection and trial operation welcomed by appointment.
| Specifications | Value |
|---|---|
| No. | 1072586 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
