Product Description

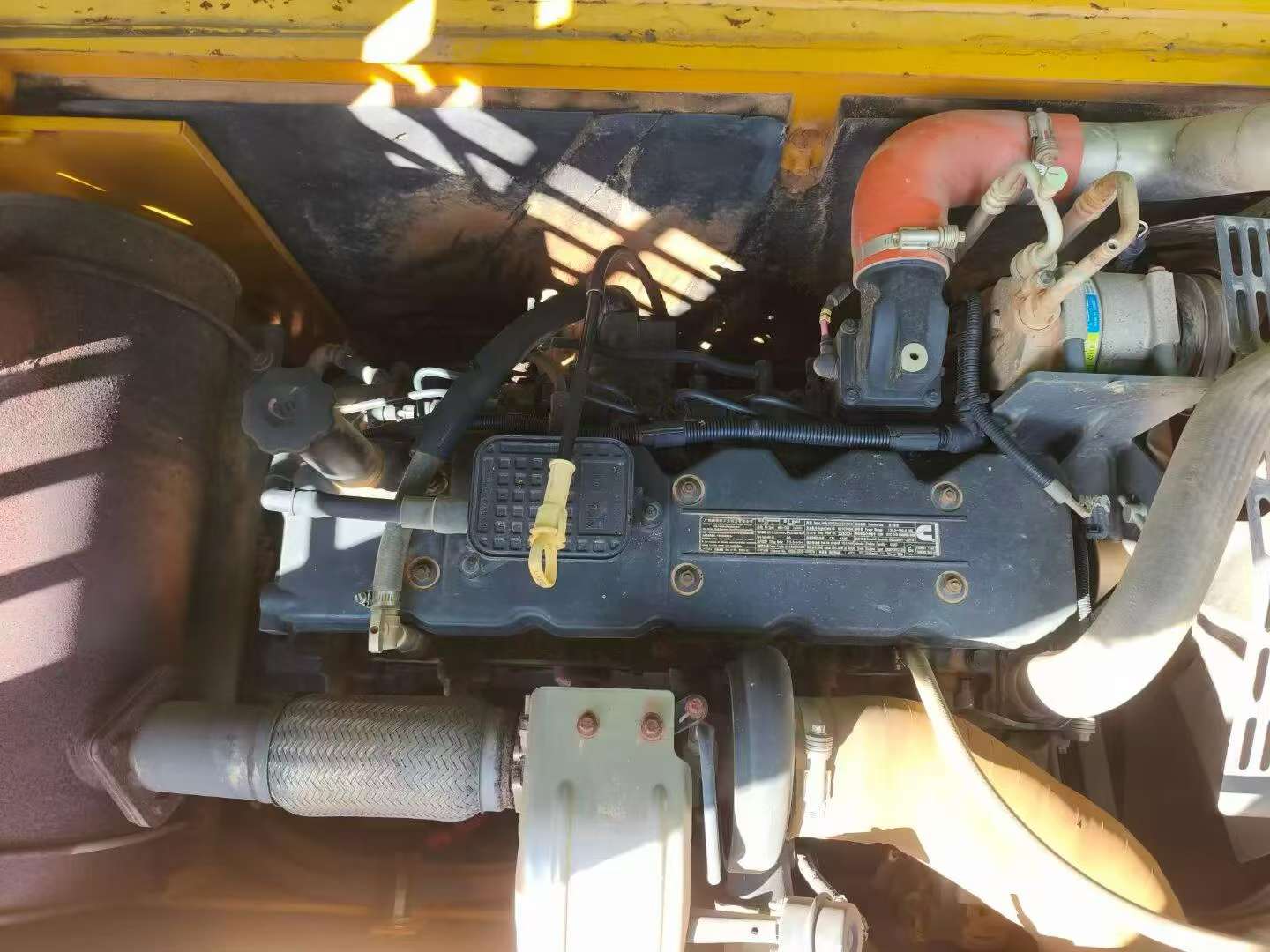

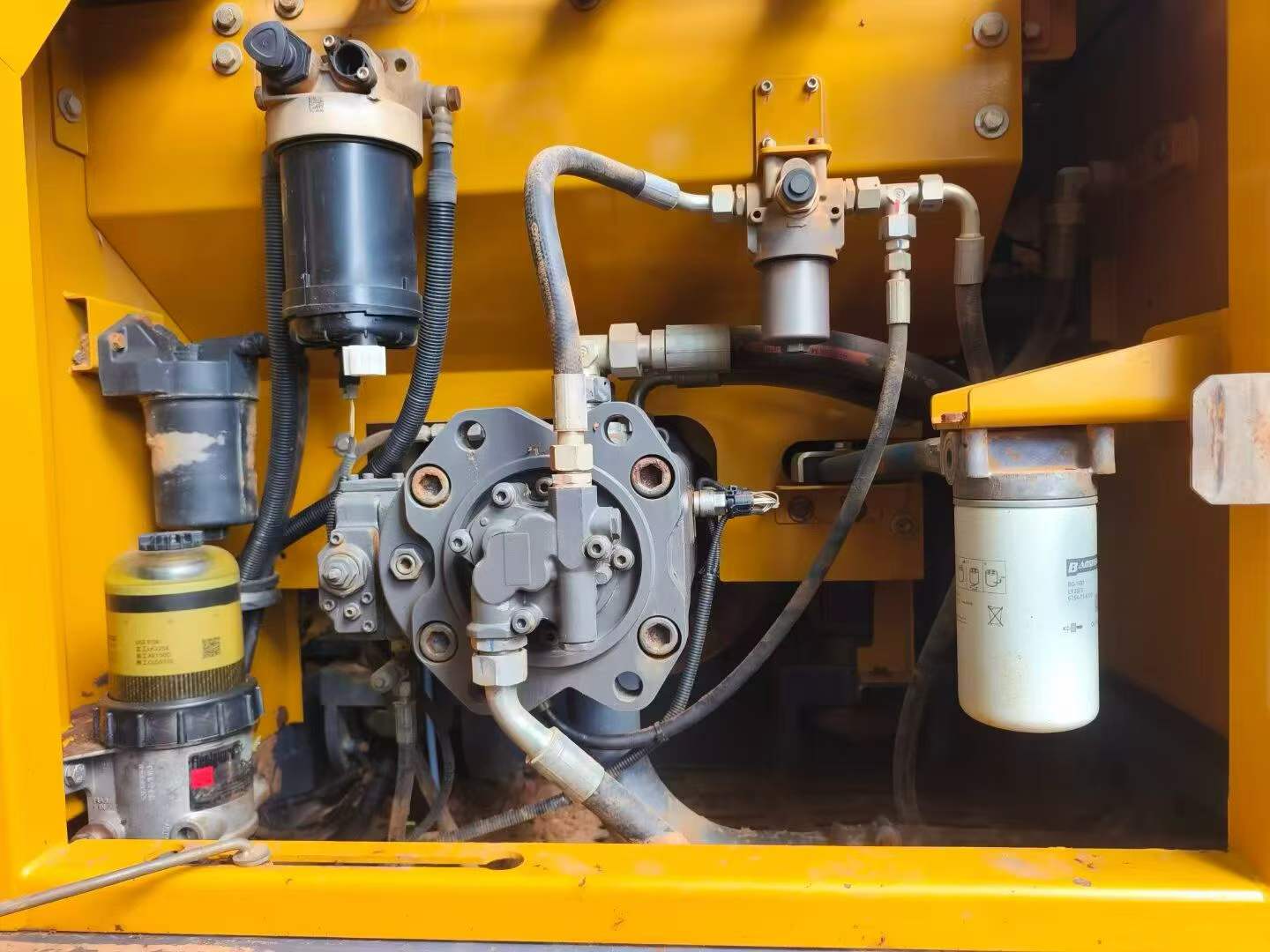

Built for operators who demand control and endurance, the 2020 XCMG XE200DA is a 20-ton hydraulic excavator engineered to perform across demanding job sites. Powered by a Cummins QSB7 6-cylinder engine delivering 135 kW at 2,050 RPM and 740 N·m of peak torque, this machine combines raw digging capability with operator-focused ergonomics. Sourced directly from Hunan, China, this unit arrives in excellent working condition and is ready for immediate deployment.

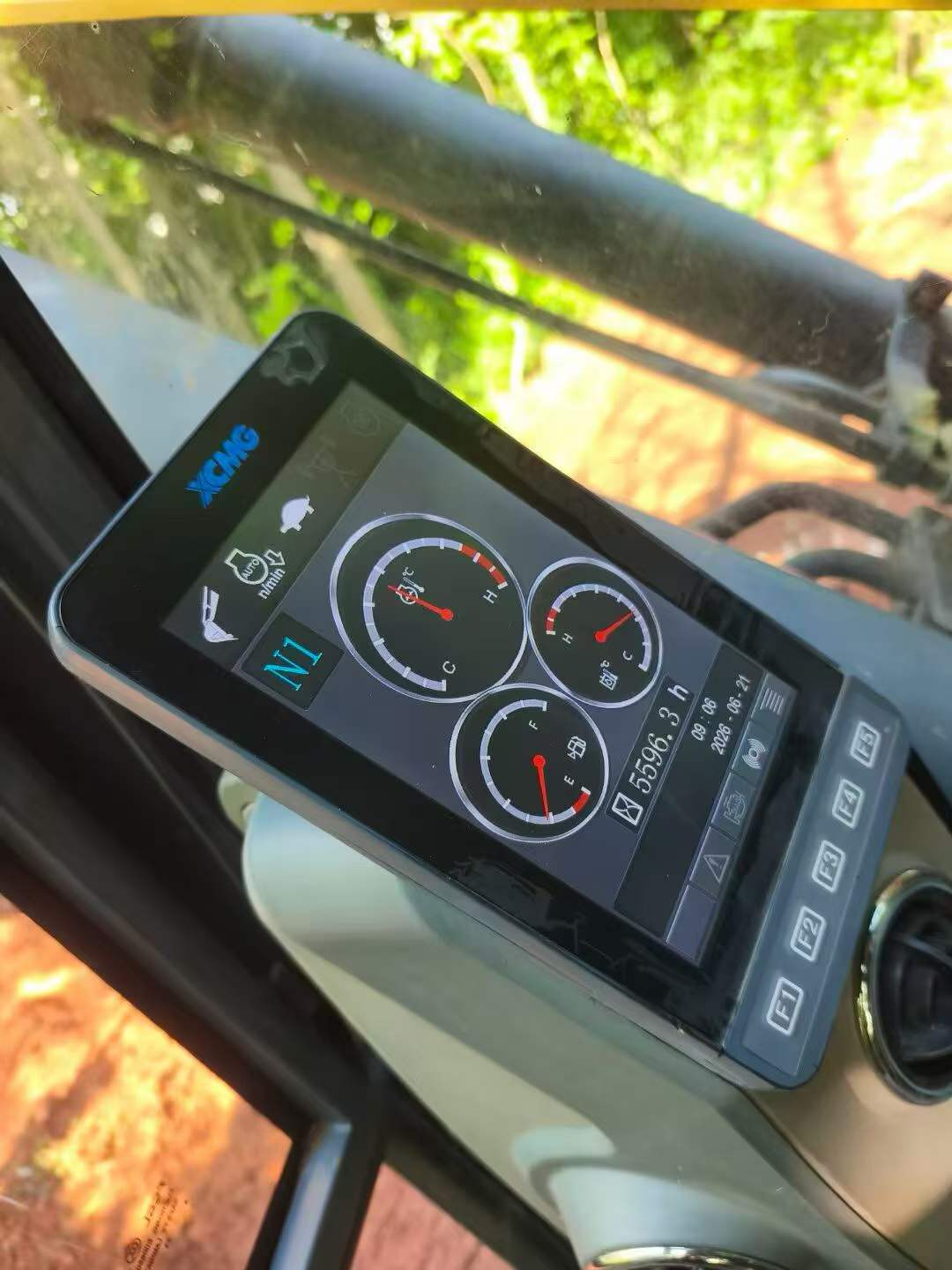

From the cab, operators benefit from clear sightlines and intuitive controls, reducing fatigue during extended shifts. Stable ground pressure of just 46.9 kPa ensures confident footing on varied terrain, while a 35% climbing ability handles tough gradients with ease.
- Bucket Digging Force: 149 kN | Rod Digging Force: 121 kN
- Maximum Digging Depth: 6,460 mm | Maximum Digging Radius: 9,790 mm
- Bucket Capacity: 0.93 m³ | Working Weight: 21,200 kg
- Travel Speed: 5.3 / 2.9 km/h | Max Tractive Force: 184 kN
- Fuel Tank: 400 L | Hydraulic Tank: 220 L
- Transport Dimensions: 9,625 mm (L) × 2,900 mm (W) × 3,100 mm (H)
| Specifications | Value |
|---|---|
| No. | 1095326 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
