Product Description

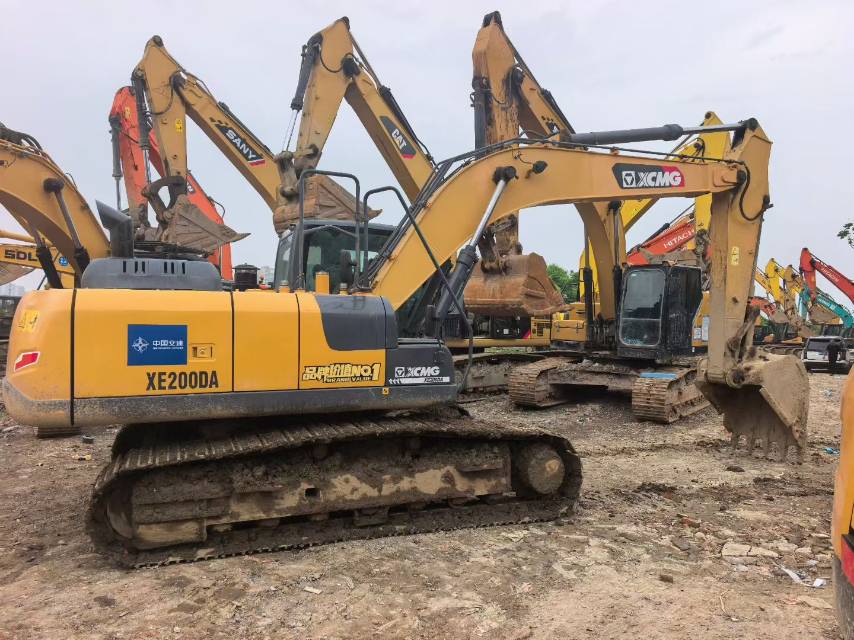

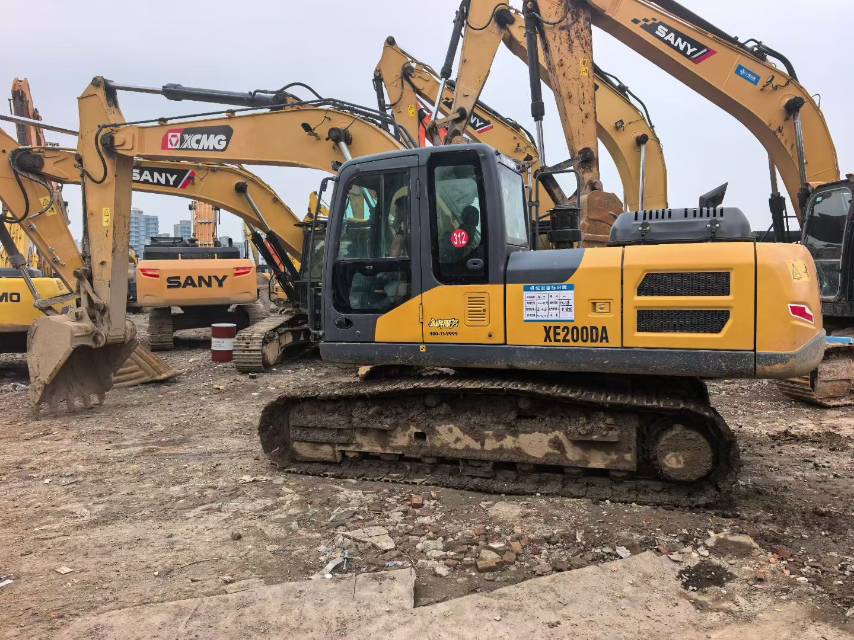

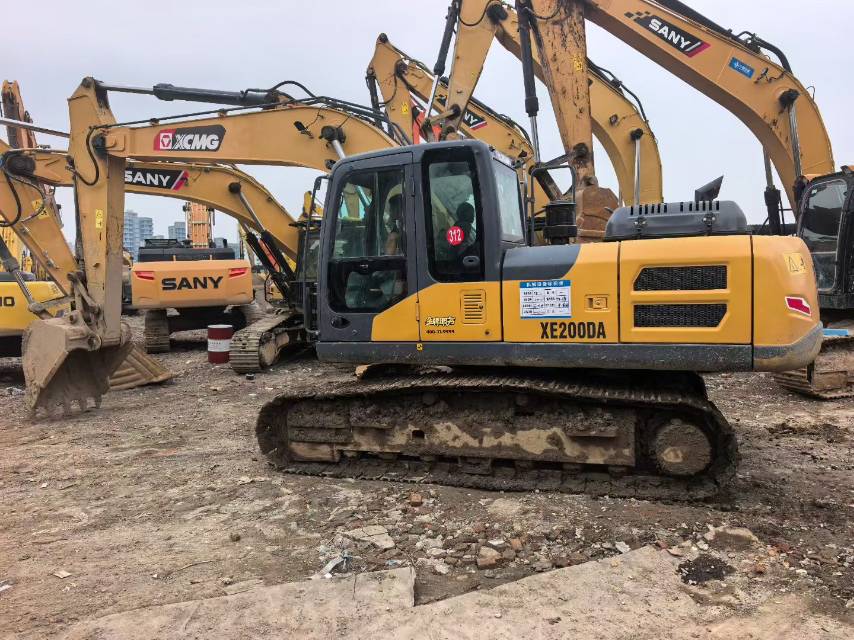

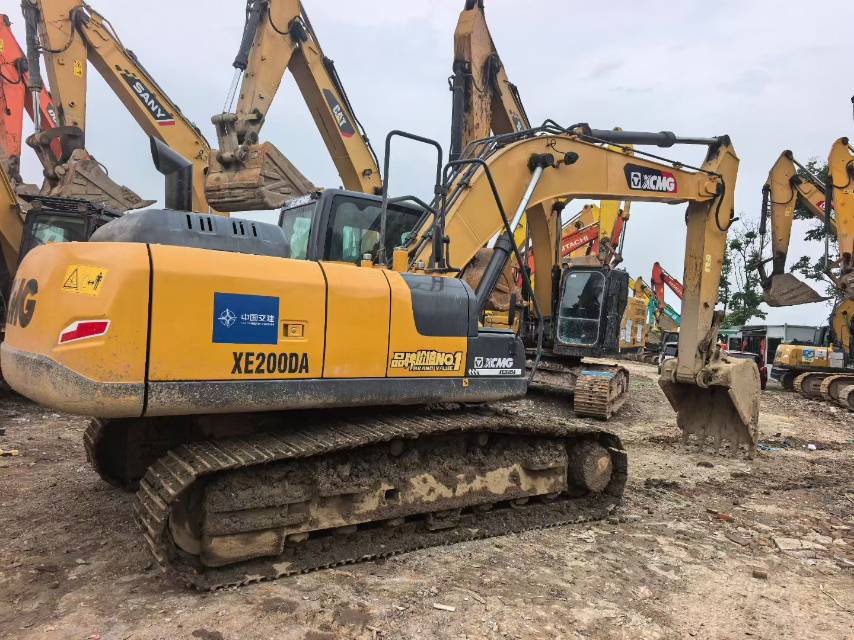

This 2021 XCMG XE200DA hydraulic excavator is available for inspection and testing at our Zhejiang, China facility. With minimal operating hours for its model year, this 20-ton class machine represents solid value in the mid-size excavator segment.

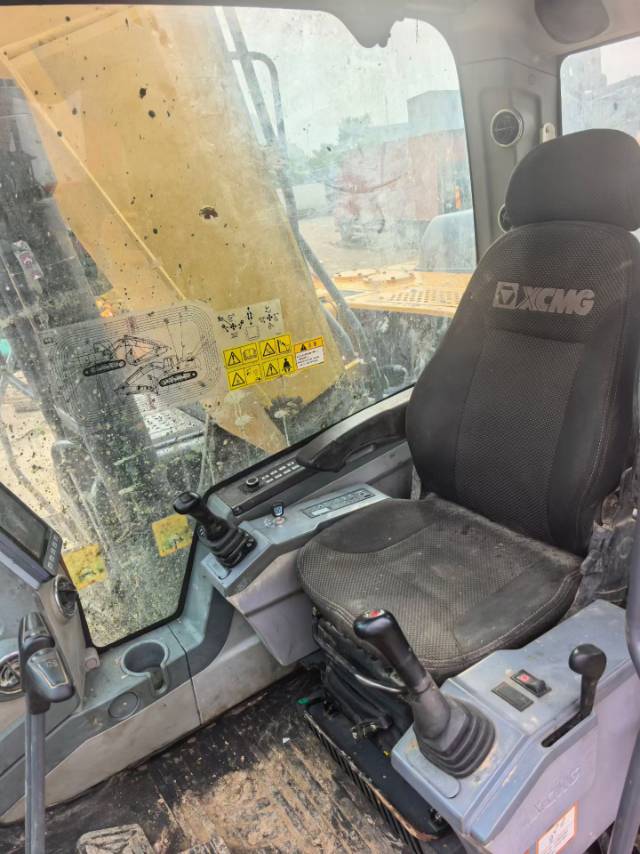

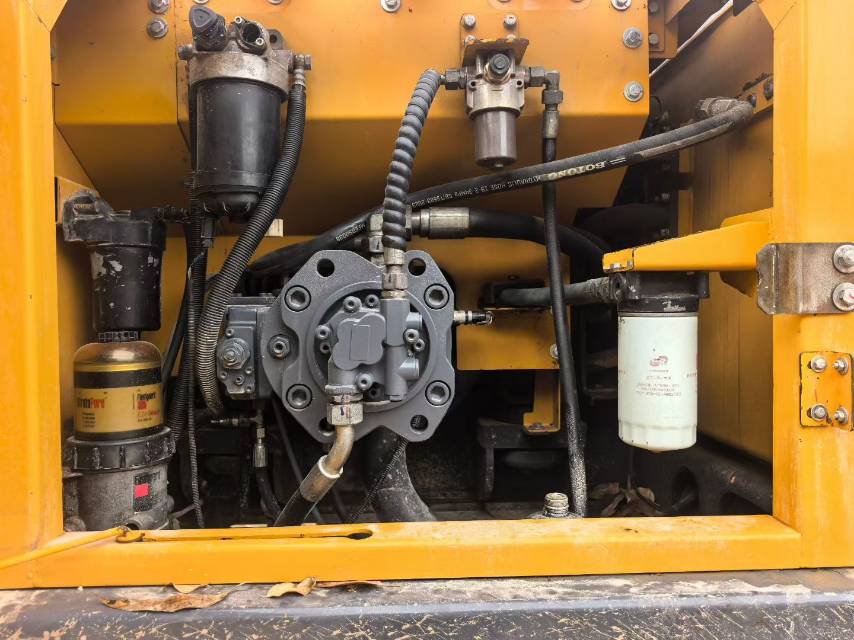

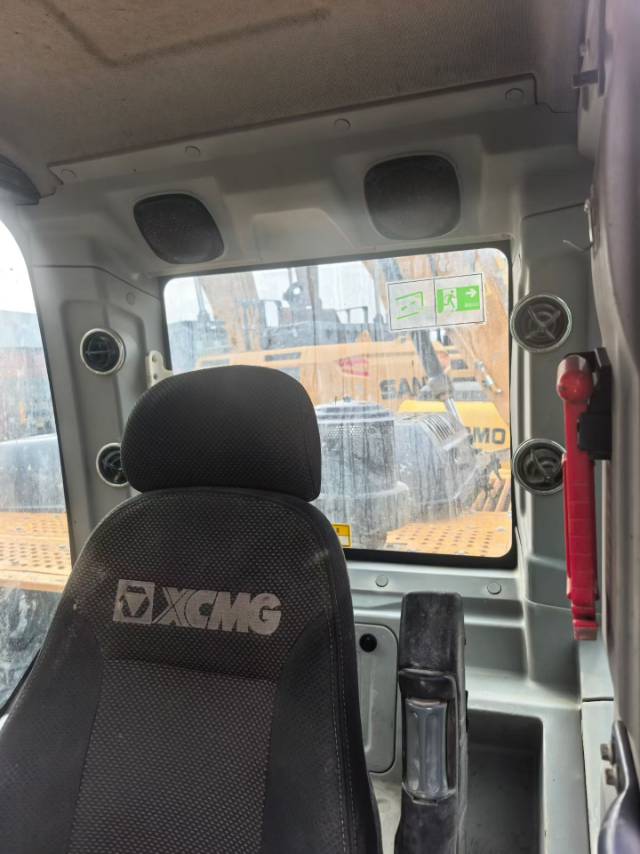

The XE200DA features XCMG's proven hydraulic system and reinforced undercarriage designed for demanding earthmoving applications. Standard equipment includes a climate-controlled cab, hydraulic quick coupler compatibility, and multi-function joystick controls.
- Year: 2021
- Manufacturer: XCMG
- Model: XE200DA
- Operating Weight: ~20 tons
- Location: Zhejiang Province, China
- Condition: Used, available for on-site inspection
On-site demonstration available by appointment. Competitive pricing negotiable based on inspection. Multiple units in inventory. Contact us to schedule a field evaluation.
| Specifications | Value |
|---|---|
| No. | 1074279 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

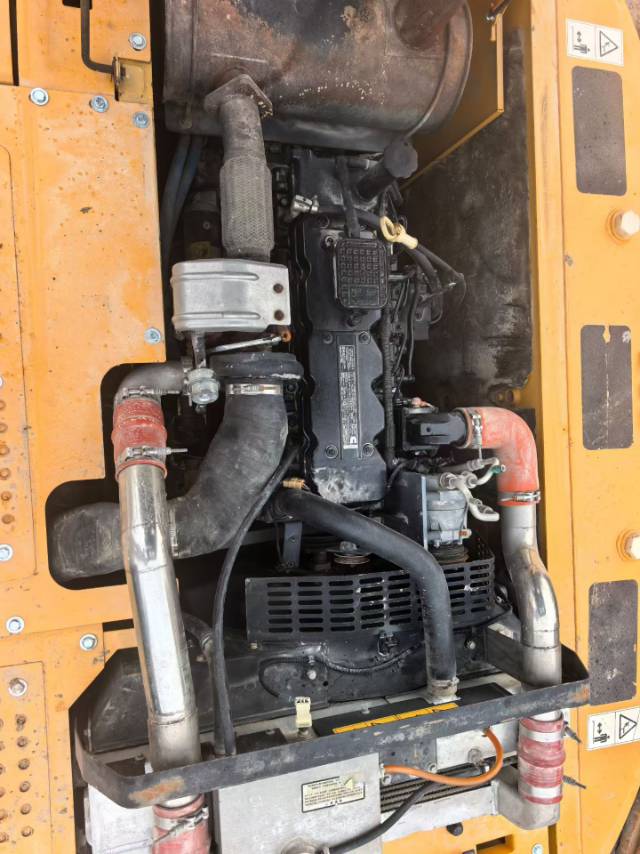

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |

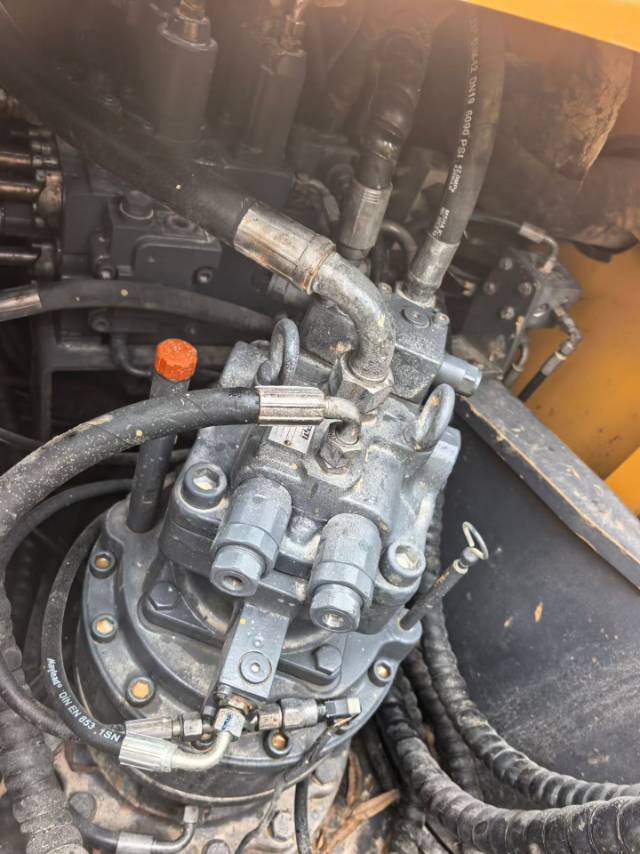

| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
