Product Description

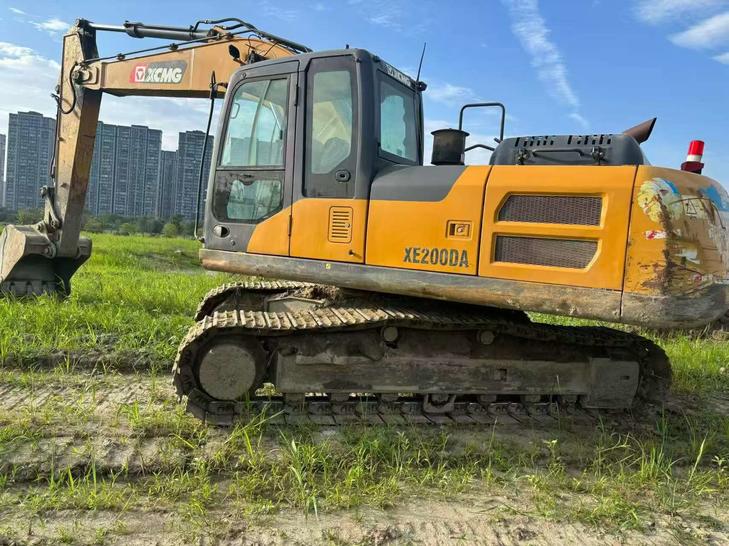

This 2021 XCMG XE200DA hydraulic excavator represents a reliable mid-size solution for contractors and industrial operators. With just five years since manufacture, this machine offers proven XCMG engineering with substantial service life remaining. The XE200DA series is known for its balanced performance in earthmoving, demolition, and general construction applications.
Currently located in Zhejiang, China, this excavator has been maintained in operational condition. The XCMG XE200DA features a robust undercarriage, efficient hydraulic system, and a comfortable operator cabin designed for extended work cycles.
- Year of Manufacture: 2021
- Brand: XCMG
- Model: XE200DA
- Location: Zhejiang Province, China
- Operational status: Ready for deployment
This unit is available for immediate inspection and purchase. Contact us for detailed specifications, current condition assessment, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1086667 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
