Product Description

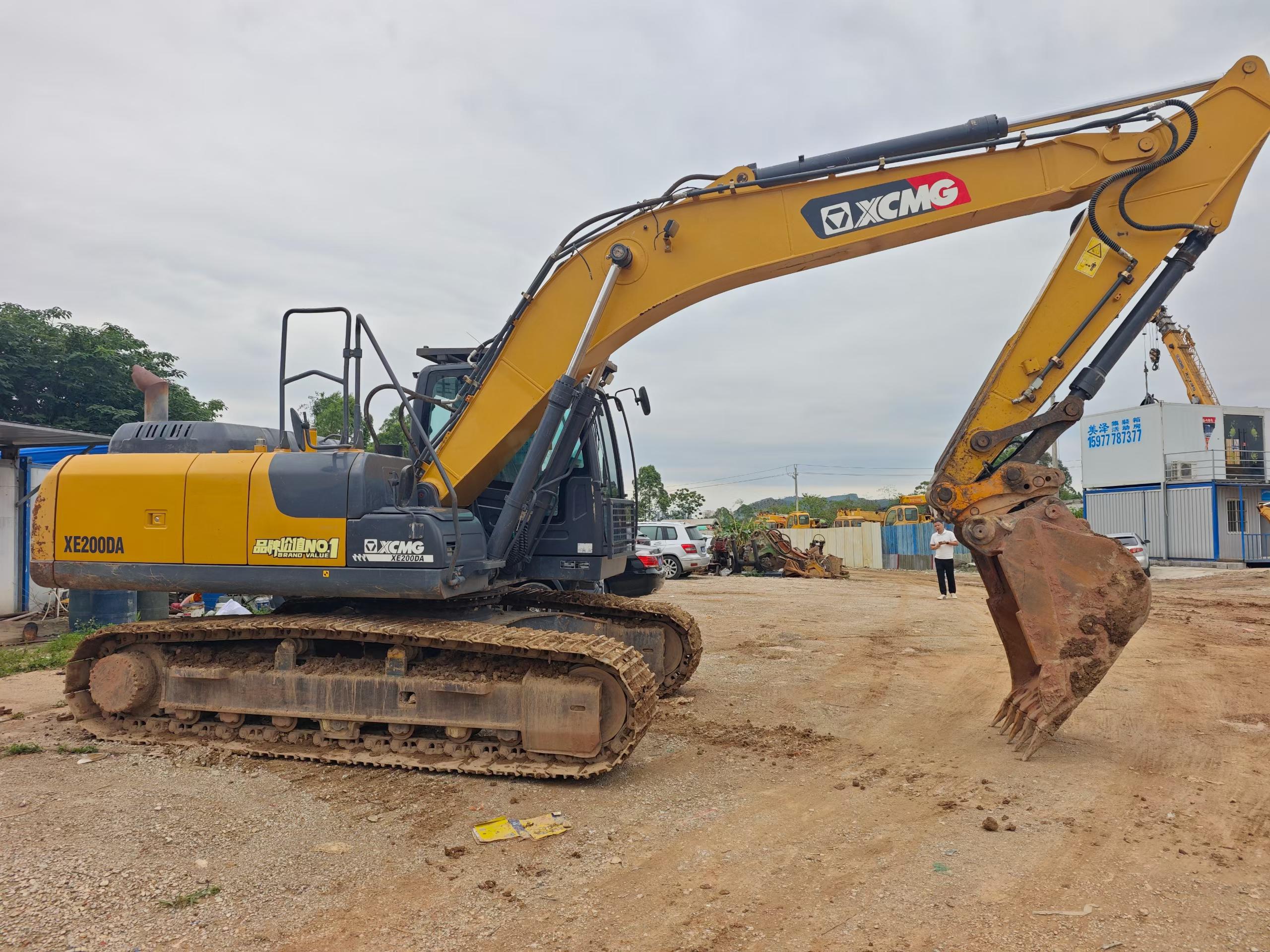

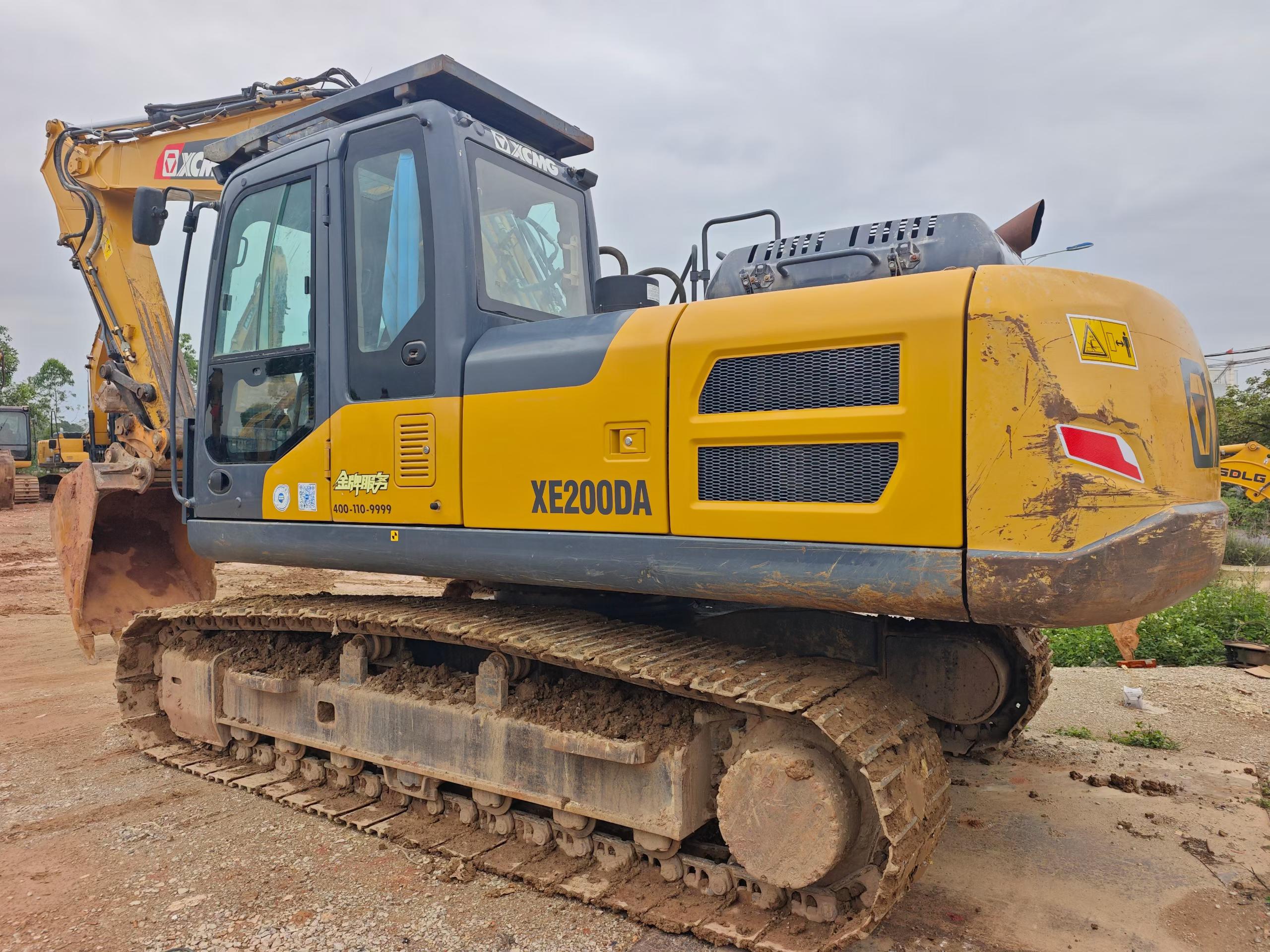

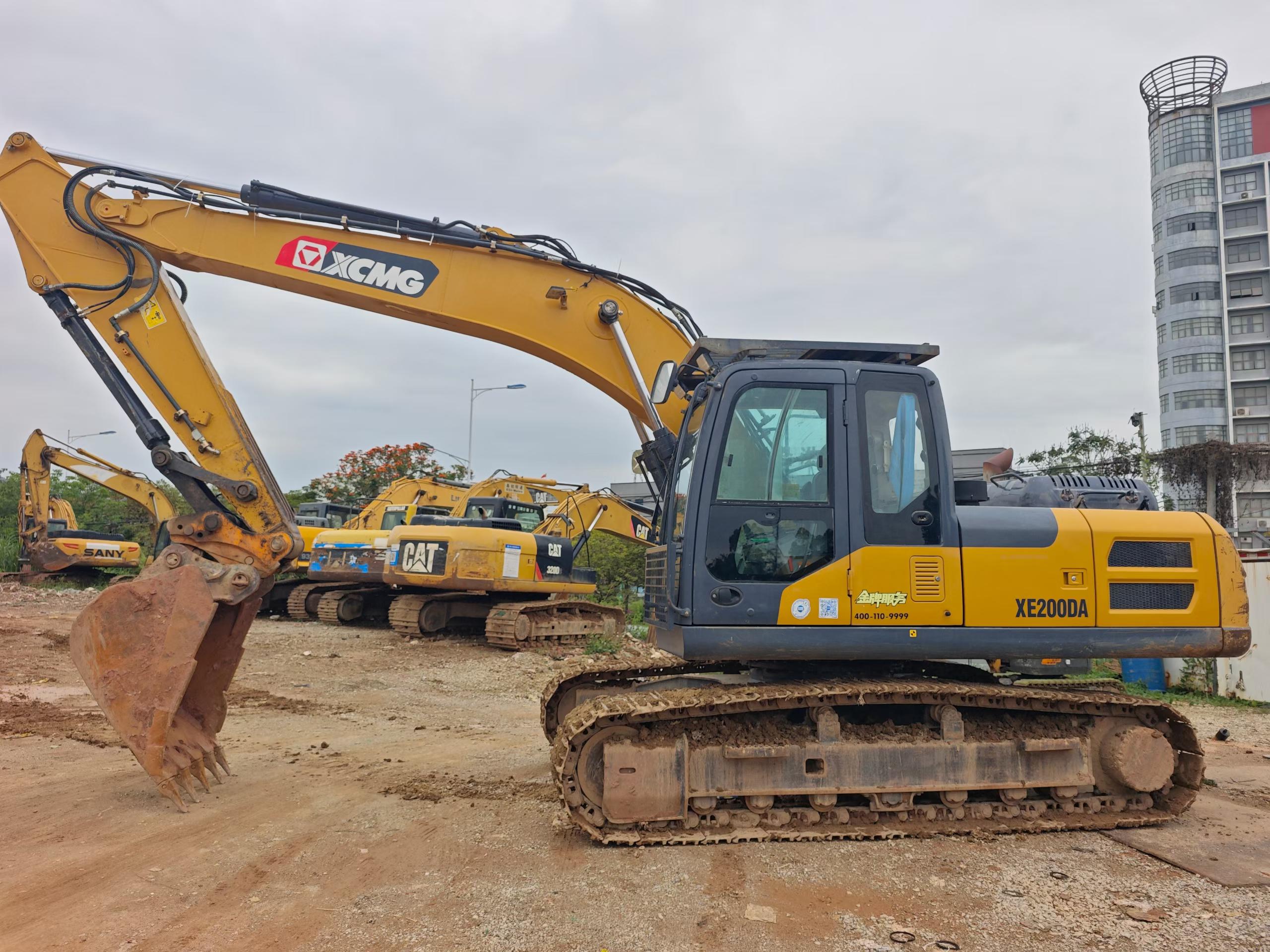

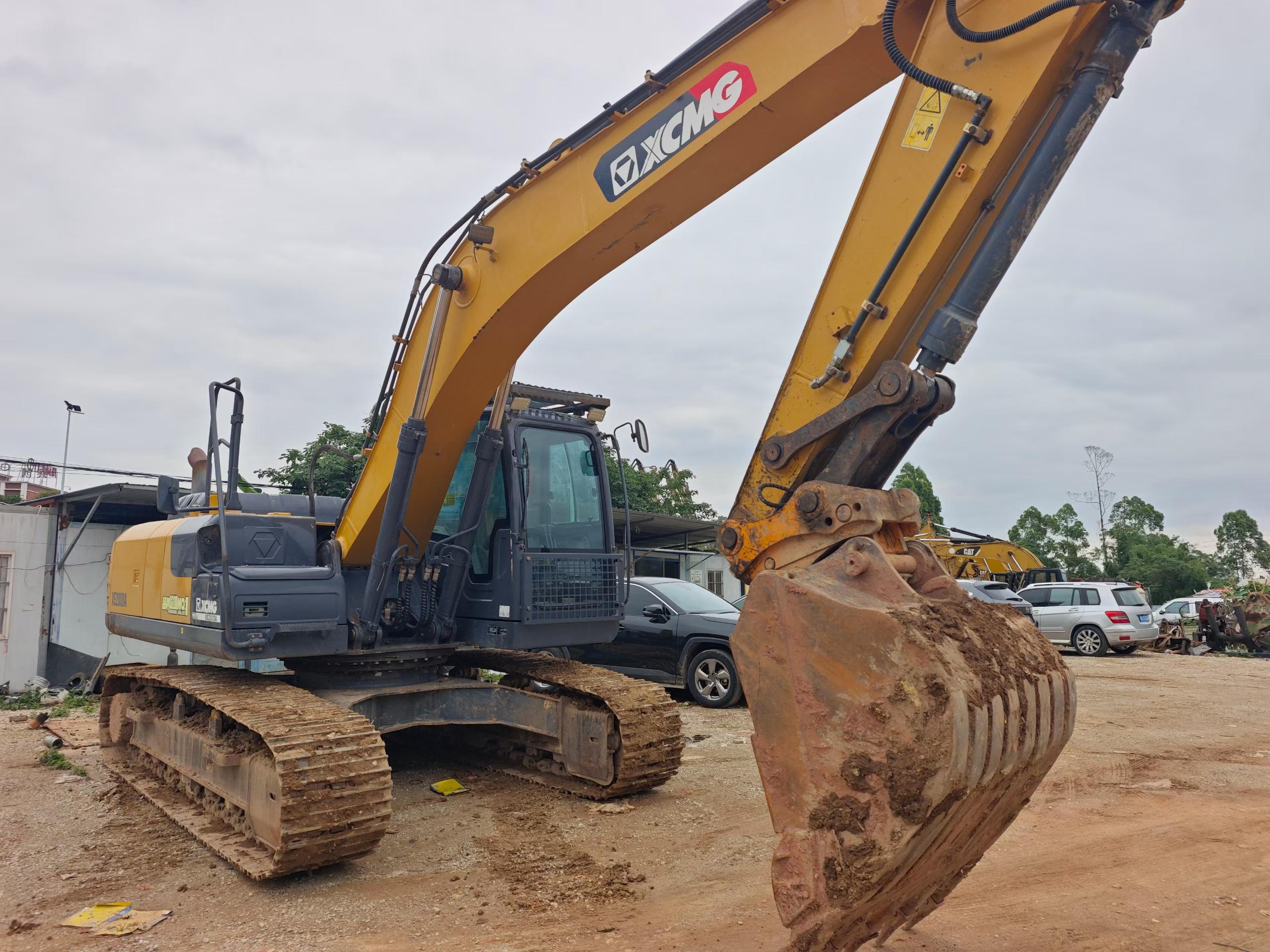

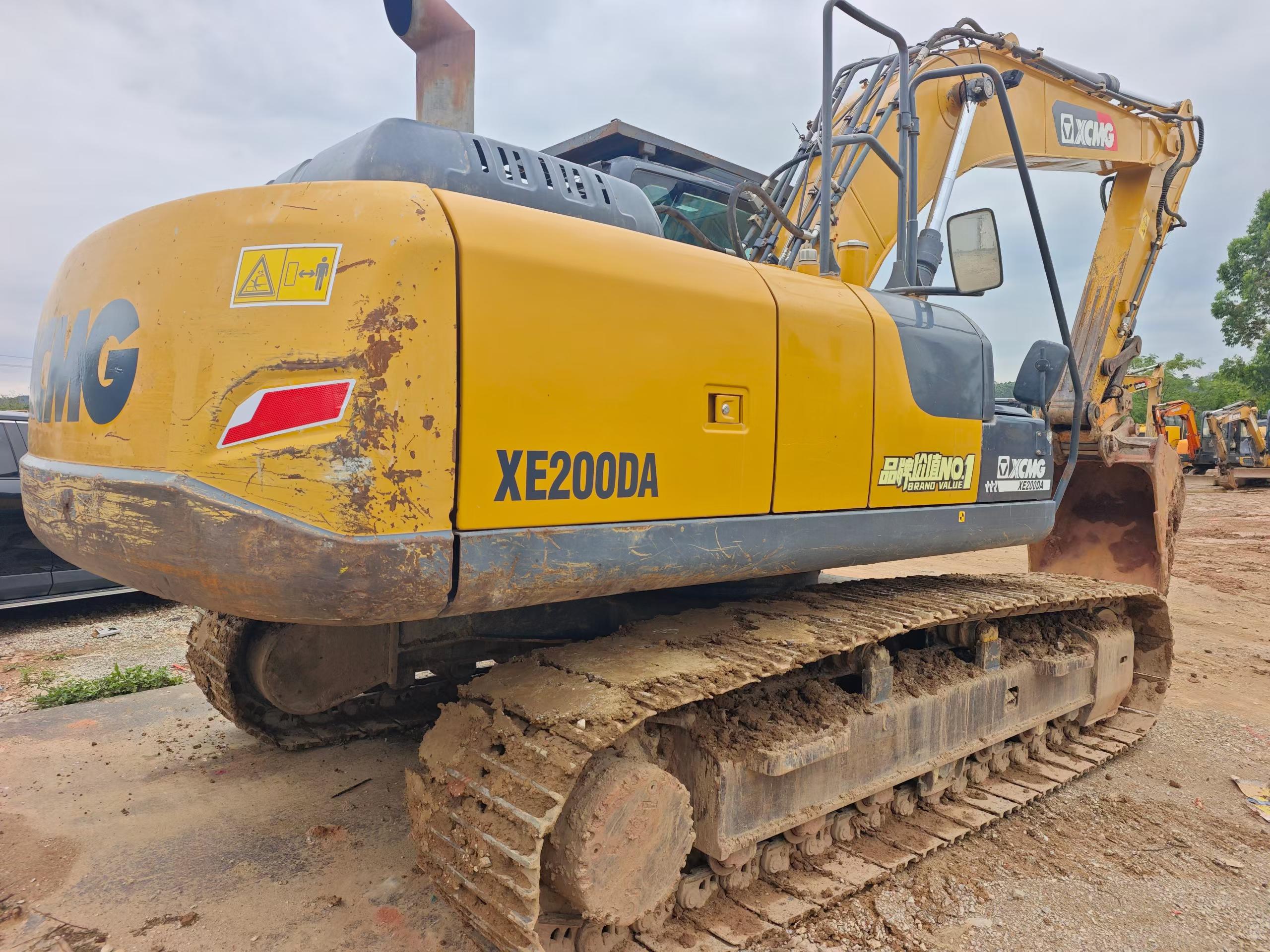

With a working weight of 21,200 kg and a bucket capacity of 0.93 m³, the XCMG XE200DA excavator is ready for immediate deployment from Guangxi, China. Featuring a QSB7 engine with 135 kW of rated power, this machine ensures reliable performance and quick turnaround times. Available now, it allows you to skip the factory lead times and get your project moving swiftly. The XE200DA boasts a maximum travel speed of 5.3 km/h and a climbing ability of 35%, making it ideal for challenging terrains. Its robust design includes a 400 L fuel tank and a 220 L hydraulic tank, ensuring long operational hours without frequent refueling. Deployed directly from Guangxi, this excavator can be on your site in no time, streamlining your logistics and enhancing your operational efficiency.
| Specifications | Value |
|---|---|
| No. | 1056982 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

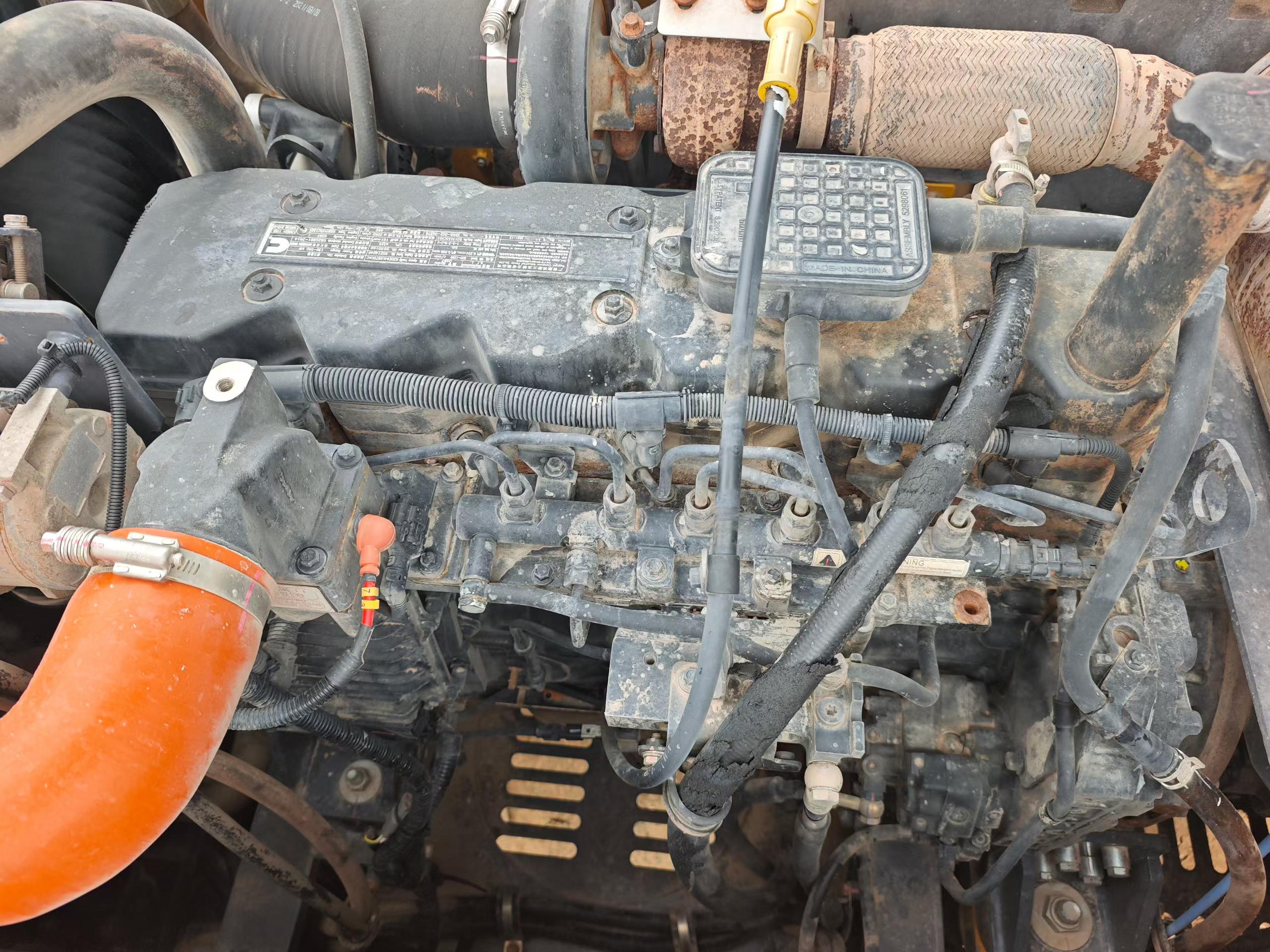

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
