Product Description

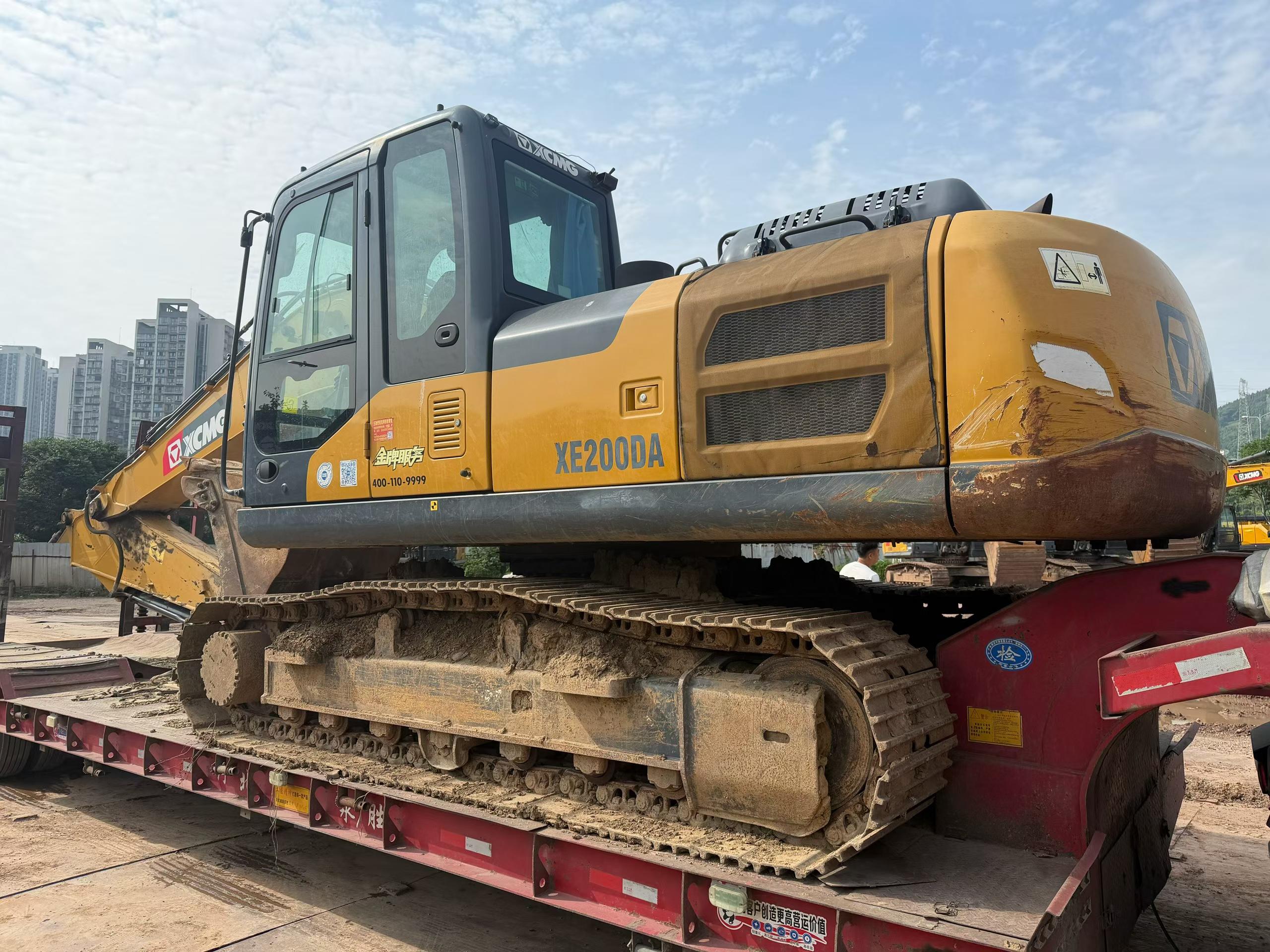

This 2023 XCMG XE200DA excavator is now available from our Chongqing, China facility. As a recently manufactured unit with minimal operating hours, this machine represents an excellent opportunity for contractors seeking reliable performance with modern engineering standards. The XE200DA is part of XCMG's proven DA series, designed for demanding excavation applications.
Key features include:
- Year of manufacture: 2023
- Model: XCMG XE200DA hydraulic excavator
- Current location: Chongqing, China
- Available for purchase or lease
- Financing options available
- Ready for immediate deployment
This excavator has been inspected and is available for viewing at our facility. We offer flexible acquisition terms including rental and installment purchase plans to meet your project requirements. Contact us for detailed specifications, pricing, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1094716 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

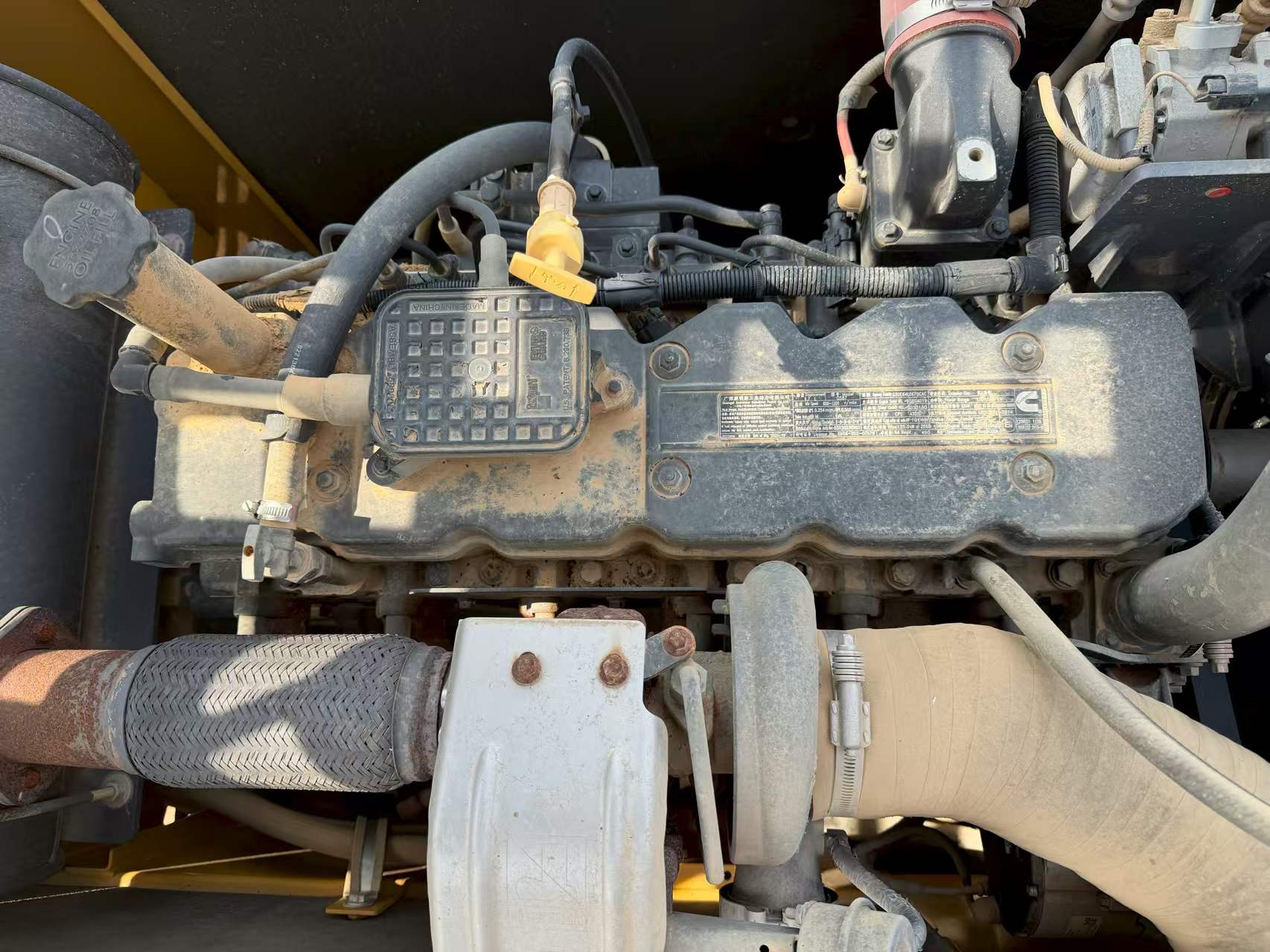

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
