Product Description
Built for high-output excavation work, this 2016 XCMG XE205DA delivers 20-ton performance across digging, grading, and demolition operations. Powered by a 135kW QSB7 turbocharged engine with water-cooling and 6.7L displacement, this machine generates 157kN bucket digging force and 116kN arm force—specifications that translate directly to faster cycle times on demanding jobsites.

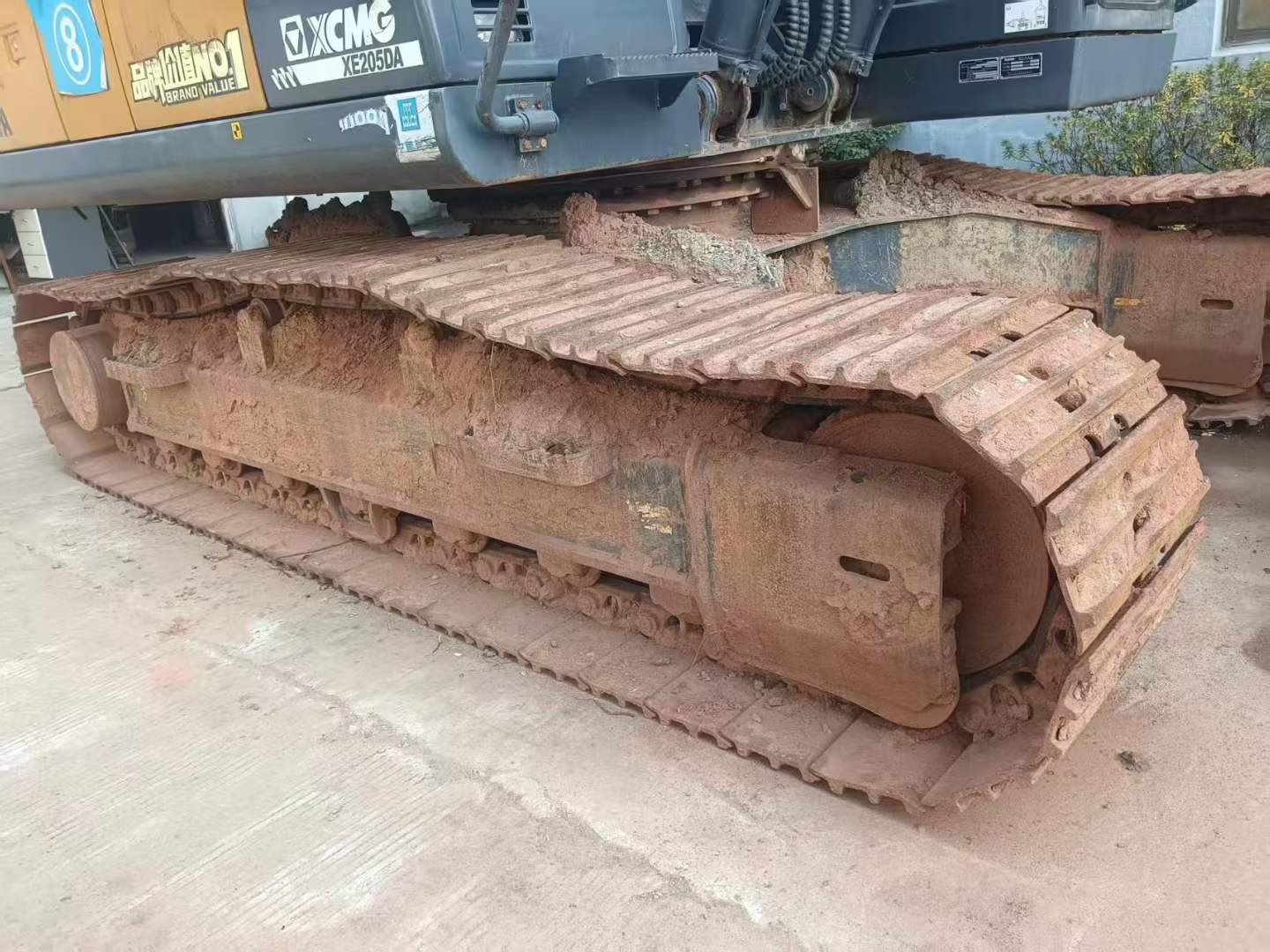

Reach extends to 9760mm with a maximum digging depth of 6660mm, while the 5680mm boom and 2910mm arm provide versatile positioning for trenching, foundation work, and material handling. The 1.0-1.2m³ bucket capacity matches productivity requirements for mid-sized earthmoving projects. Track width of 600mm and 47.5kPa ground pressure ensure stability without excessive site disturbance.
Currently located in Fuzhou, Fujian, this excavator arrives site-ready with proven hydraulic systems, 400L fuel capacity for extended shifts, and a 12rpm swing speed that keeps operators productive. Direct injection technology and robust construction make this XCMG a practical choice for contractors requiring immediate deployment on grading, utility, or demolition contracts.
| Specifications | Value |
|---|---|
| No. | 1028778 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
