Product Description

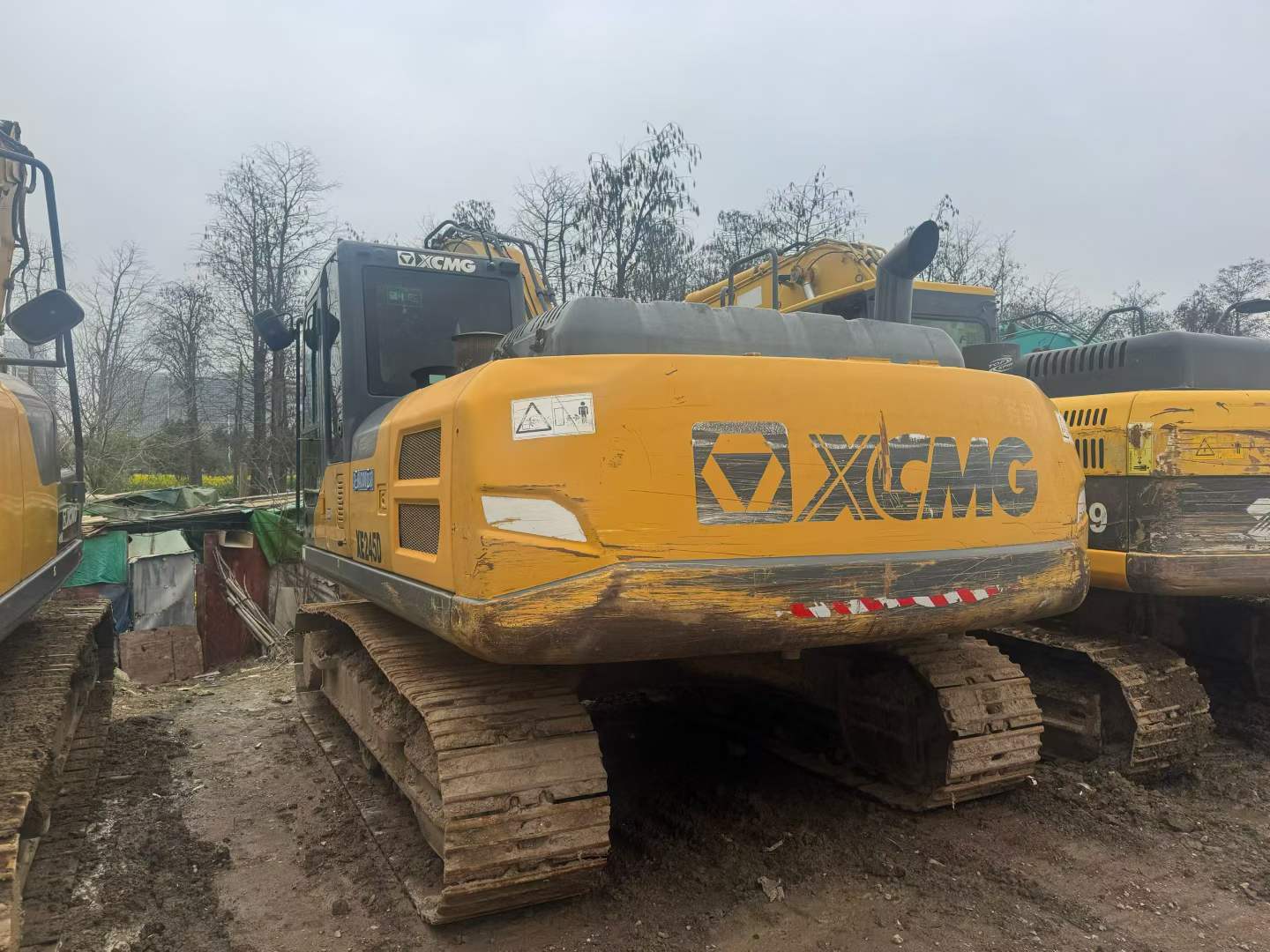

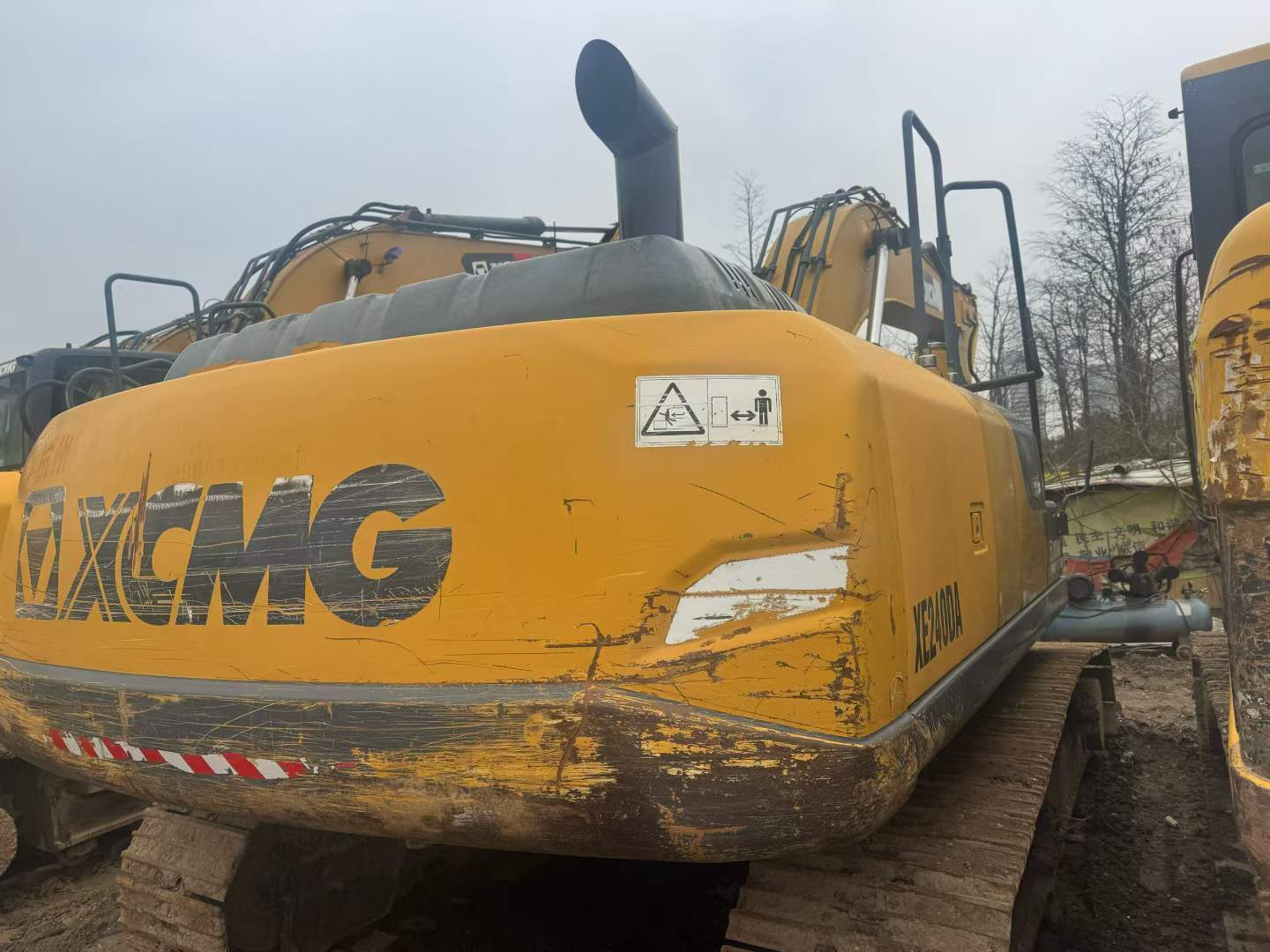

Proven in the field since 2020, this XCMG XE205DA excavator demonstrates the durability that keeps projects moving forward. Operating at 20 tons with a robust 21,500 kg working weight, this machine combines a powerful QSB7 6-cylinder engine delivering 135 kW at 2050 rpm with a substantial 6.7L displacement for consistent performance across demanding applications. Built to last with a water-cooled turbocharged system, this workhorse offers impressive reach specifications: 9,760 mm maximum digging radius and 6,660 mm maximum digging depth, supported by 157 kN bucket digging force and 116 kN rod digging force.
- Proven Reliability: 2020 model with established track record

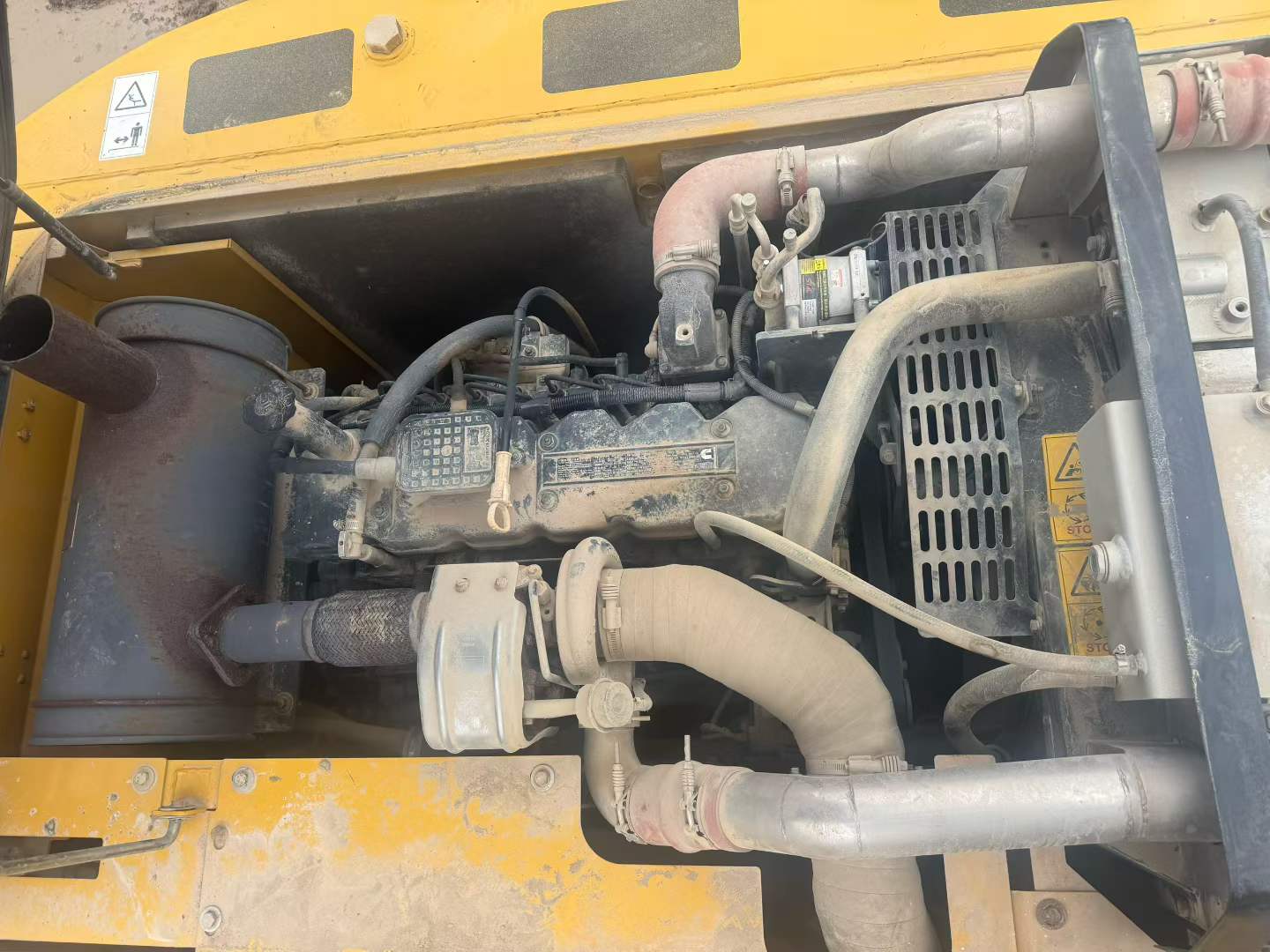

- Power Configuration: QSB7 engine, 135 kW rated output, 6-cylinder design
- Working Capacity: 1.0-1.2 m³ bucket, 20-ton operating class
- Operational Range: 9,760 mm dig radius, 6,780 mm unload height
- Hydraulic Strength: 157 kN bucket force, 184 kN maximum tractive force
- Fuel Efficiency: 400L fuel tank for extended operation
- Location: Hangzhou, Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1021932 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |

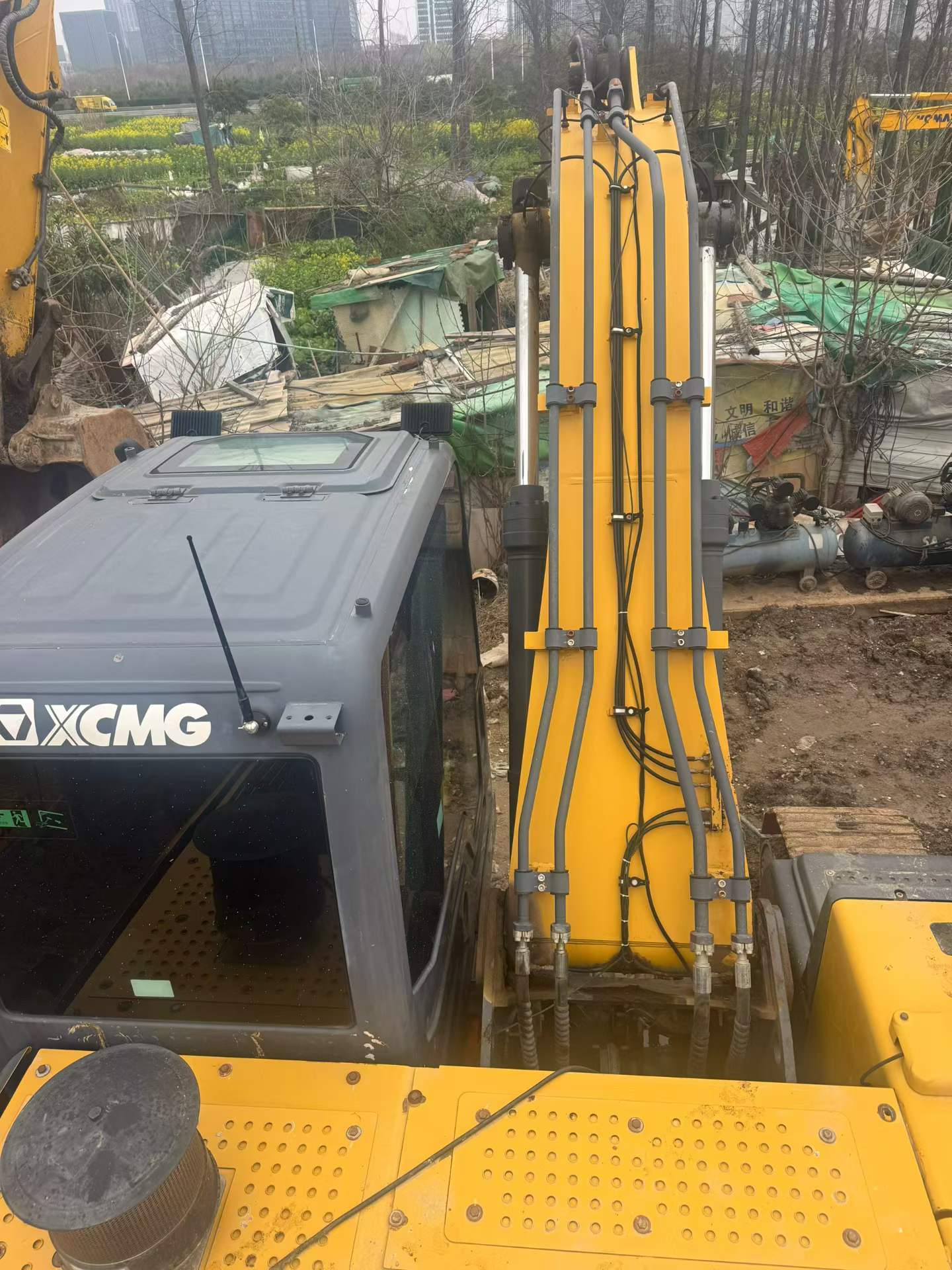

| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
