Product Description

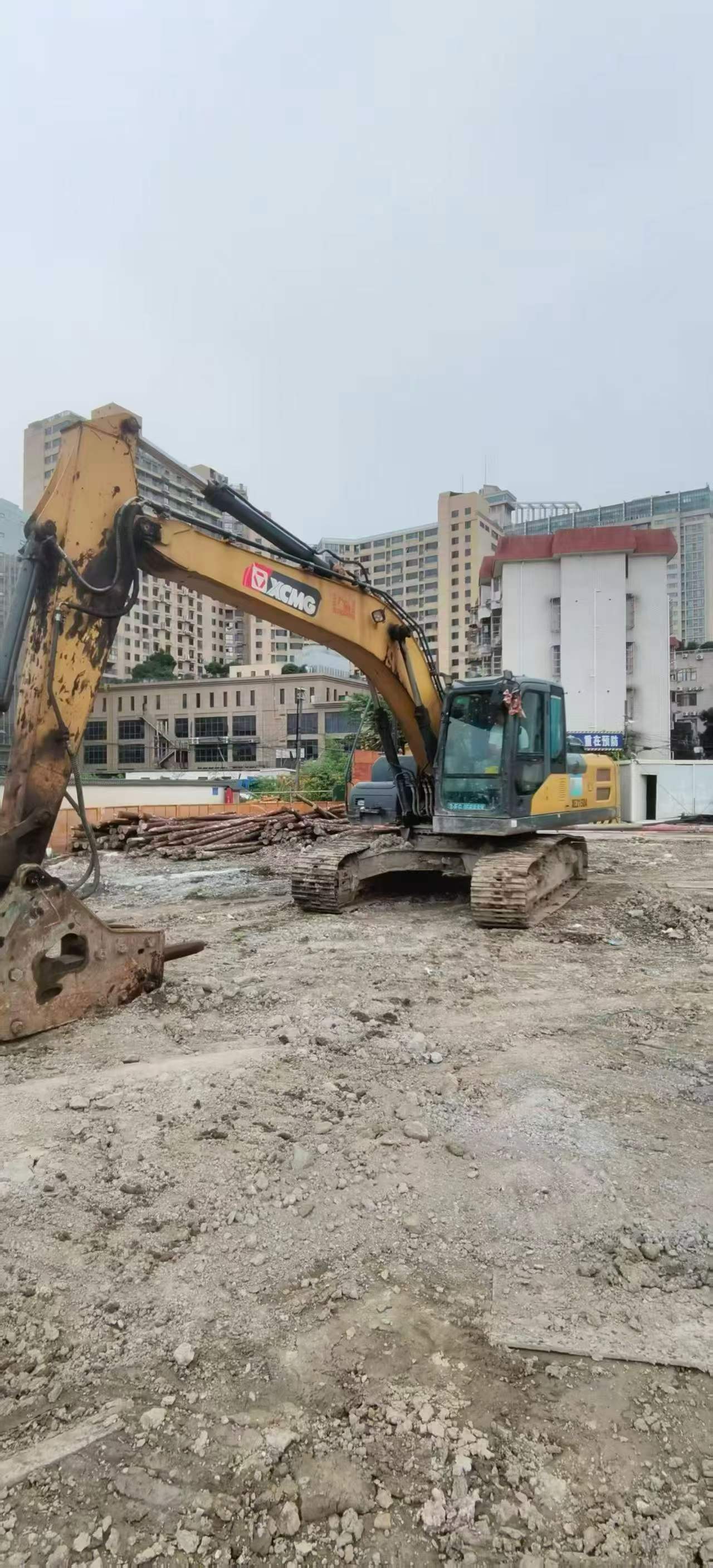

Discover the 2020 XCMG XE205DA, a robust and reliable excavator designed for heavy-duty applications. Equipped with the Kawasaki hydraulic system, this machine offers precision and power, making it ideal for demanding construction and excavation projects. With over 7,000 hours of operational use, this XE205DA has proven its durability and efficiency on various job sites. Additionally, it comes with a hammer, enhancing its versatility for different tasks. Located in Zhejiang, China, this used excavator is available at a competitive price of 185,000 RMB, providing excellent value for your investment.
- Year: 2020
- Brand: XCMG
- Model: XE205DA
- Location: Zhejiang, China

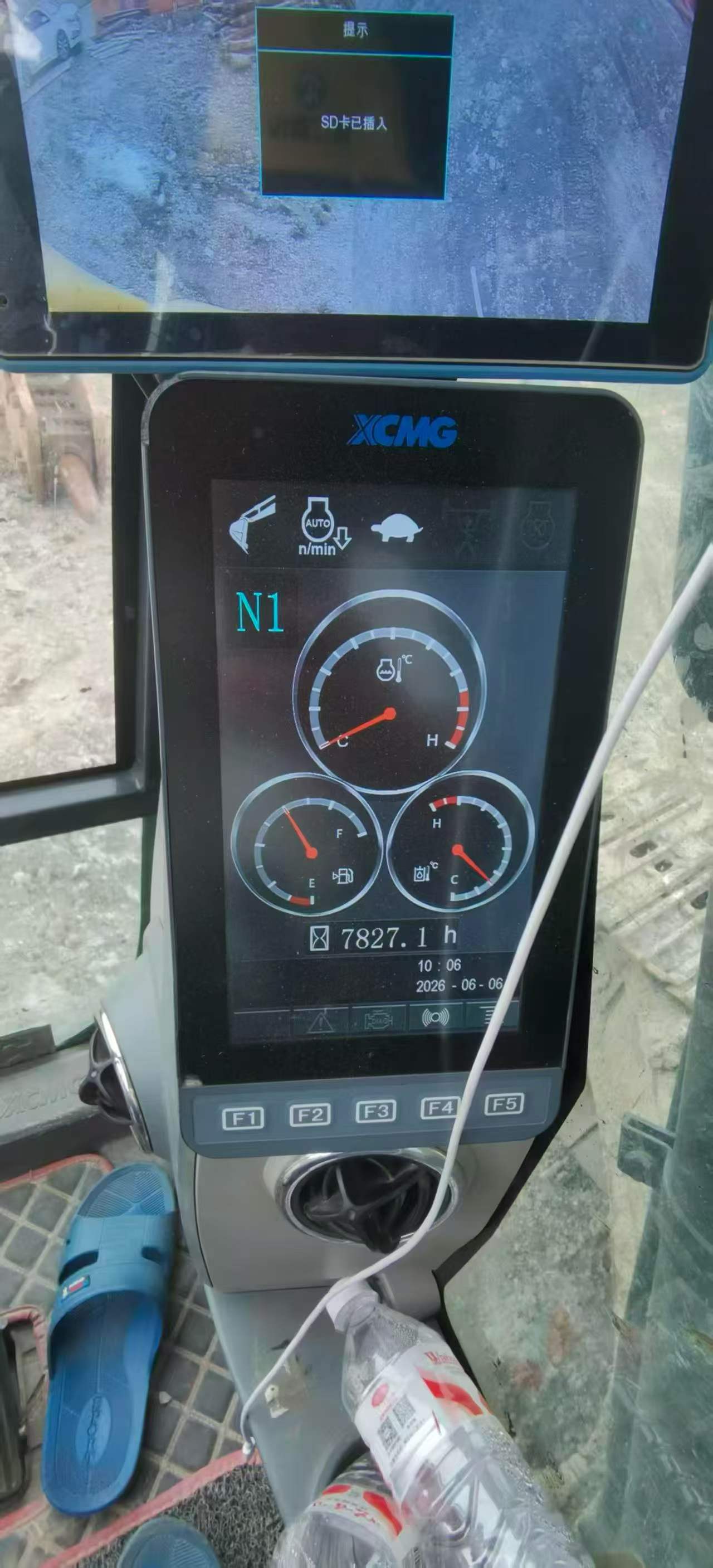

- Operational Hours: Over 7,000
- Price: 185,000 RMB
- Features: Kawasaki hydraulic system, includes a hammer
| Specifications | Value |
|---|---|
| No. | 1105020 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

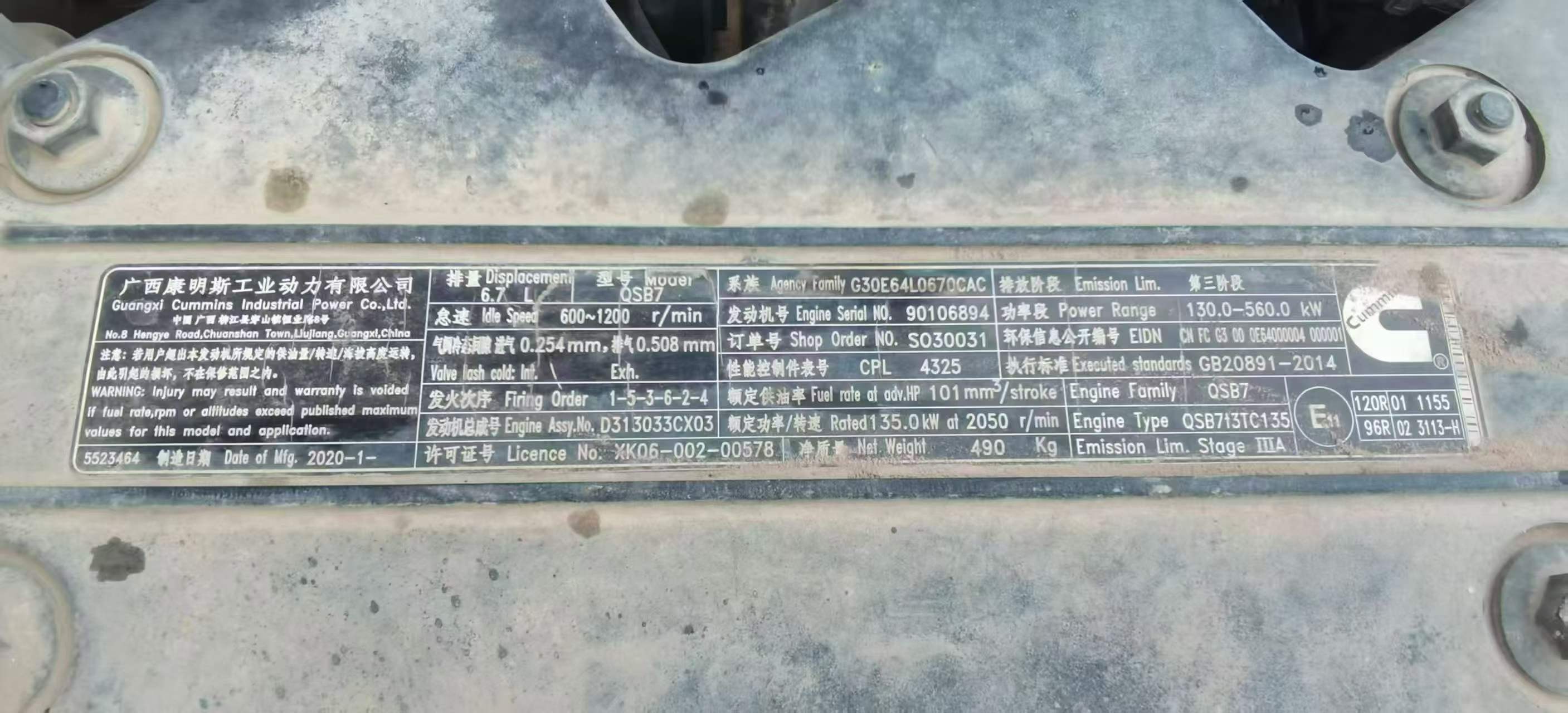

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
